01 / 01
8
I/O channels
16×16 Dante
Optional
Dual 40-bit
DSP engine
1U
Size

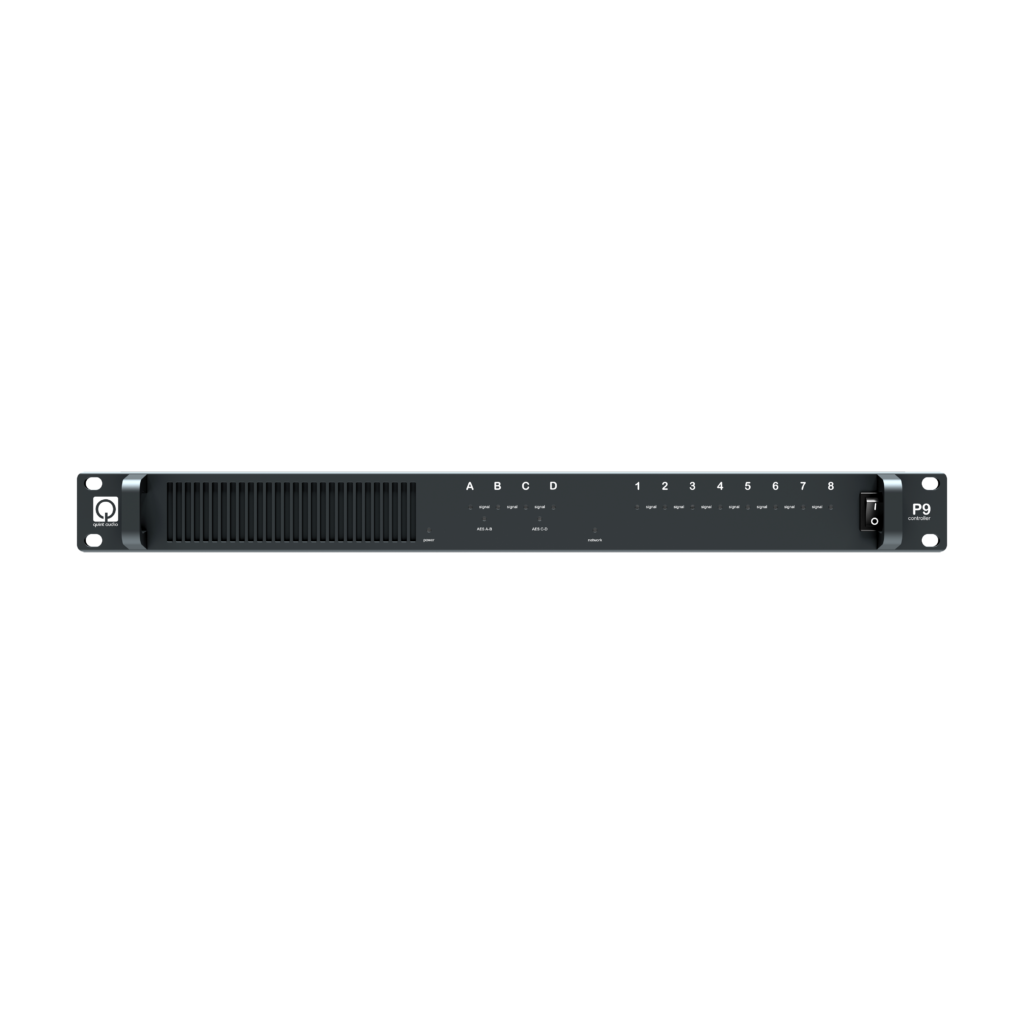

Loudspeaker management processor.
4x analog input, 8x analog output, 2x AES input. 16×16 Dante card optional. Built-in temperature regulated ventilator.
Quint console software enabled. TCP-IP connection for system setup; works with and without DHCP. Factory presets available for every Quint speaker.
Specifications
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Processor / DSP |
| Power / IO | 4/8× analog I/O |
| Application | Touring & Installation |
| Series | P-series |
Processing
| I/O processing channels | 8 |
| DSP engine | Dual 40-bit floating point DSP |
| Analog input connectors | 4 x XLR3 |
| AES input connectors | 2 x XLR3 |
| Analog output connectors | 8x XLR3 |
| Mains connector | PowerCon TRUE |
| Networking | RJ45 |
| Mains | 100-240 V |
| AC mains frequency range | 50/60 Hz |
| Weight | 4 kgs |
| Dimensions (wxhxd) | 19” x 44.45mm x 229mm / 1U |
