A-series · Amplifier

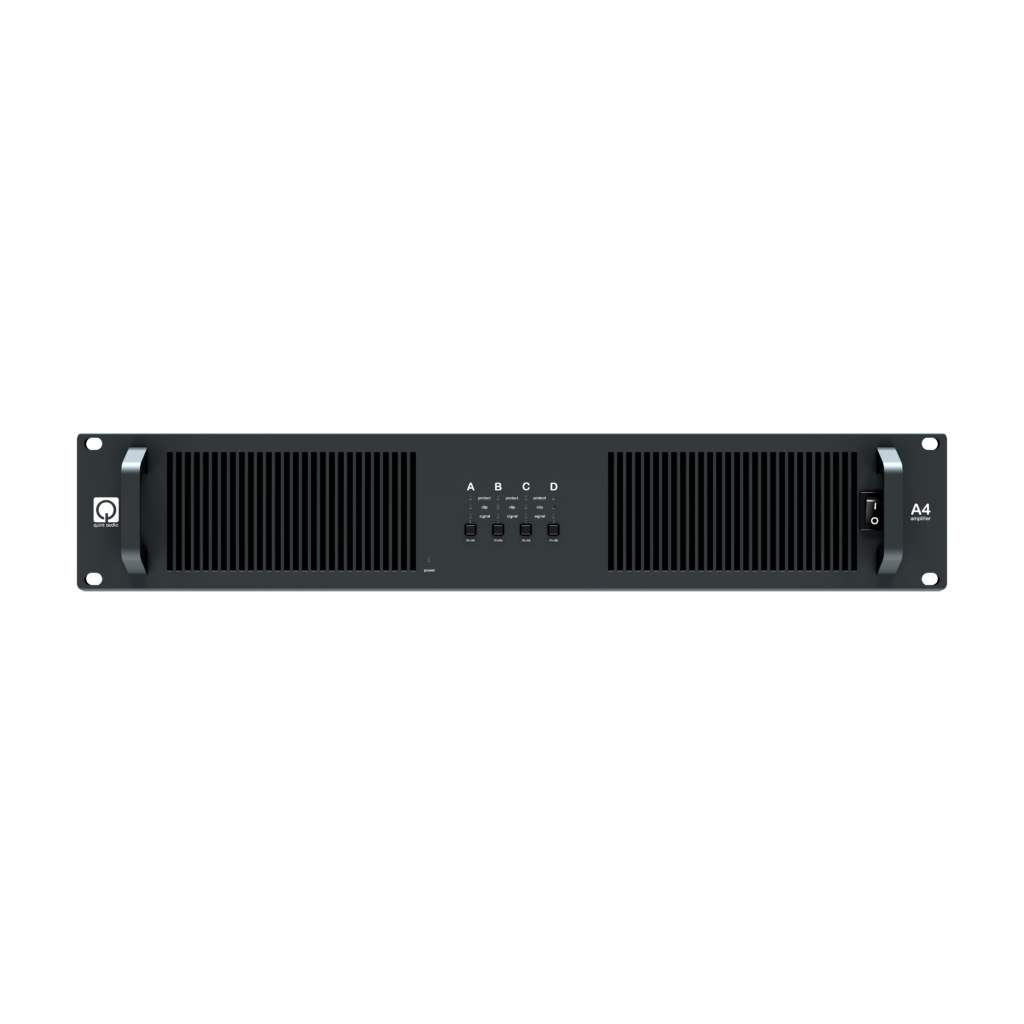

A4
High fidelity amplifier
01 / 01
4×1600 W
Power (8 ?)
4
Channels
32 dB
Gain
14.5 kg
Weight
High fidelity amplifier.
Switching mode power supply. High efficiency design with low working temperature. Compact, light weight, road proof design with temperature controlled variable fan cooling.
Thermal protection, short circuit protection, DC protection and overvoltage protection. 32 dB gain.
Specifications
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Amplifier |
| Power / IO | 4×1600 W (8 Ohm) |
| Application | Touring & Installation |
| Series | A-series |
Amplifier
| Output power (8 ?) | 4x 1600W |
| Output power (4 ?) | 4x 2500W |
| Amplifier gain | 32dB |
Connectivity
| Analog lines | 3 pin XLR |
| Output connector | 4 pole speakON |
| Power connector | PowerCon32 |
| Mains | 115/230V |
| AC mains frequency range | 45-65Hz |
Physical
| Dimensions (wxhxd) | 483x88x350mm |
| Weight | 14.5 kgs |
Advised electronics
Works with.
