D-series · Accessory

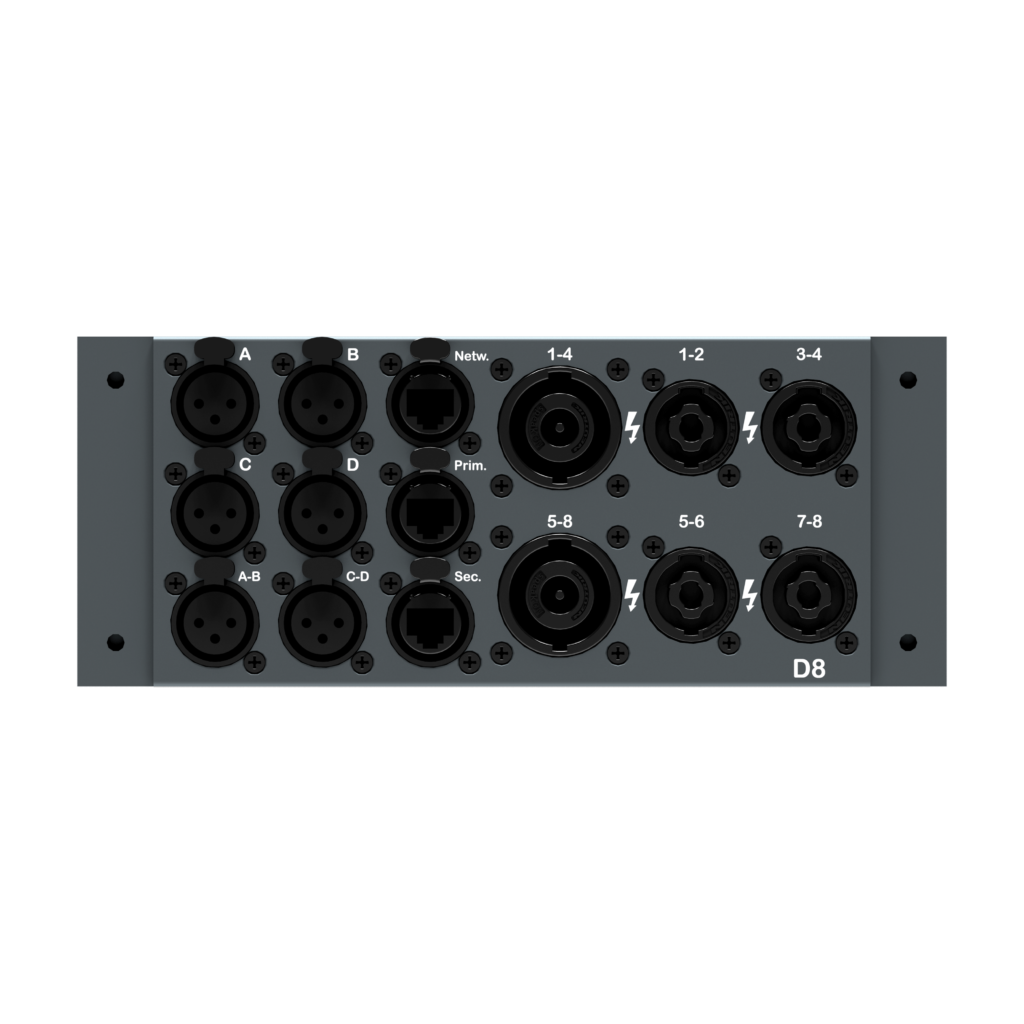

D8
4/8× I/O connector panel
01 / 01
4× XLR3
Analog in
2× AES
Digital in
6× speakON
Output
0.5×2 U
Size
Connector panel for P-series.
Connector panel for easy access. Fits perfectly with D5 or D0. Easy mounting in touring cases.
Specifications
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Accessory |
| Power / IO | 4/8× I/O |
| Application | Touring & Installation |
| Series | D-series |
I/O front connectors
| Analog input | 4 x XLR3 |
| AES input | 2 x XLR3 |
| Network | 3x RJ45 |
| Output | 4x 4 pole SpeakOn, 2x 8 pole SpeakOn |
| Mains connector | 32A CEE adapter |
| Mains | 100-240 V |
| AC mains frequency range | 50/60 Hz |
| Dimensions (wxh) | 0.5x2 U |
Advised electronics
Works with.
Rigging & manuals
Mounting.
D0
D0
Plate
D-mount
D-mount
Mounting brackets
