01 / 01
2×3000 W
Power (8 ?)
2
Channels
32 dB
Gain
12 kg
Weight

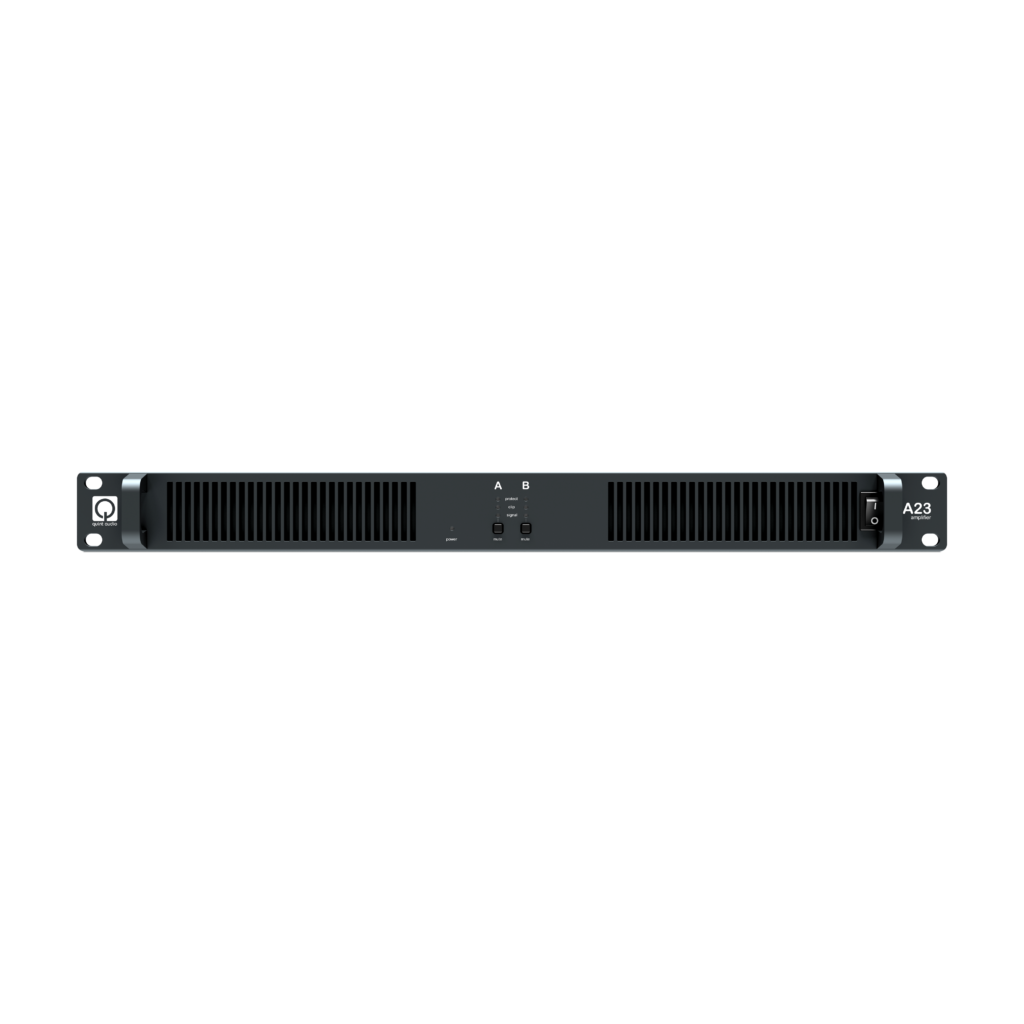

High power compact amplifier.
Thermal protection, short circuit protection and DC protection. Switching mode power supply with active power factor correction.
High efficiency design with low working temperature. Compact, light weight, road proof design with temperature controlled variable fan cooling. 32 dB gain.
Specifications
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Amplifier |
| Power / IO | 2×3000 W (8 Ohm) |
| Application | Touring & Installation |
| Series | A-series |
Amplifier
| Output power (8 ?) | 2x 3000W |
| Output power (4 ?) | 2x 5100W |
| Output power (2 ?) | 2x 7150W |
| Amplifier gain | 32dB |
Connectivity
| Analog lines | 3 pin XLR |
| Output connector | 4 pole speakON |
| Power connector | PowerCon32 |
| Mains | 100-240V |
| AC mains frequency range | 45-65Hz |
Physical
| Dimensions (wxhxd) | 483x44x465mm |
| Weight | 12 kgs |
