C5

6.5″/1″ background music loudspeaker

Specifications
Specifications
Description

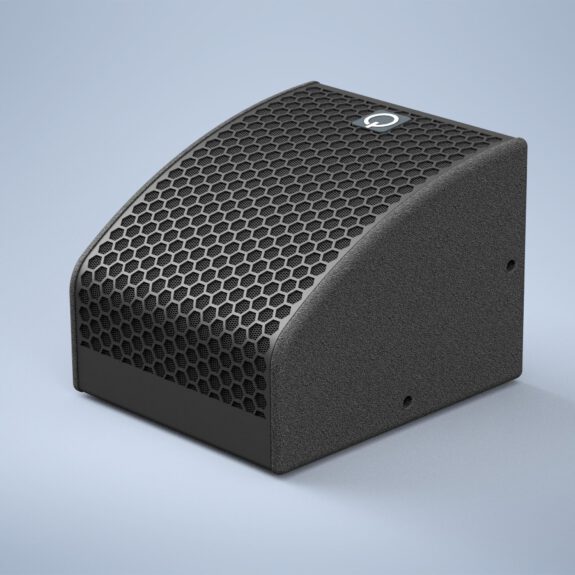

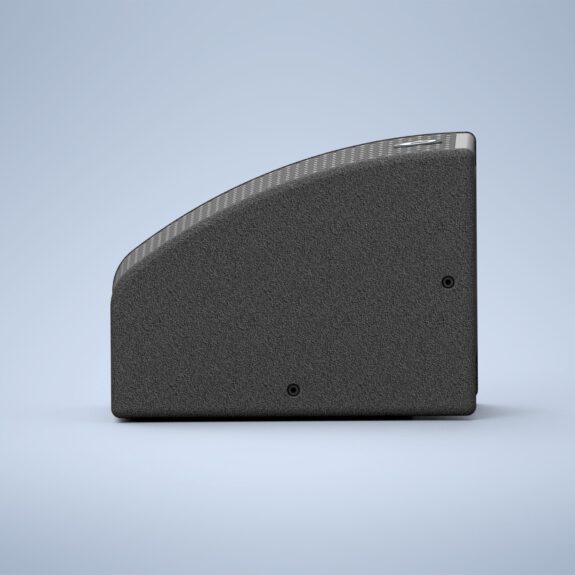

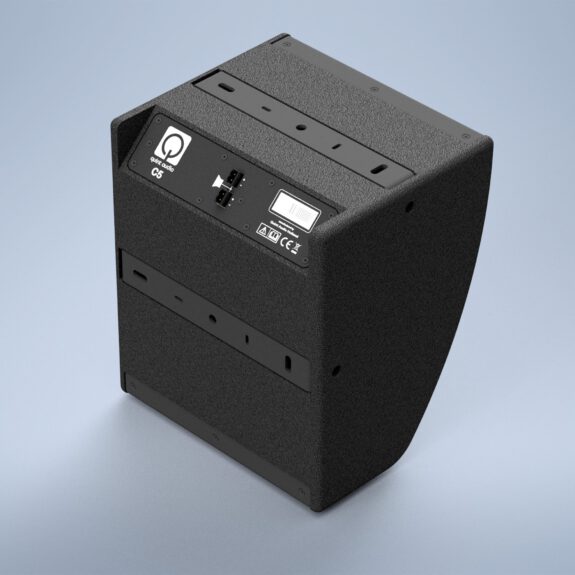

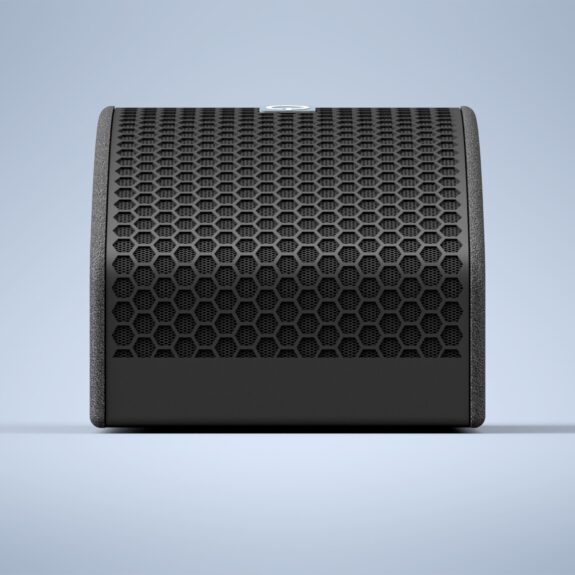

The Quint Audio C5 is a very compact 6.5″/1″ installation loudspeaker that is based on a unique coaxial woofer/tweeter combination with a very well defined dispersion of 100 degrees conical.

It is designed for high quality audio reproduction mechanical music especcially and in near field electro-acoustical situations where controlled and wide dispersion is of the essence.

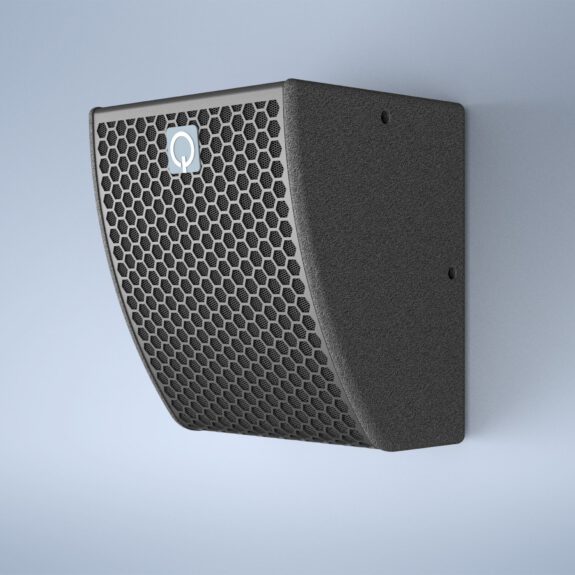

With its unique internal rigging system C5 is very easy to install. It can be flush mounted on walls and in (and on) corners and it can be coupled with other cabinets with ease.


Application area

near field loudspeaker

speech
mechanical music


Specifications
C5
6.5"/1" coaxial
passive 1ch DSP control
100W
200W
8 Ohms
91dBWm
114dB 1m
120dB 1m
75Hz-20kHz
100° conical
3 kg / 6 lb
236 x 270 x 198 mm / 9.3 x 10.6 x 7.8 inch

Advised electronics

P4 processor
A1 amplifier
A23 amplifier
A41 amplifier
A42 amplifier


Downloads

Rigging
