C14

15″/4″/2.5″ full range loudspeaker module

Specifications
Specifications
Description

The Quint Audio C14 is a sophisticated loudspeaker module that is tailored for high end installations and particularly suitable for environments that are acoustically and architecturally challenging, such as clubs and theaters.

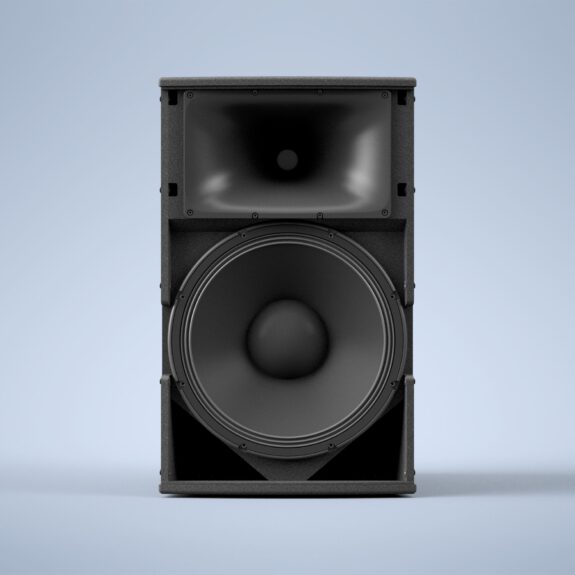

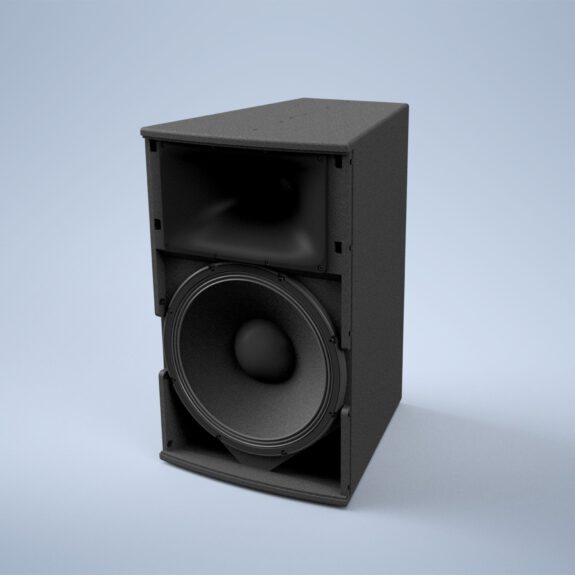

The C14 excels in powerful full range reproduction of all possible sound sources. Due to its mighty large format coaxial mid-high range driver complemented by its powerful 15″ woofer, it has a very large headroom especially in the vocal area and gives voices clarity and intelligibility paired to the often desired deep foundation associated with ’warmth’.


Application area

near/midfield full range point source loudspeaker

speech
live music
mechanical music


Specifications
C14
15"/4"/2.5" full range module
2-channel DSP control
1200W LF / 110W HF
2400W LF / 220W HF
8 Ohms
97dB LF / 108dB HF dBwm
127dB LF / 128dB HF 1m
133dB LF / 134dB HF 1m
40Hz-18kHz
70°H x 40°V
25 kg / 55 lb
730 x 420 x 510 mm / 28.7 x 16.5 x 20.1 inch

Advised electronics

P4 processor
A1 amplifier
A23 amplifier
A41 amplifier
A42 amplifier


Downloads

Rigging
