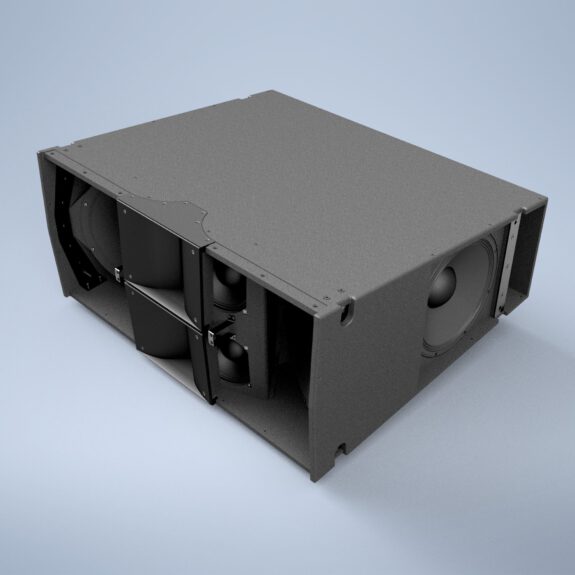

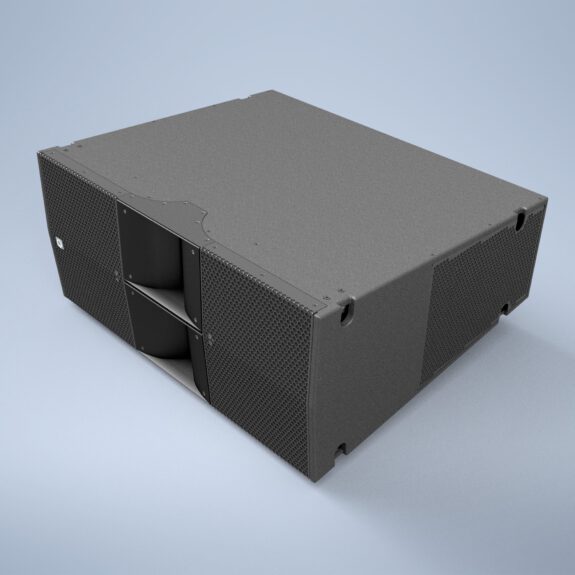

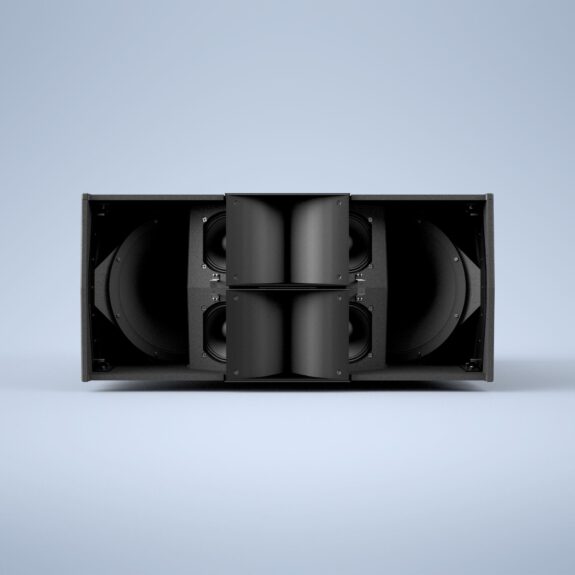

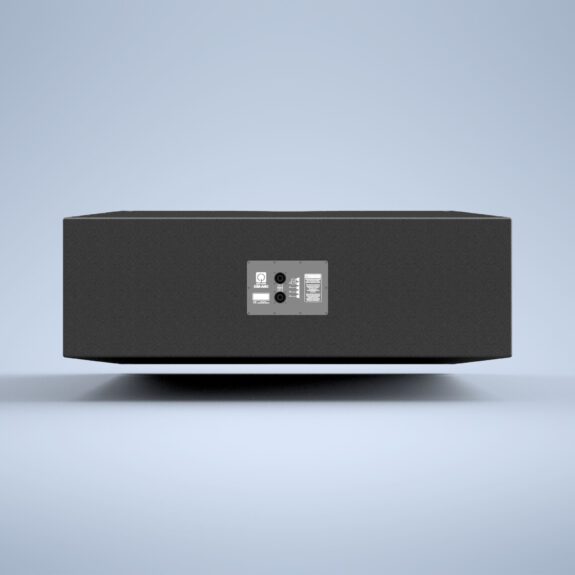

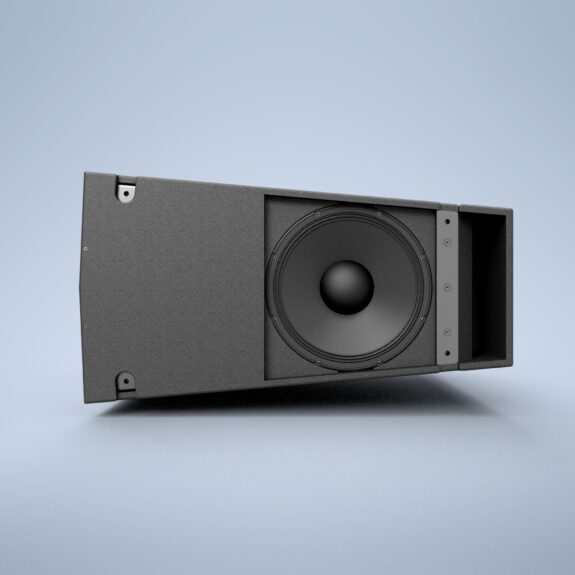

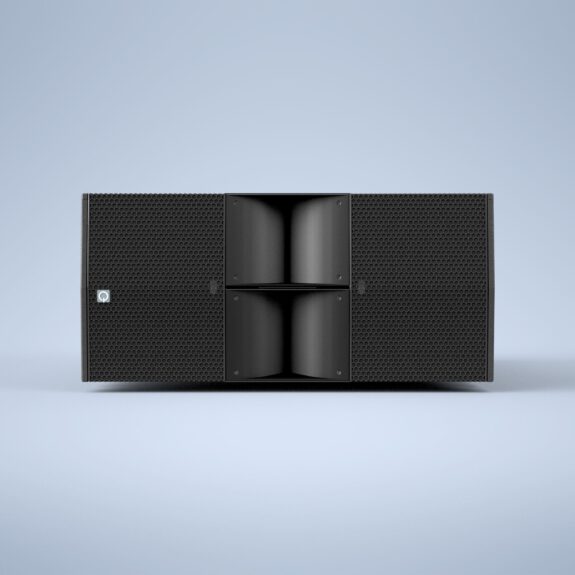

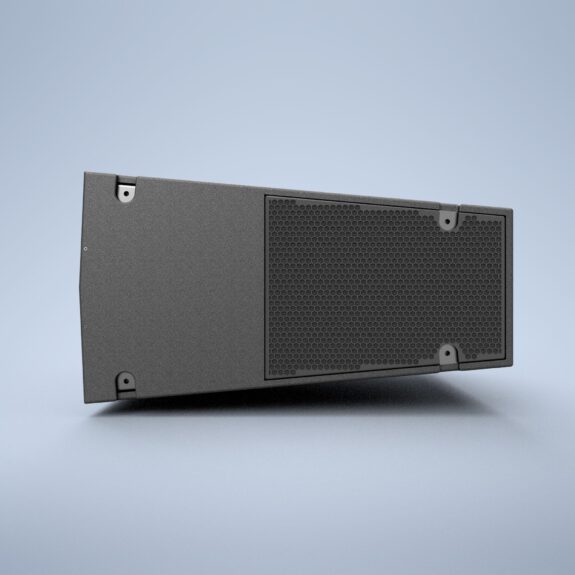

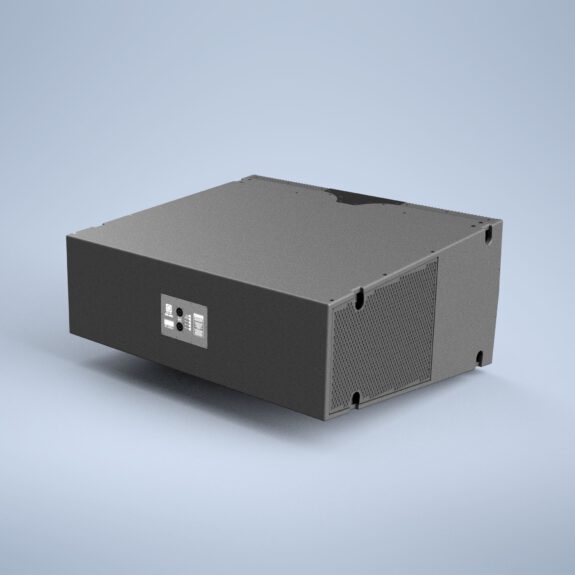

C36

2×18″/2×15″ANC/4×8″/2×4”/2×2.5” Arrayable Active Directivity Control Loudspeaker

Specifications
Specifications
Description

The full range Quint Audio C36 is a high performance ADC (Active Directivity Controllled) arrayable loudspeaker designed for mid & far field PA applications in clubs, halls and stages. It can be used without additional subs.

For more output performance the C36 can of course be combined with any other Quint Audio subwoofer.

The Active Directivity Controlled C36 can be used with standard settings or can be tuned in to a specific room with specific distances to the walls for maximum efficiencyand minimum spillover and unwanted room reflections.


Application area

mid/far-field scalable array

live music
mechanical music


Specifications
C36
2x18"/2x15"ANC/4x8"/2x4”/2x2.5” dual coaxial arrayable module
4-channel DSP control
2x 3400W LF / 2000W MF / 220W HF
2x 6800W LF / 4000W MF / 440W HF
4 Ohms
Front & ANC 100dBWm/MF-HF 115dBWm
Front 134dB & ANC 134dB/MF-HF 136dB 1m
Front 140dB & ANC 140dB/MF-HF 142dB 1m
40Hz-19kHz
110°H x 10°V
130 kg / 286 lb
1180 x 540 x 1000 mm

Advised electronics

P4 processor
A1 amplifier
A23 amplifier
A41 amplifier
A42 amplifier
