C15

15″/4″/2.5″ constant curvature arrayable module

Specifications
Specifications
Description

The Quint Audio C15 is a constant curvature arrayable loudspeaker module that is tailored for high end installations and particularly suitable for environments that are acoustically and architecturally challenging, such as churches, clubs and theaters.

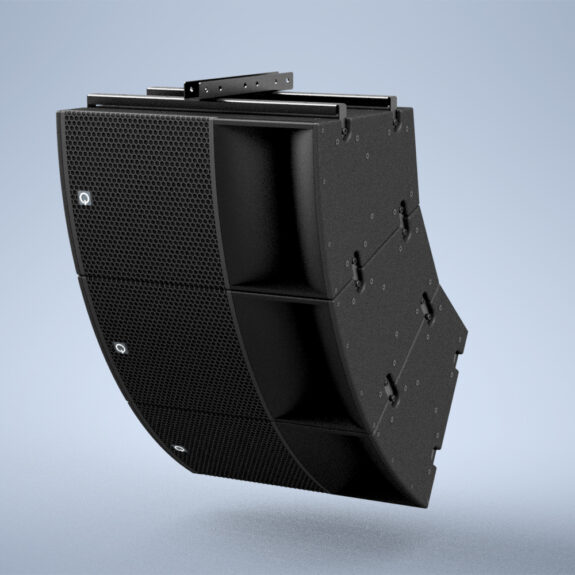

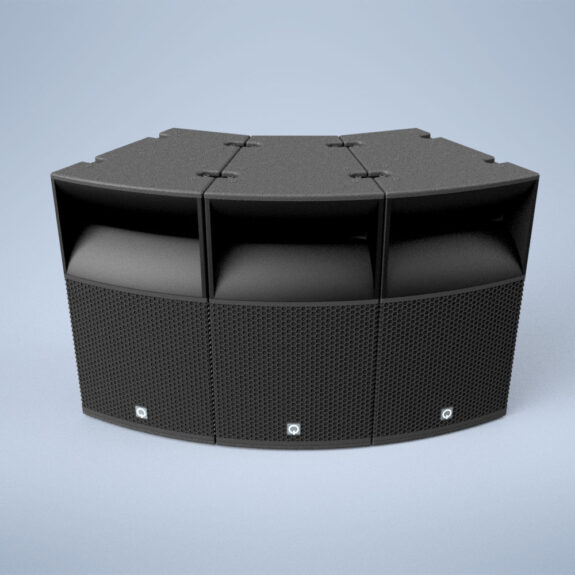

The C15 can be used as a horizontal fixed angle array as well as a vertical fixed angle array and delivers real full range capability.


Application area

near/midfield scalable constant curvature array

speech
live music
mechanical music


Specifications
C15
15"/4"/2.5" constant curvature module
2-channel DSP control
1200W LF / 110W HF
2400W LF / 220W HF
8 Ohms
97dB LF / 108dB HF dBWm
127dB LF / 128dB HF 1m
133dB LF / 134dB HF 1m
40Hz-18kHz
90°H x 20°V
25 kg / 55 lb
730 x 420 x 510 mm / 28.7 x 16.5 x 20.1 inch

Advised electronics

P4 processor
A1 amplifier
A23 amplifier
A41 amplifier
A42 amplifier
