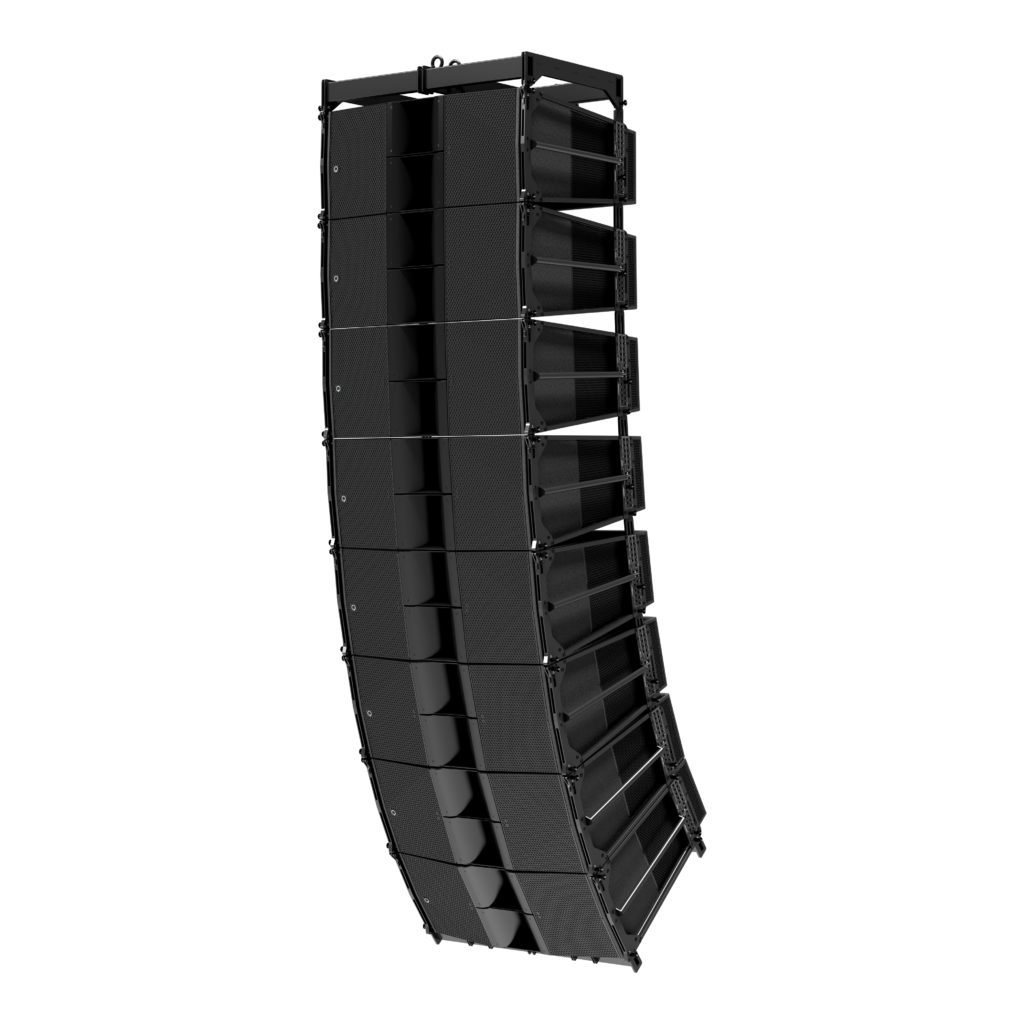

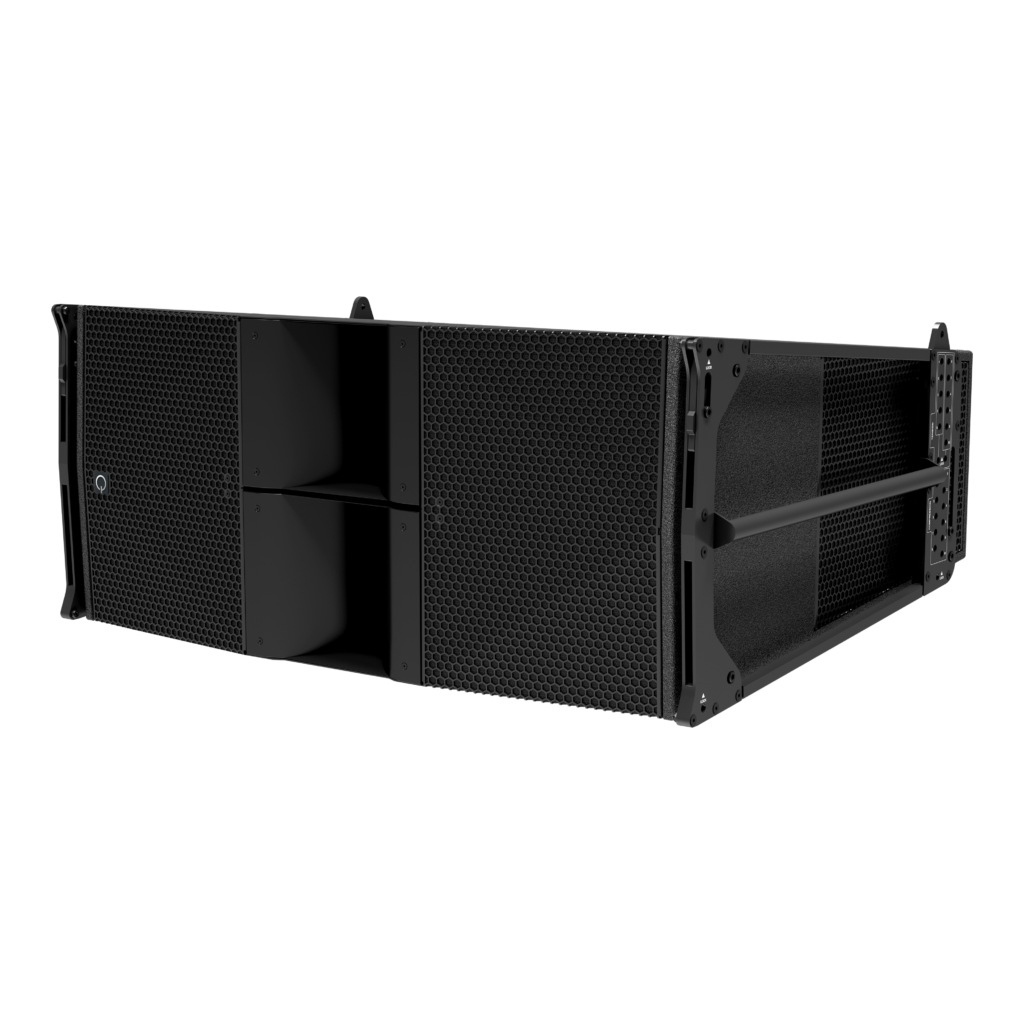

High perf. active directivity control line array.

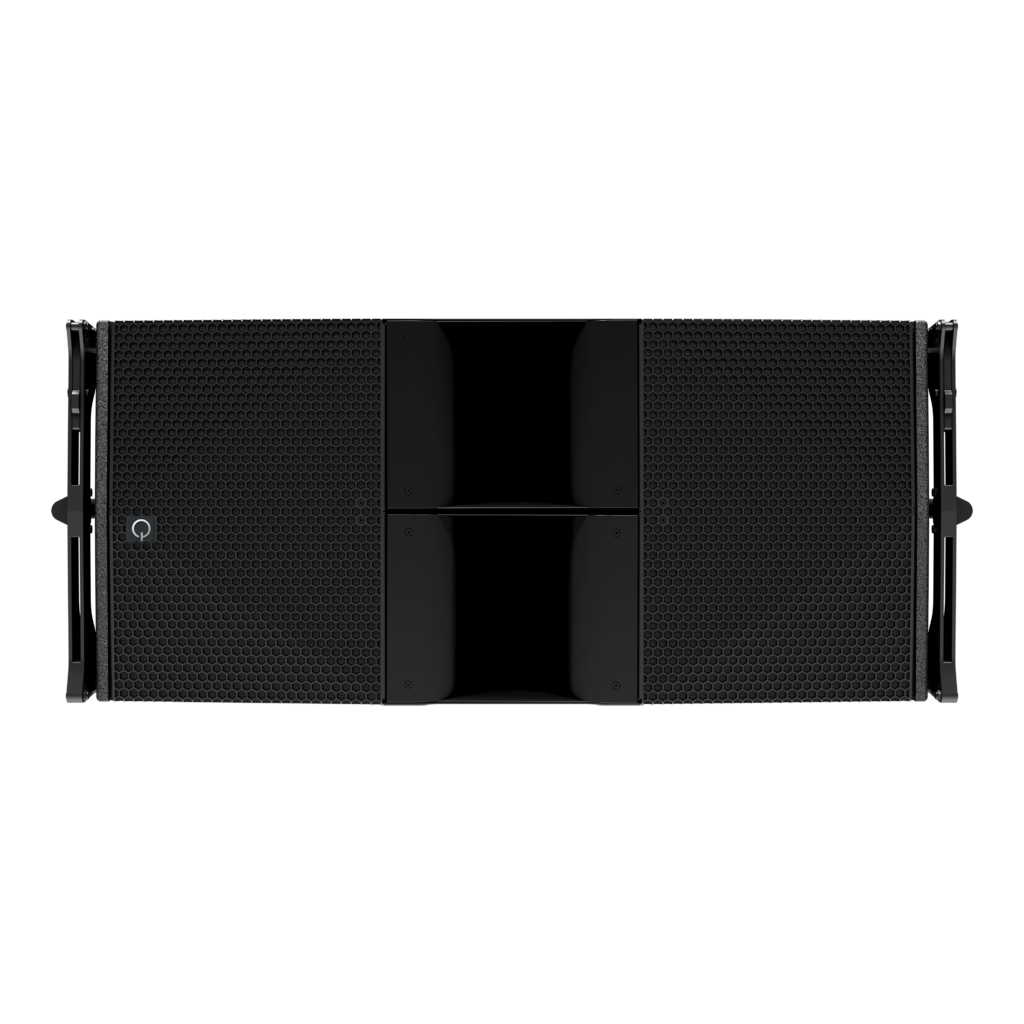

2x 18"/2x 15" bass reflex 4x 8" closed box design combined with 2x 4"/2.5" coaxial compression driver. Symmetrical design. Maintained low frequency performance at full power. full range constant directivity.

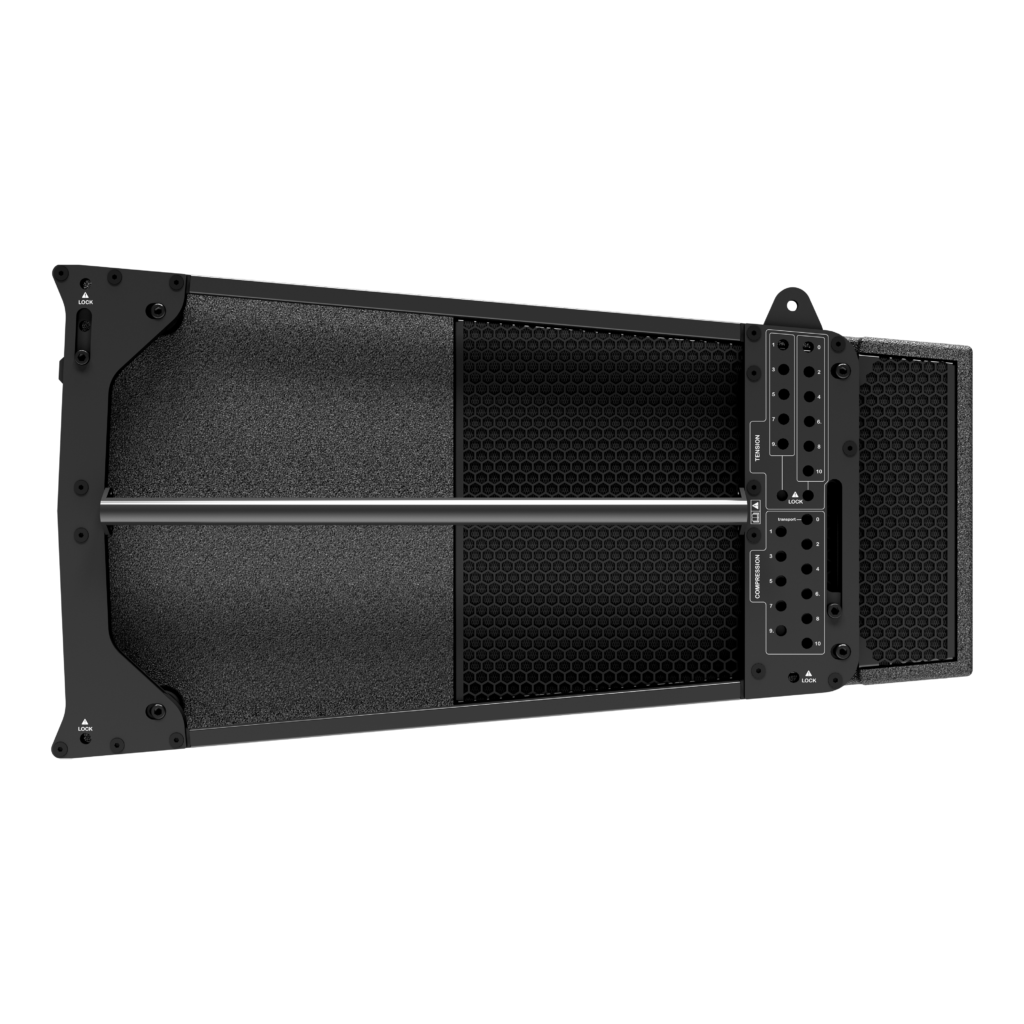

noise suppression outside the sound field. rigging system for use with downfill L-series modules. 2x NL8 on the rear.
Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grilles with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.

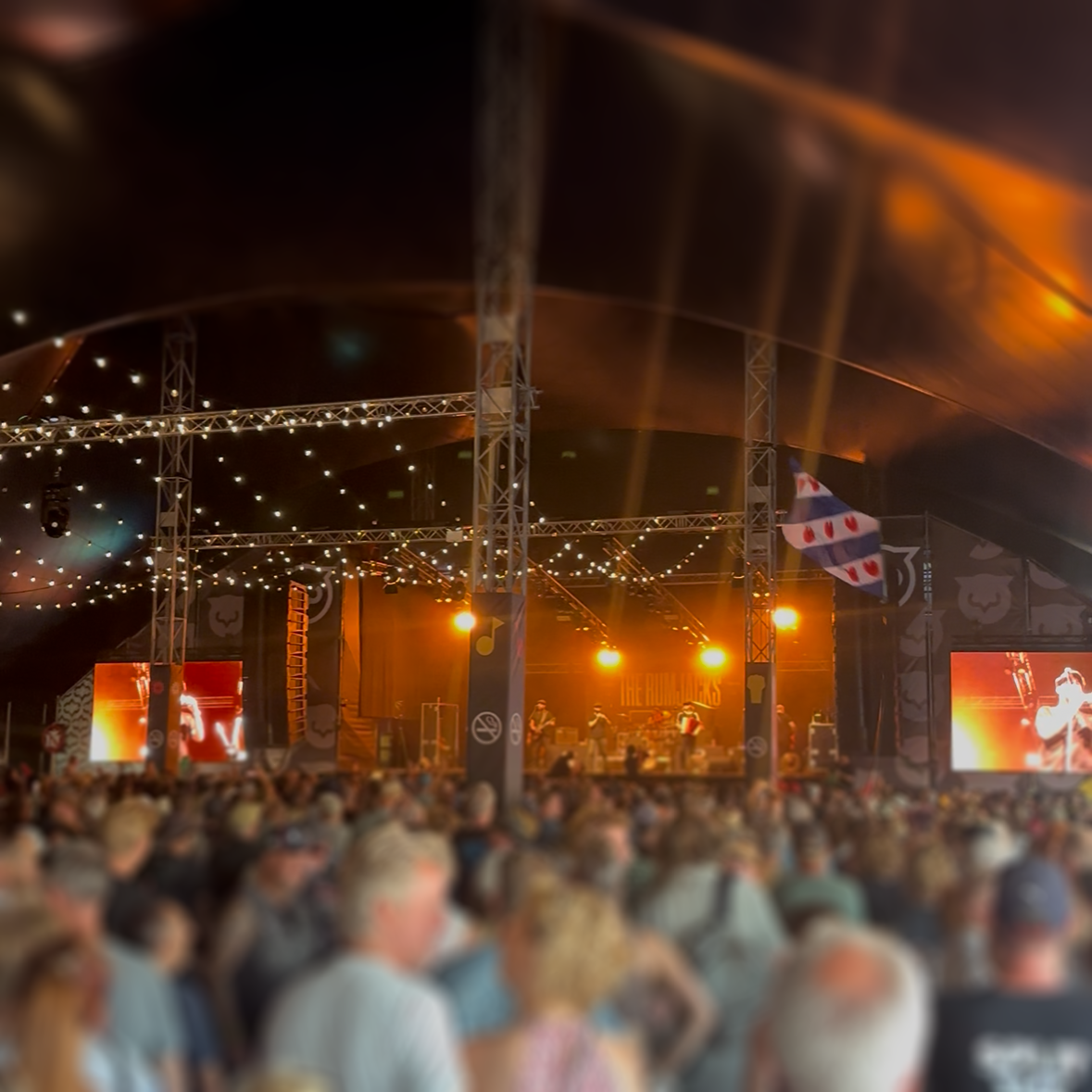

Where the V36 fits.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Line array module |
| Components | 2x18"/2x15"/4x8"/2x4"/2x2.5" |
| Application | Touring |
| Series | V-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 148dB / 33Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 130dB / 33Hz-20kHz |
| Dispersion (HxV) | 80° x 10° |
Connectivity

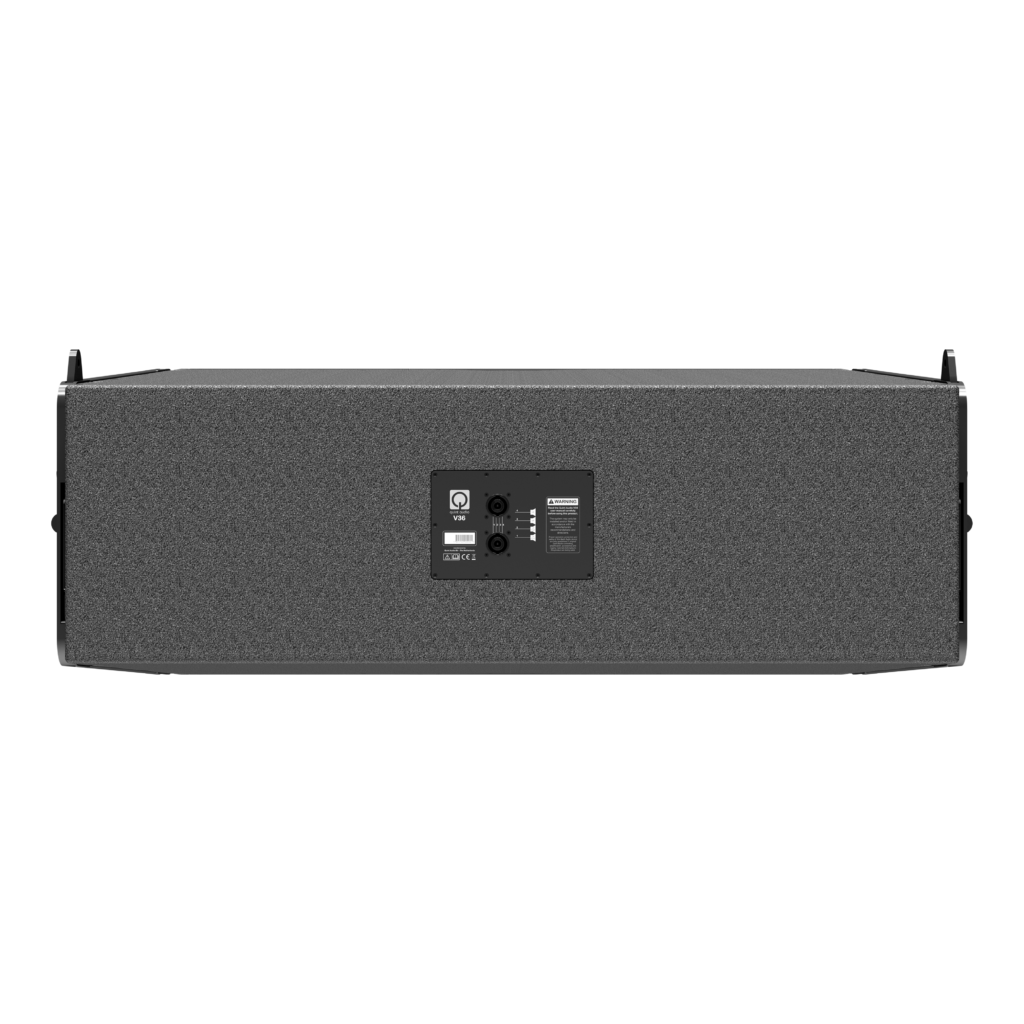

| Connections | 2x 8-pole speakON |
| Impedance | 4 Ohm |
| Filter | 4-channel DSP control |
Physical
| Size (WxHxD) | 1320 x 540 x 1045mm |
| Weight | 167kg |
