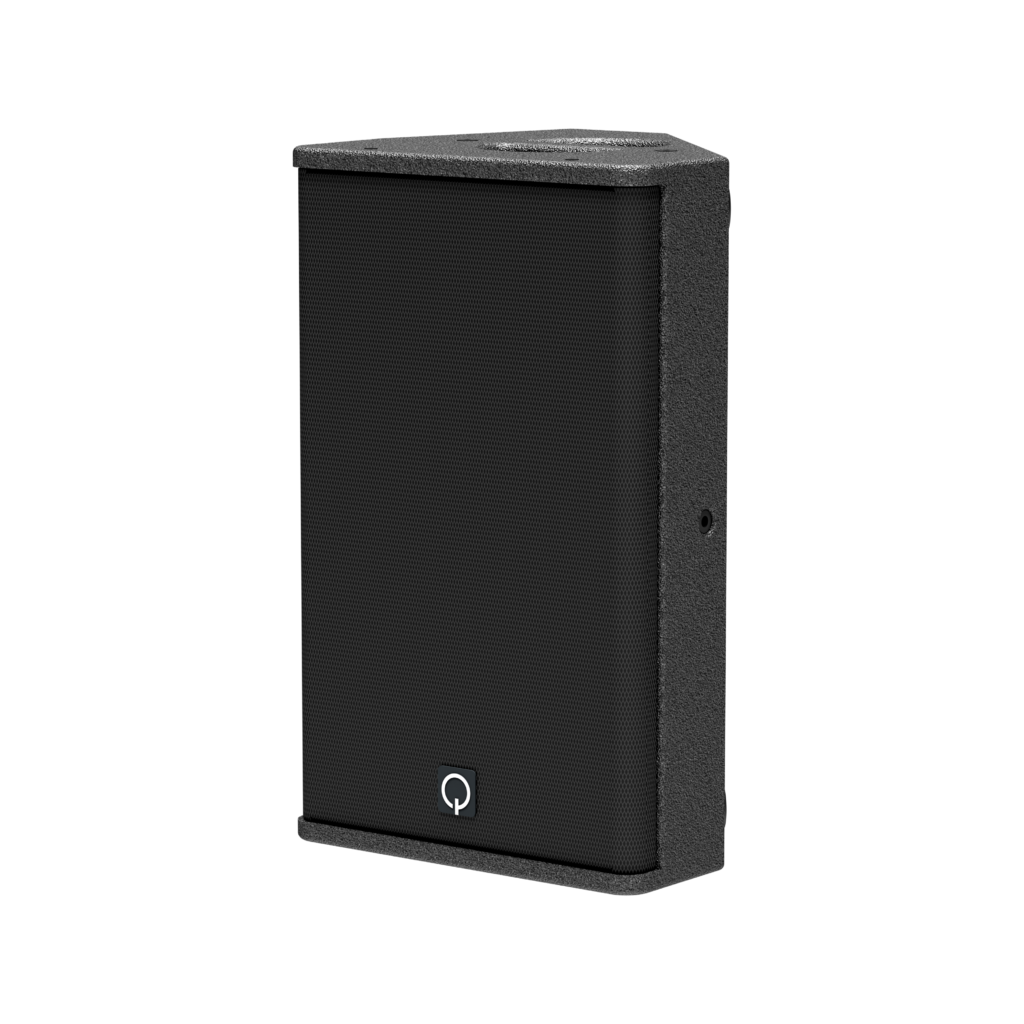

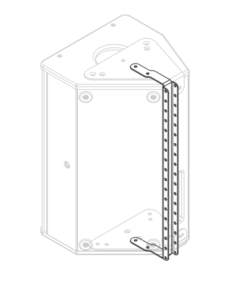

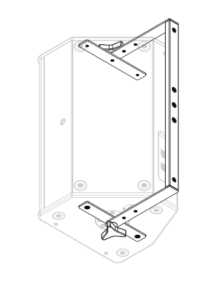

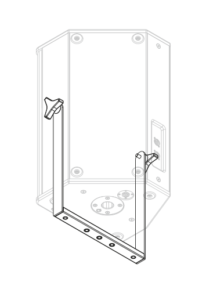

10" bass reflex design combined with 1.7" compression driver. Extended low frequency response at reduced power. Tool free mountable U-bracket. Monitor angles 45 degrees and 75 degrees. Mounting points for fixed installation.

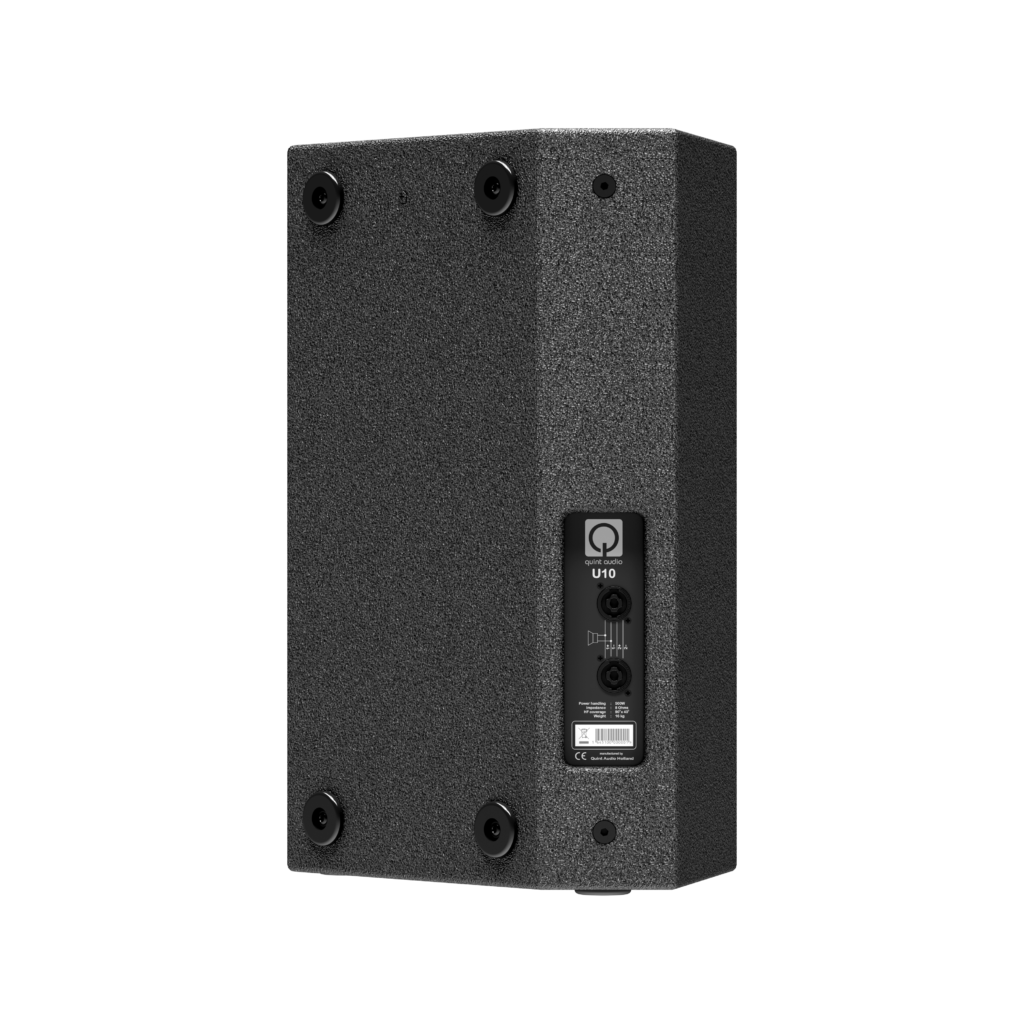

2x NL4 on the rear, 1x NL4 on the bottom. 35mm-pole mount on bottom. 1x ergonomic handles, 1x on the top. M10 threads on left and right.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.
Specifications
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
