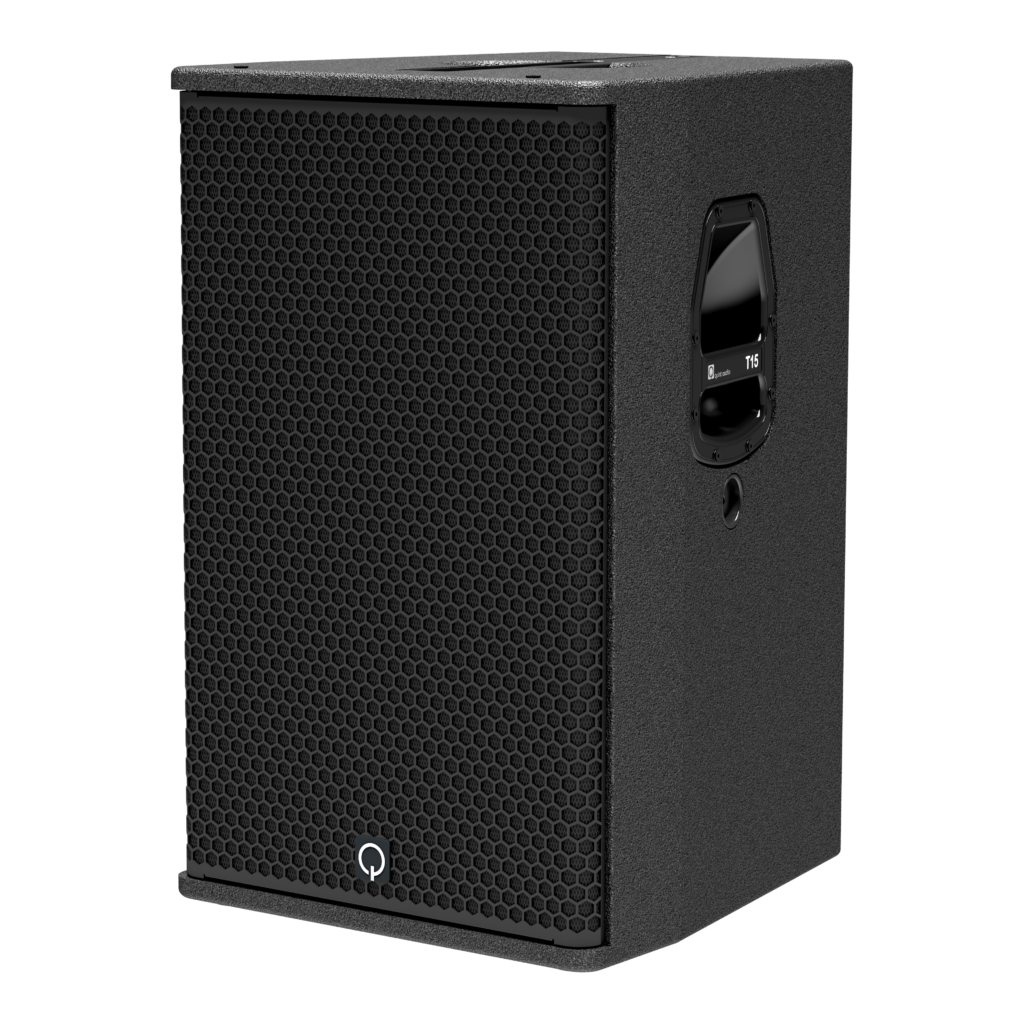

Touring top.
15" bass reflex design combined with 3.5" compression driver. Maintained low frequency performance at full power. Quint Audio Quick Lock system on top. Tool free mountable U-bracket.

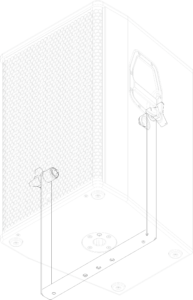

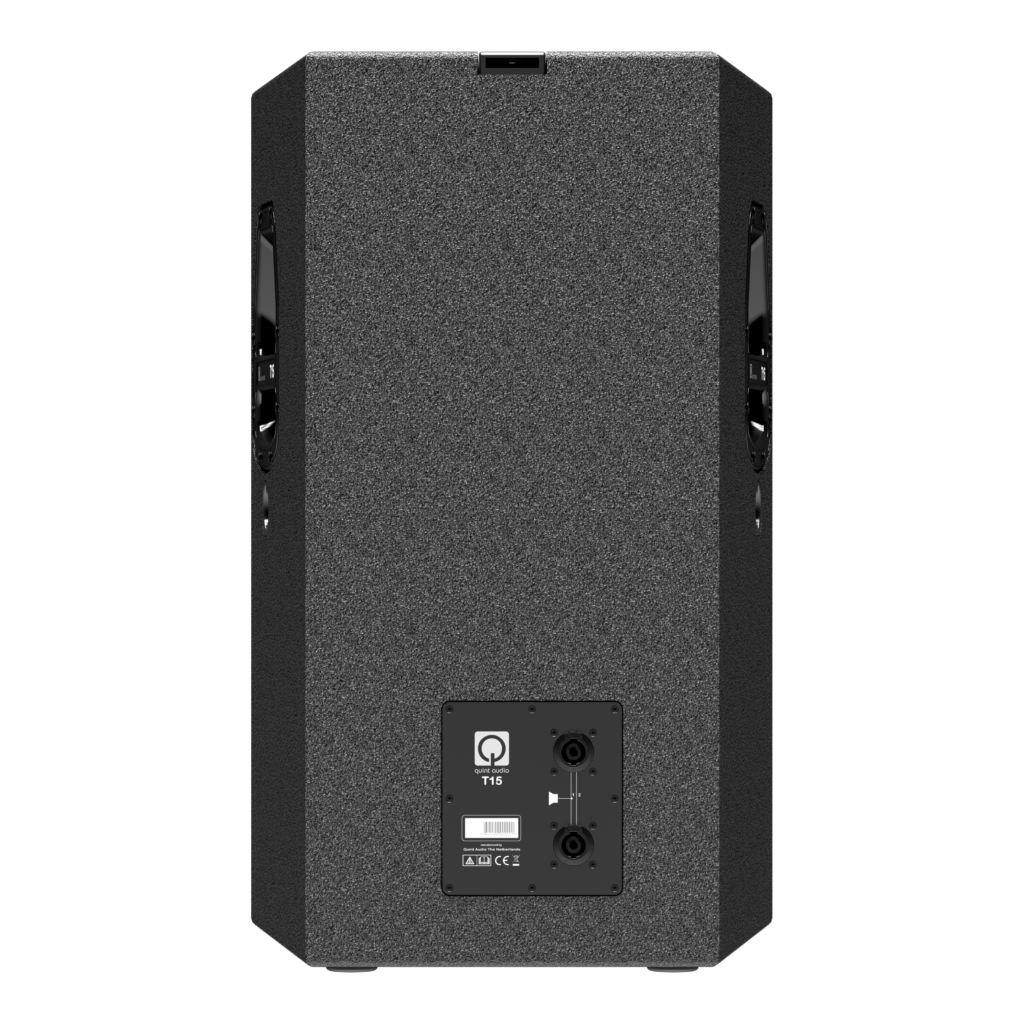

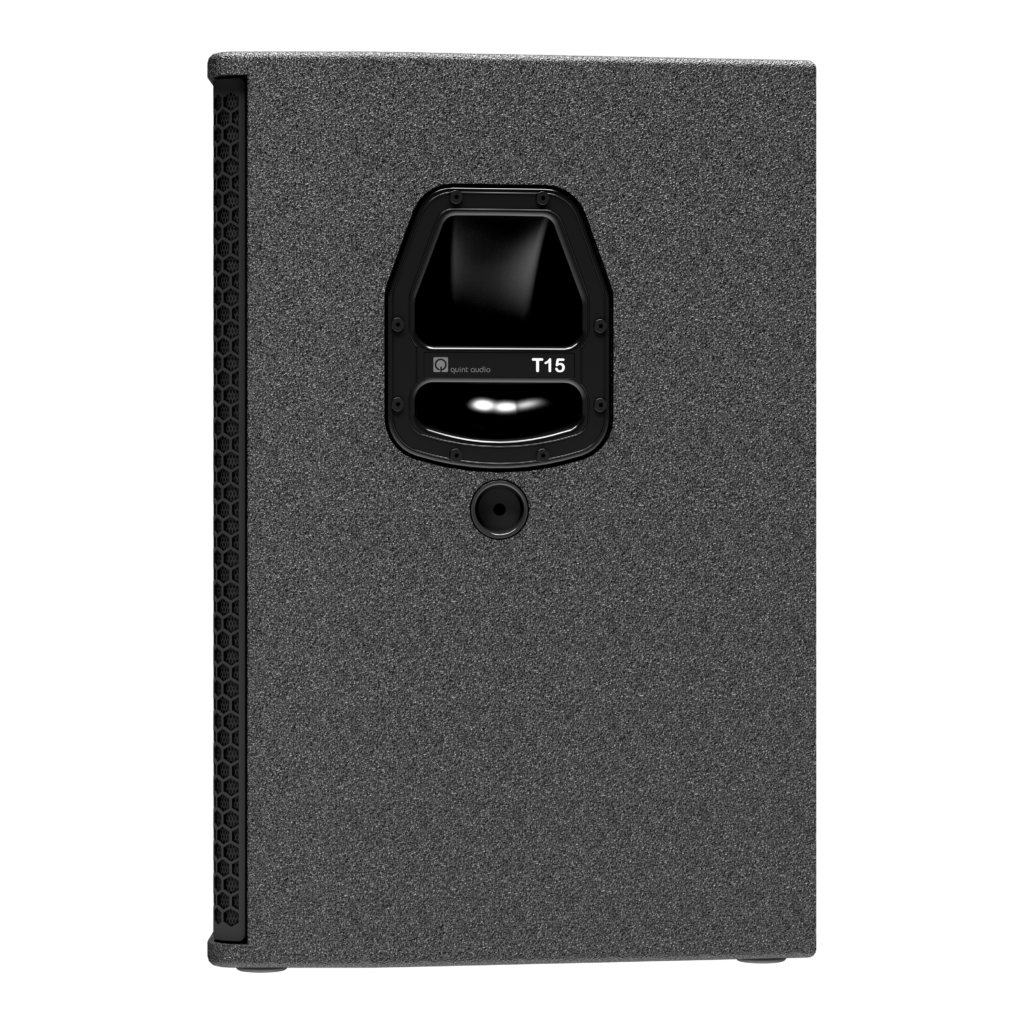

2x NLT4 on the rear. 35mm-pole mount on bottom. 3x ergonomic handles, 1x on the left, 1x on the right, 1x on the top. Rubber feet for stability on the bottom.

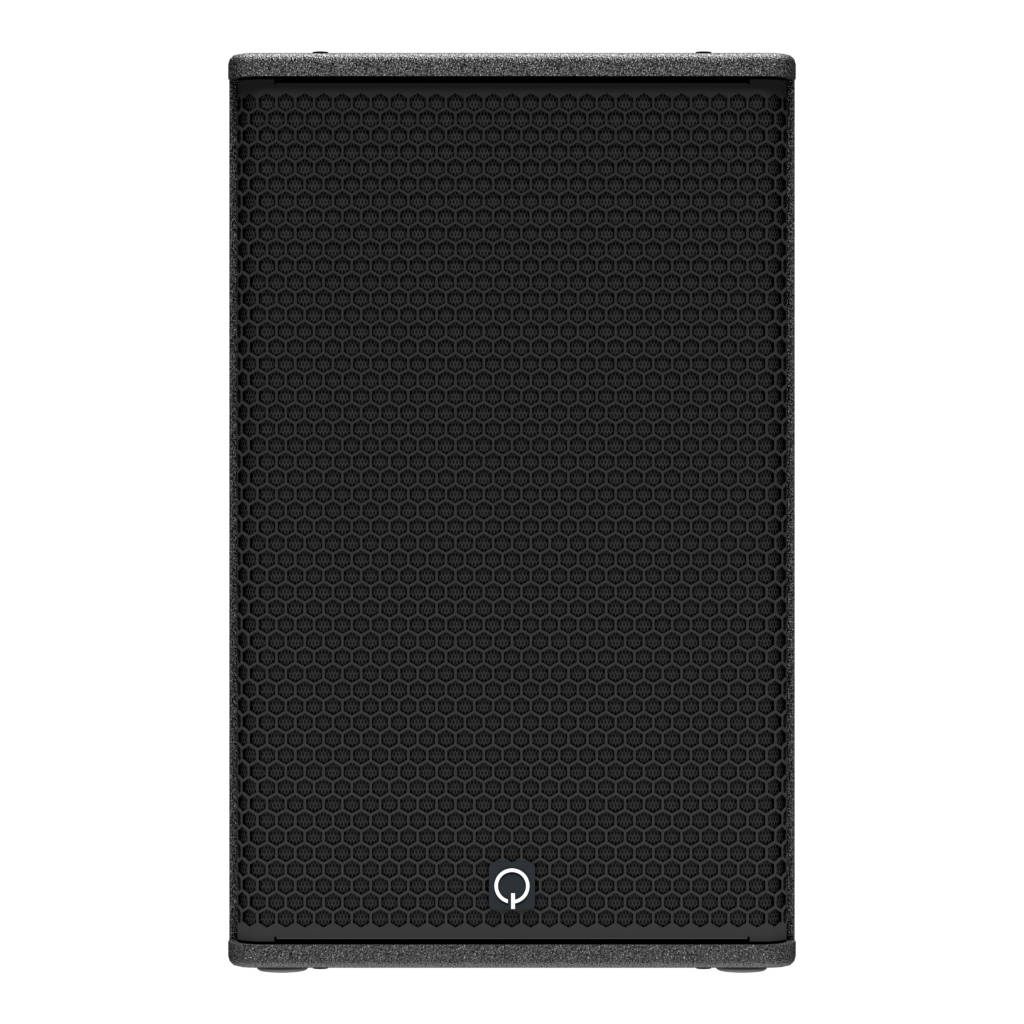

Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grille with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Full-range top |
| Components | 15"/3.5" |
| Application | Touring |
| Series | T-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 137dB / 33Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 120dB / 33Hz-20kHz |
| Dispersion (HxV) | 70° x 40° |
Connectivity
| Connections | 2x 4-pole speakON |
| Impedance | 8 Ohm |
| Filter | 1-channel DSP control |
Physical
| Size (WxHxD) | 430 x 695 x 465mm |
| Weight | 35kg |
