S-series · Subwoofer

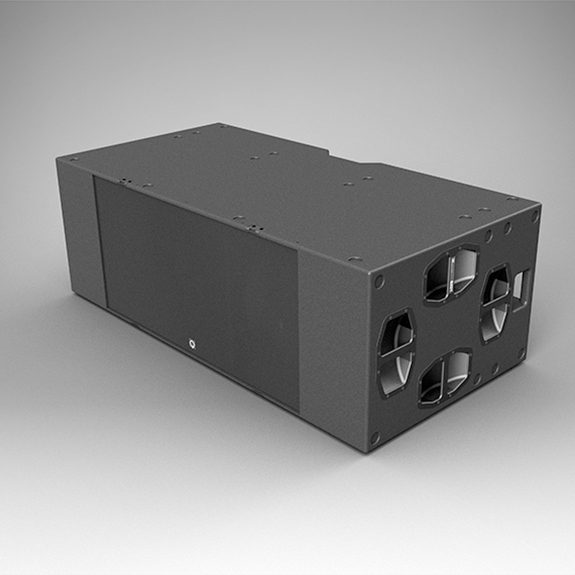

S221
2×21" infra subwoofer with deep linear tuning — for large-format PA
01 / 04
145 dB
Max SPL
28 – 150 Hz
Frequency
5600 W
Peak power
Omni
Coverage
138 kg
Weight
Double 21" flagship sub.
The S221 provides high efficiency associated with a deep and powerful bass foundation, making this 2×21" subwoofer deployable in large-format PA applications such as major live concerts — for example underneath large line arrays.
Smaller setups work surprisingly well too: standing upright at almost 1.7 m, the S221 doubles as a sub tower under a medium-sized PA top. The mid-low response is sufficient for this, and a top cabinet placed on the S221 radiates directly over the audience’s heads.
Application areas
Where the S221 fits.
scene · 1
Concert sub
Primary
scene · 2
PA sub
scene · 3
End-fire setups
scene · 4
Live music
scene · 5
Dance music
Specifications
Specifications.
Archived specifications from the original datasheet.
Overview
| Type | Subwoofer |
| Components | 2×21" |
| Application | Touring & Live |
| Series | S-series |
Acoustic output
| Rated power | 2800 W |
| Peak power | 5600 W |
| Sensitivity | 101 dB 1W/1m |
| SPL | 139 dB 1m |
| Max SPL | 145 dB 1m |
| Frequency range | 28 – 150 Hz |
| Coverage | Omni |
Electrical
| Impedance | 4 Ohm |
| Filter | None — external processing |
Physical
| Weight | 138 kg |
| Dimensions (w×h×d) | 1680 × 580 × 835 mm |
Lifecycle
| Status | Out of production |
| Replaced by | C42 |
