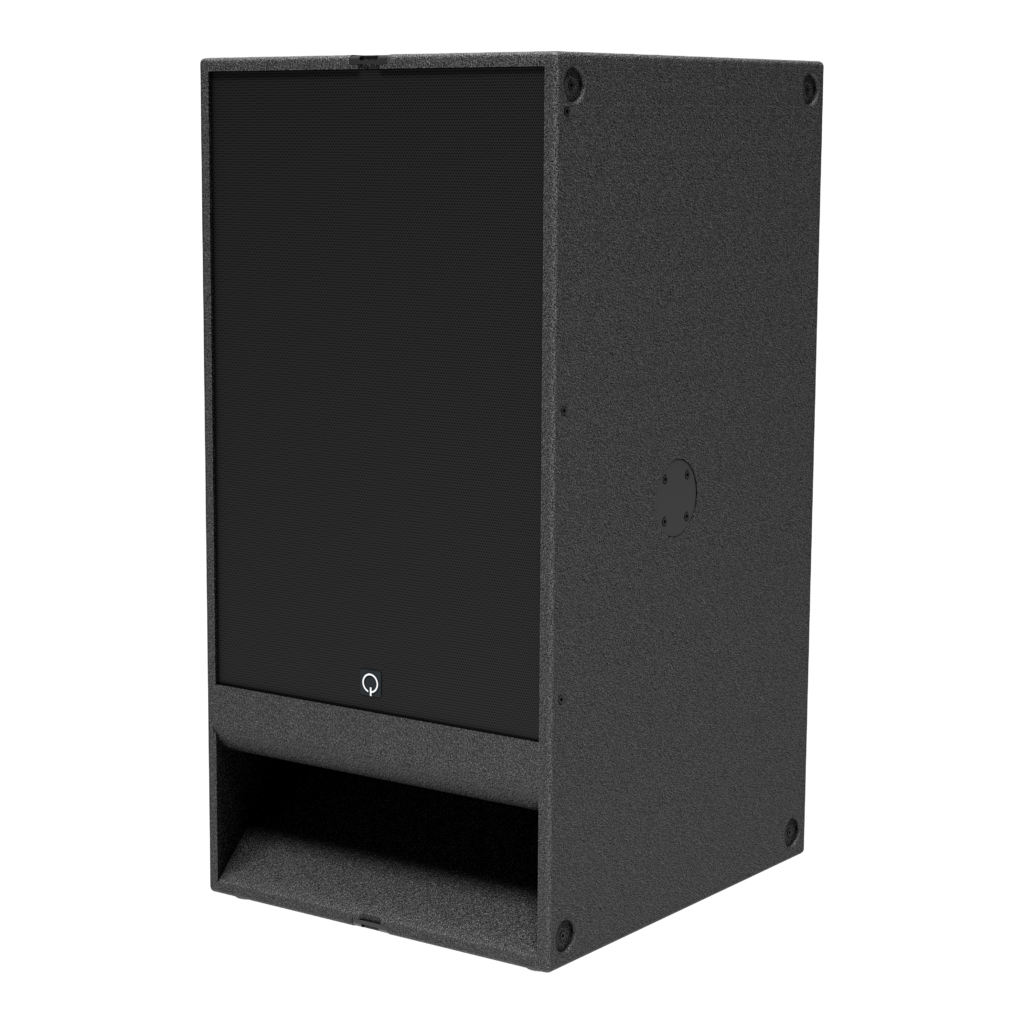

State-of-the-art infra sub.

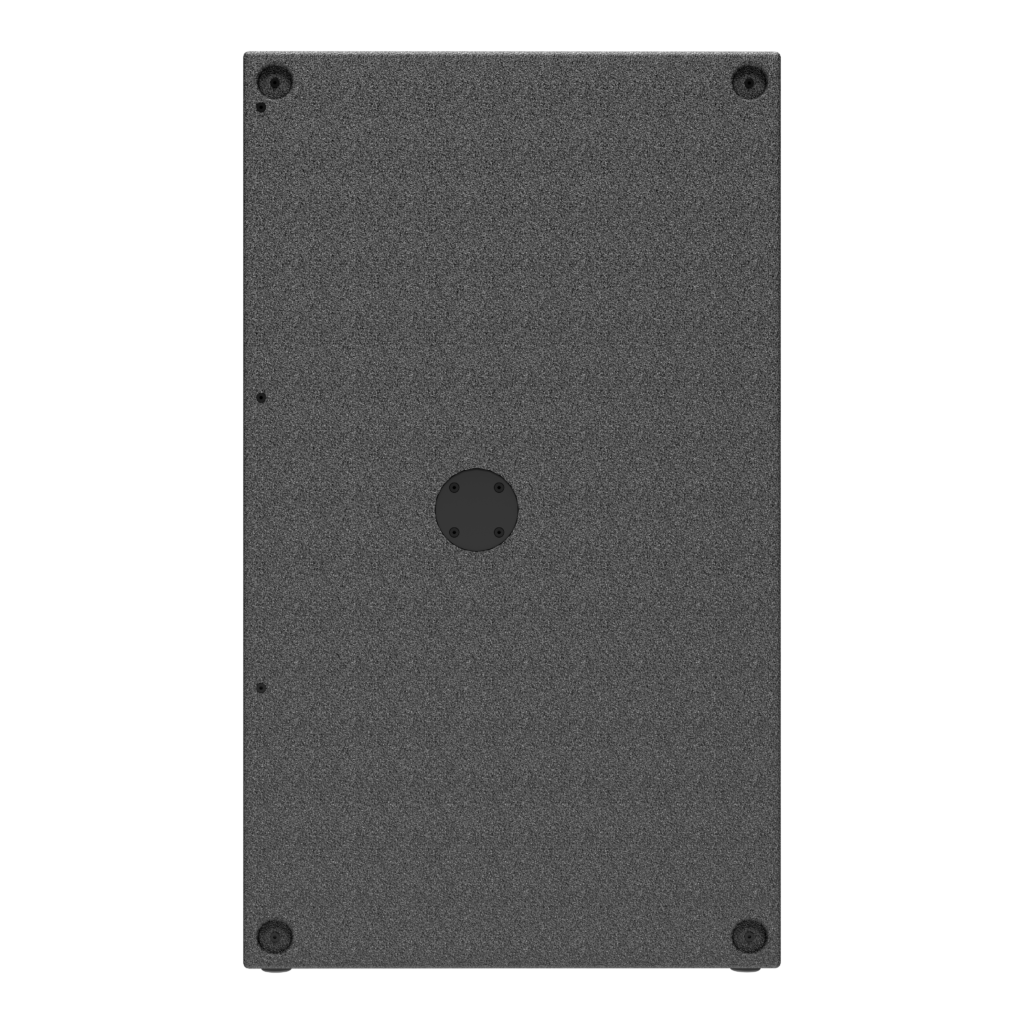

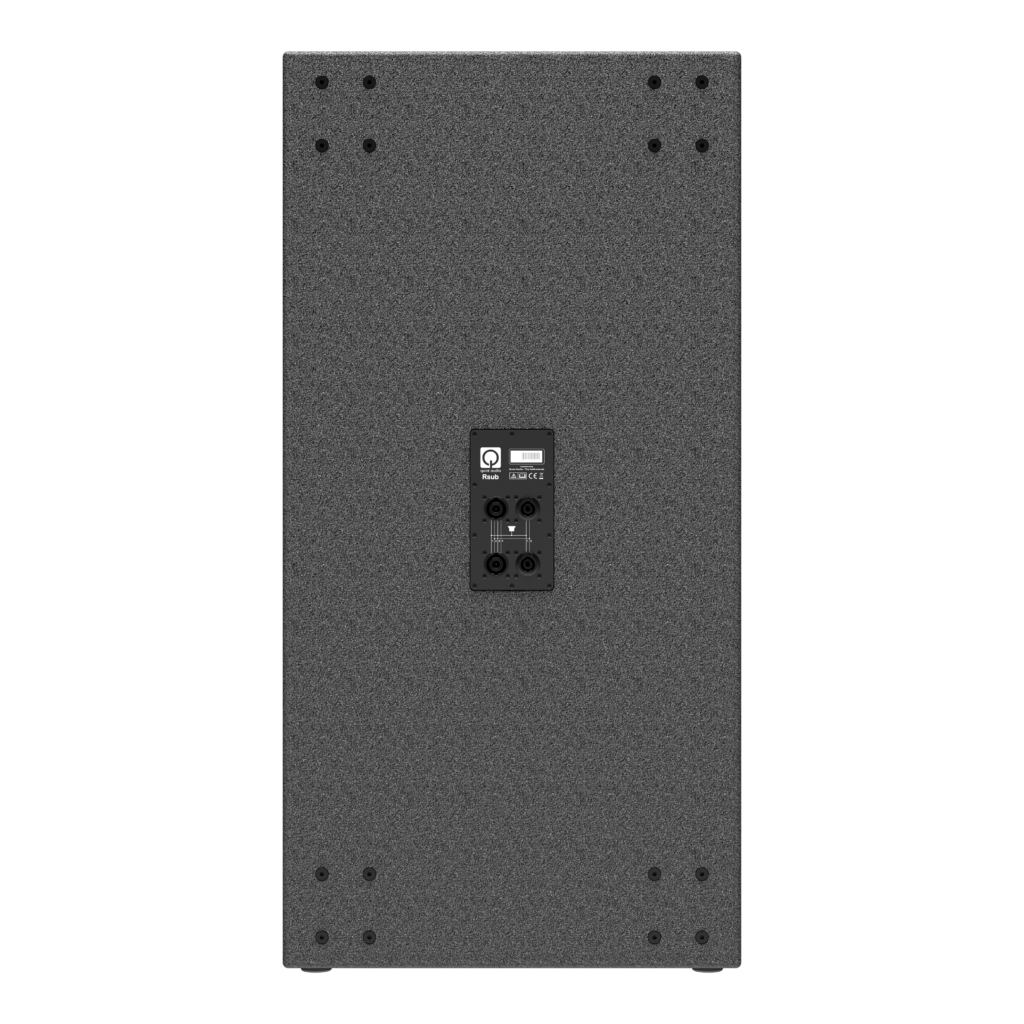

21" bass reflex design. Maintained low frequency performance at full power. 2x NLT4 2x NL8 on the rear. M20-pole mount on top and optional on sides. 4x ergonomic handles, 2x on the top, 2x on the bottom.
Rubber feet for stability on the bottom and optional on sides. Optional front lid. Transport wheels mountable on rear. Truck size cabinet for efficient transportation.

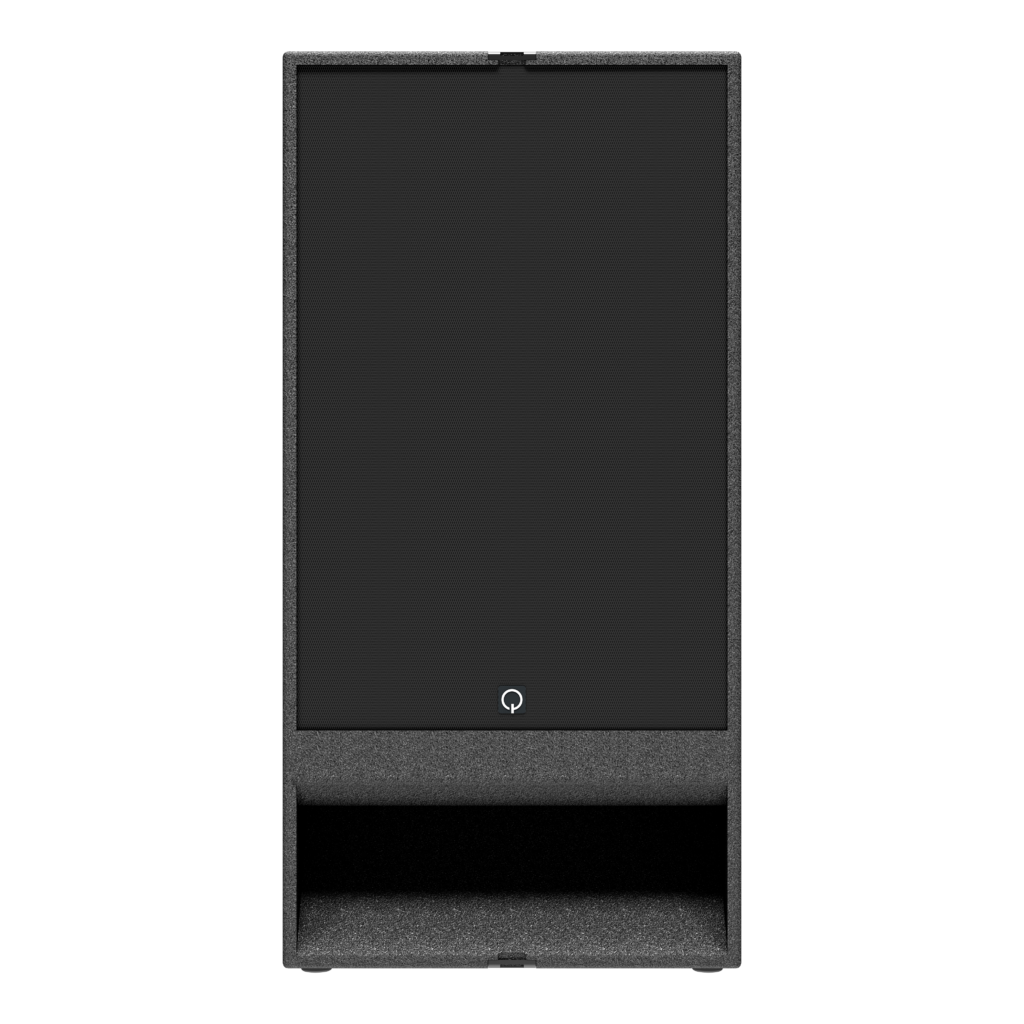

Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grille with acoustically transparent fabric on the front.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Subwoofer |
| Components | 21" |
| Application | Reference |
| Series | R-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 136dB / 19Hz-100Hz |
| Max SPL* / freq. range (-6dB) | 125.5dB / 19Hz-100Hz |
| Dispersion (HxV) | Omni |
Connectivity
| Connections | 2x 8-pole speakON 2x 4-pole speakON |
| Impedance | 4 Ohm |
| Filter | 1-channel DSP control |
Physical
| Size (WxHxD) | 580 x 1165 x 680mm |
| Weight | 89kg |
