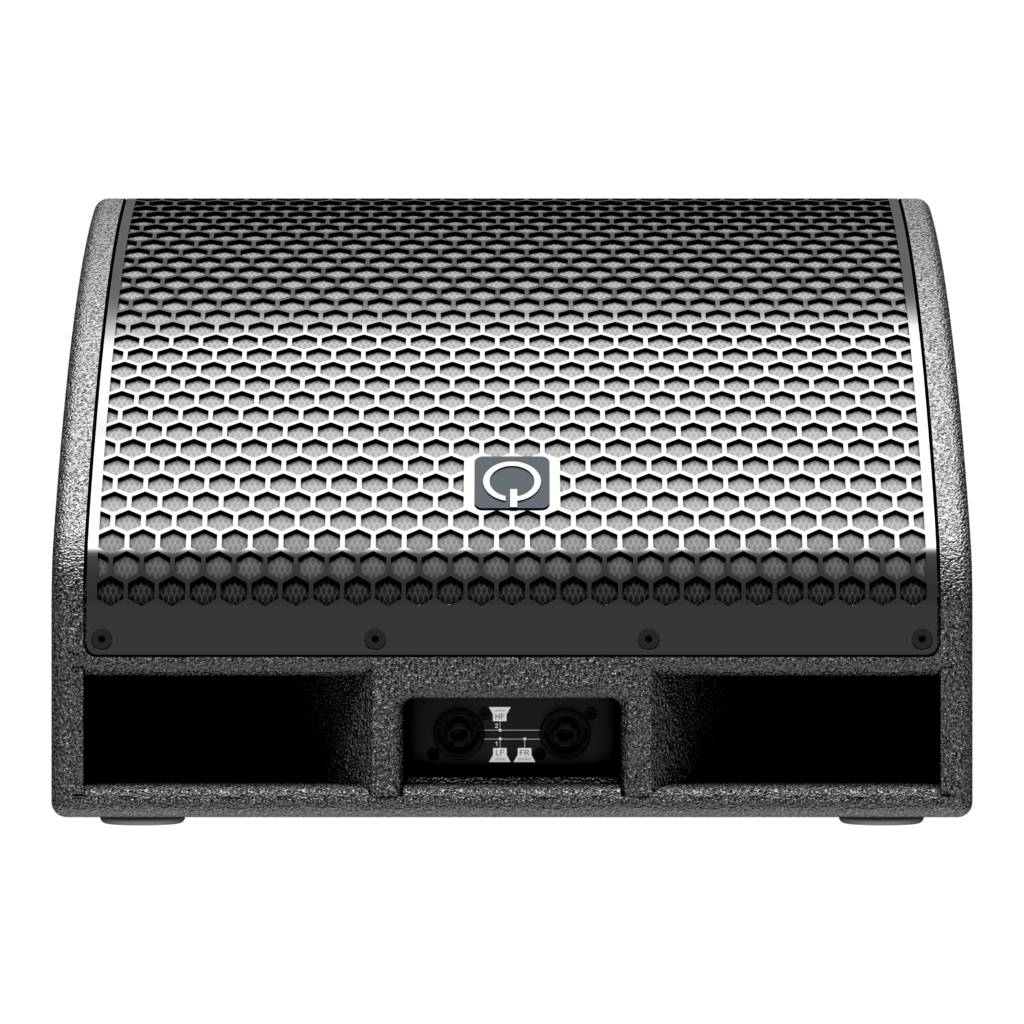

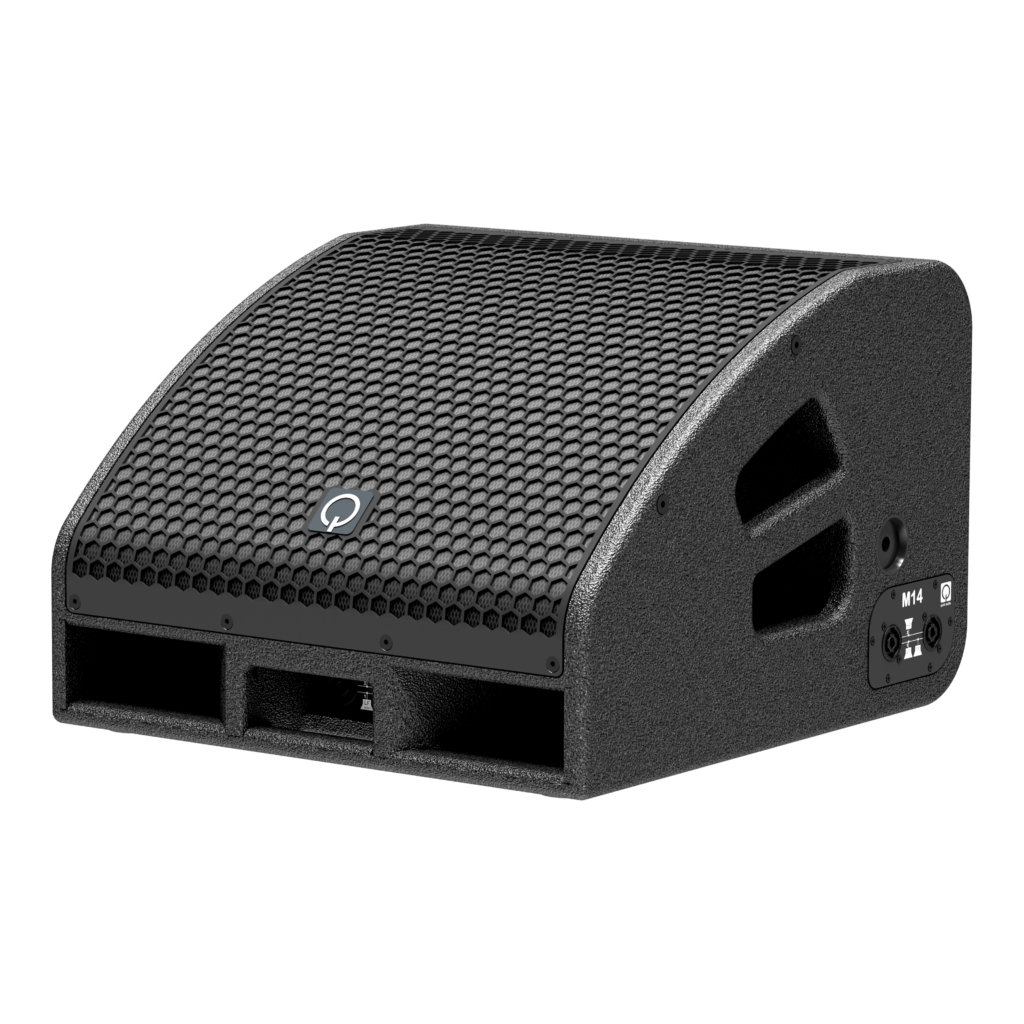

Compact full range coaxial monitor.
13.5" bass reflex design combined with 3" compression driver. Coaxial design. Maintained low frequency performance at full power. Monitor angles 30 degrees and 60 degrees.

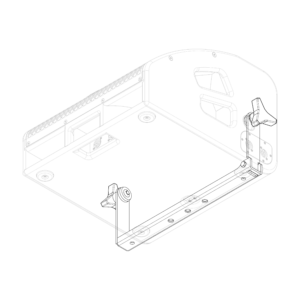

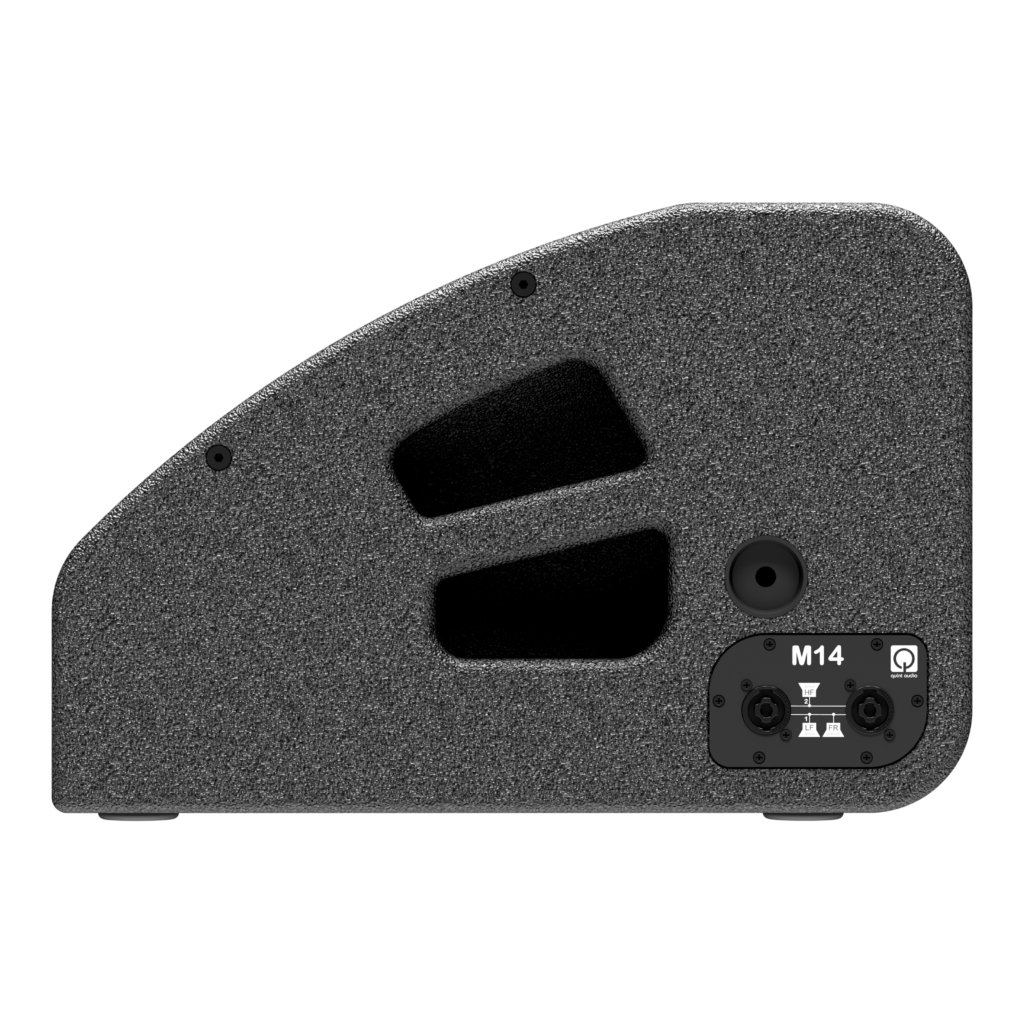

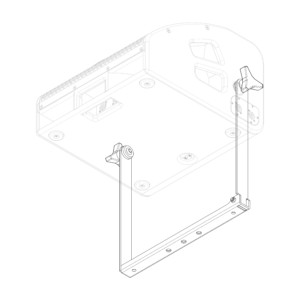

Tool free mountable U-bracket. 2x NL4 on the front, 2x NL4 on the left, 2x NL4 on the right. 2x ergonomic handles, 1x on the left, 1x on the right. Rubber feet for stability on the bottom.
Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grille with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.

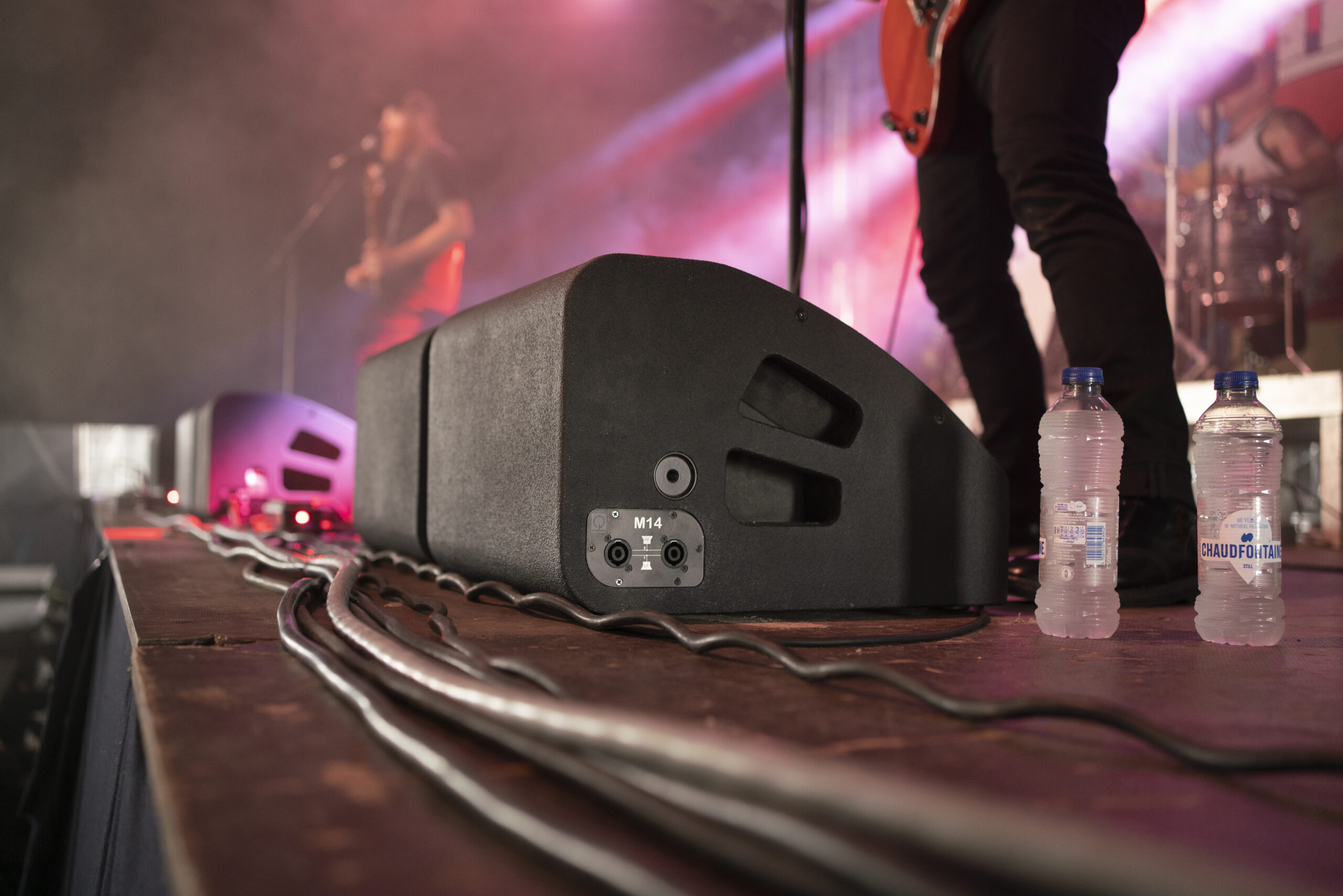

Where the M14 fits.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Monitor |
| Components | 13.5"/3" |
| Application | Touring & Installation |
| Series | M-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 134dB / 59Hz-16kHz |
| Max SPL* / freq. range (-6dB) | 116dB / 59Hz-16kHz |
| Dispersion (HxV) | 80° conical |
Connectivity
| Connections | 6x 4-pole speakON |
| Impedance | 8 Ohm |
| Filter | 1/2-channel DSP control |
Physical
| Size (WxHxD) | 425 x 300 x 445mm |
| Weight | 16kg |
