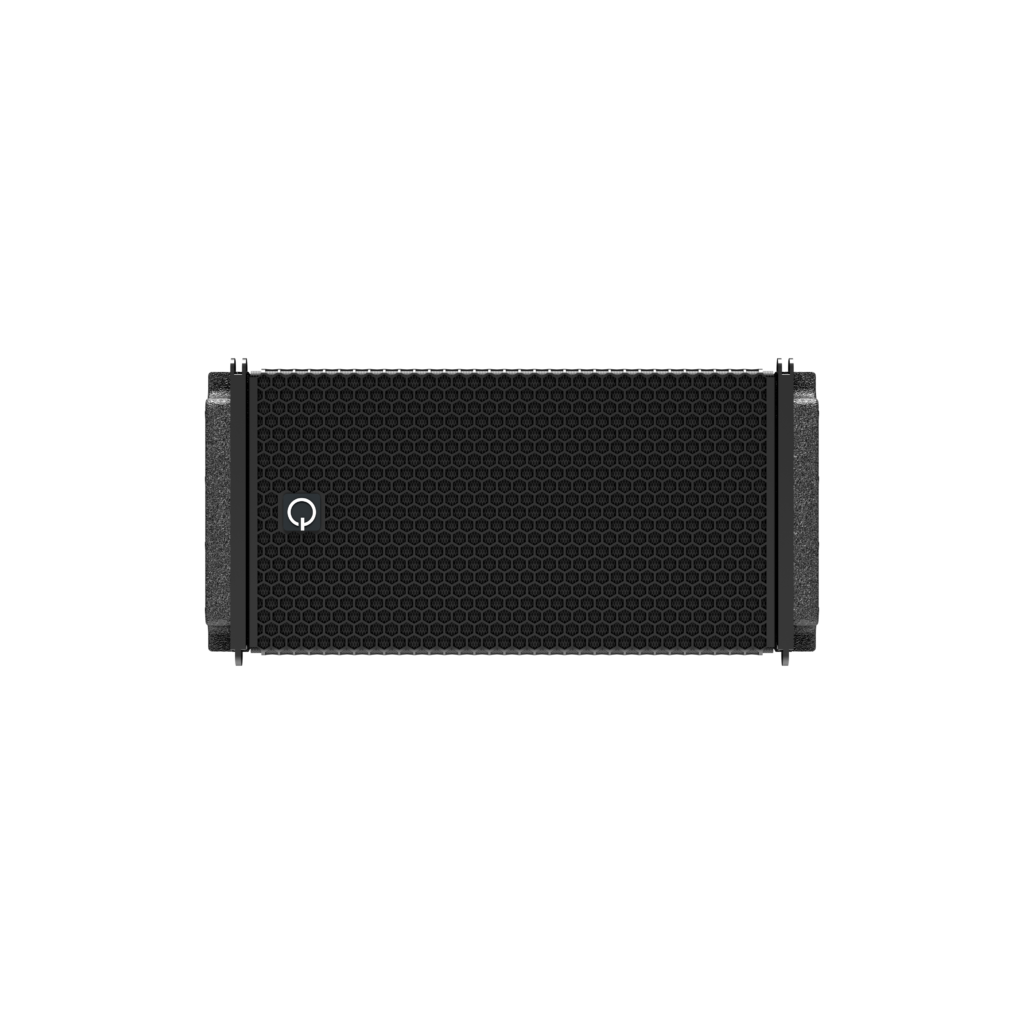

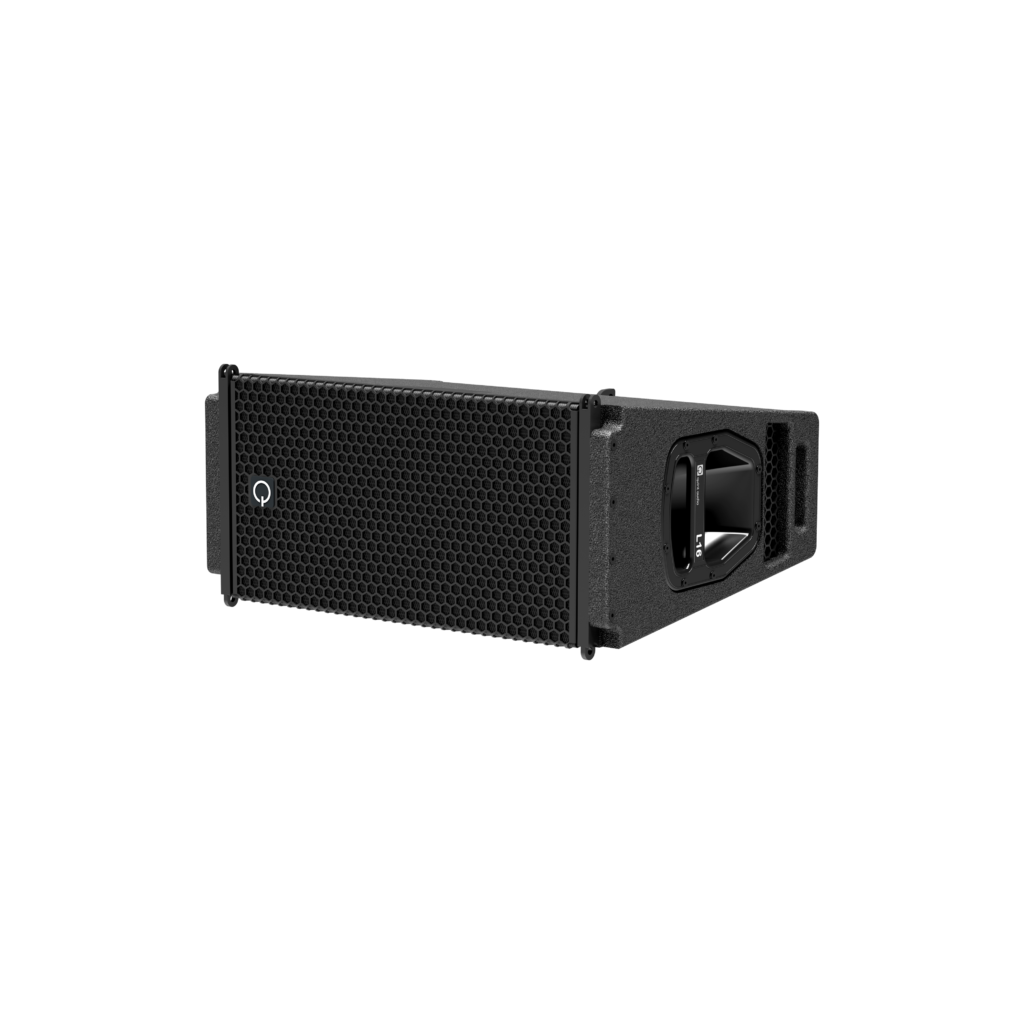

High performance line array module.

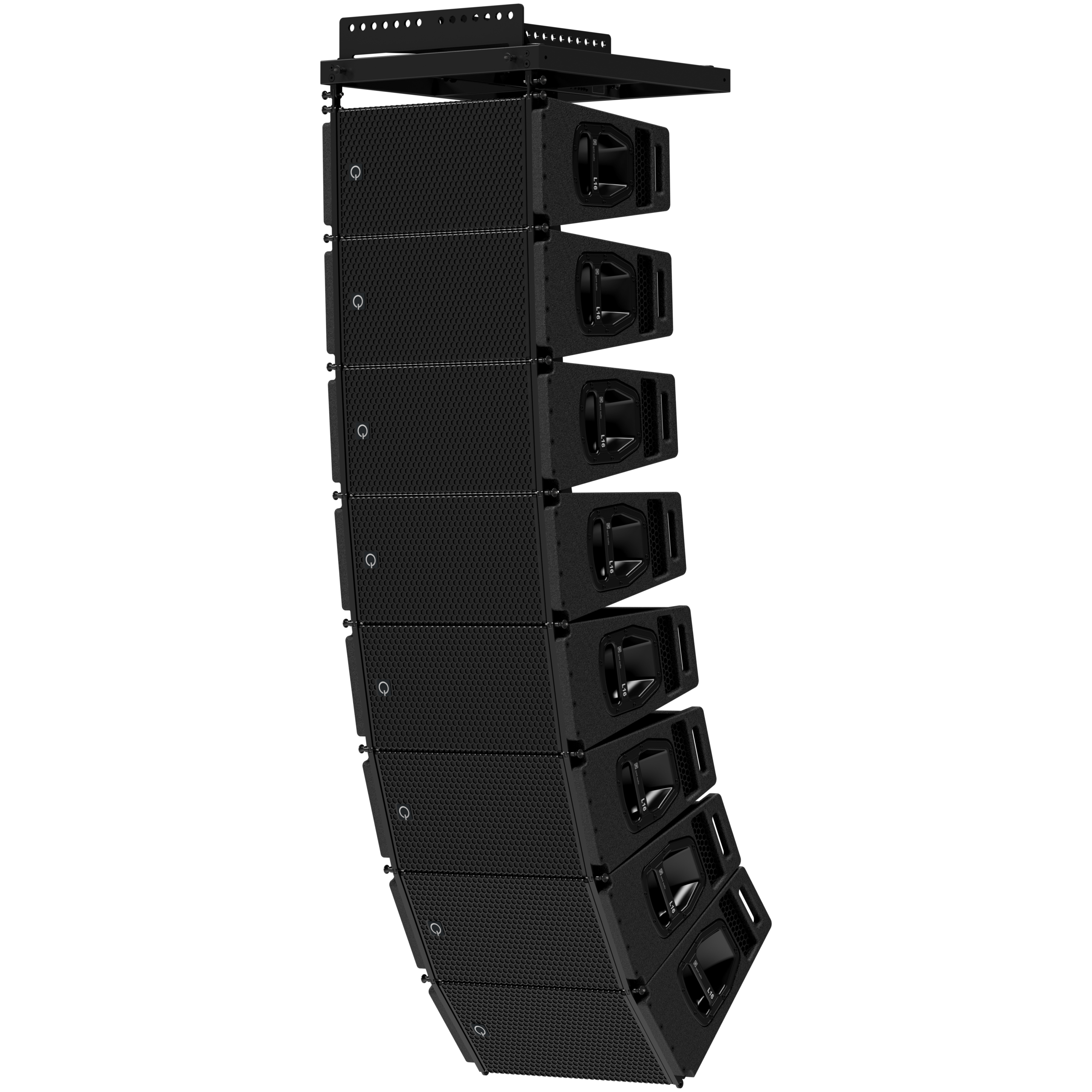

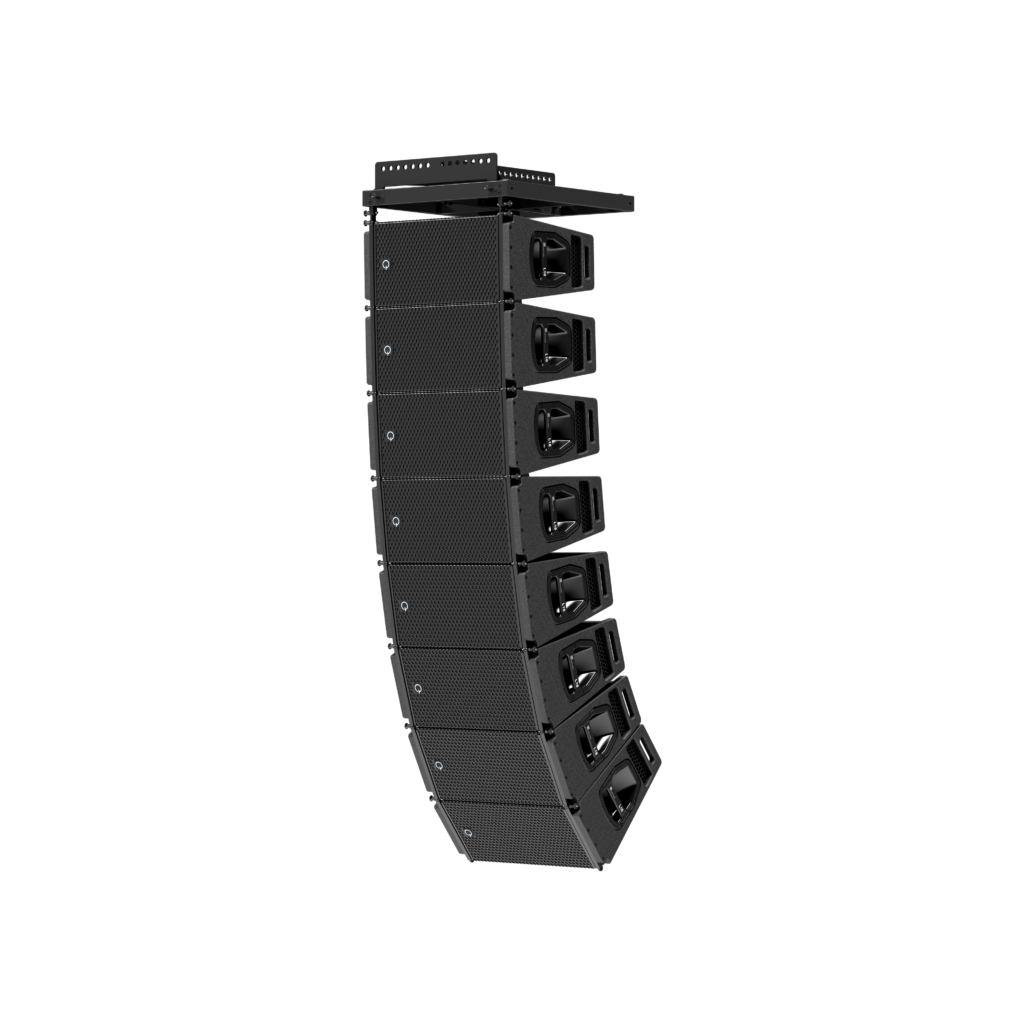

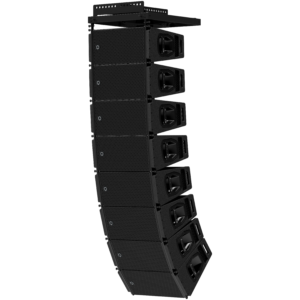

2x 8" bass reflex design combined with 4"/2.5" coaxial compression driver. Extended low frequency response at reduced power. Integrated rigging system for use with L-series modules.

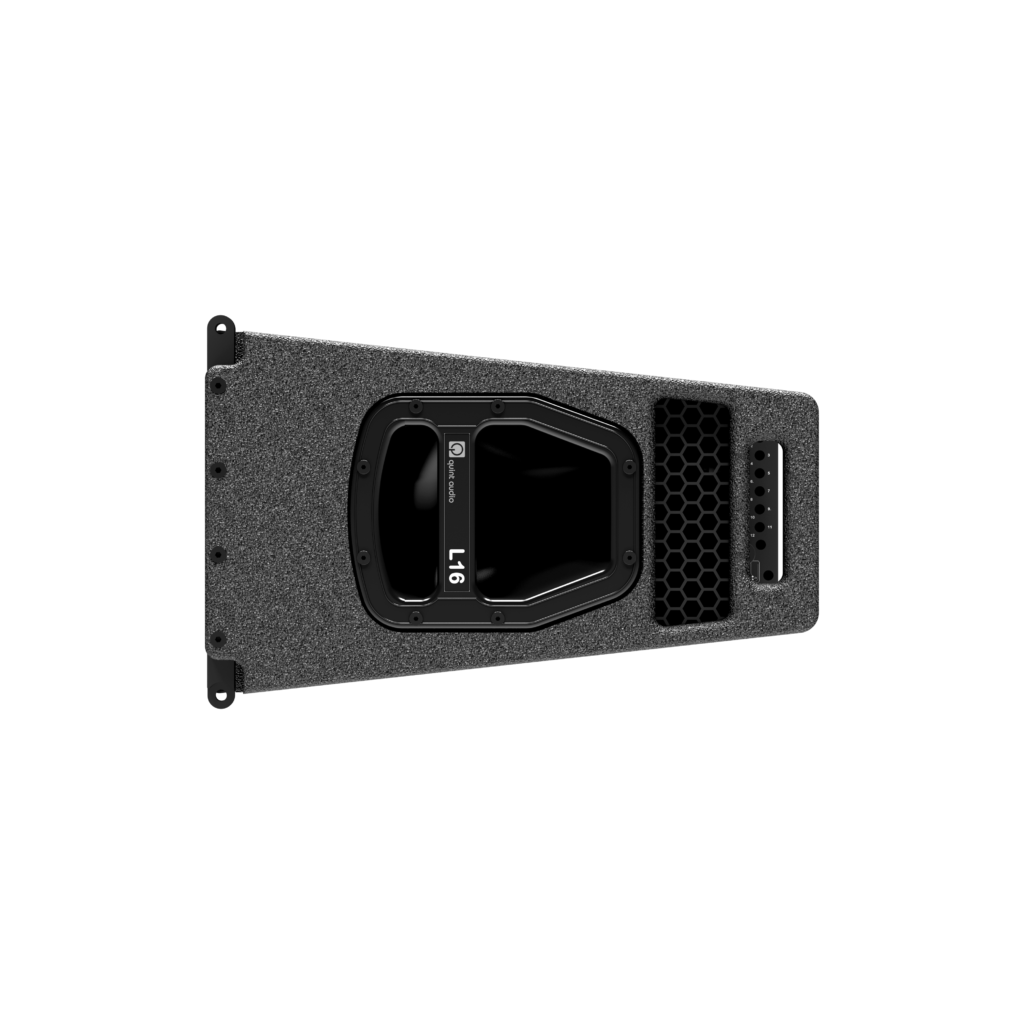

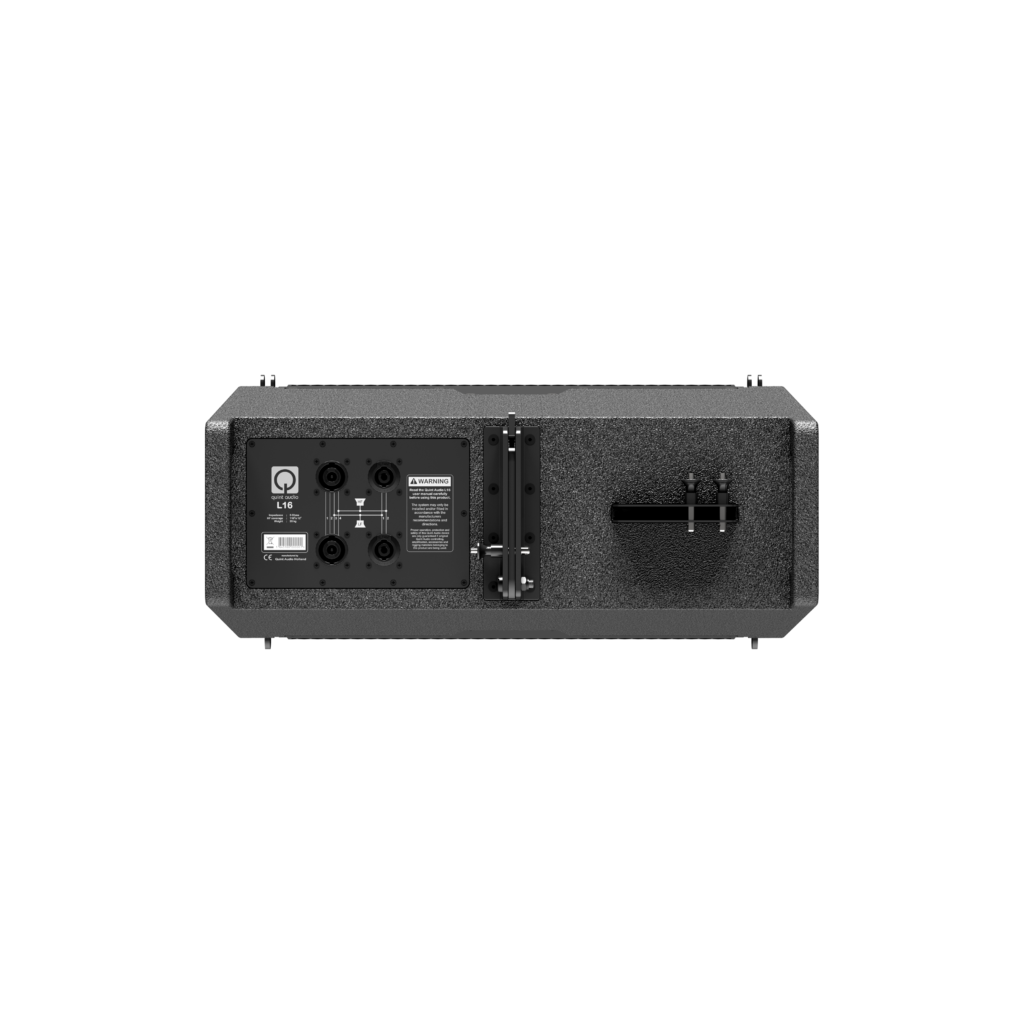

2x NLT4 2x NL8 on the rear. 4x ergonomic handles, 2x on the rear, 1x on the left, 1x on the right. Truck size cabinet for efficient transportation.
Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grille with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.

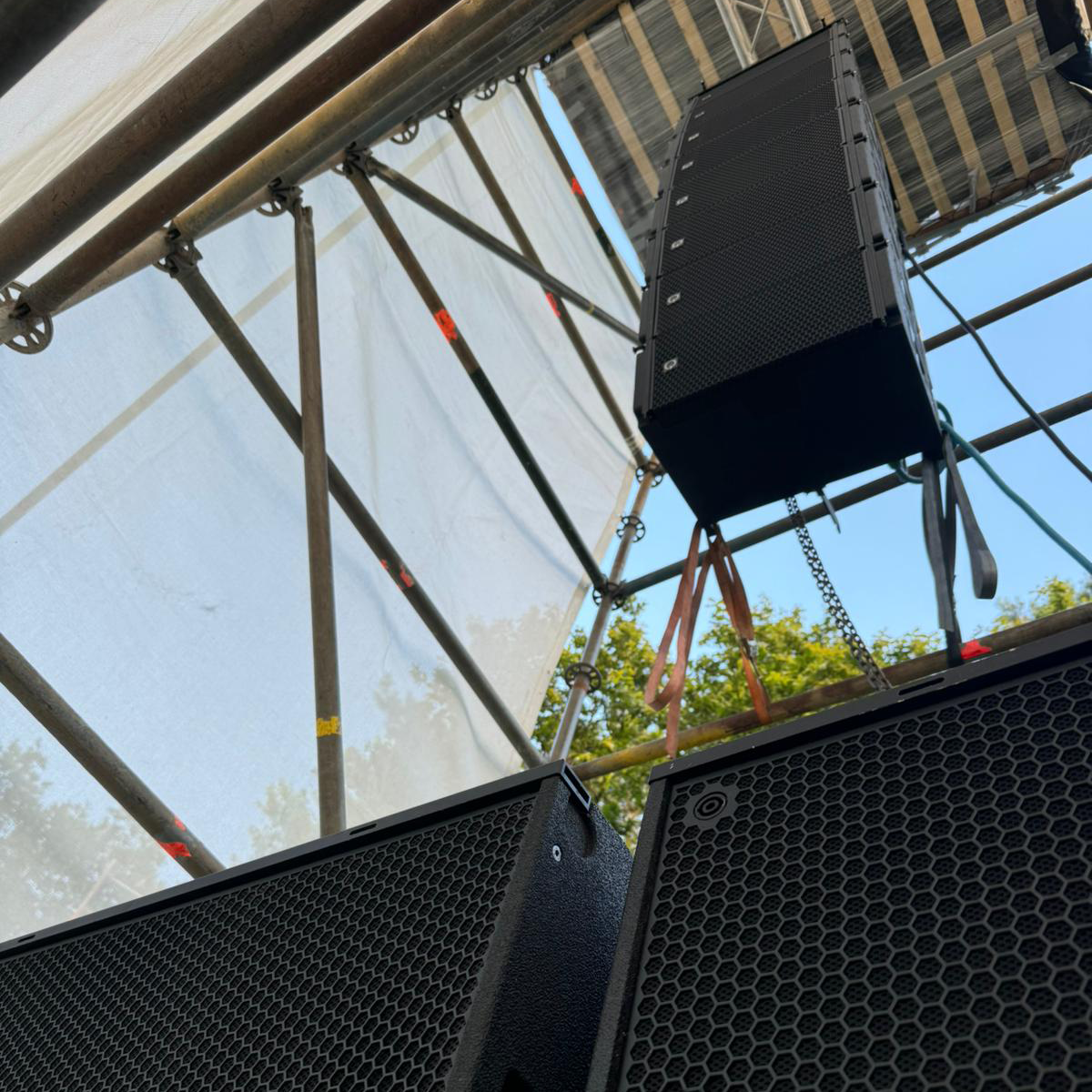

Where the L16 fits.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Line array module |
| Components | 2x8"/4"/2.5" |
| Application | Touring |
| Series | L-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 142dB / 100Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 122dB / 100Hz-20kHz |
| Max SPL -10dB / freq. range (-6dB) | 112dB / 93Hz-20kHz |
| Max SPL -20dB / freq. range (-6dB) | 102dB / 50Hz-20kHz |
| Dispersion (HxV) | 110° x 12° |
Connectivity
| Connections | 2x 8-pole speakON 2x 4-pole speakON |
| Impedance | 5 Ohm |
| Filter | 2-channel DSP control |
Physical
| Size (WxHxD) | 580 x 270 x 450mm |
| Weight | 27kg |
