High performance sub.

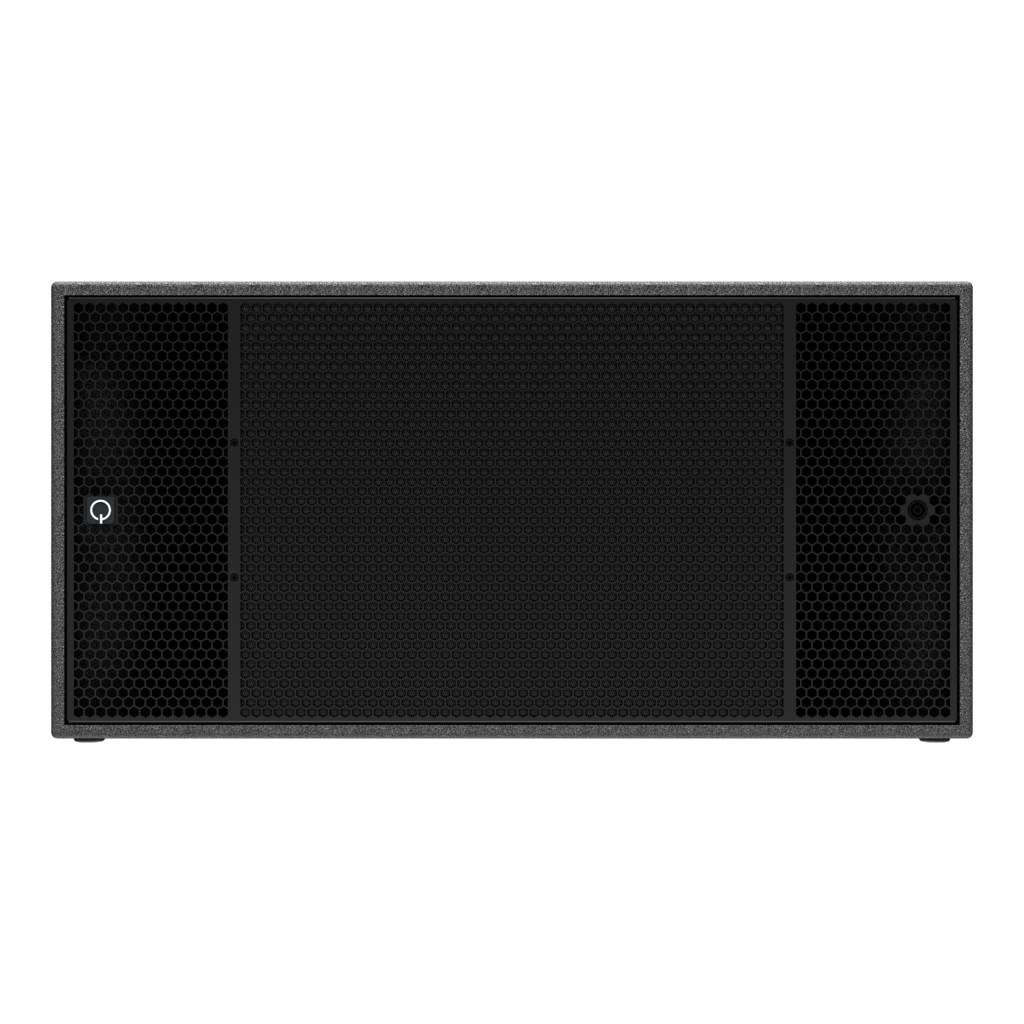

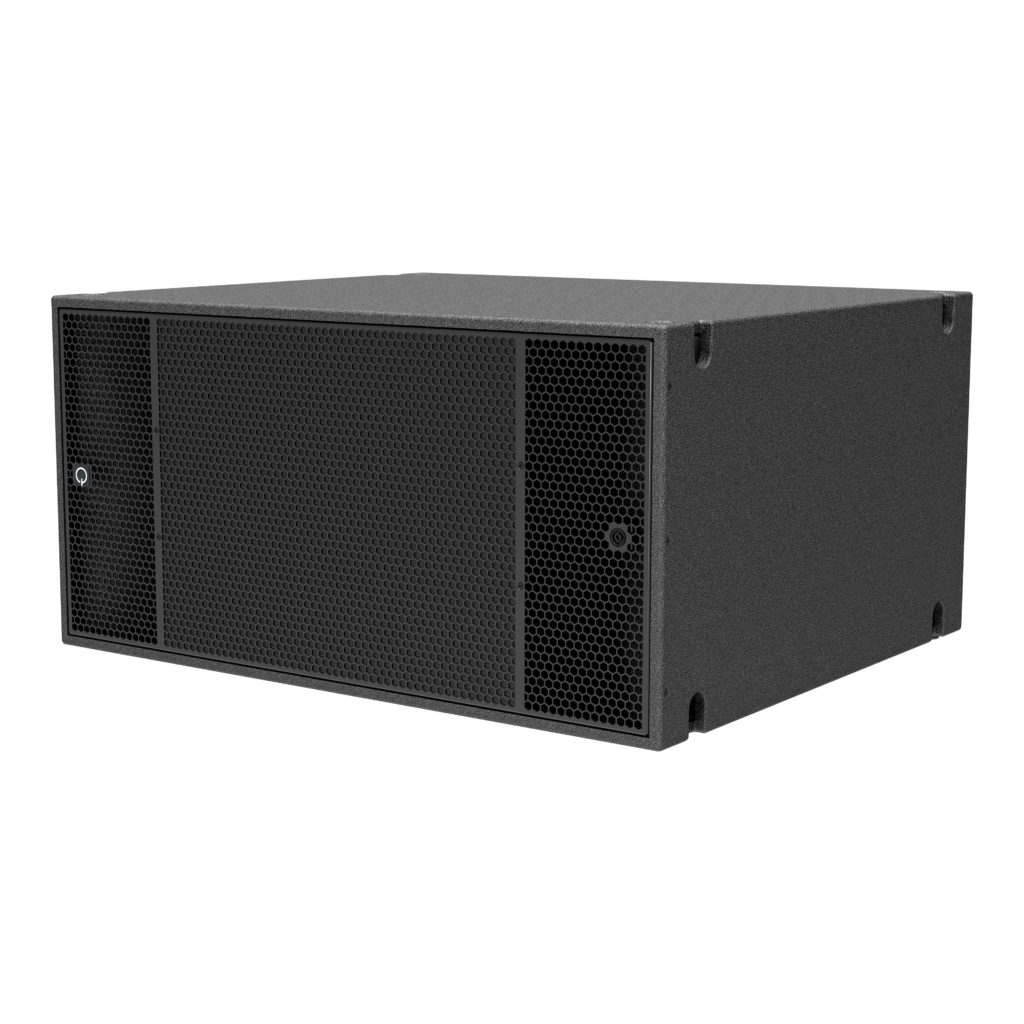

2x 21" double chamber bass reflex design. Maintained low frequency performance at full power. Mounting points for fixed installation.

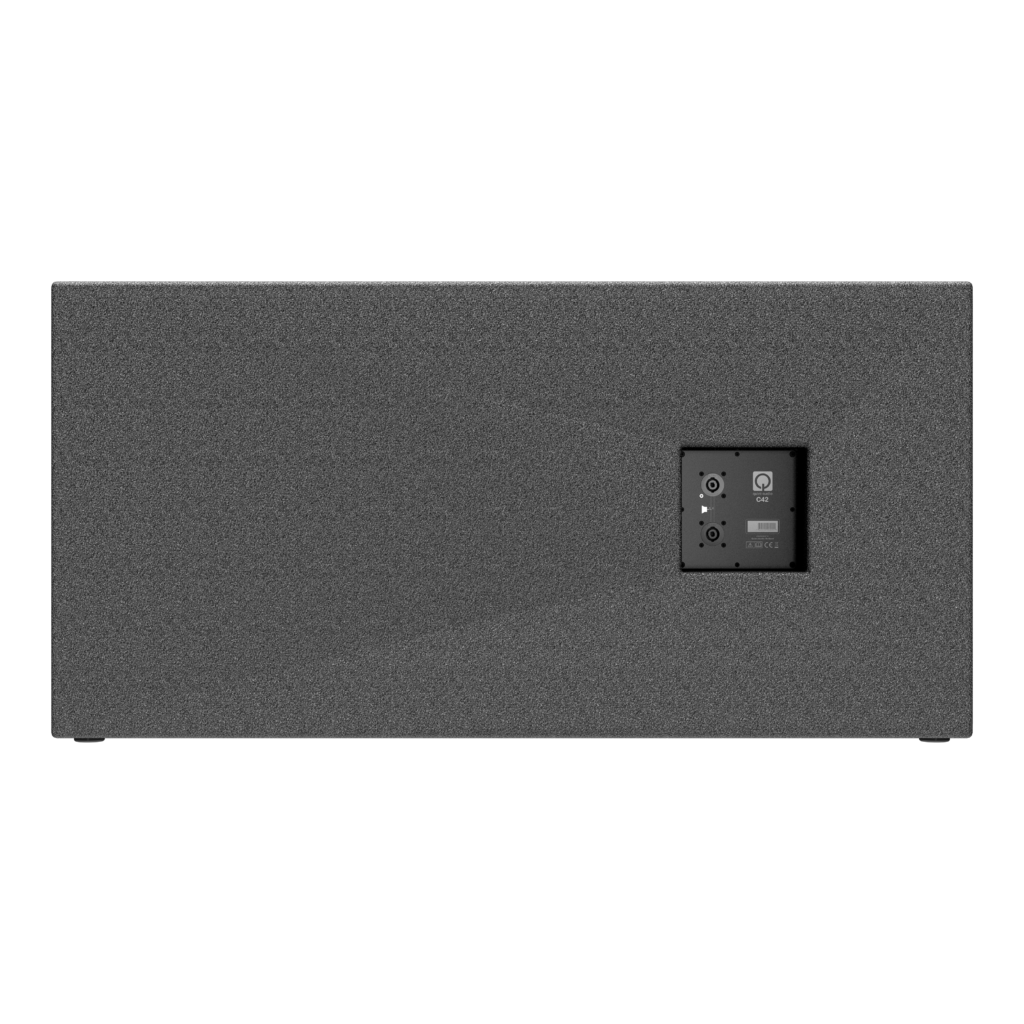

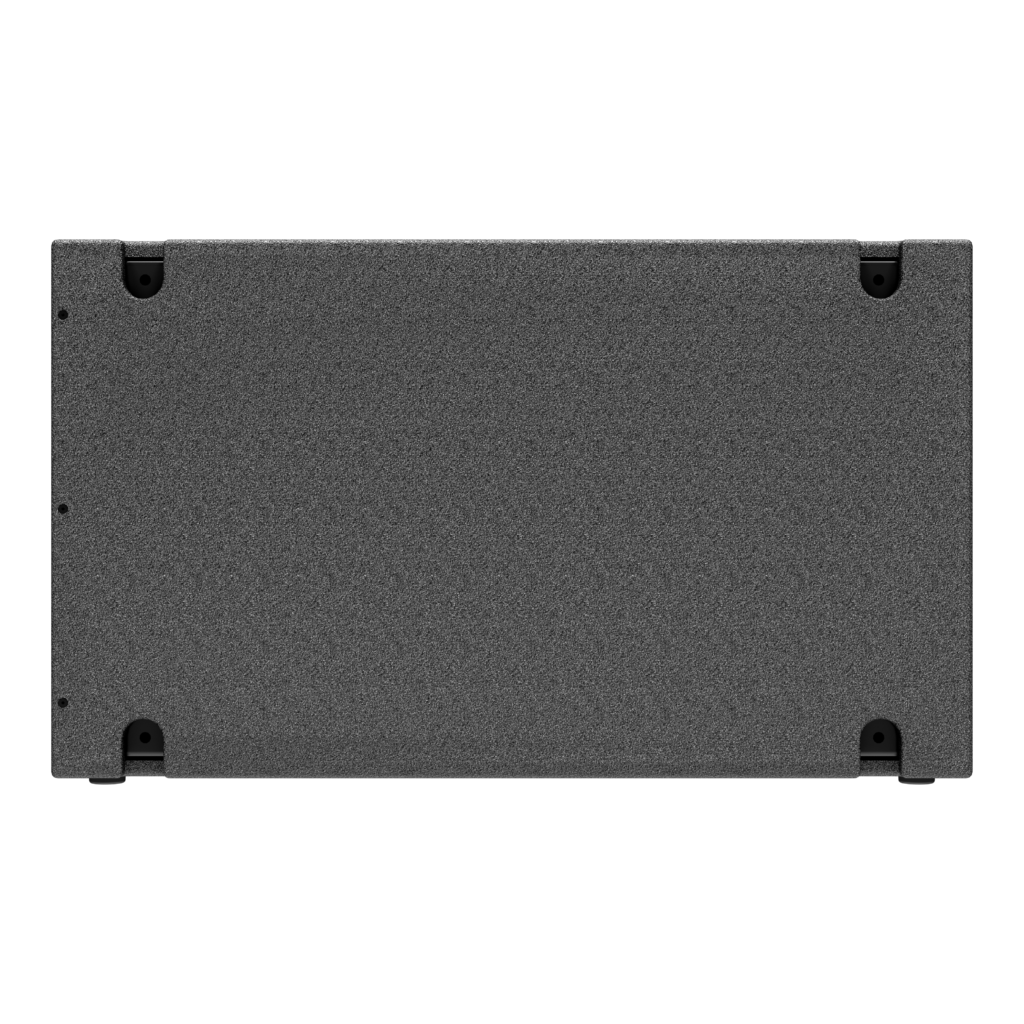

2x NLT4 on the rear. Rubber feet for stability on the bottom (and side). Truck size cabinet for efficient transportation.
Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grille with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.
Where the C42 fits.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Subwoofer |
| Components | 2x21" |
| Application | Installation |
| Series | C-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 146dB / 31Hz-100Hz |
| Max SPL* / freq. range (-6dB) | 135dB / 31Hz-100Hz |
| Dispersion (HxV) | Omni |
Connectivity
| Connections | 3x 4-pole speakON |
| Impedance | 4 Ohm |
| Filter | 1-channel DSP control |
Physical
| Size (WxHxD) | 1180 x 590 x 1000mm |
| Weight | 124kg |
