Active directivity control module.

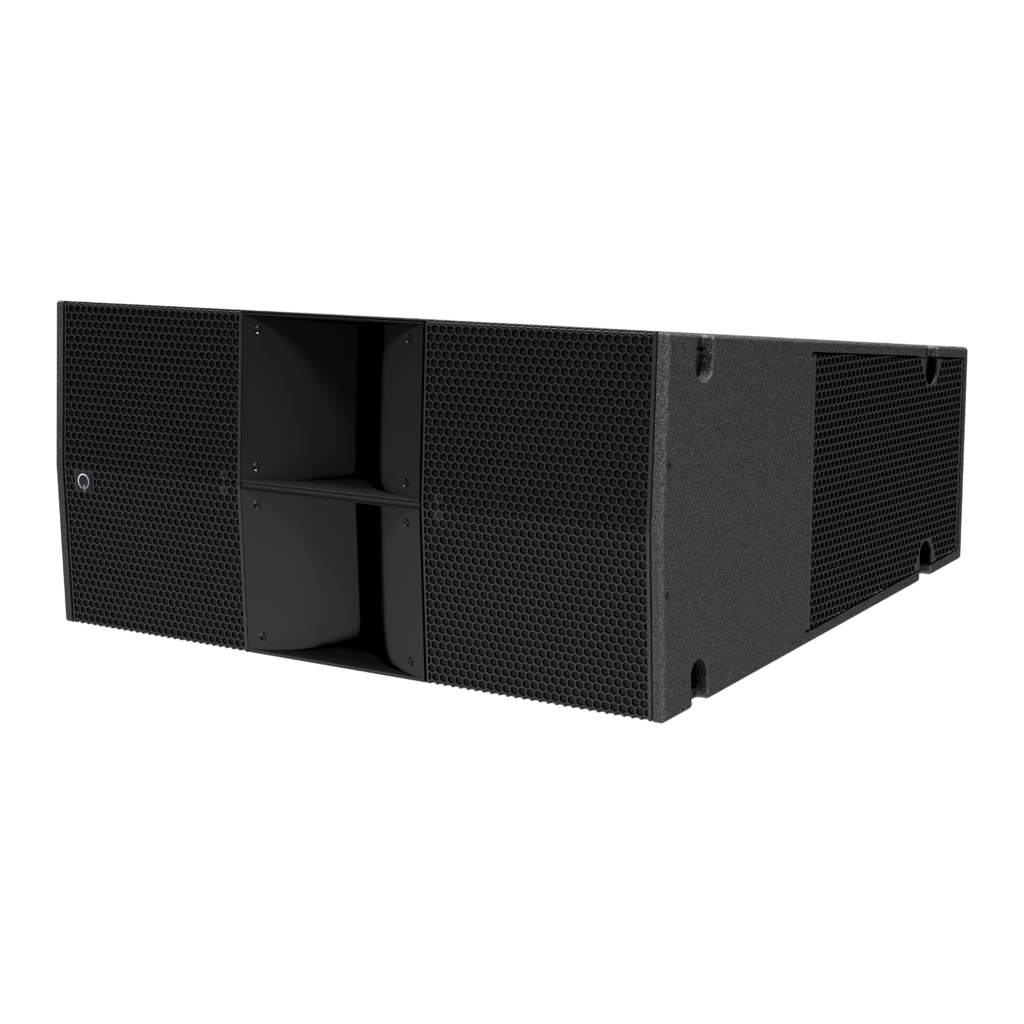

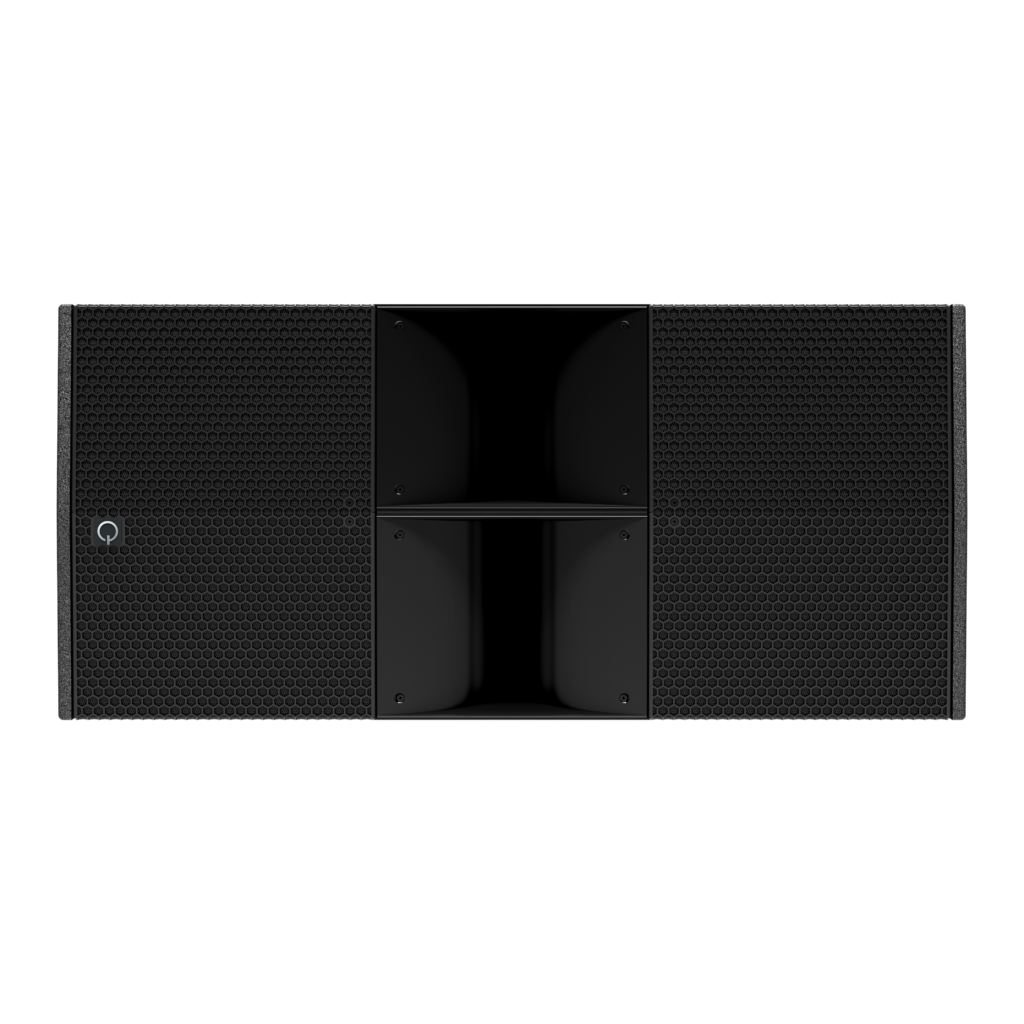

2x 18"/2x 15" bass reflex 4x 8" closed box design combined with 2x 4"/2.5" coaxial compression driver. Symmetrical design. Maintained low frequency performance at full power. noise suppression outside the sound field.

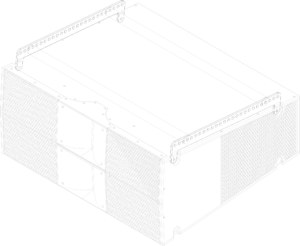

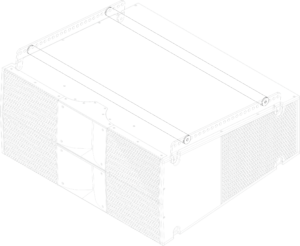

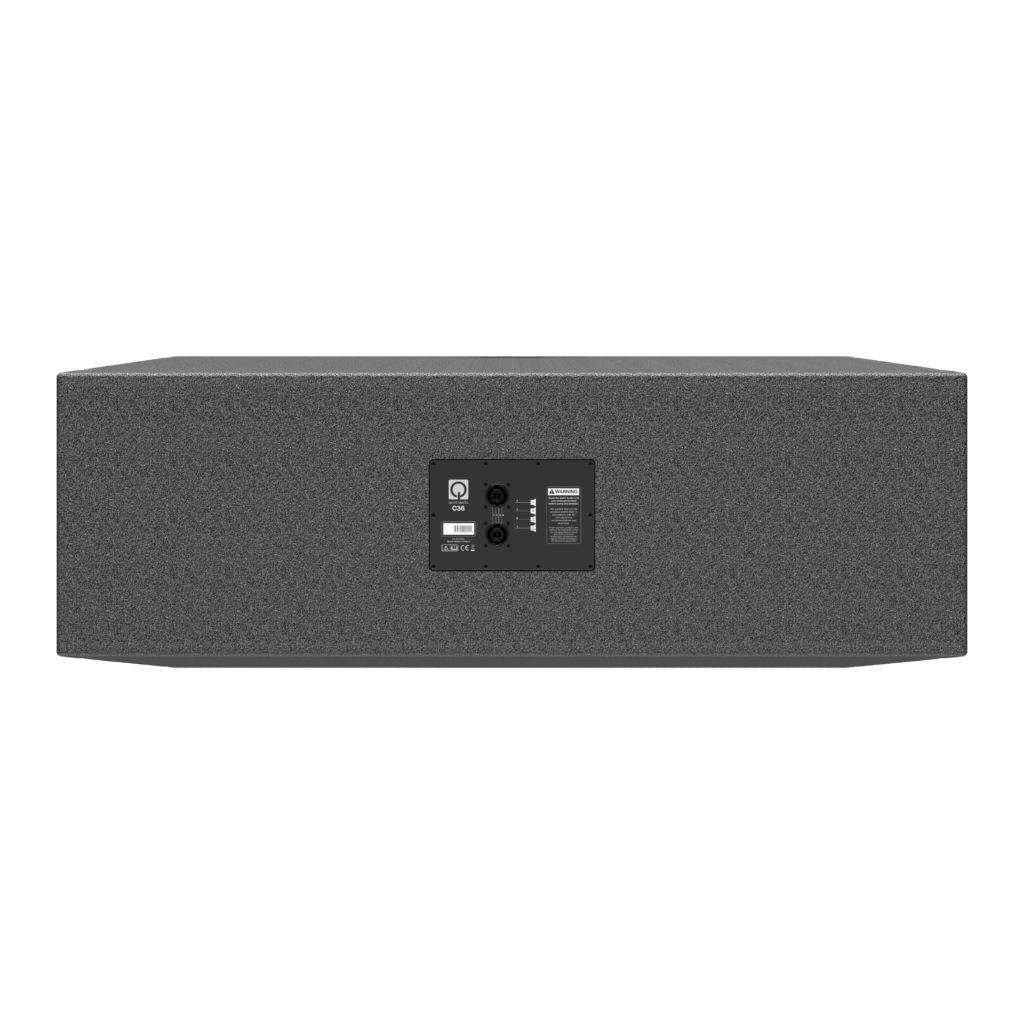

Optional touring rigging. Mounting points for fixed installation. 2x NL8 on the rear. Truck size cabinet for efficient transportation.
Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grilles with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.
Where the C36 fits.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Line array module |
| Components | 2x18"/2x15"/4x8"/2x4"/2x2.5" |
| Application | Installation |
| Series | C-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 147dB / 33Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 129dB / 33Hz-20kHz |
| Dispersion (HxV) | 110° x 10° |
Connectivity
| Connections | 2x 8-pole speakON |
| Impedance | 4 Ohm |
| Filter | 4-channel DSP control |
Physical
| Size (WxHxD) | 1180 x 540 x 1010mm |
| Weight | 140kg |
Drive it with Quint electronics.

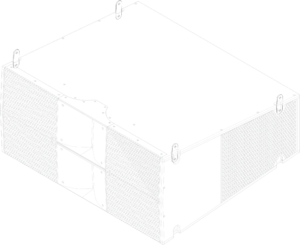

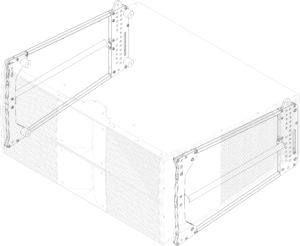

Rigging & accessories.
