C30
4x15"/4"/2.5" — High performance full range active noise cancelling point source for installation
Active noise cancelling point source.
4x 15" bass reflex design combined with 4"/2.5" coaxial compression driver. Symmetrical design. Maintained low frequency performance at full power.

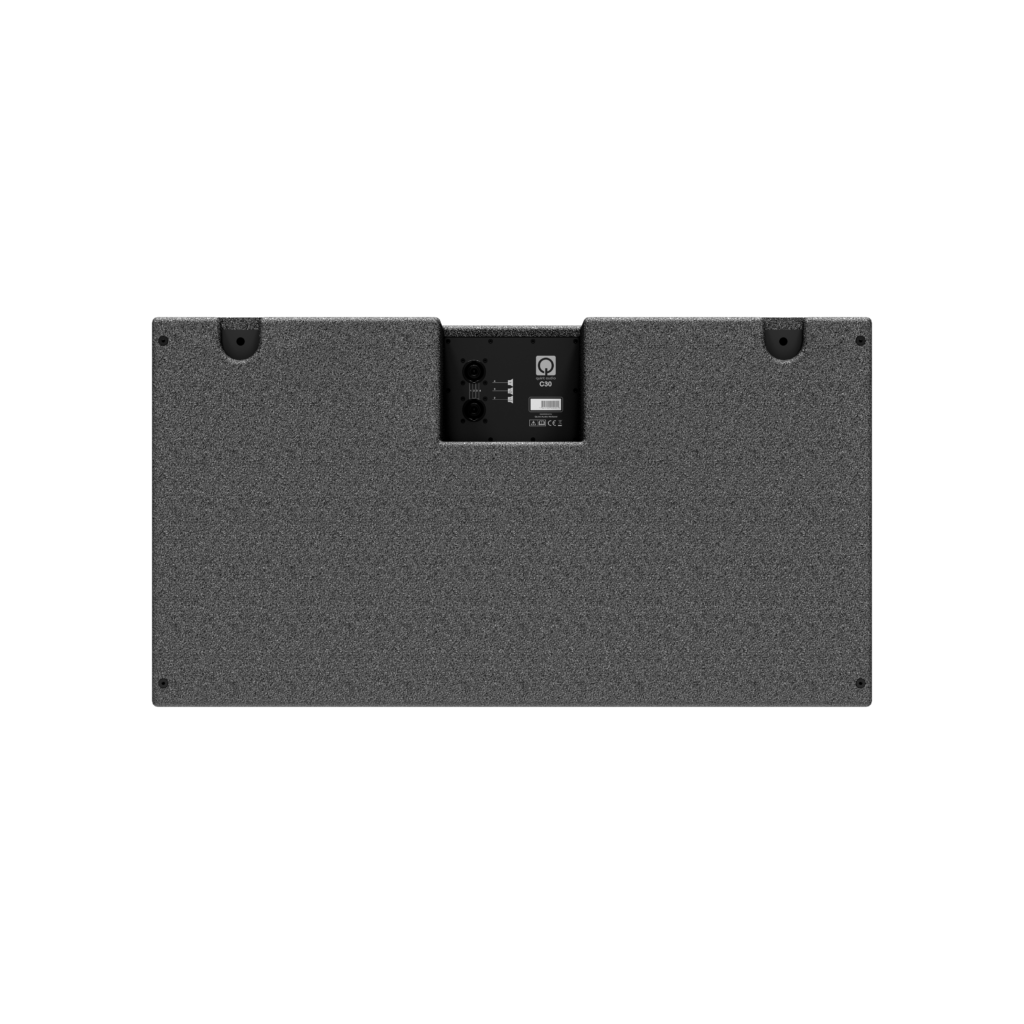

noise suppression outside the sound field. Mounting points for fixed installation. 2x NLT4 on the rear.
Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grilles with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.
Where the C30 fits.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Point source |
| Components | 4x15"/4"/2.5" |
| Application | Installation |
| Series | C-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 145dB / 43Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 130.5dB / 43Hz-20kHz |
| Dispersion (HxV) | 70° x 40° |
Connectivity
| Connections | 2x 8-pole speakON |
| Impedance | 4 Ohm |
| Filter | 3-channel DSP control |
Physical
| Size (WxHxD) | 900 x 490 x 830mm |
| Weight | 86kg |
Drive it with Quint electronics.

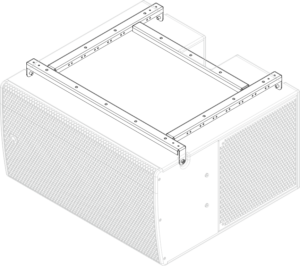

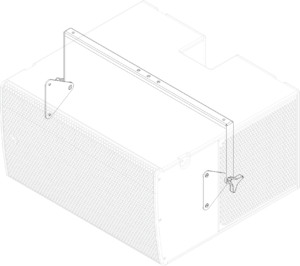

Rigging & accessories.
