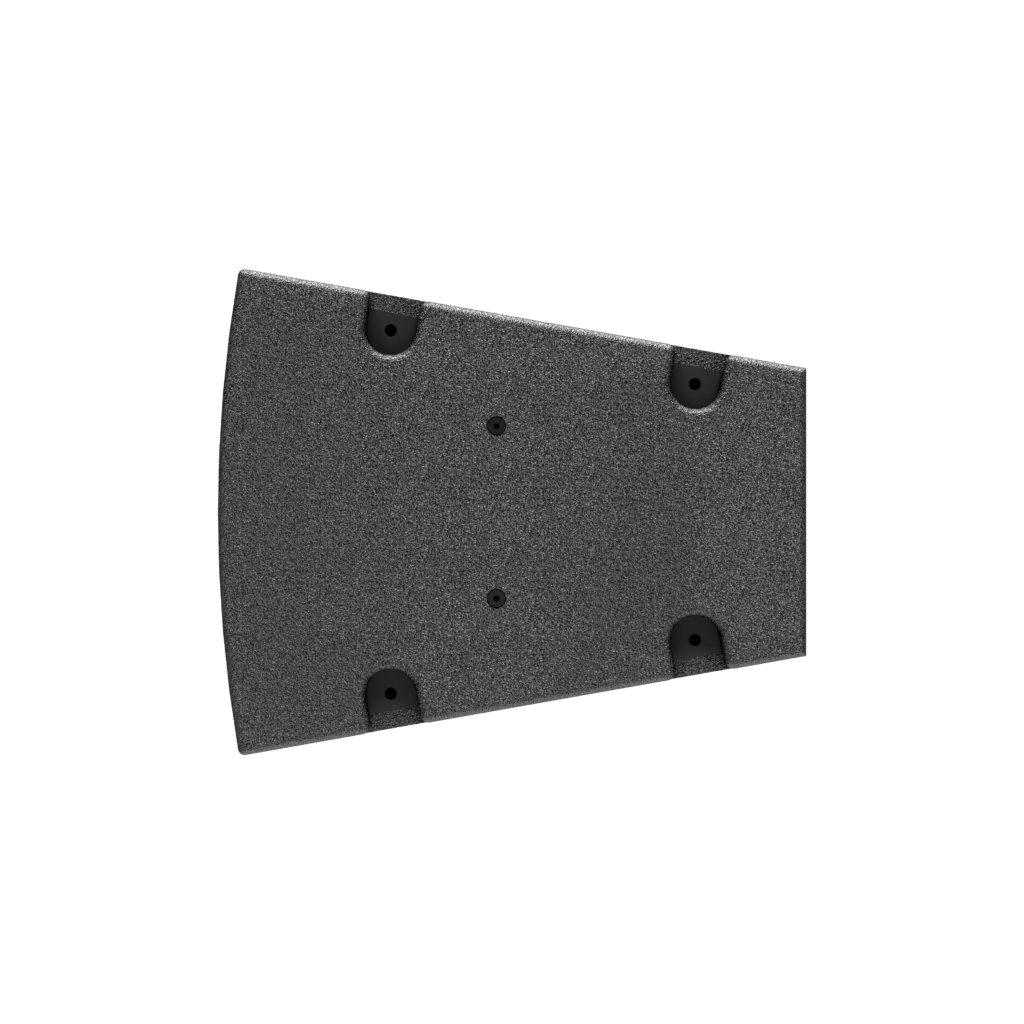

C15
15"/4"/2.5" — Full range fixed curvature module for installation

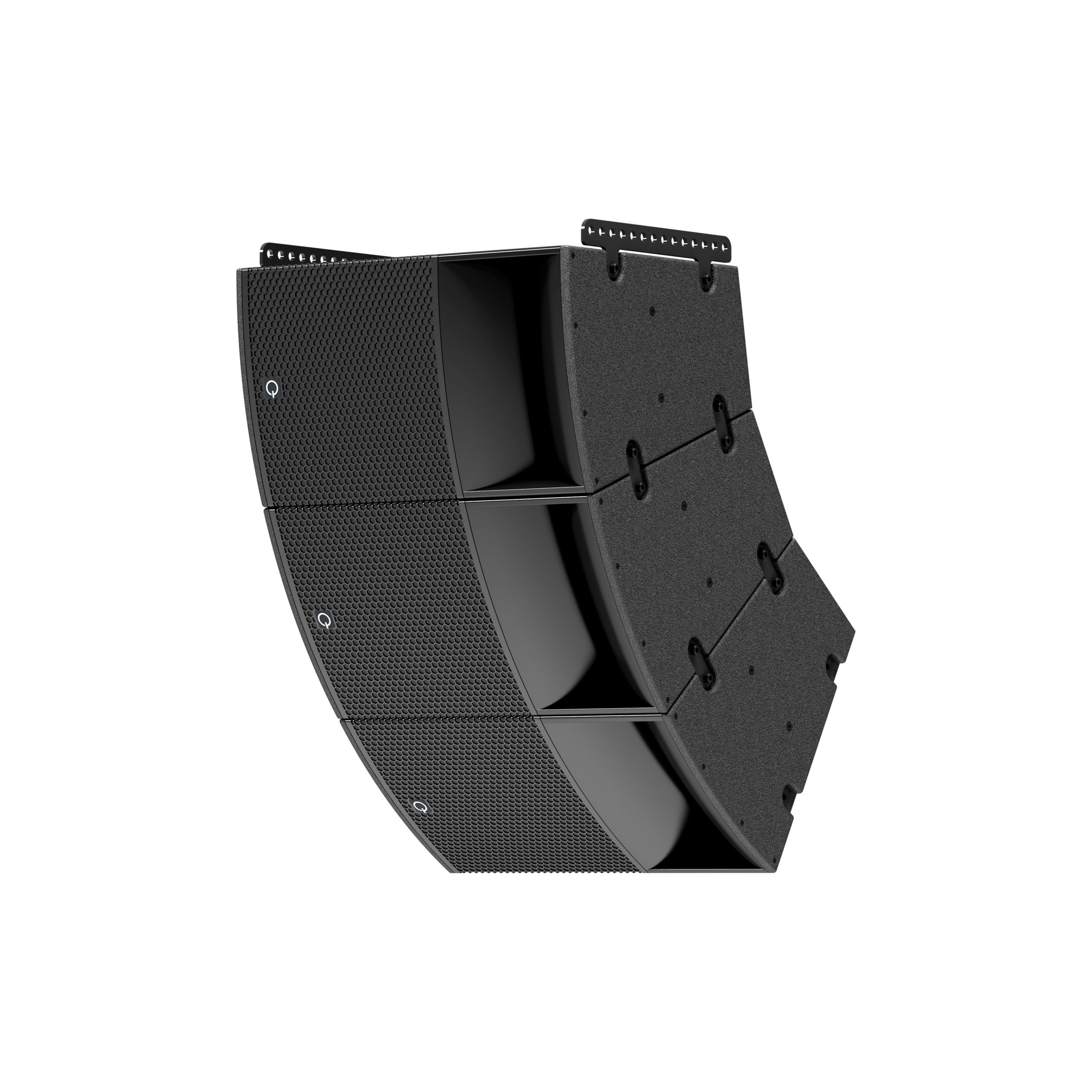

Full range constant curvature.

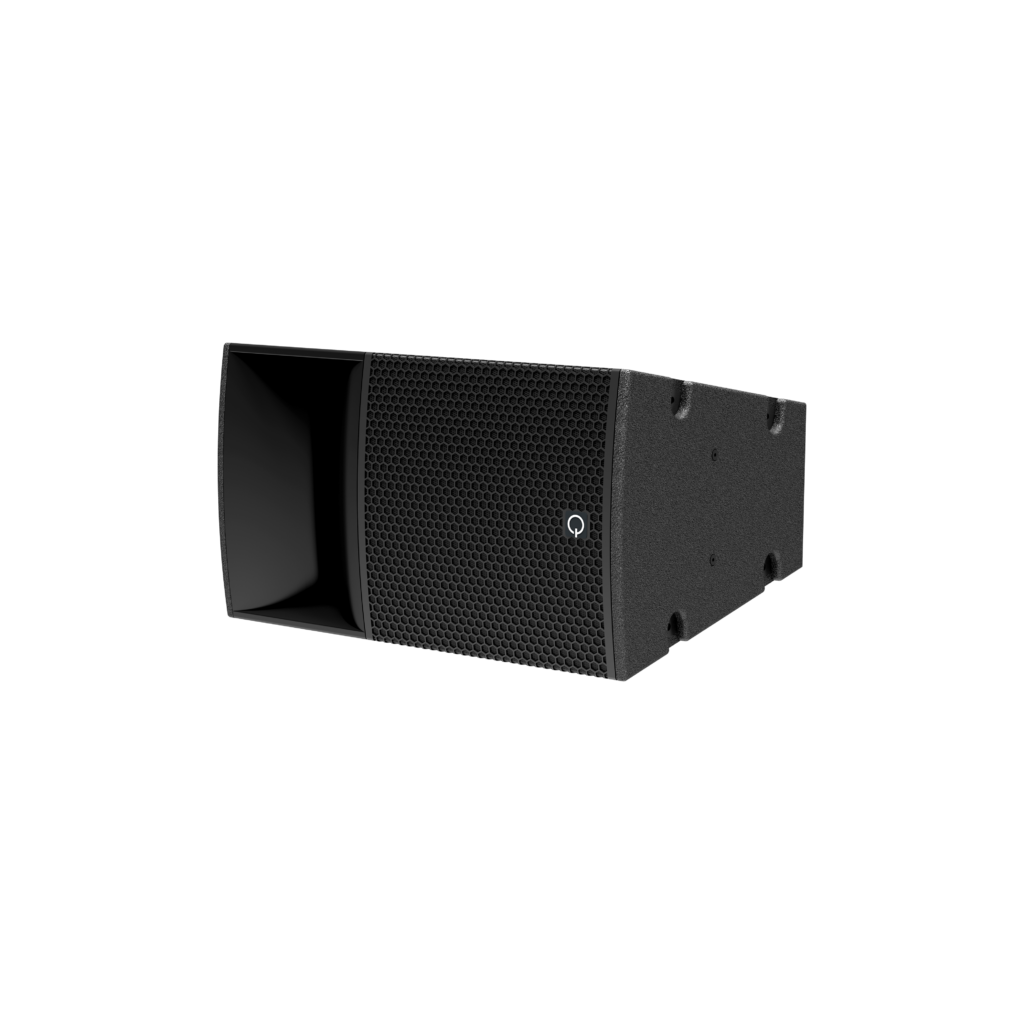

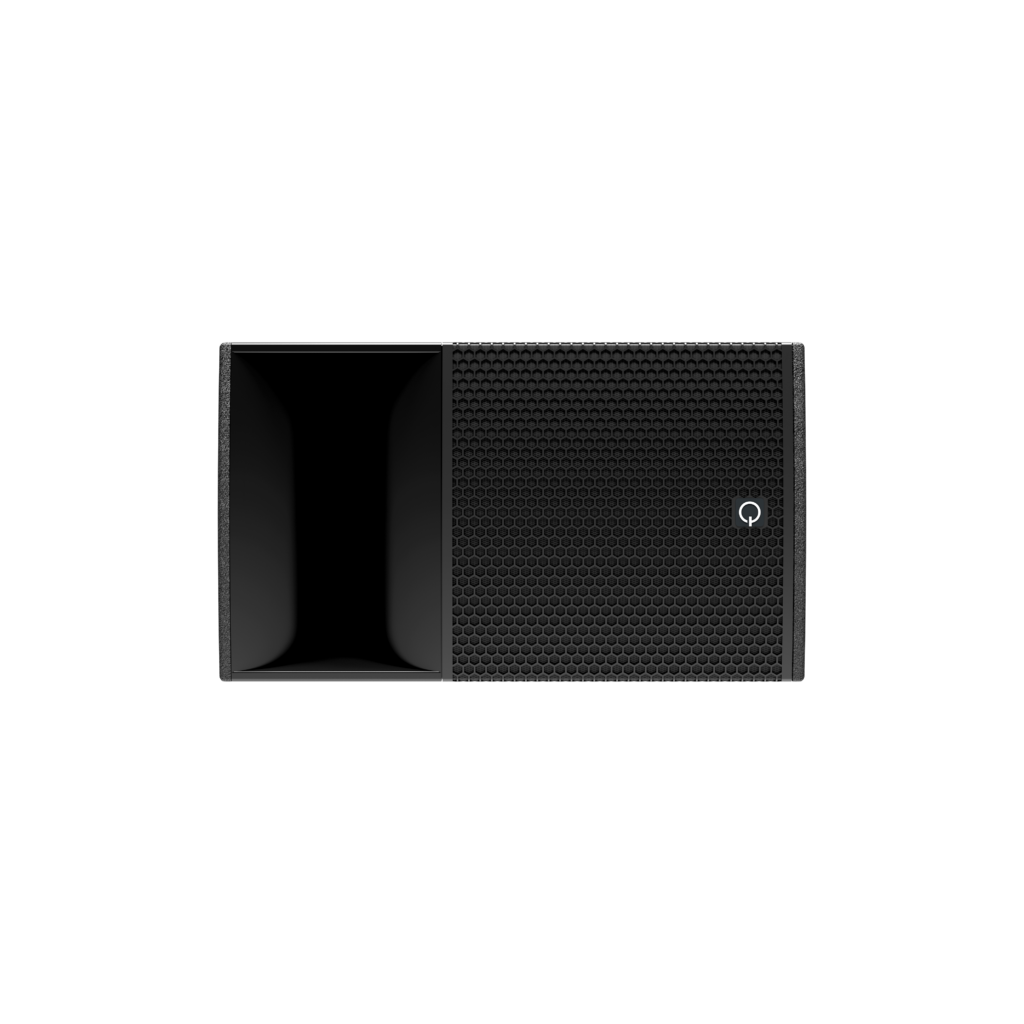

15" bass reflex design combined with 4"/2.5" coaxial compression driver. Maintained low frequency performance at full power.

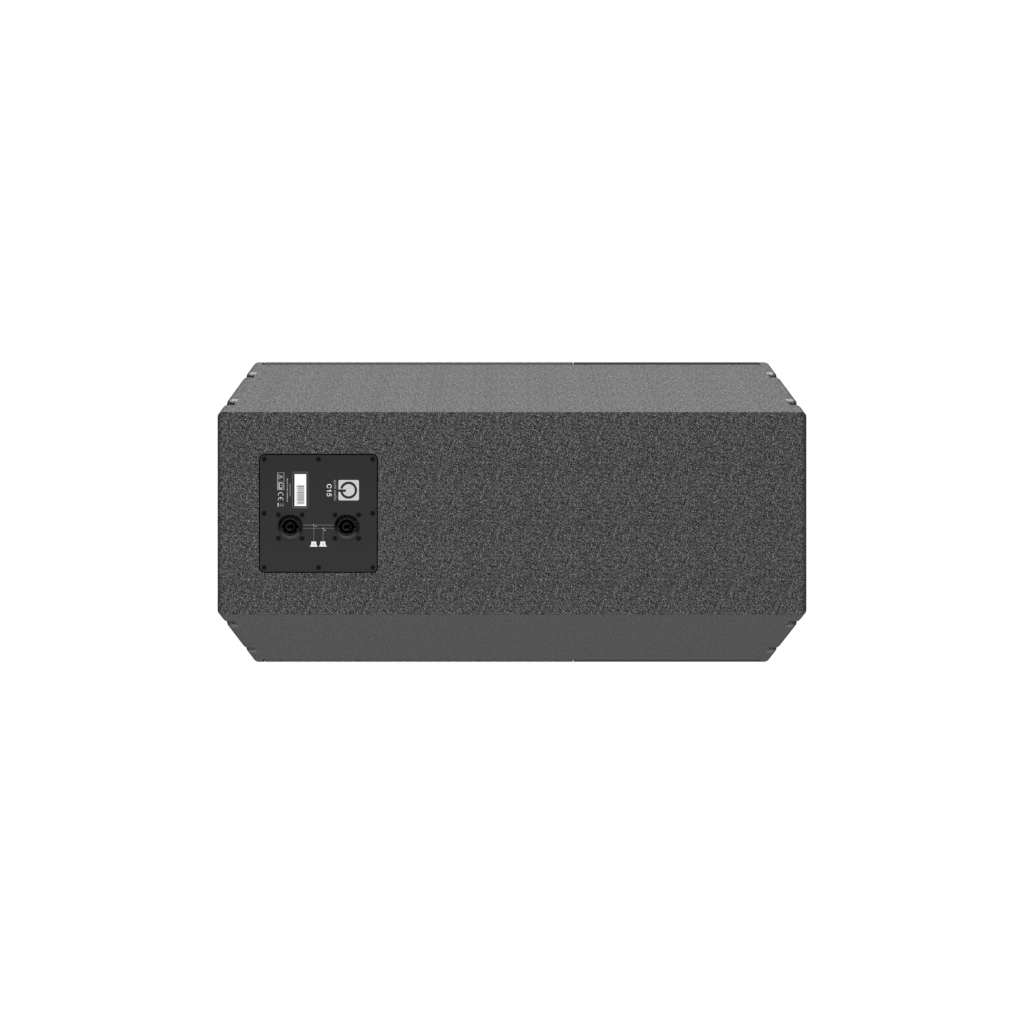

Mounting points for fixed installation. 2x NLT4 on the rear.
Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grilles with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.
Where the C15 fits.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Full-range top |
| Components | 15"/4"/2.5" |
| Application | Installation |
| Series | C-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 138dB / 33Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 120dB / 33Hz-20kHz |
| Dispersion (HxV) | 90° x 20° |
Connectivity
| Connections | 2x 4-pole speakON |
| Impedance | 8 Ohm |
| Filter | 2-channel DSP control |
Physical
| Size (WxHxD) | 730 x 425 x 515mm |
| Weight | 39kg |
Drive it with Quint electronics.

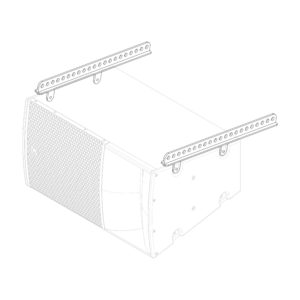

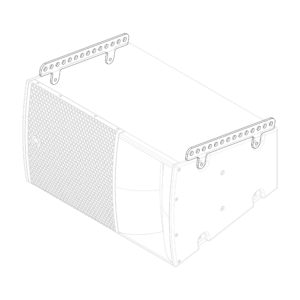

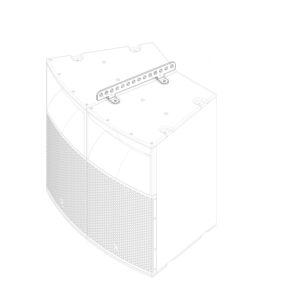

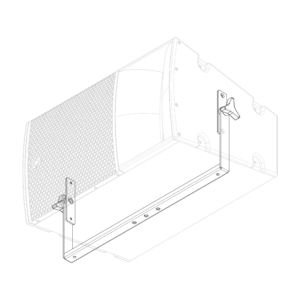

Rigging & accessories.
