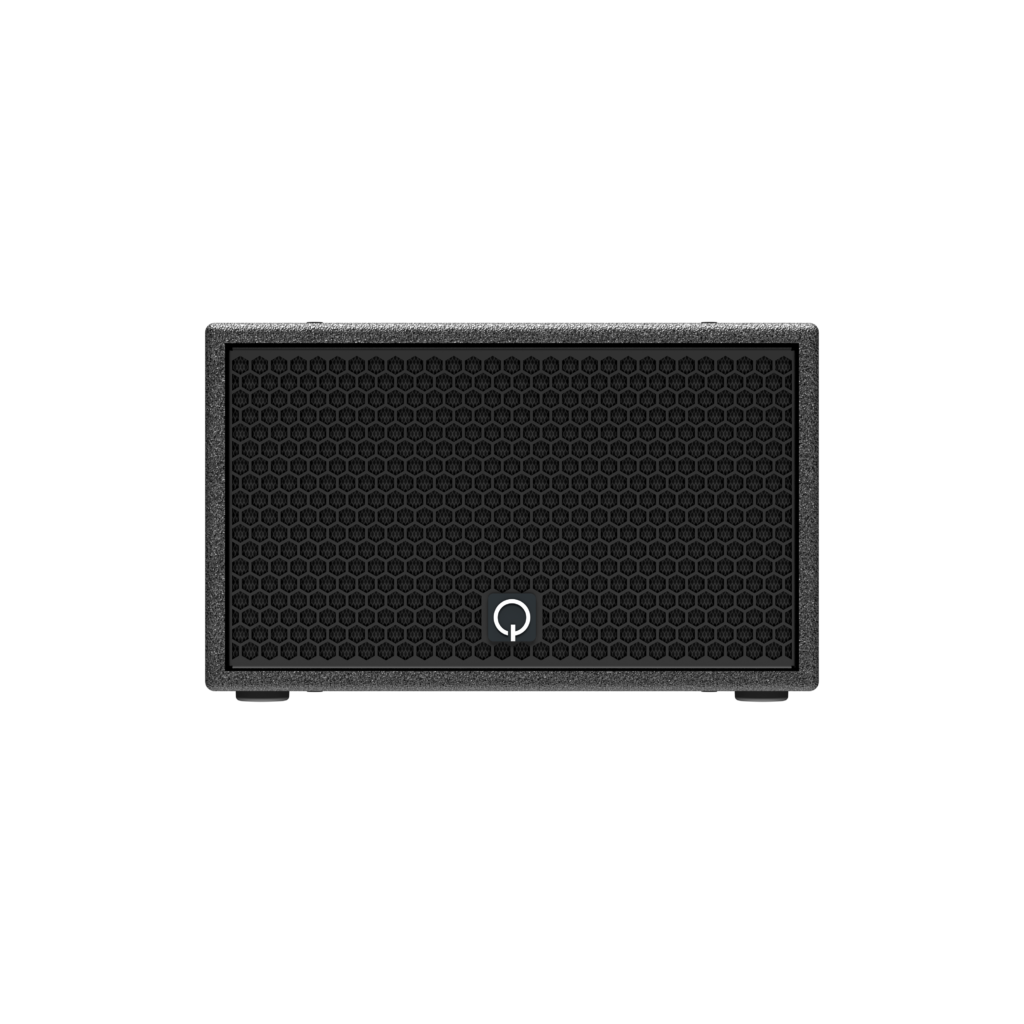

Ultracompact subwoofer.

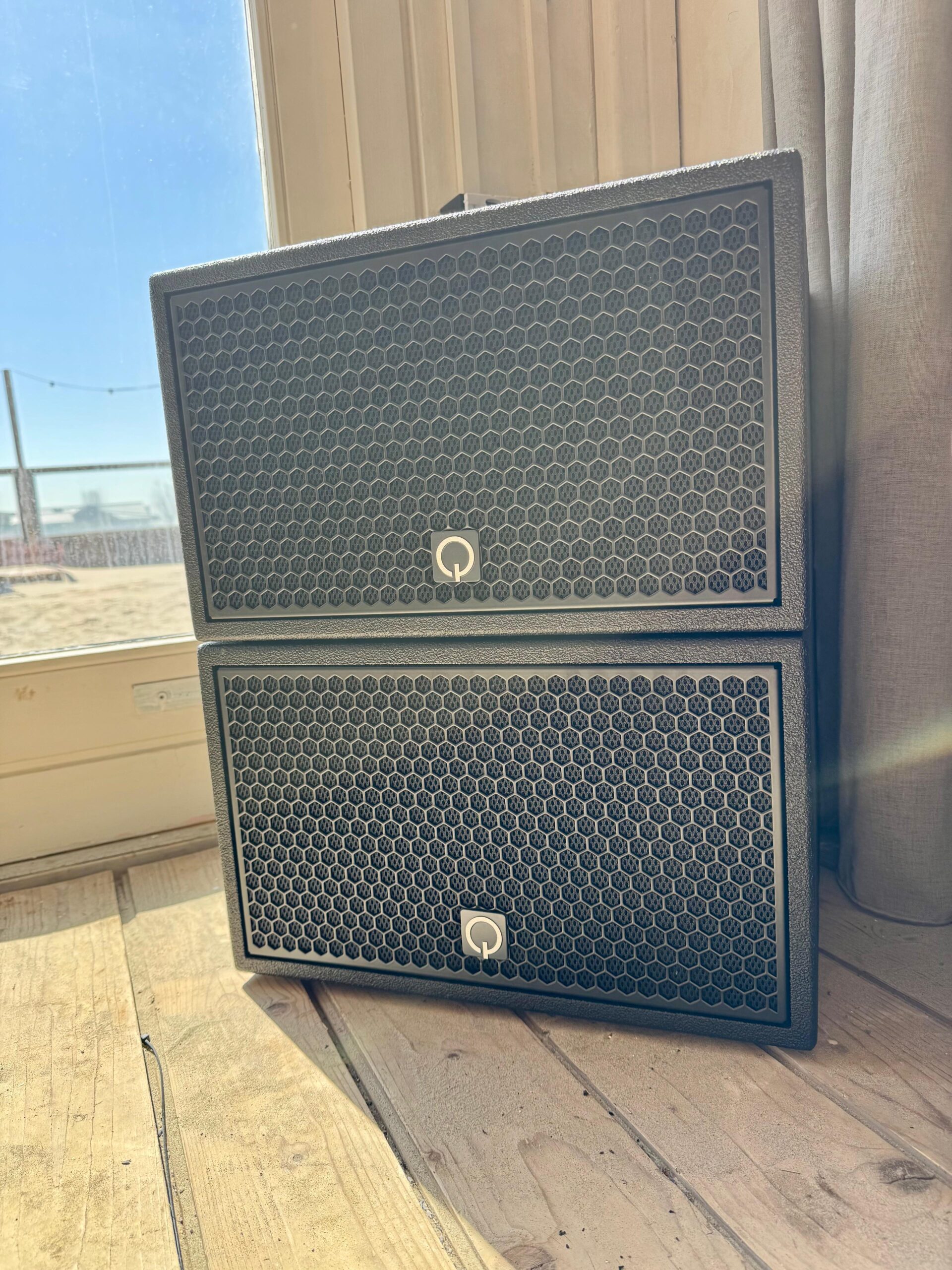

10" bass reflex design. Maintained low frequency performance at full power. Stackable in omni & cardioid setup. Mounting points for fixed installation.

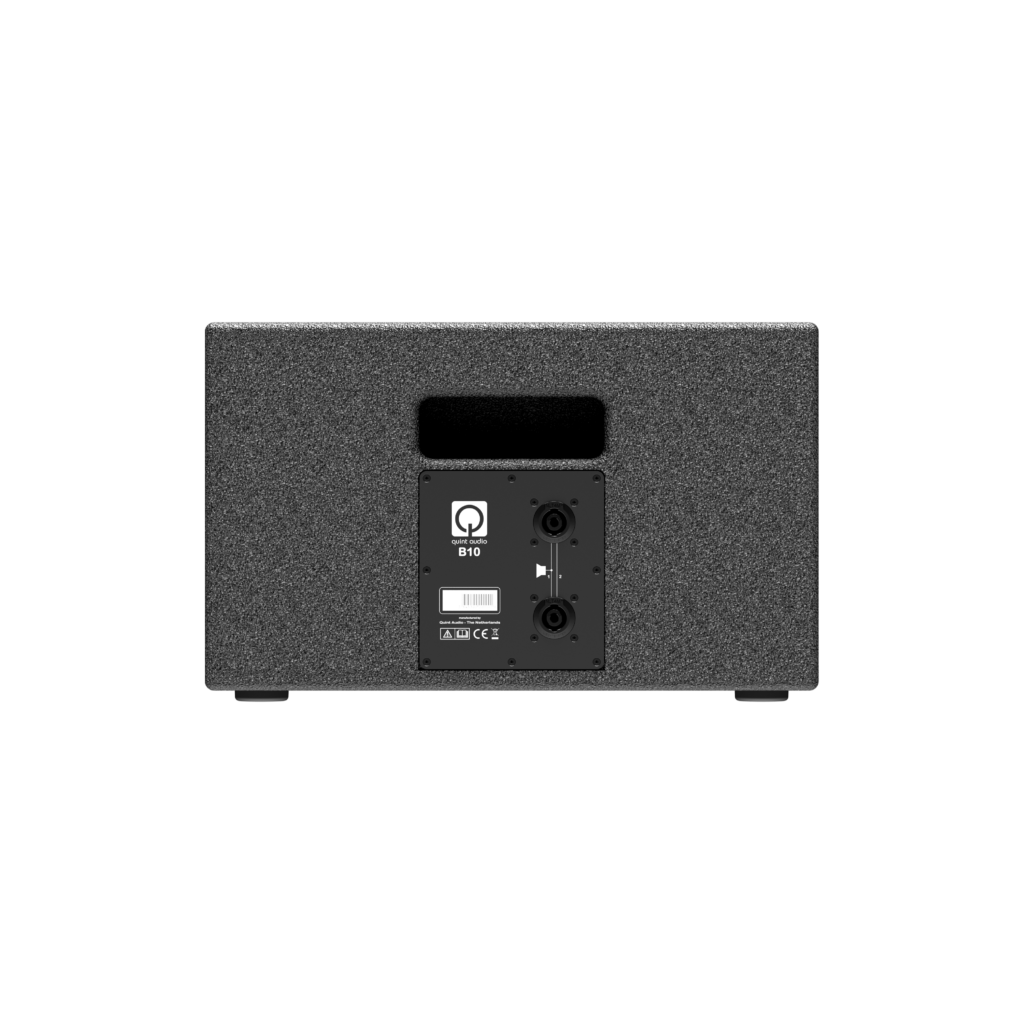

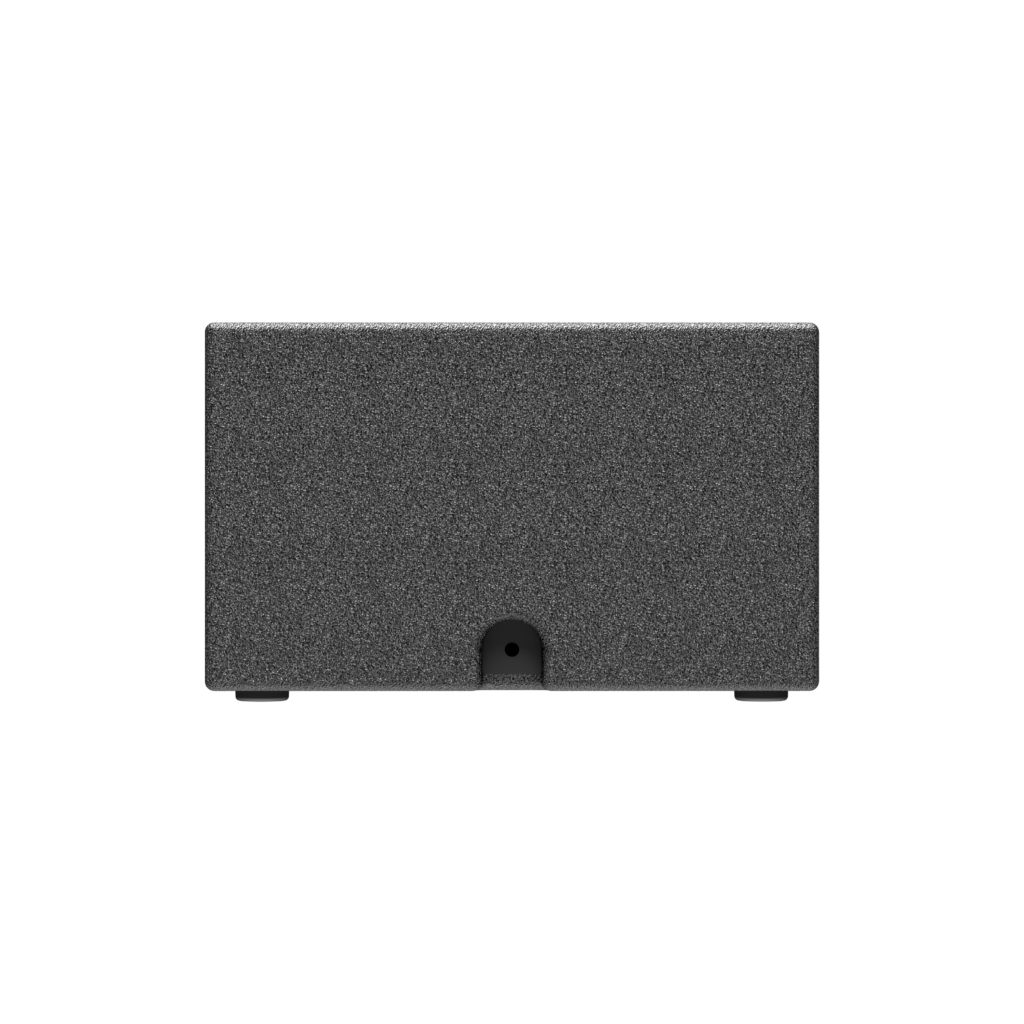

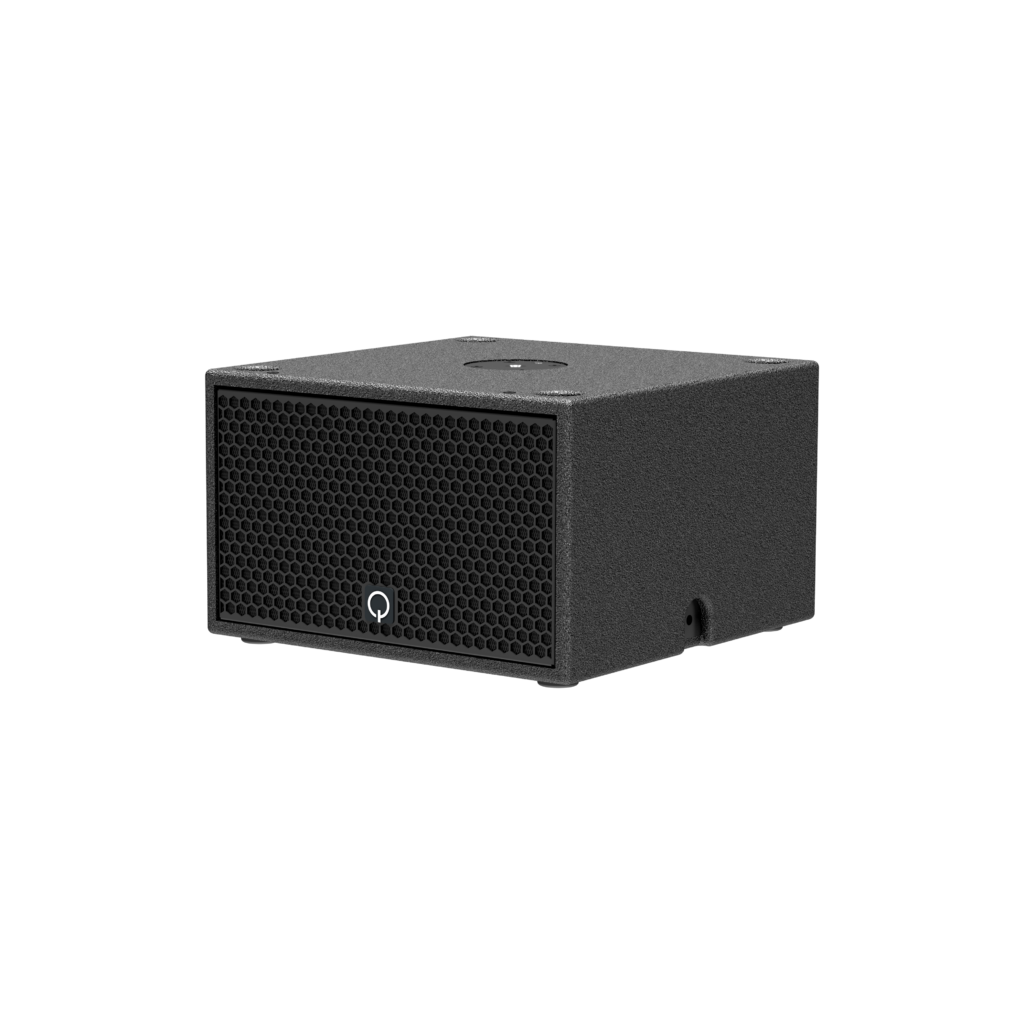

2x NLT4 on the rear. M20-pole mount on top. 2x ergonomic handles, 1x on the left, 1x on the right. Rubber feet for stability on the bottom.
Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grille with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.
Where the B10 fits.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Subwoofer |
| Components | 10" |
| Application | Touring & Installation |
| Series | B-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 122.5dB / 33Hz-100Hz |
| Max SPL* / freq. range (-6dB) | 111dB / 33Hz-100Hz |
| Dispersion (HxV) | Omni |
Connectivity
| Connections | 2x 4-pole speakON |
| Impedance | 4 Ohm |
| Filter | 1-channel DSP control |
Physical
| Size (WxHxD) | 450 x 275 x 450mm |
| Weight | 17kg |
