T12

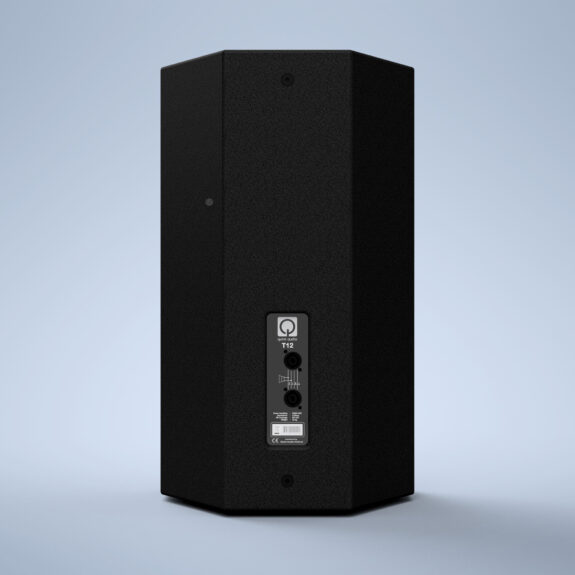

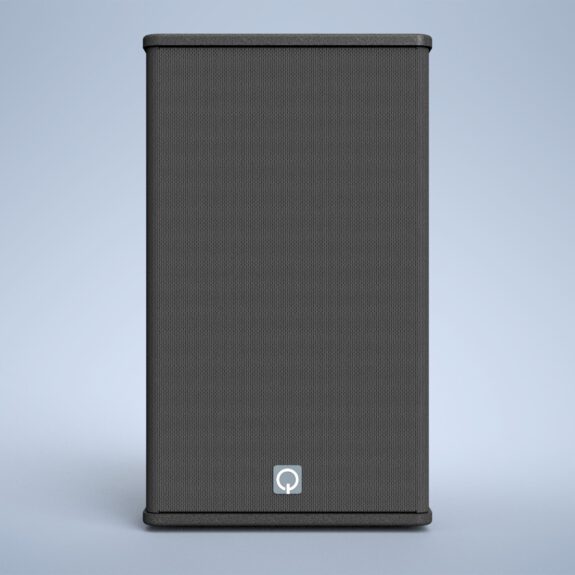

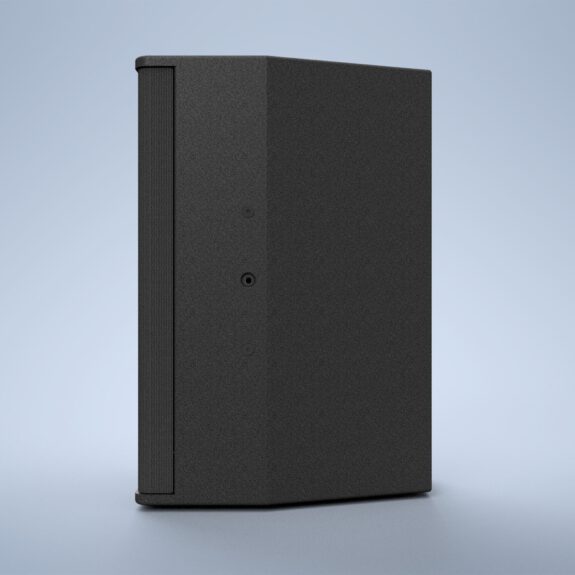

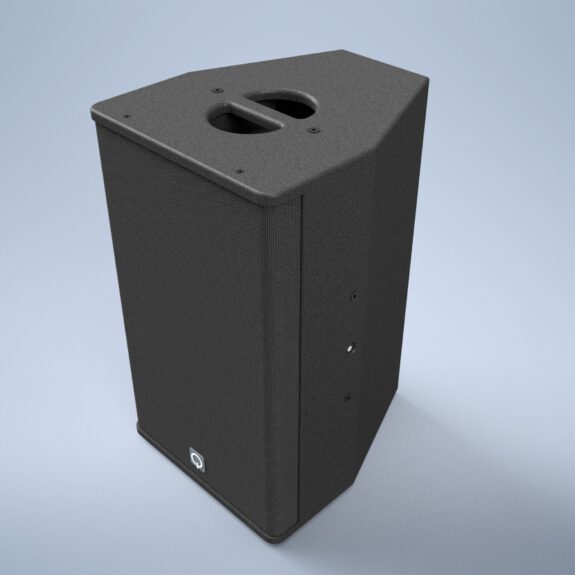

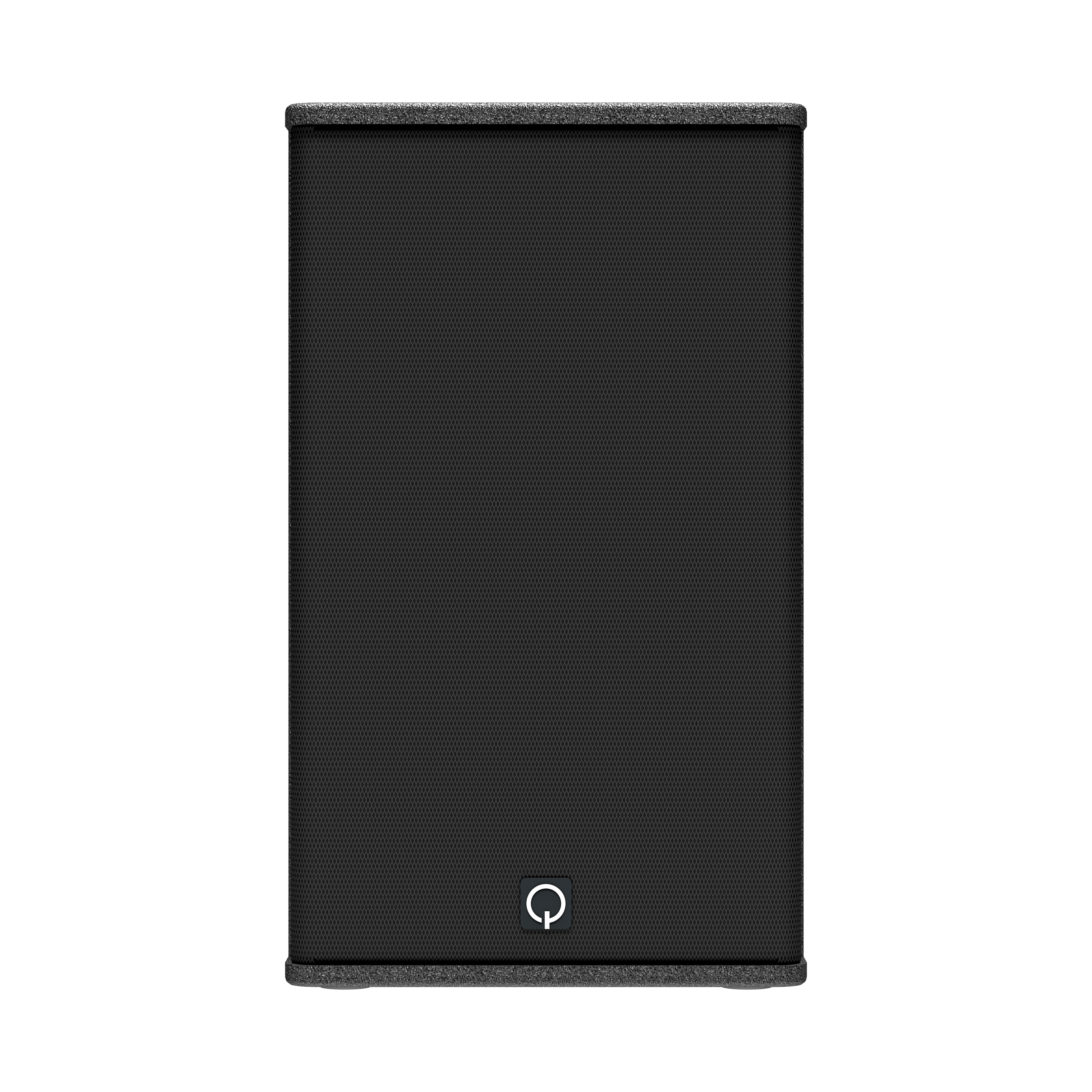

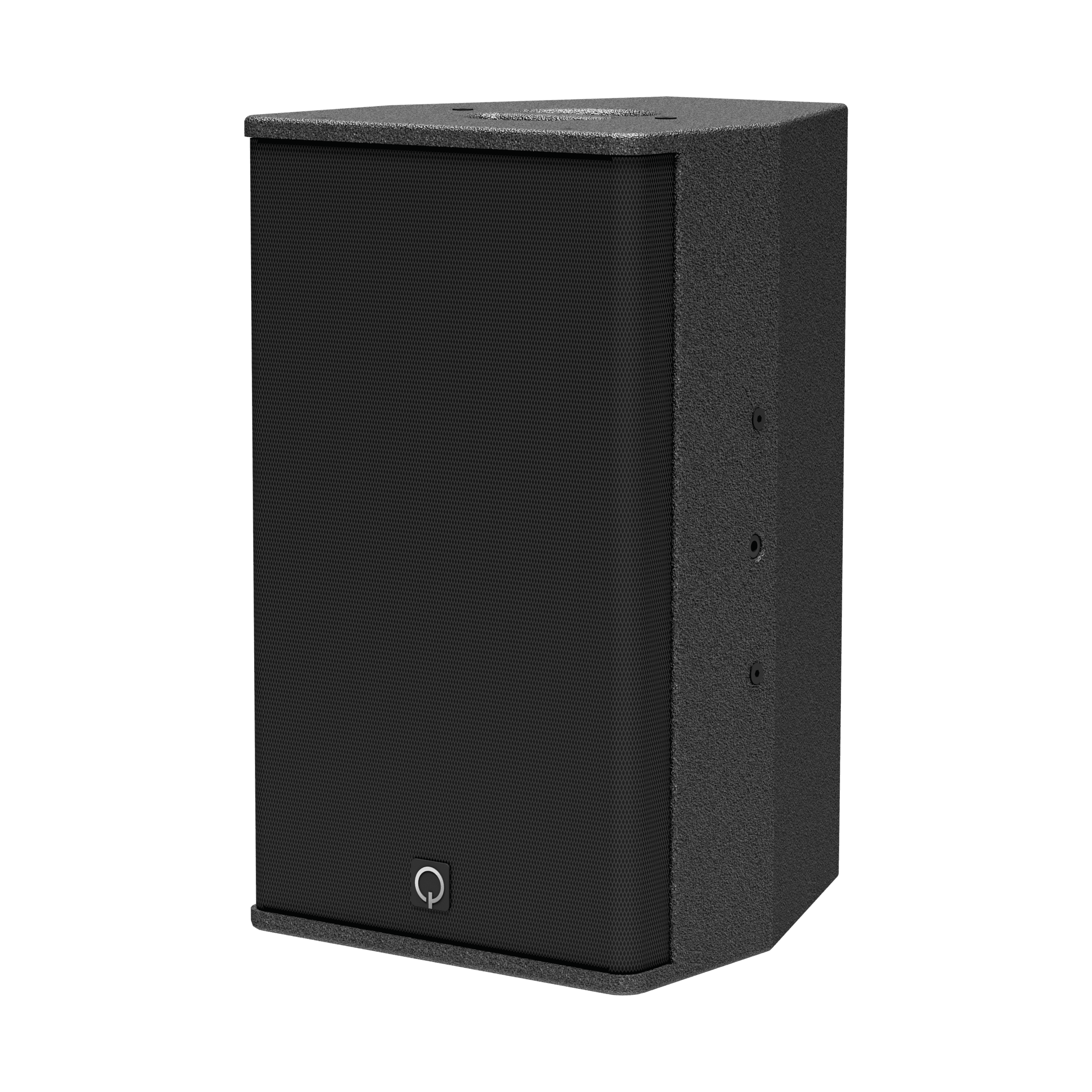

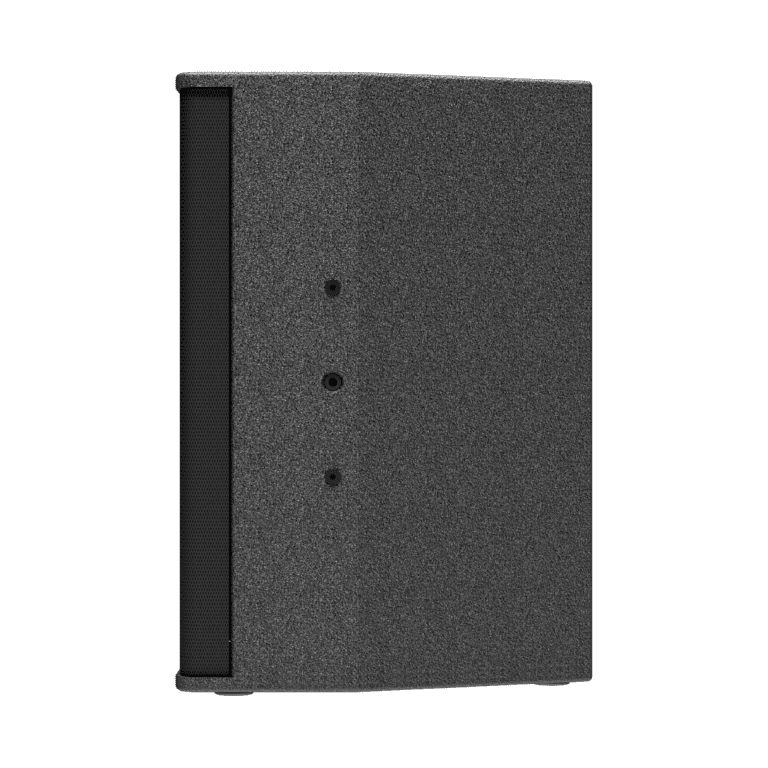

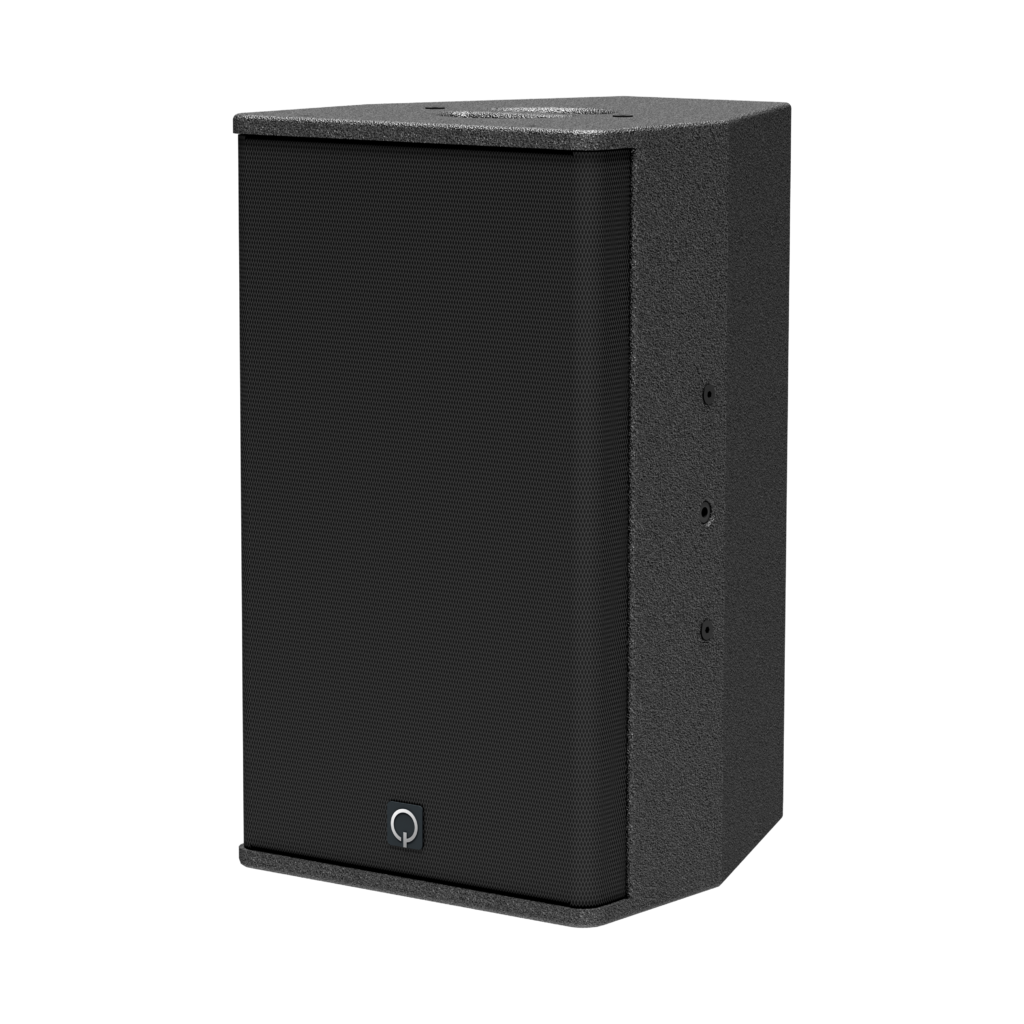

The Quint Audio T12 is a 12″ND/5″ND AMT front loaded 2-way passively filtered full-range speaker system for high profile use

Specifications
Specifications
Description

By its specifications the Quint Audio T12 is committed to near- and mid-field PA applications. It   has a very well defined mid- and high-frequency reproduction and a surprisingly deep and rich bass.

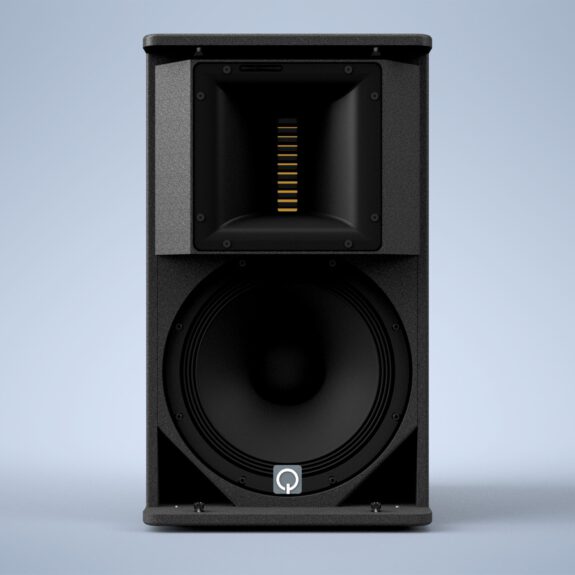

The 5″ND-AMT/12″ND design stands for high fidelity sound reinforcement with an outstanding dynamic reach.

The very versatile T12 feels most at ease when used on pure dynamic sources but is of course not limited to that.

This, and many more fine tuned parameters, make the T12 a great full-range loudspeaker that is sought after by top- engineers and connoisseurs in musical environments.


Application area

FOH Top
Full Range Loudspeaker

Live Theatre
Live Music
Mechanical Music
Speech
Vocals


Specifications
T12
5"ND AMT/12"ND full range loudspeaker
passive
800W AES
1600W
8 Ohms
97 dB 1W/1m
129 dB 1m
135 dB 1m
45Hz - 20 kHz
80°x30° hxv
24 kg
360 x 607 x 415 mm

Advised electronics

P1 & P2 processor
A1 & A2 amplifier
open platform, processing recommended


Downloads

Rigging

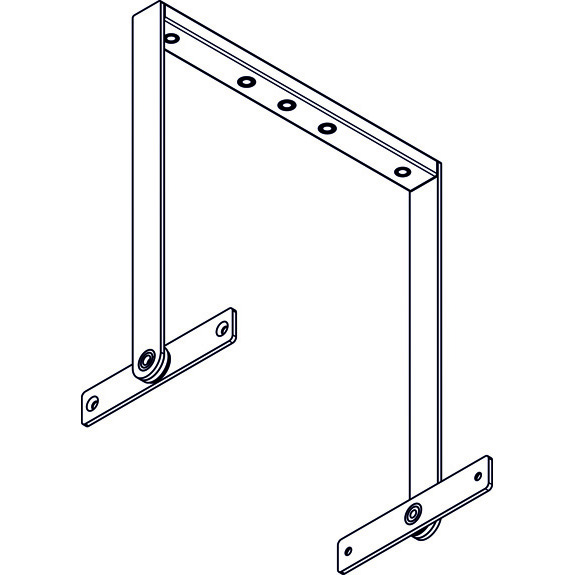

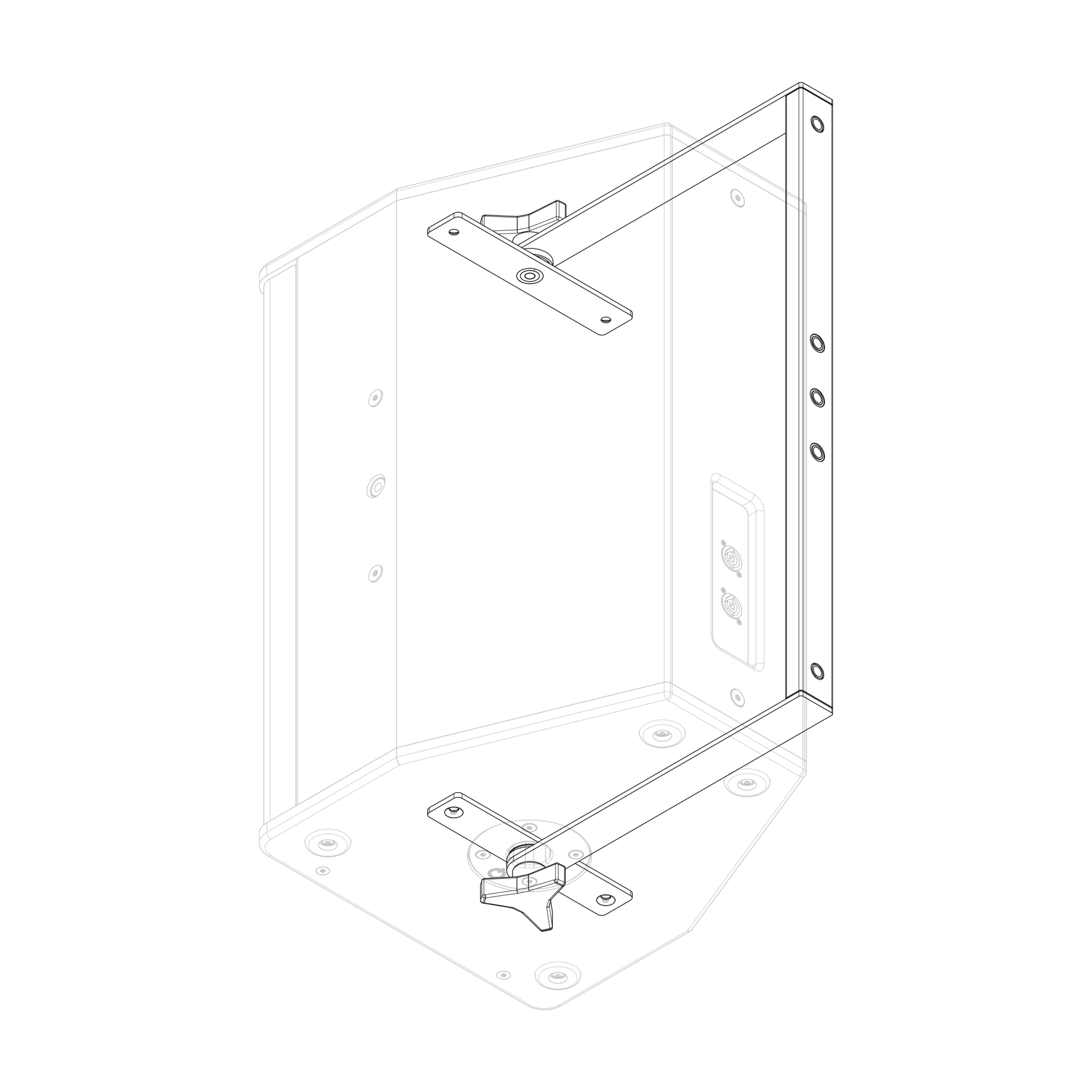

  • T12VC

    upright mounting bracket

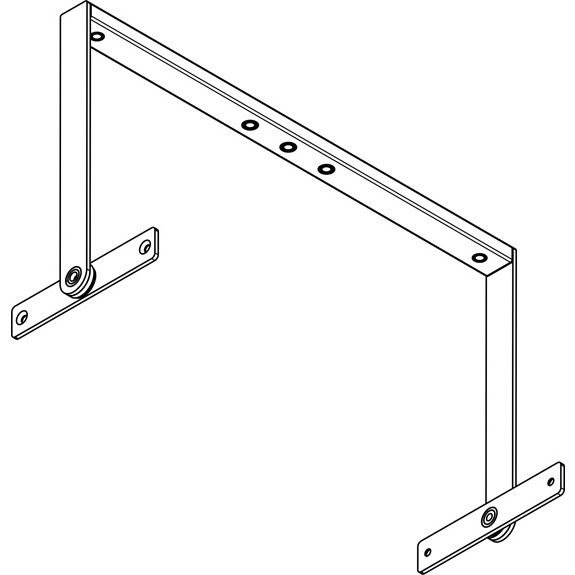

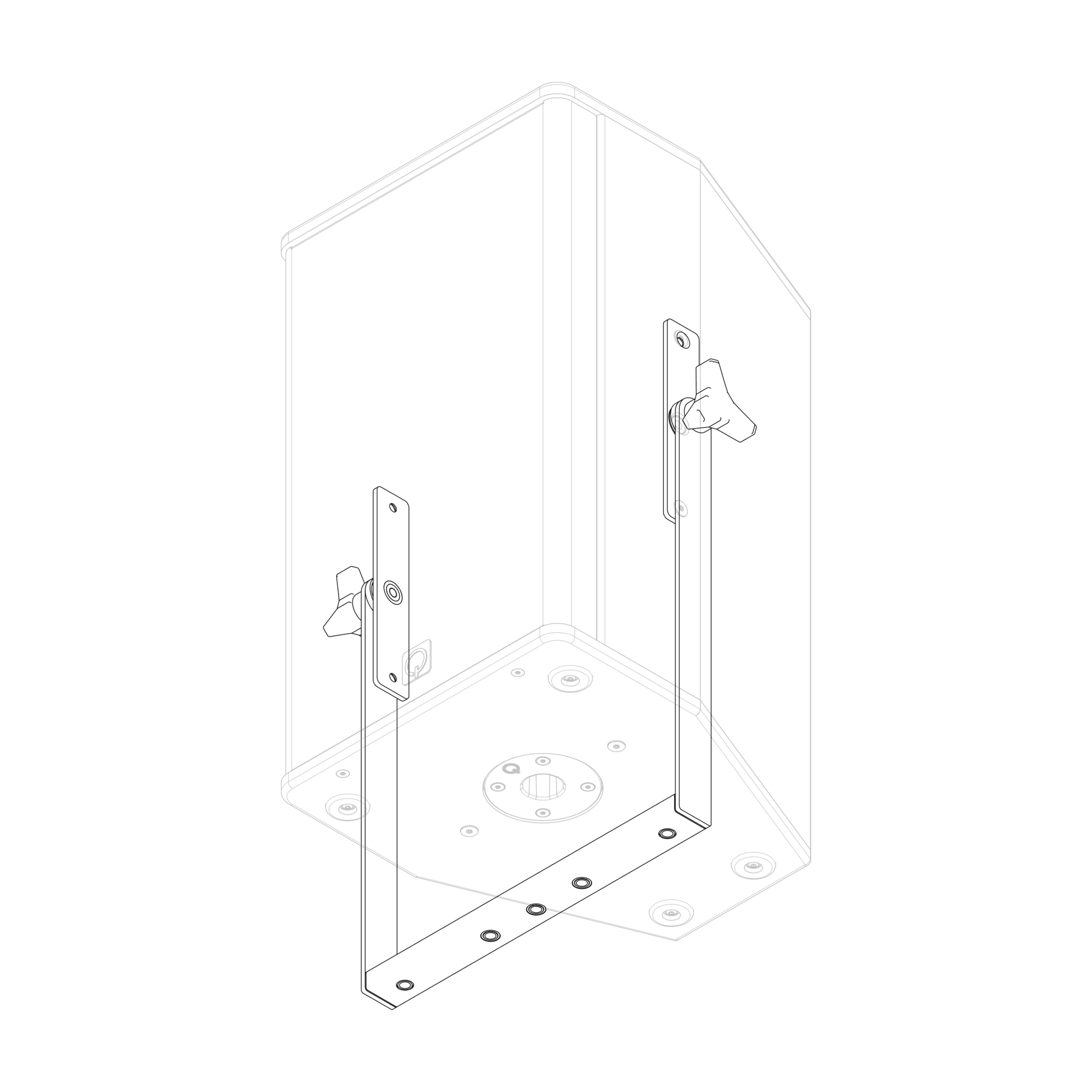

  • T12HC

    flat mounting bracket
