S221

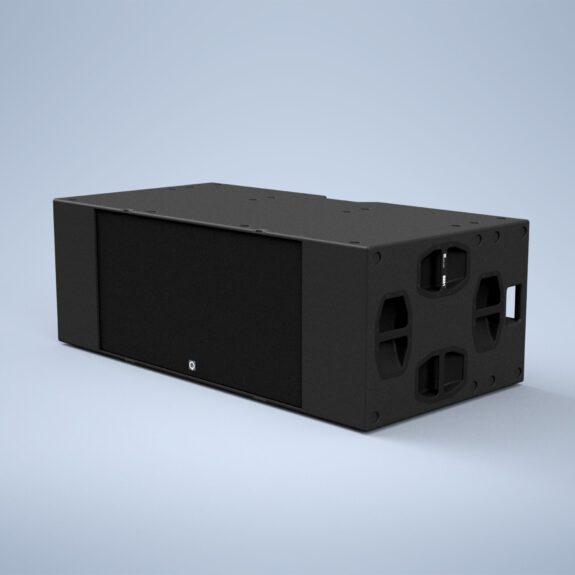

The Quint Audio S221 is a 2×21″ subwoofer with a deep linear tuning to be used as (sub)bass extension of Quint Audio loudspeakers

Specifications
Specifications
Description

The design of the Quint Audio S221 provides high efficiency associated with a deep and powerful bass foundation. This makes this 2×21″ subwoofer deployable in large-sized PA- applications such as large format live concerts (for example underneath large line arrays).

Also smaller setups are very well possible. With its height of almost 1.7m in upright position, the S221 is easy to use as subwoofer underneath a medium-sized PA top. The response in the mid-low is sufficient for use in this way. A top cabinet placed on top of the S221 radiates directly over the audiences heads.


Application area

Concert Sub
PA Sub
EndFire Setup

Live Music
Mechanical Music


Specifications
S221
2x21" (infra) sub
none
2800W
5600W
4 Ohms
101 dB 1W/1m
139 dB 1m
145 dB 1m
28 - 150Hz
omni
138 kg
1680 x 580 x 835 mm

Advised electronics

P1 & P2 processor
A1 & A2 amplifier
open platform


Downloads

Rigging
