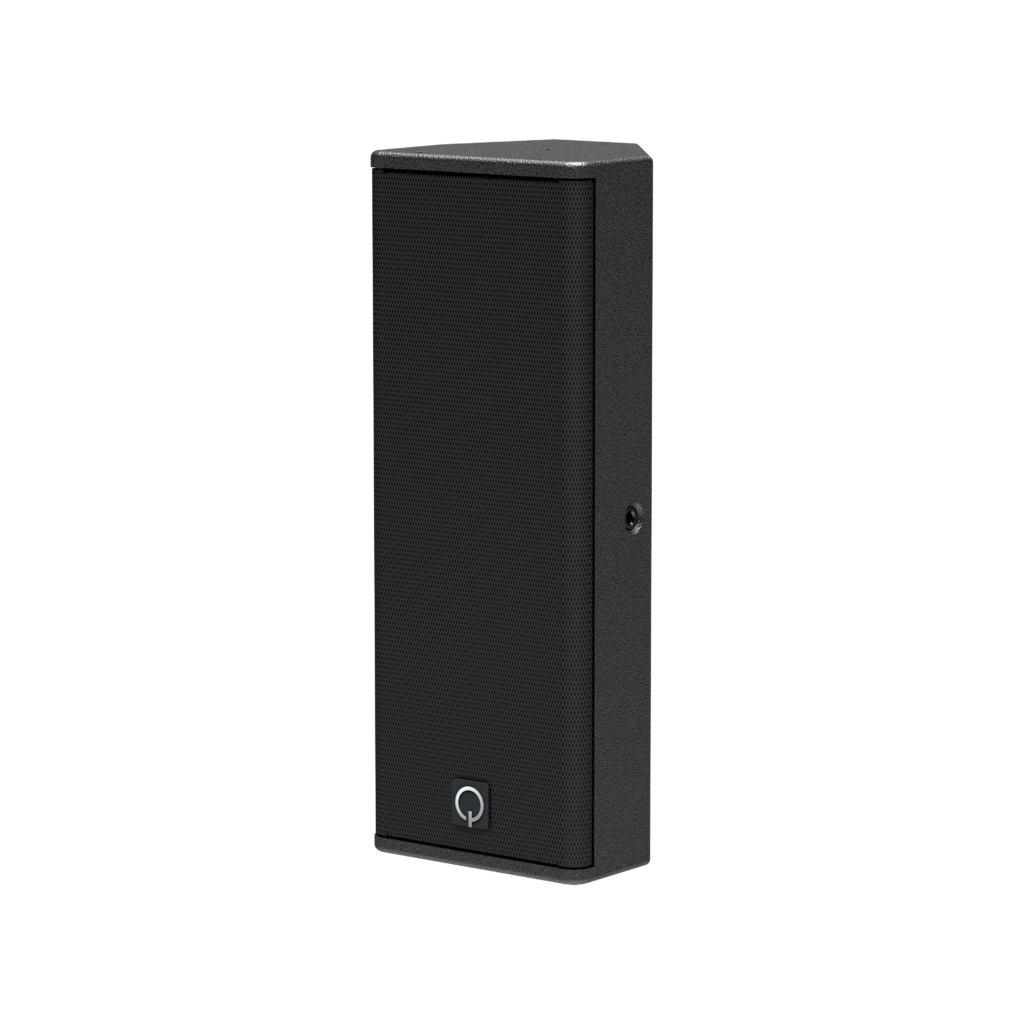

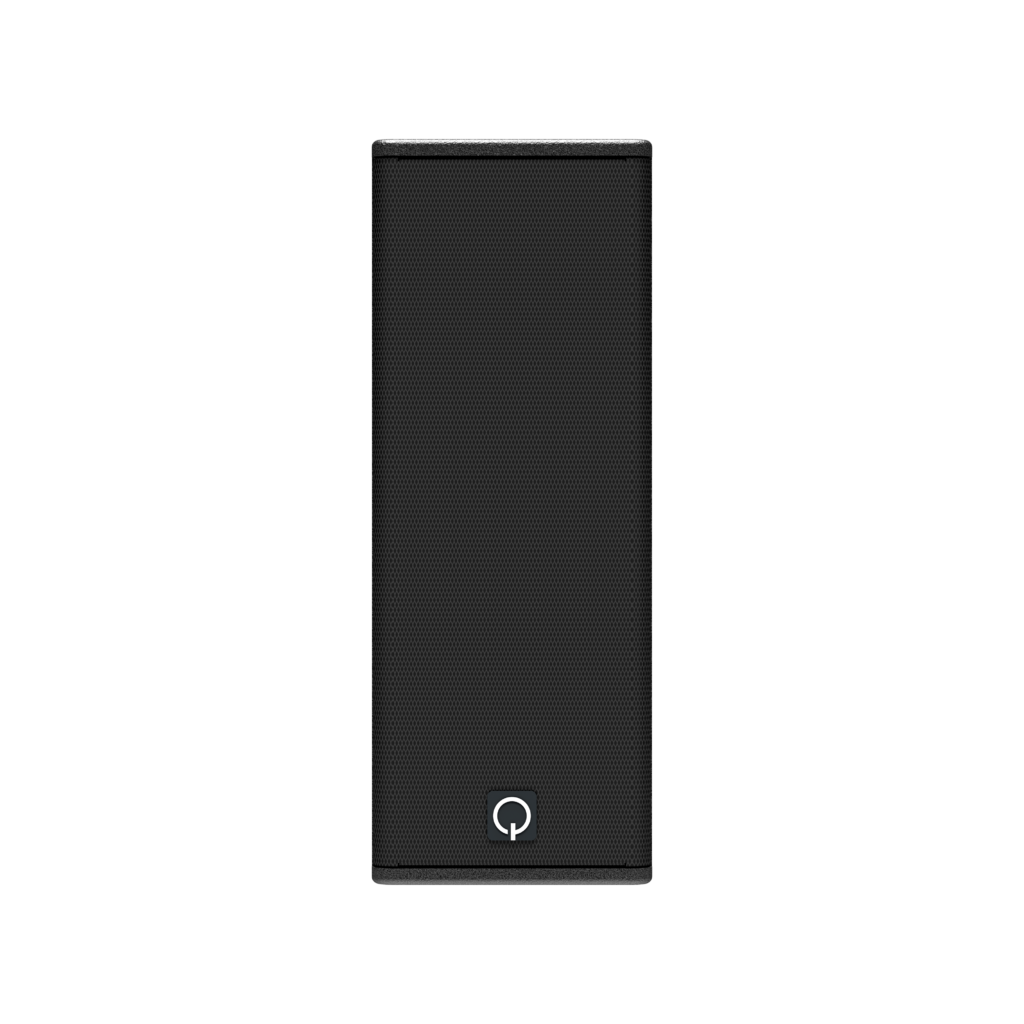

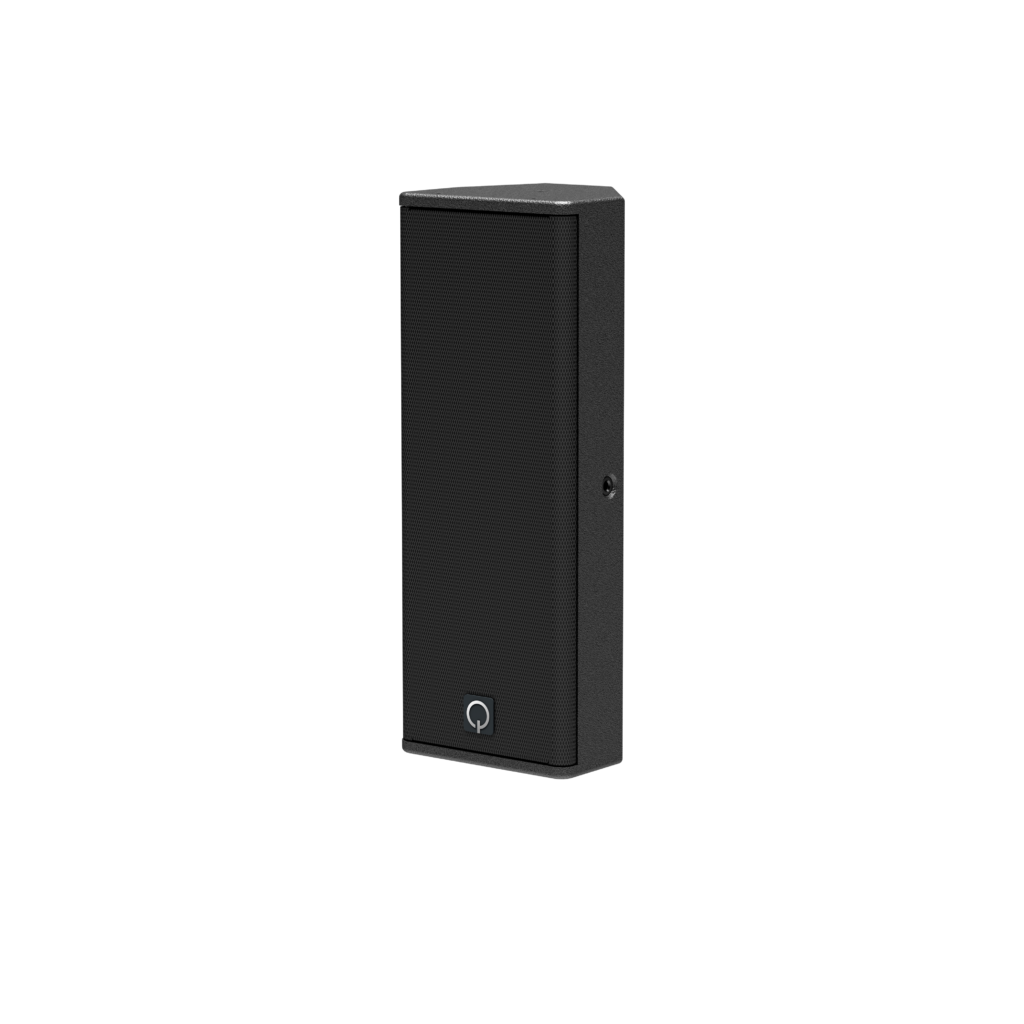

Universal full-range top.

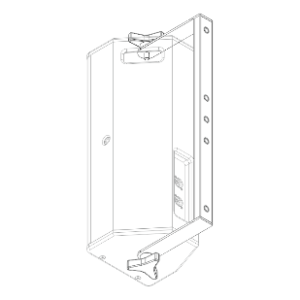

2x 6.5" bass reflex design combined with 1.7" compression driver. Extended low frequency response at reduced power. Tool free mountable U-bracket. Monitor angles 50 degrees and 70 degrees. Mounting points for fixed installation.

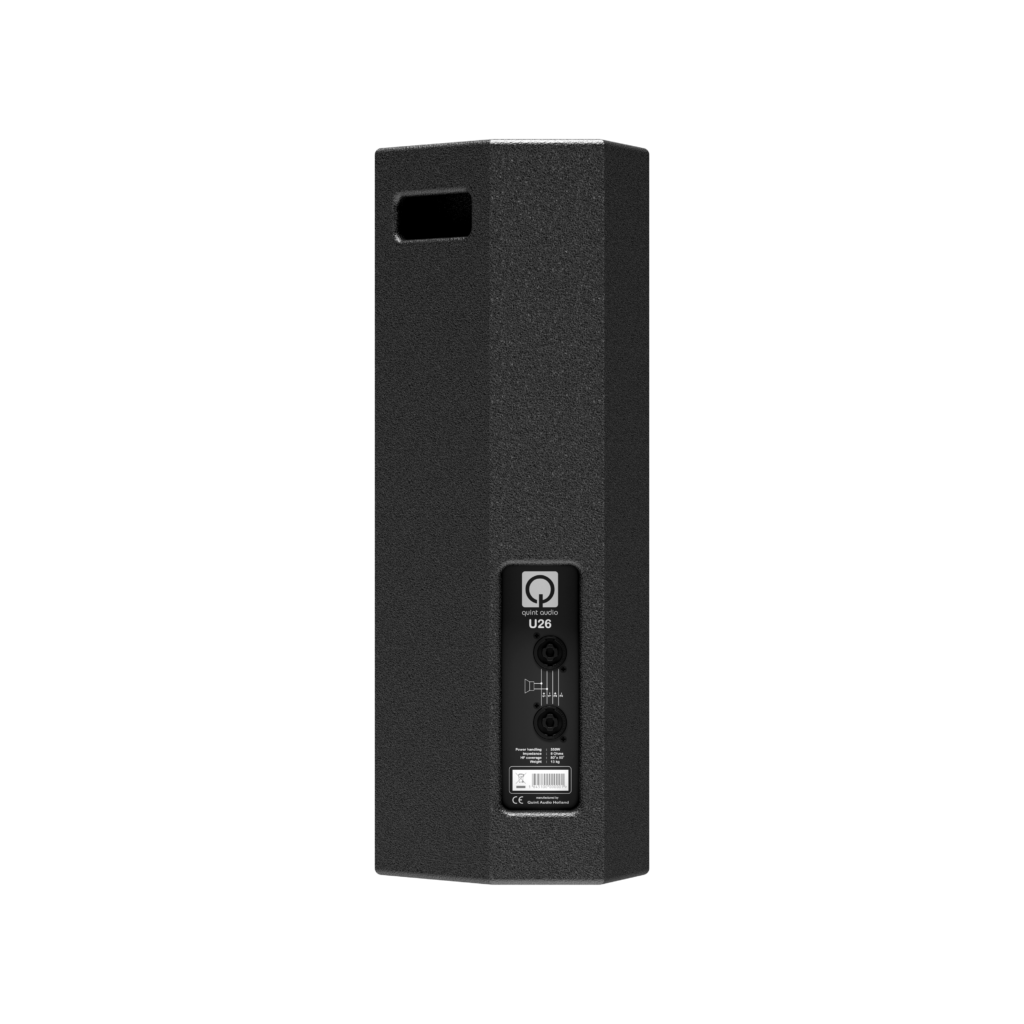

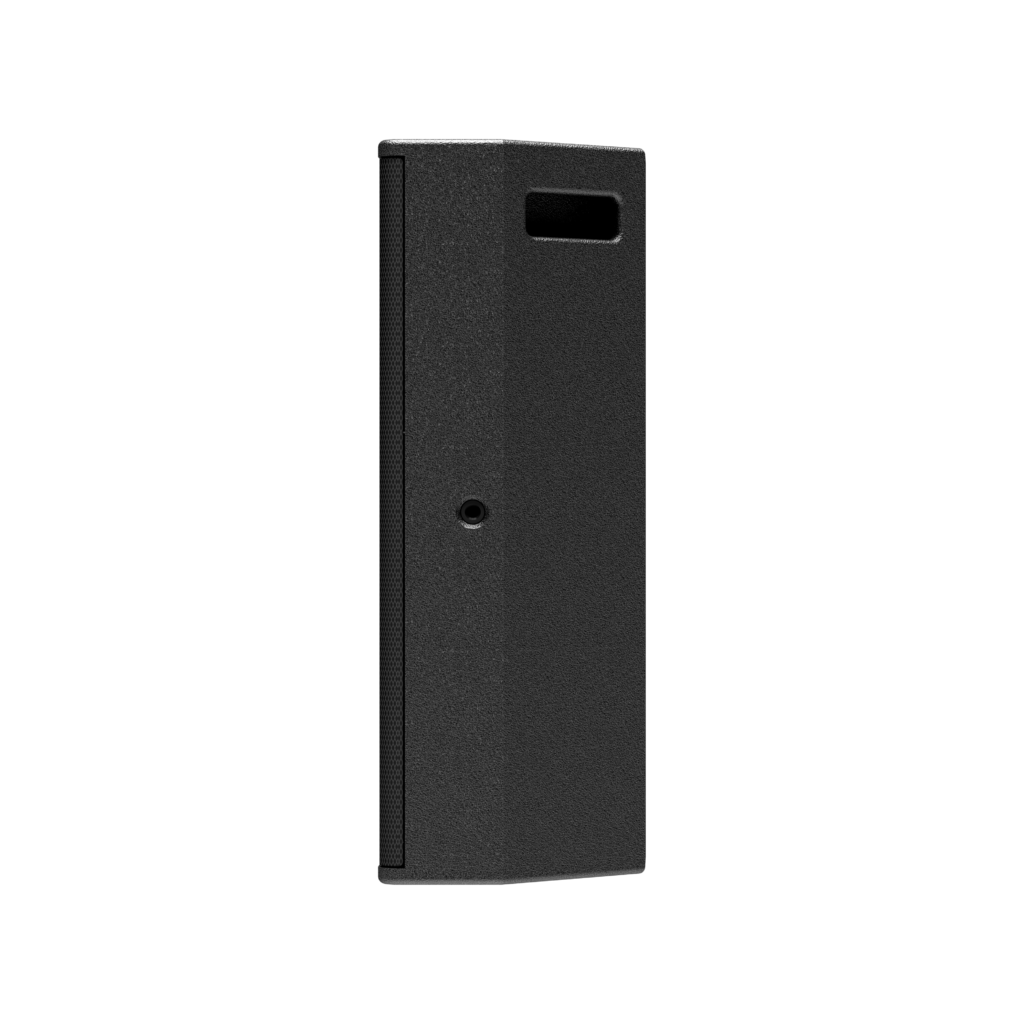

2x NL4 on the rear. M10 Thread for-pole adapter. 1x ergonomic handles, 1x on the back. M10 Thread on bottom, M6 thread on top, M10 threads on left and right.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Full-range top |
| Components | 2x6.5"/1.7" |
| Application | Touring & Installation |
| Series | U-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 127dB / 100Hz-19kHz |
| Max SPL* / freq. range (-6dB) | 113.5dB / 100Hz-19kHz |
| Max SPL -10dB / freq. range (-6dB) | 103.5dB / 63Hz-19kHz |
| Dispersion (HxV) | 90° x 50° |
Connectivity
| Connections | 2x 4-pole speakON |
| Impedance | 8 Ohm |
| Filter | 1-channel DSP control |
Physical
| Size (WxHxD) | 200 x 530 x 190mm |
| Weight | 13kg |
