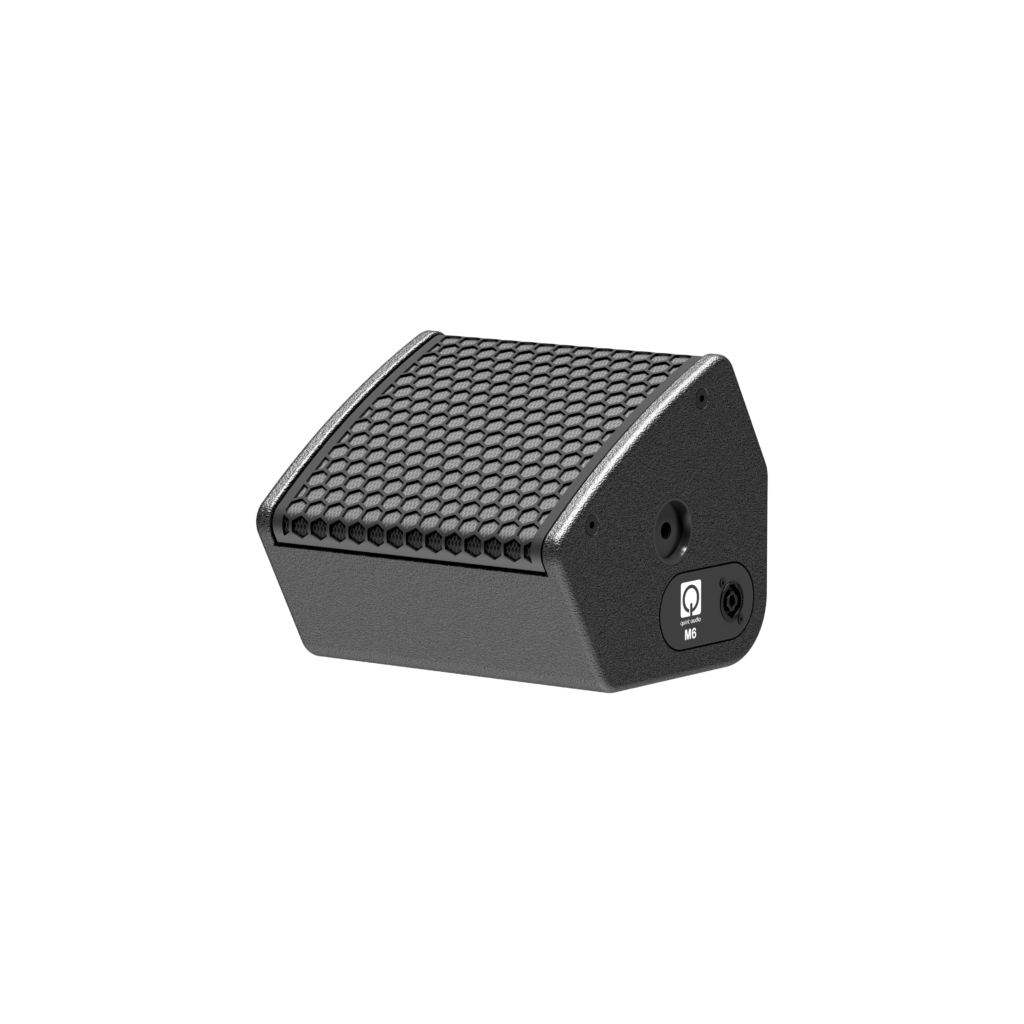

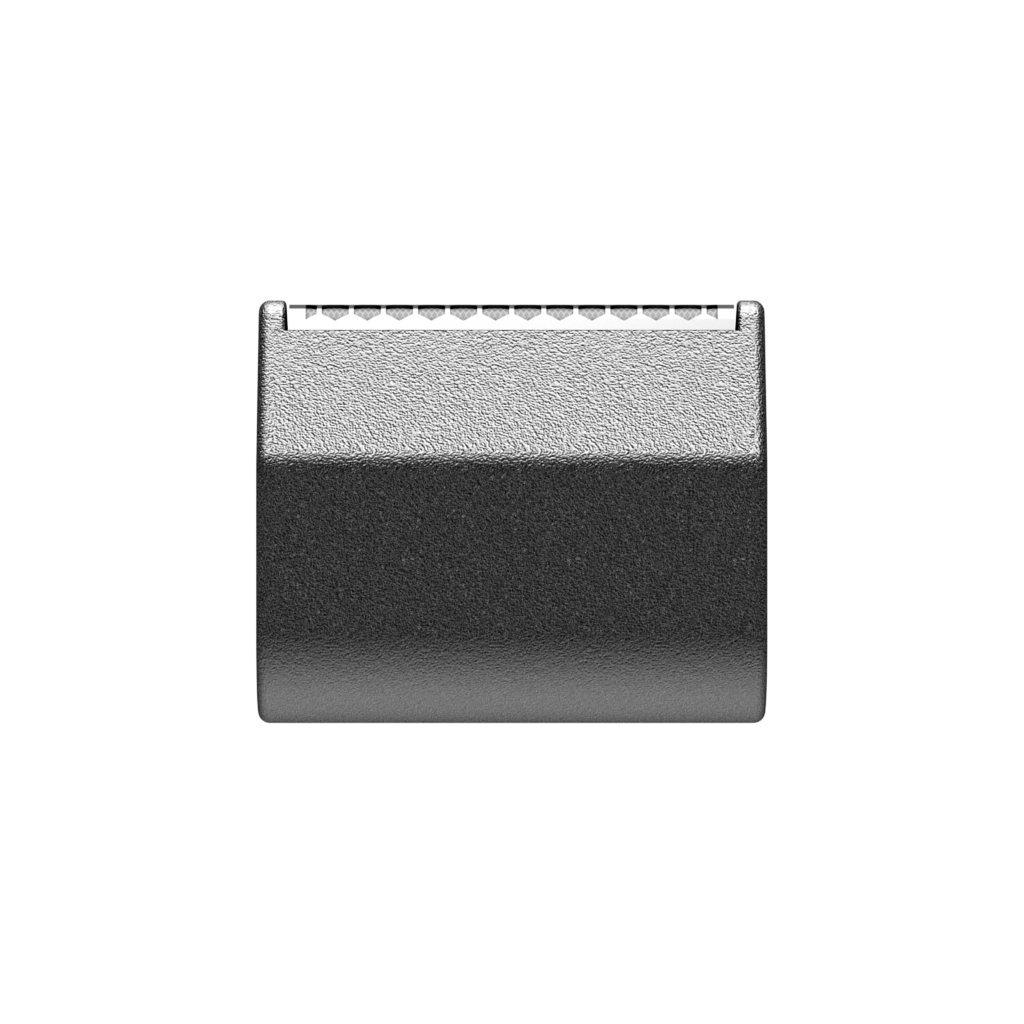

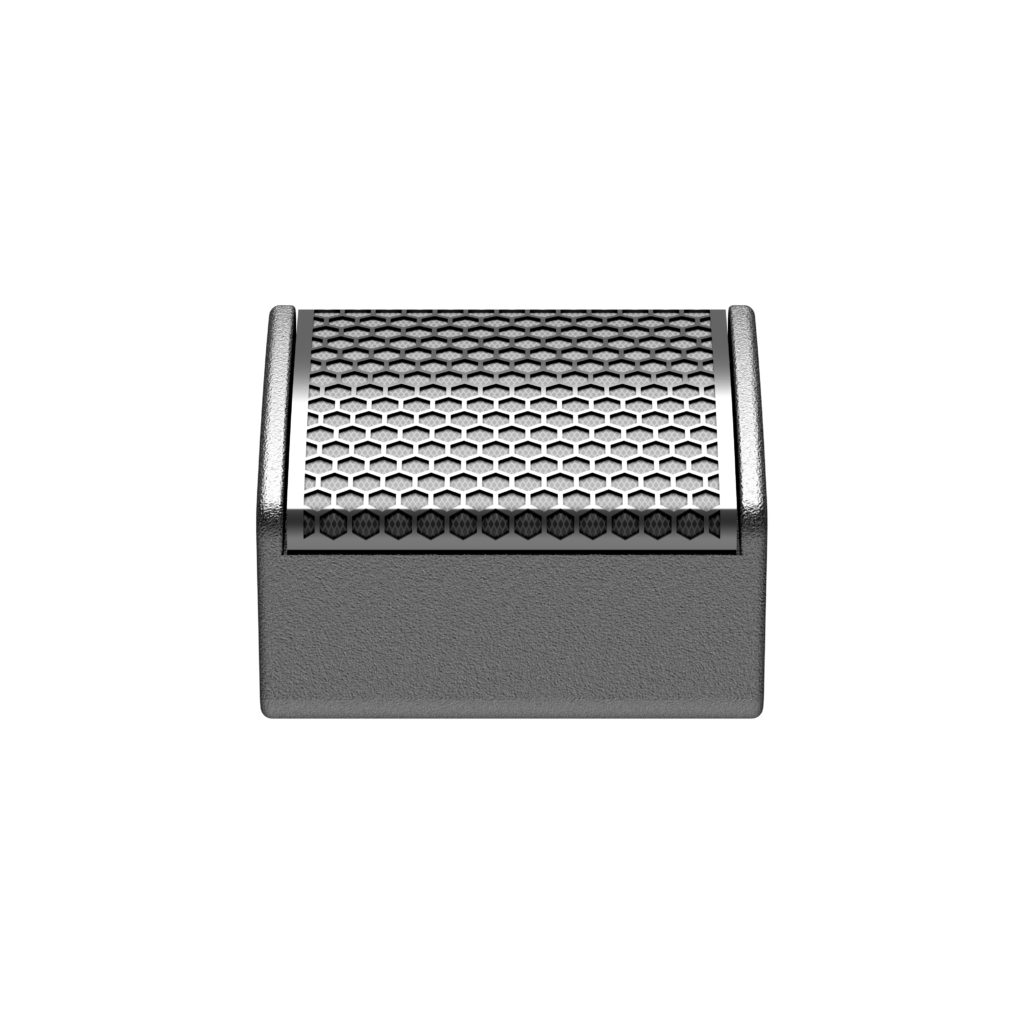

Compact coaxial monitor.
6.5" closed box design combined with 1.7" compression driver. Coaxial design. Extended low frequency response at reduced power. Monitor angles 30 degrees and 60 degrees.

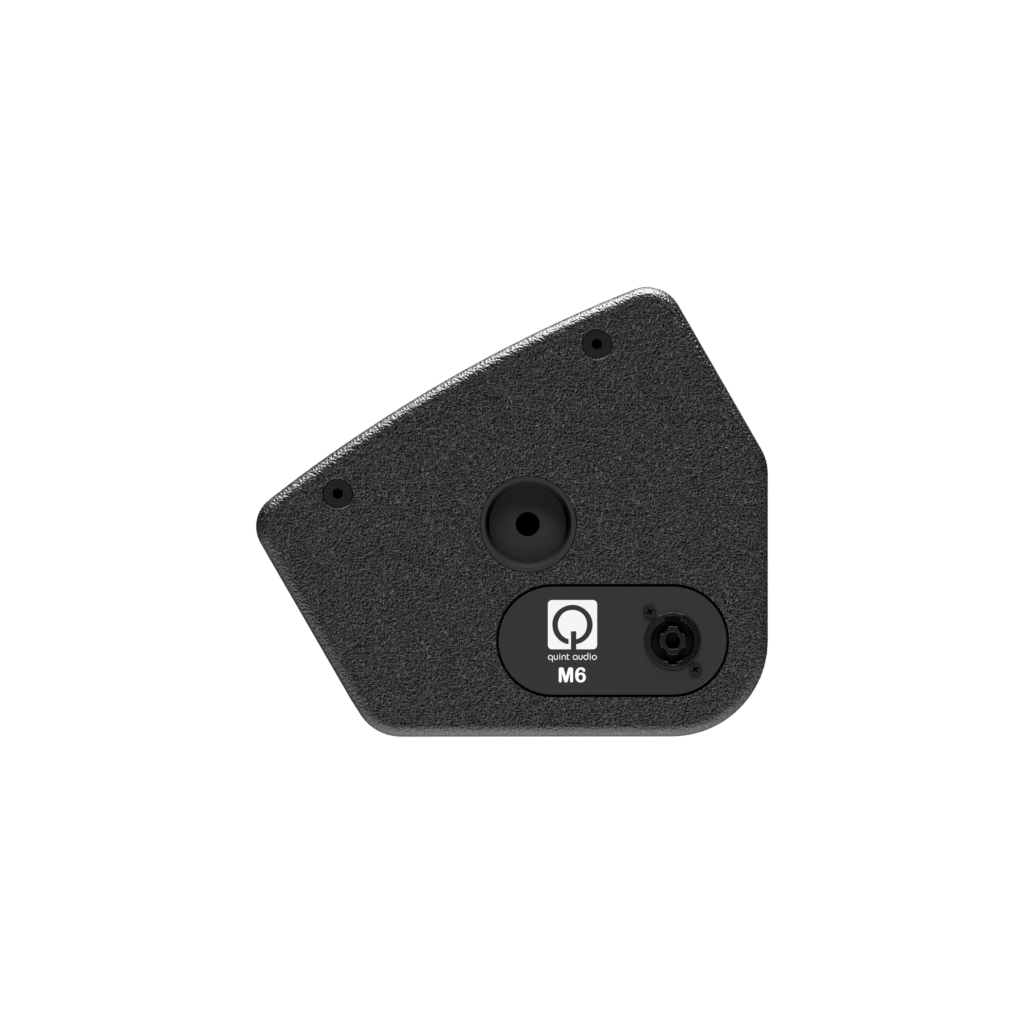

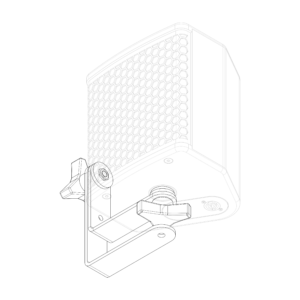

Tool free mountable L-bracket. 2x NL4 on the left, 1x NL4 on the right. M10 thread on bottom. 1x ergonomic handle, 1x on the rear.
Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grille with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.

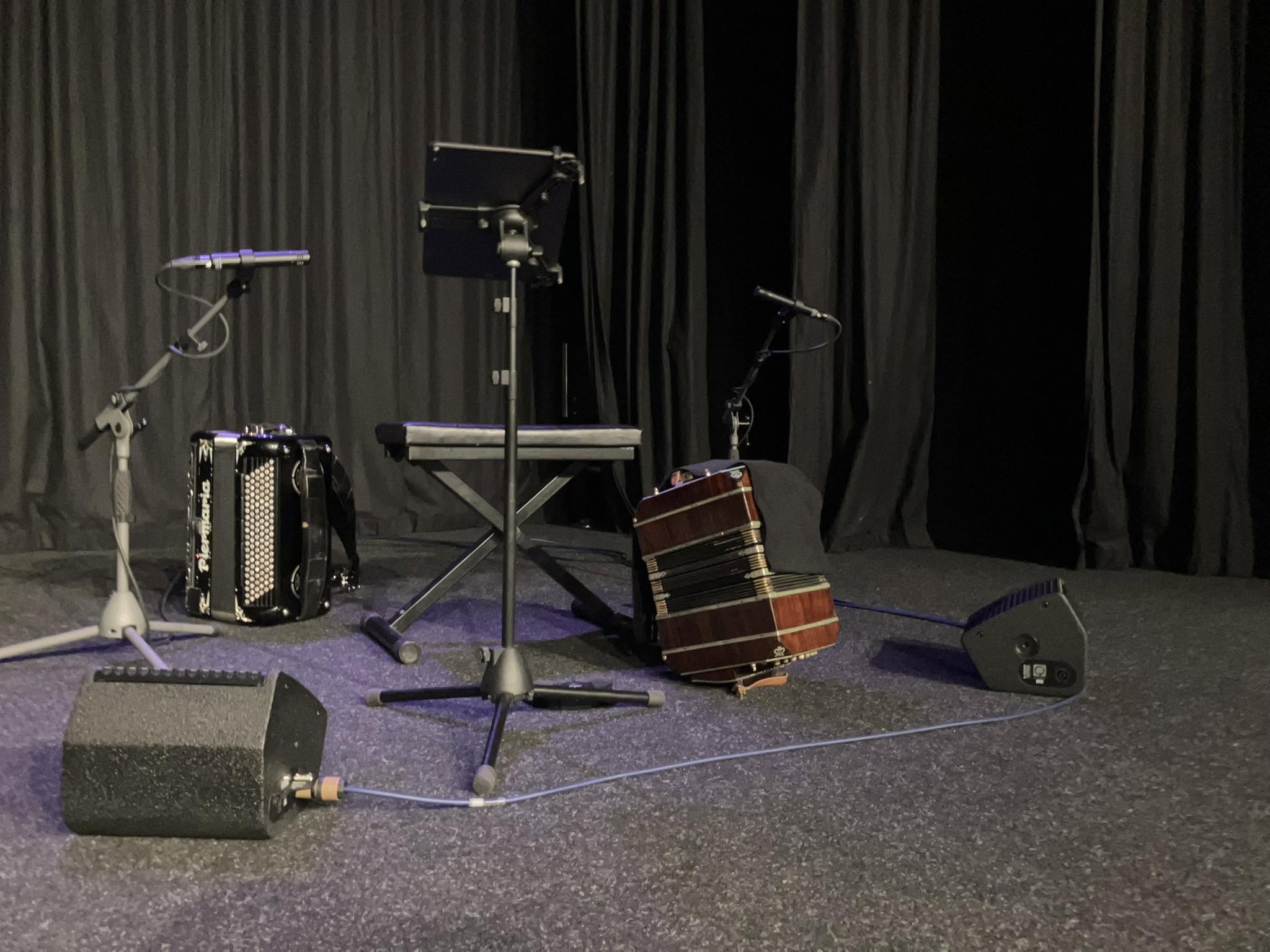

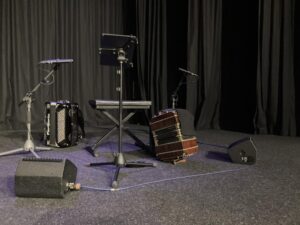

Where the M6 fits.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Monitor |
| Components | 6.5"/1.7" |
| Application | Touring & Installation |
| Series | M-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 125dB / 120Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 106dB / 120Hz-20kHz |
| Max SPL -10dB / freq. range (-6dB) | 96dB / 70Hz-20kHz |
| Max SPL -20dB / freq. range (-6dB) | 86dB / 55Hz-20kHz |
| Dispersion (HxV) | 80° conical |
Connectivity
| Connections | 3x 4-pole speakON |
| Impedance | 16 Ohm |
| Filter | 1-channel DSP control |
Physical
| Size (WxHxD) | 225 x 190 x 215mm |
| Weight | 4.5kg |
