Compact high power point source.
6.5" bass reflex design combined with 1.7" compression driver. Coaxial design. Extended low frequency response at reduced power.

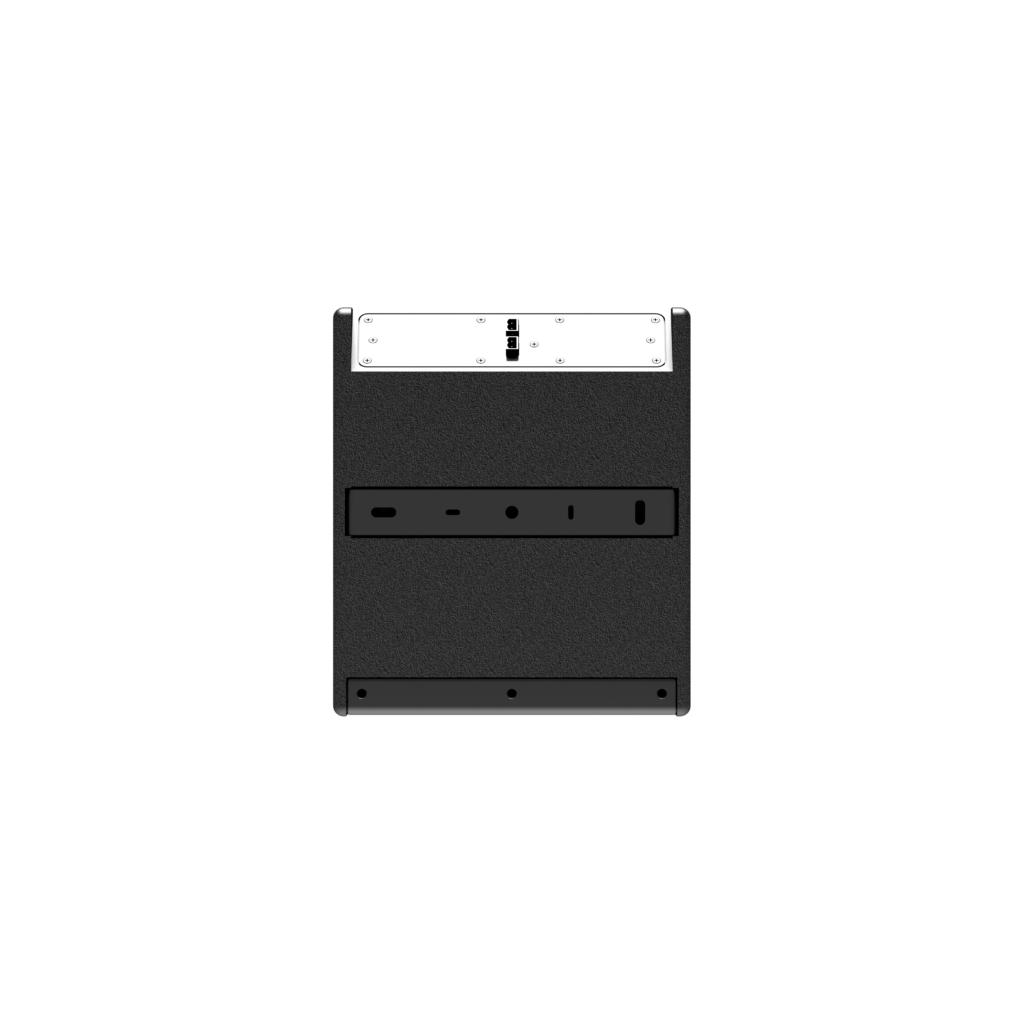

Integrated U-brackets for top and rear mounting. 2x phoenix connectors on the back.

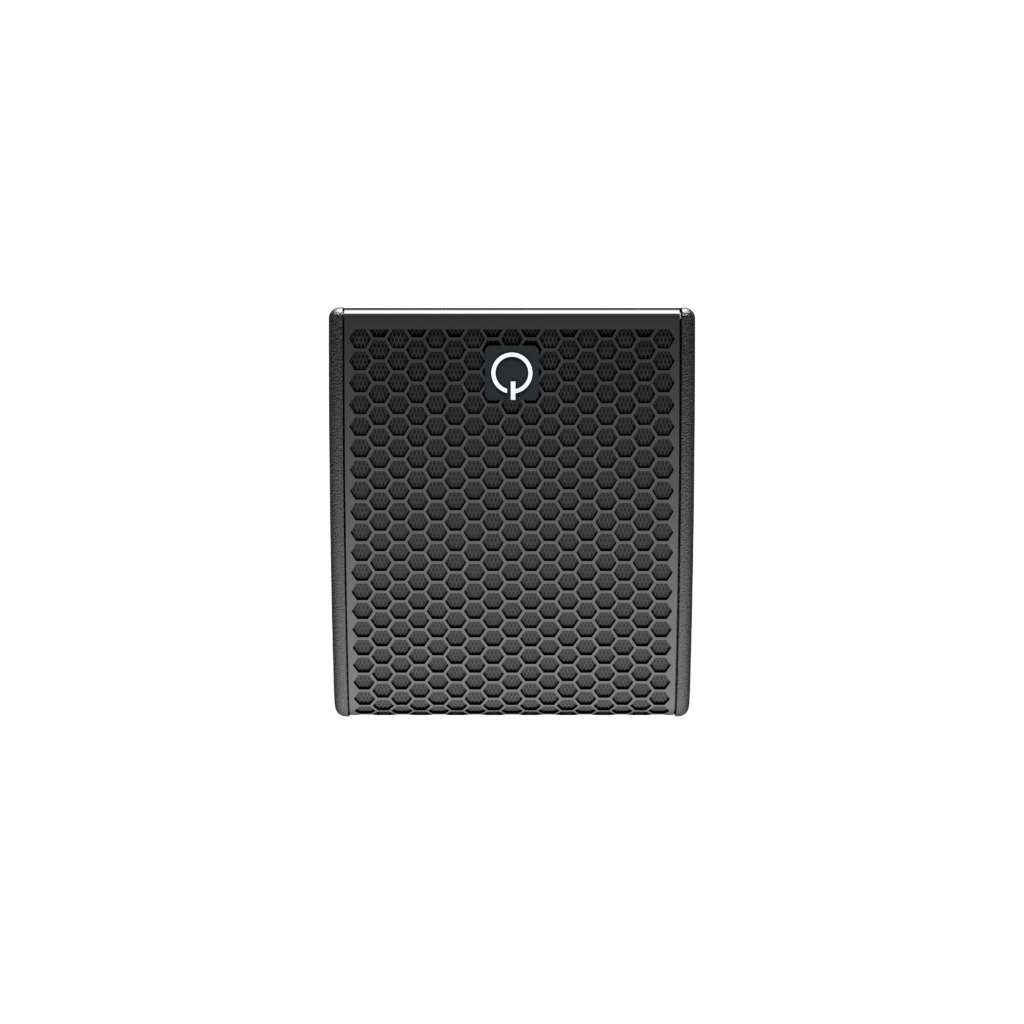

Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grilles with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | High power top |
| Components | 6.5"/1.7" |
| Application | Installation |
| Series | C-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 125.5dB / 100Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 107dB / 100Hz-20kHz |
| Max SPL -10dB / freq. range (-6dB) | 97dB / 65Hz-20kHz |
| Max SPL -20dB / freq. range (-6dB) | 87dB / 60Hz-20kHz |
| Dispersion (HxV) | 80° conical |
Connectivity
| Connections | 2x Phoenix 2,5/ 2-ST-5,08 |
| Impedance | 16 Ohm |
| Filter | 1-channel DSP control |
Physical
| Size (WxHxD) | 235 x 270 x 200mm |
| Weight | 6kg |
