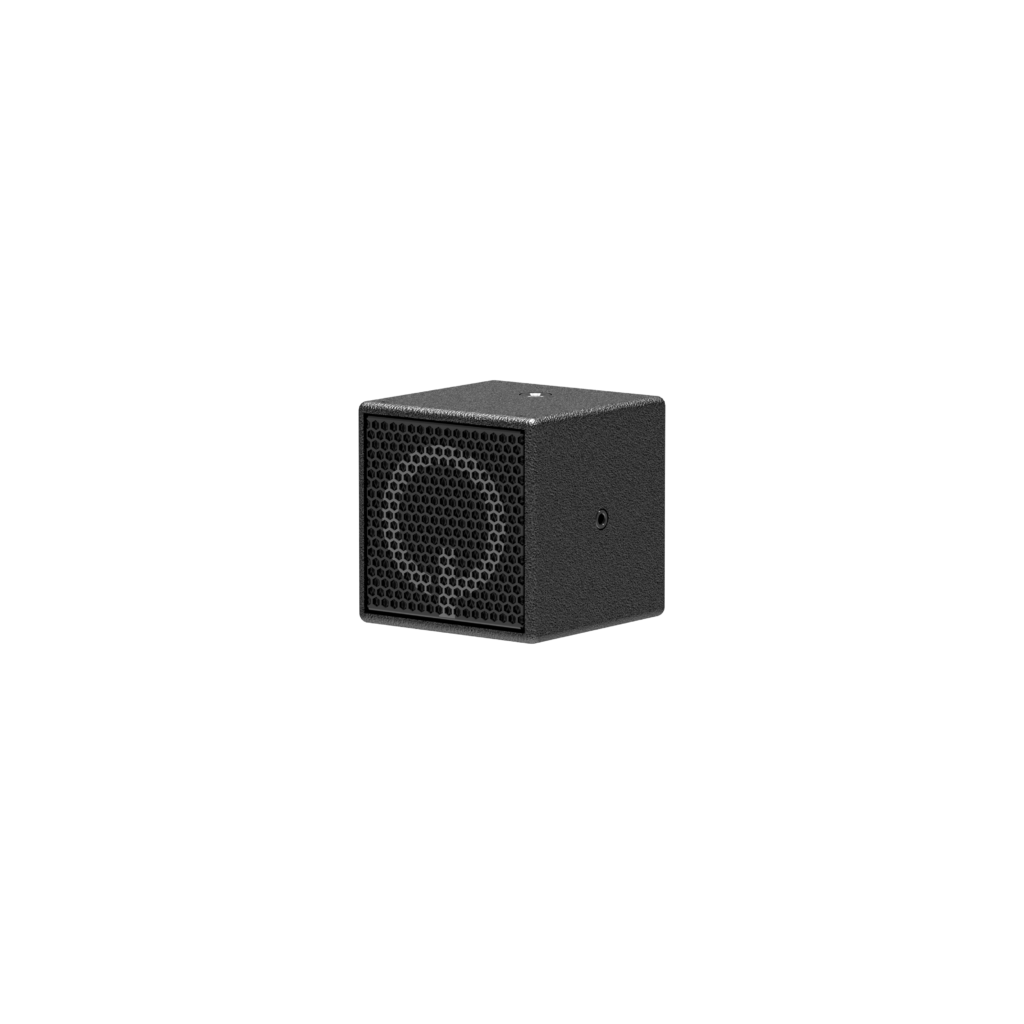

Compact point source.

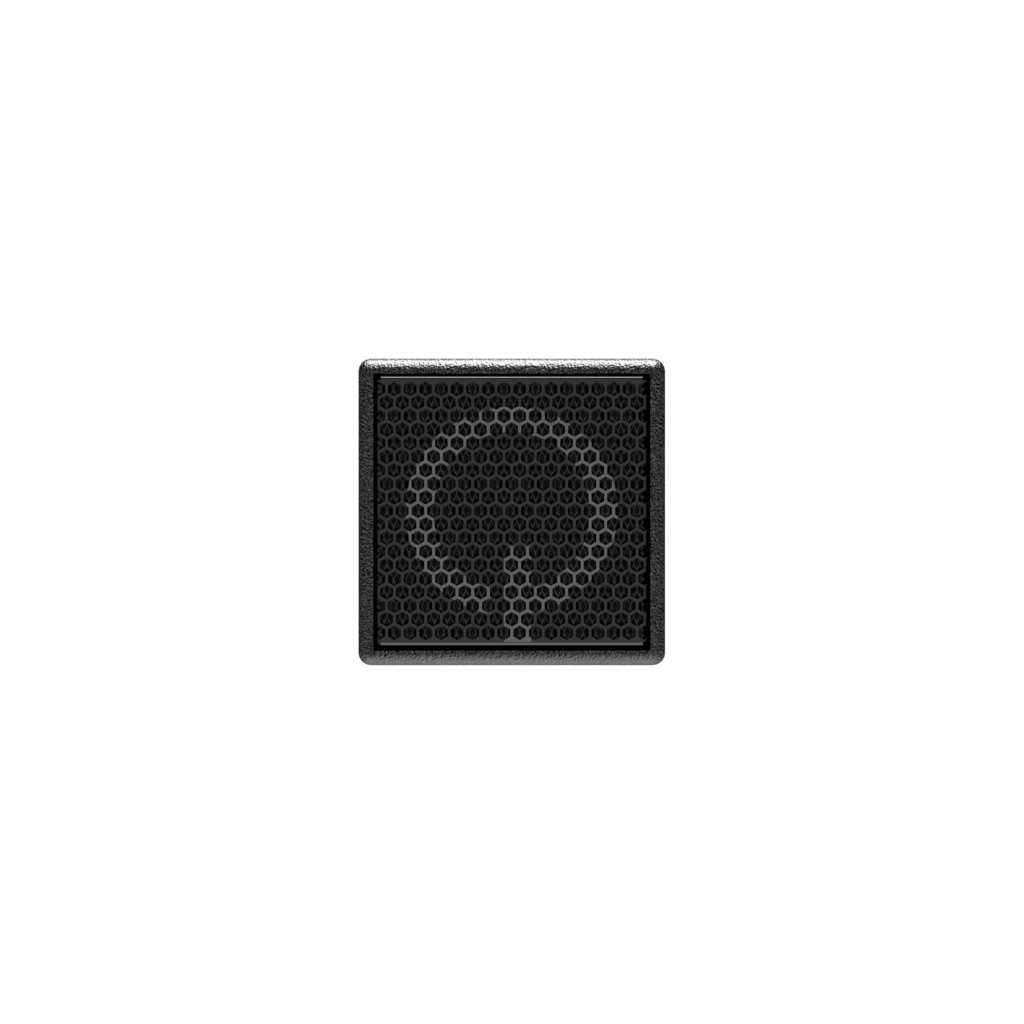

4" closed box design combined with 1" dome tweeter. Coaxial design. Extended low frequency response at reduced power. Tool free mountable L-bracket.

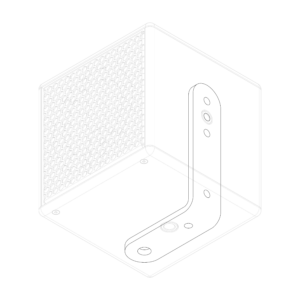

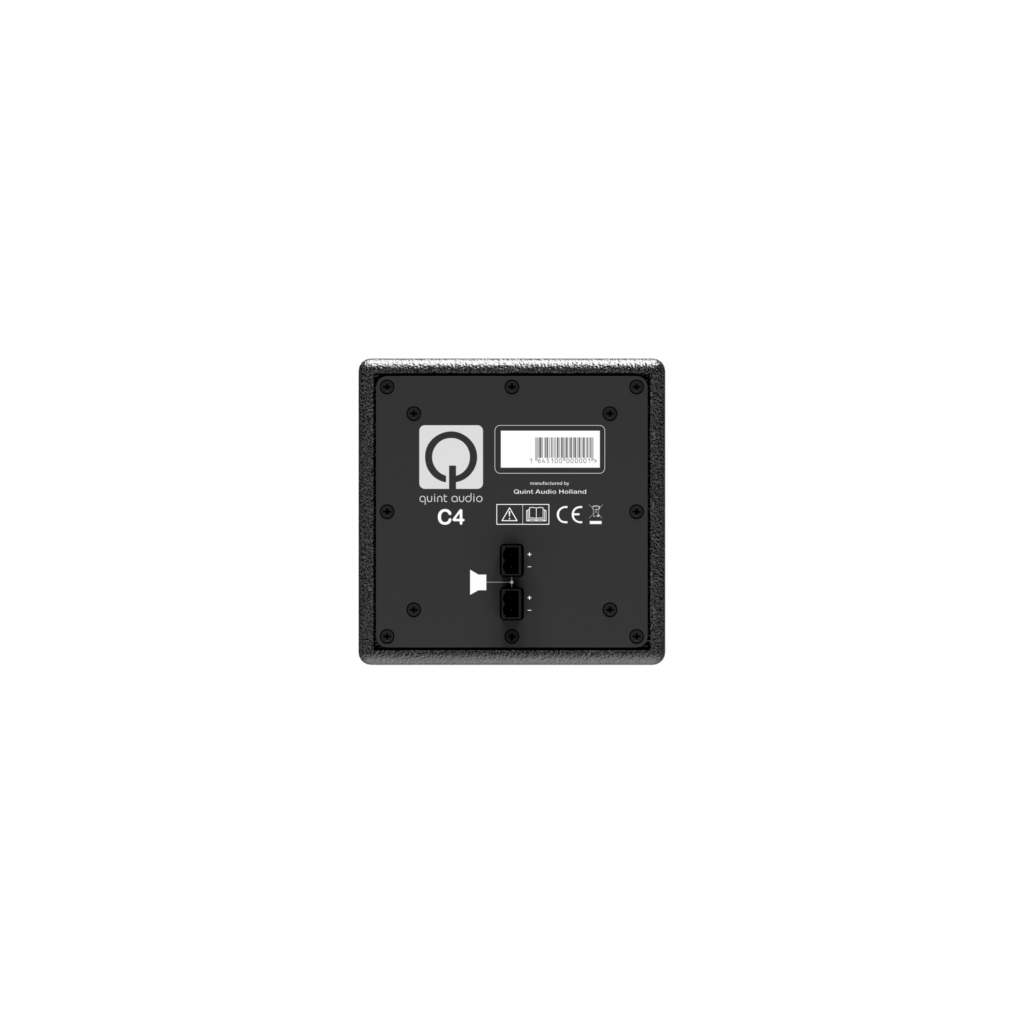

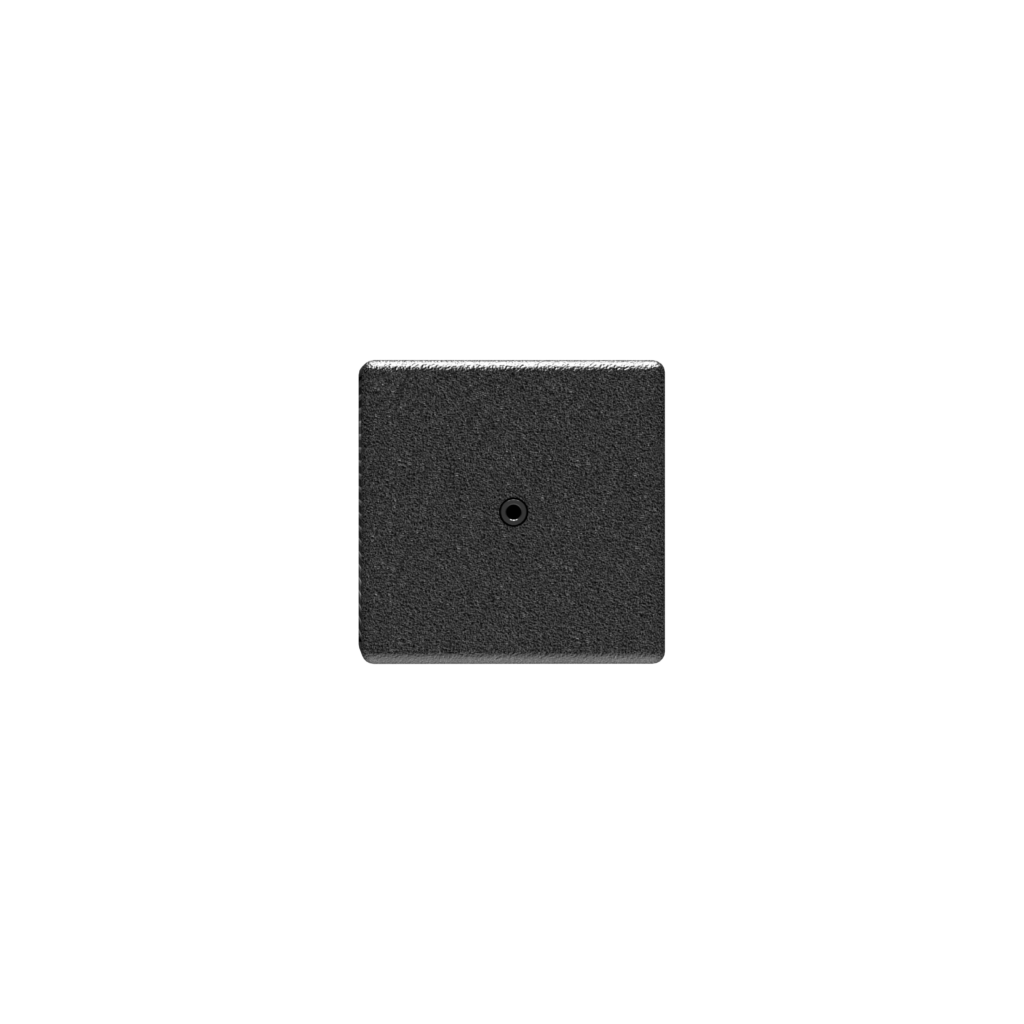

Mounting points for fixed installation. 2x phoenix connectors on the back. 3/8" thread on bottom, M10 thread on top, M6 threads on left and right.
Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grilles with acoustically transparent fabric on the back.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.

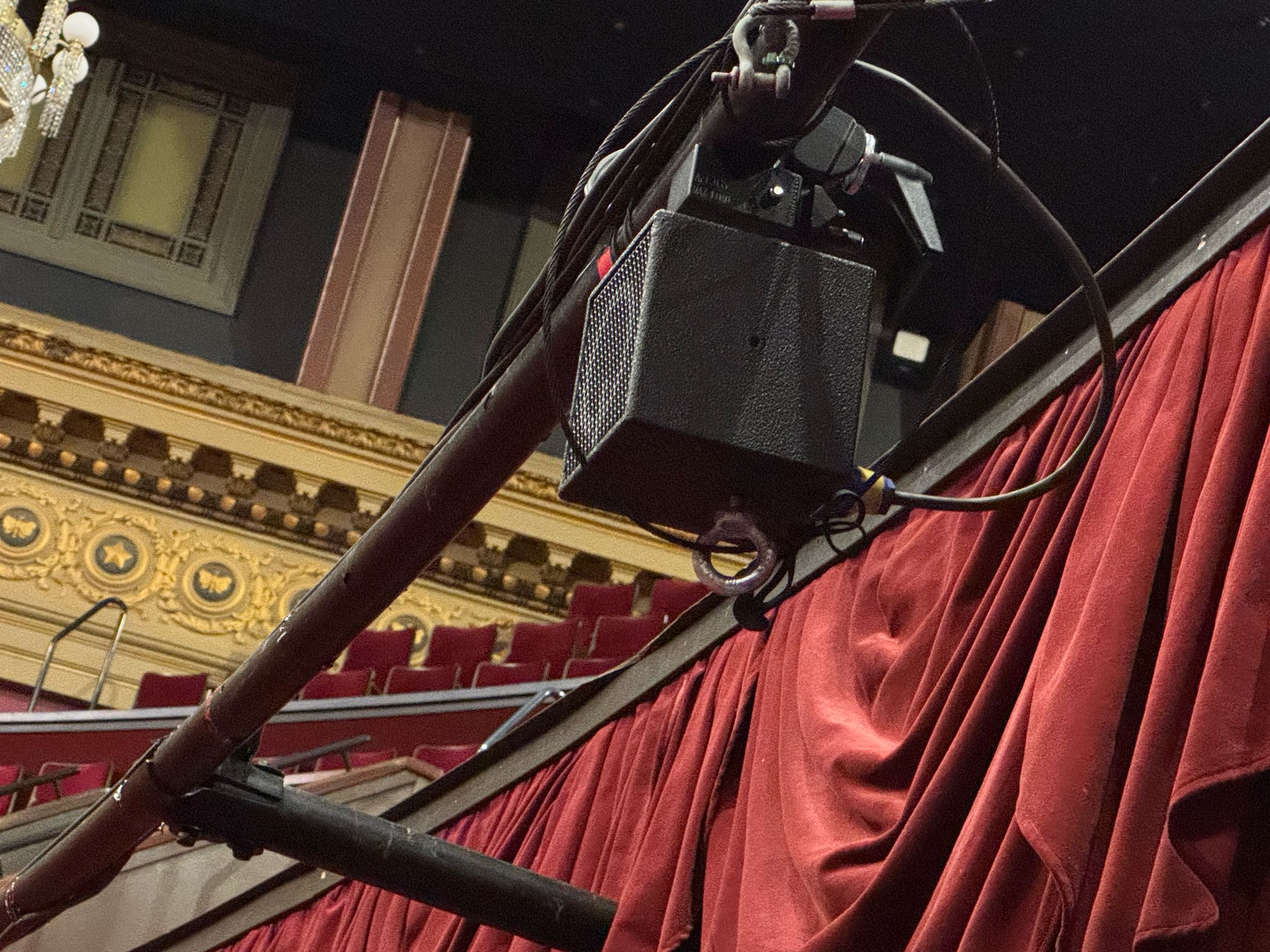

Where the C4 fits.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Point source |
| Components | 4"/1" |
| Application | Installation |
| Series | C-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 113dB / 140Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 95.5dB / 140Hz-20kHz |
| Max SPL -10dB / freq. range (-6dB) | 85.5dB / 140Hz-20kHz |
| Max SPL -20dB / freq. range (-6dB) | 75.5dB / 55Hz-20kHz |
| Dispersion (HxV) | 100° conical |
Connectivity
| Connections | 2x Phoenix 2,5/ 2-ST-5,08 |
| Impedance | 8 Ohm |
| Filter | 1-channel DSP control |
Physical
| Size (WxHxD) | 125 x 125 x 125mm |
| Weight | 2kg |
