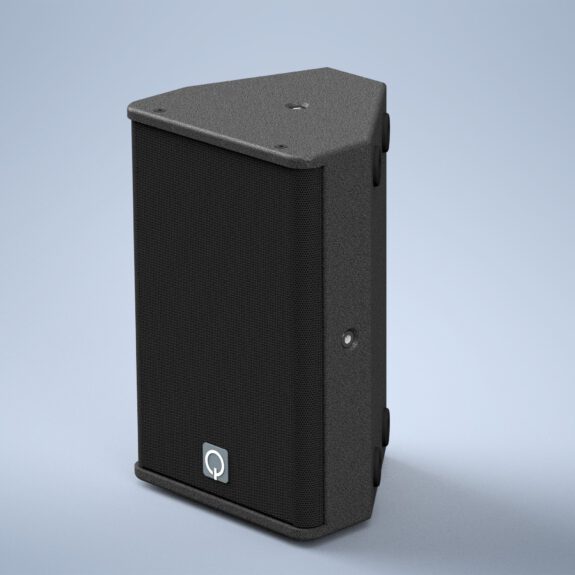

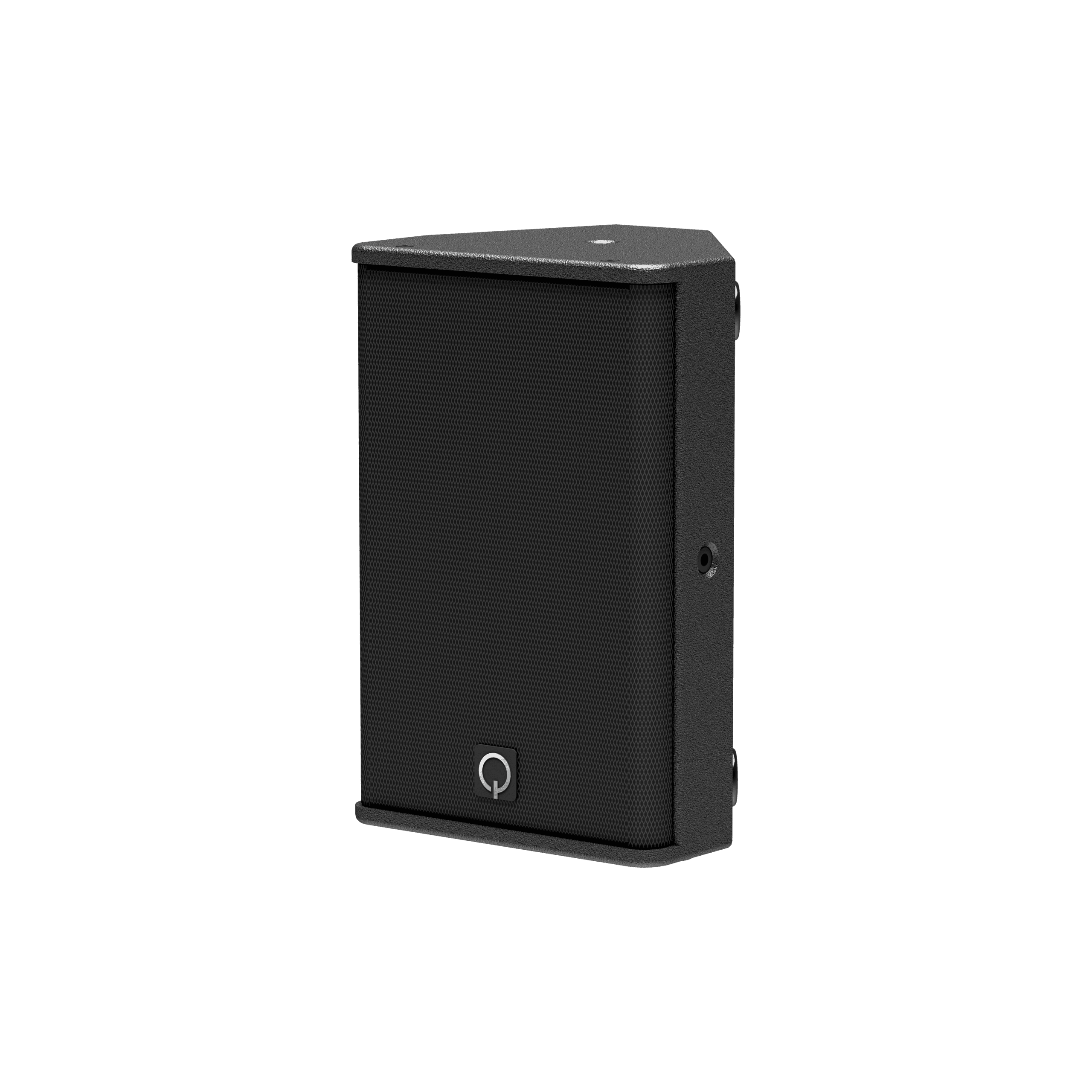

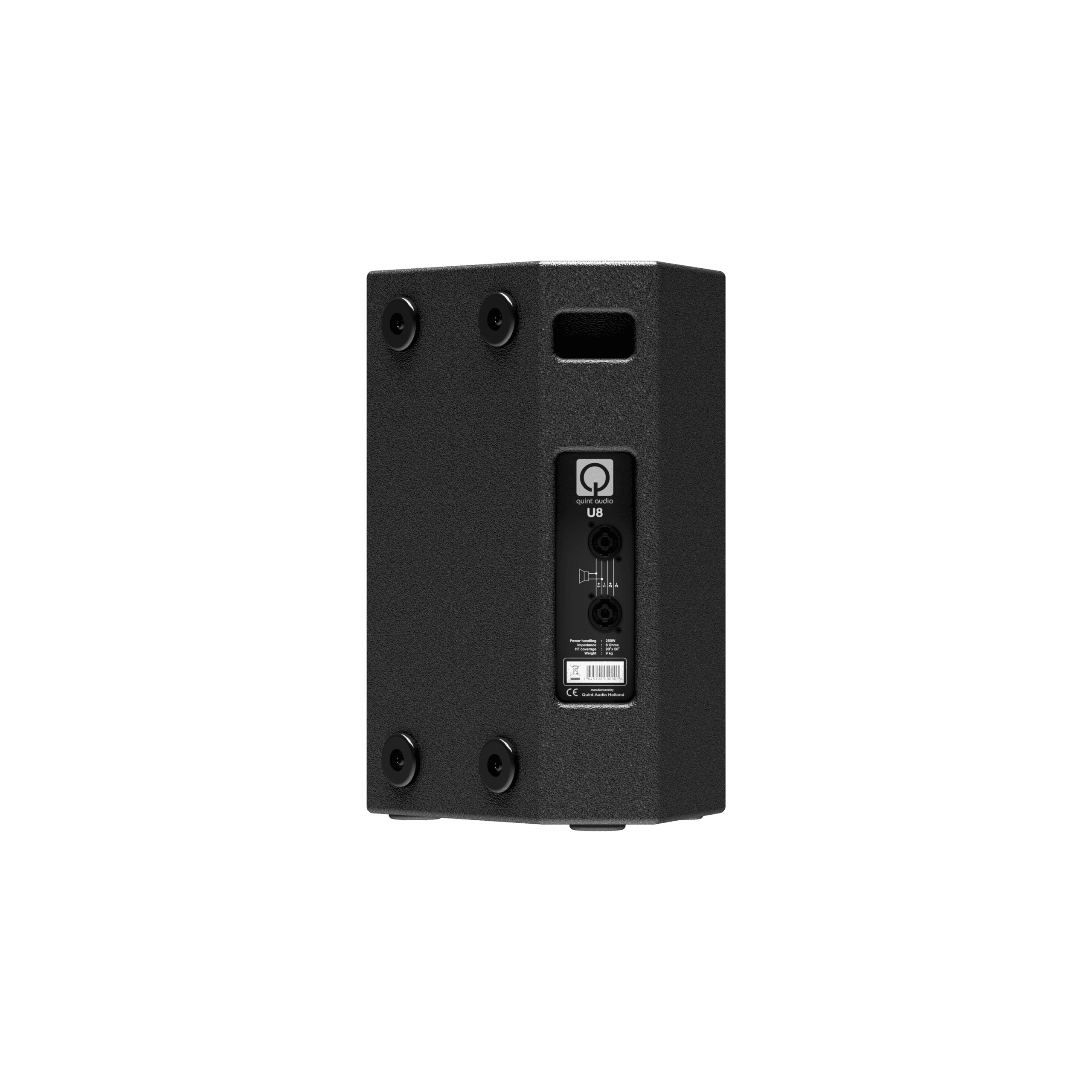

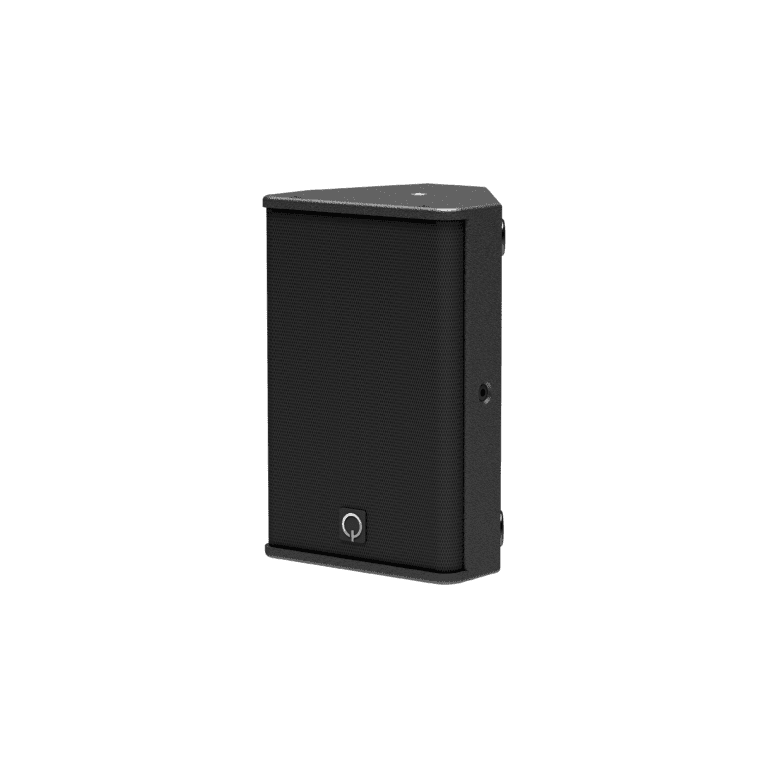

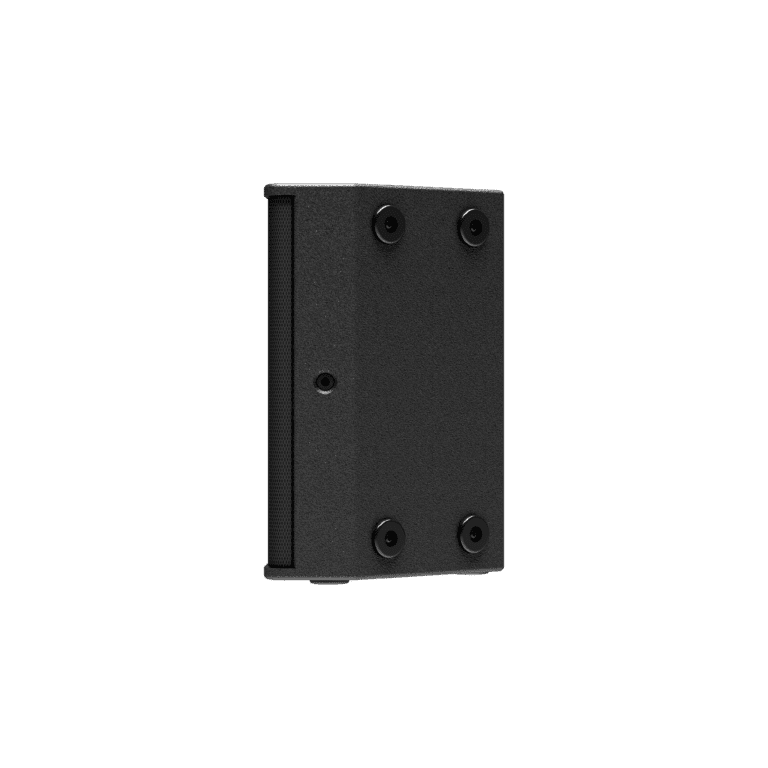

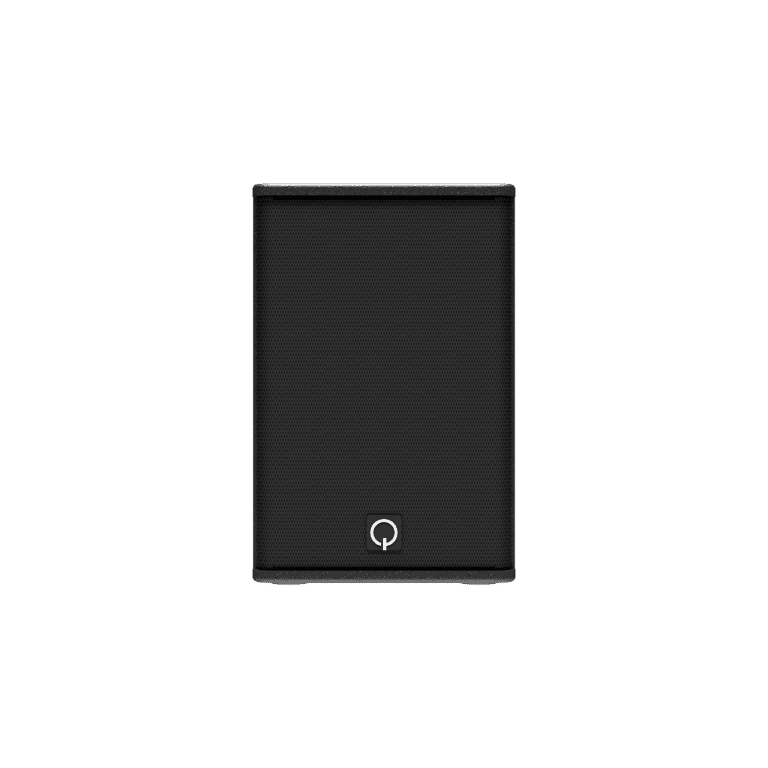

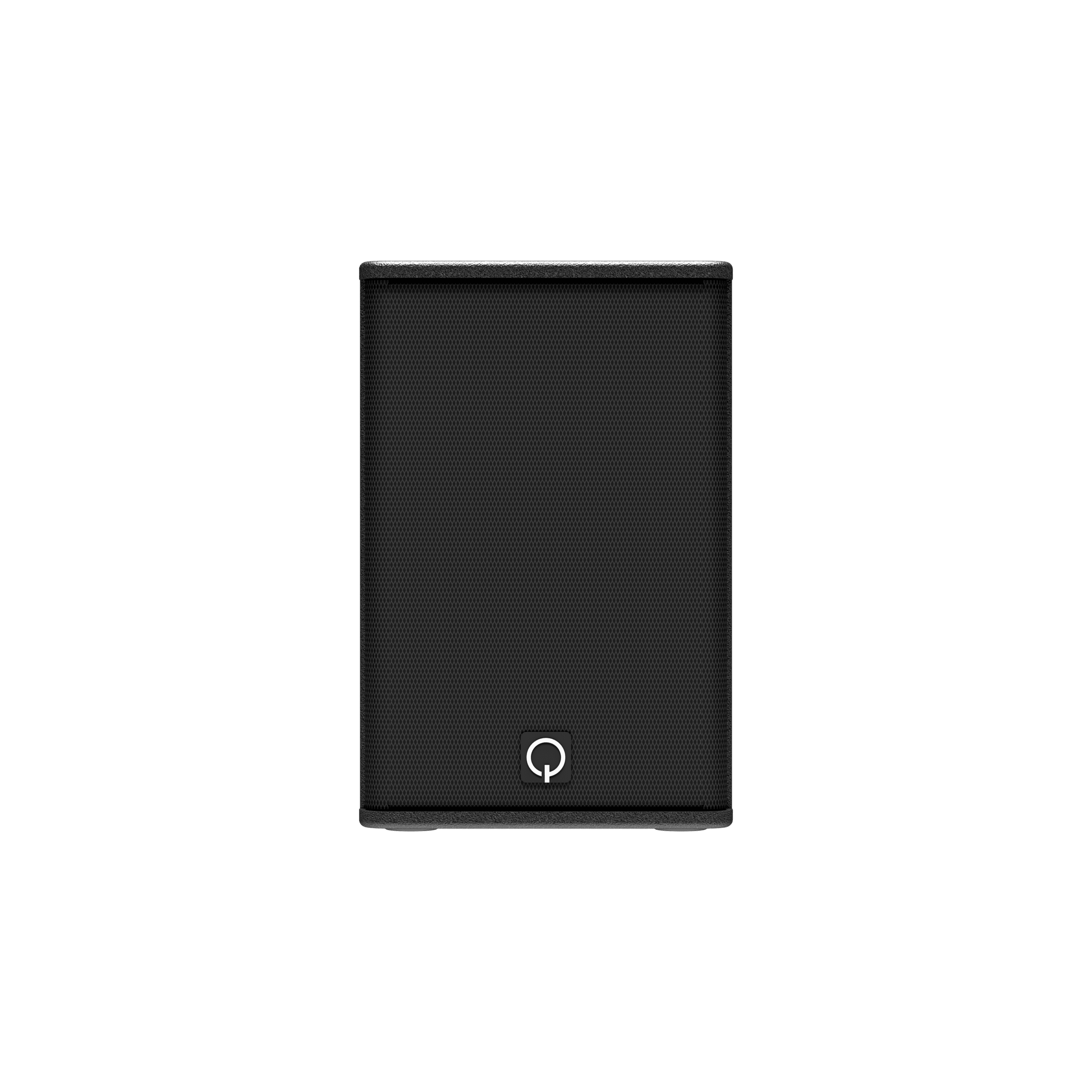

U8

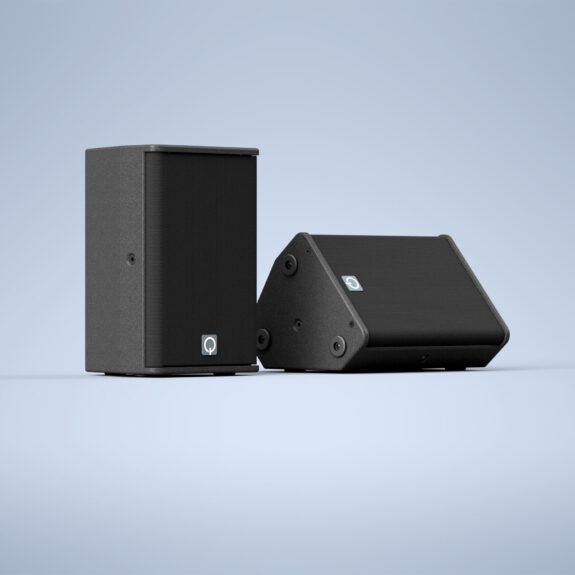

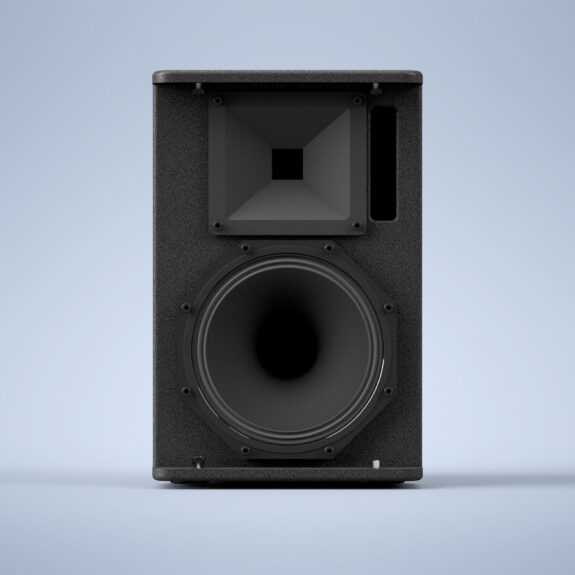

The Quint Audio U8 is a 8″ND/1″ front loaded 2-way passively filtered full-range speaker system for universal use

Specifications
Specifications
Description

Despite its modest dimensions the Quint Audio U8 offers very good full-range specifications and well defined audio with a very clear and open sound image at SPL’s even over 120dB SPL.

The universally designed 8″/1″ U8 can be used for near-field PA applications, whether or not in combination with a subwoofer. This includes use as compact FOH and fill in smaller live theater applications, club-setups, combo’s, speech and music in AV-environments and TV studio’s.

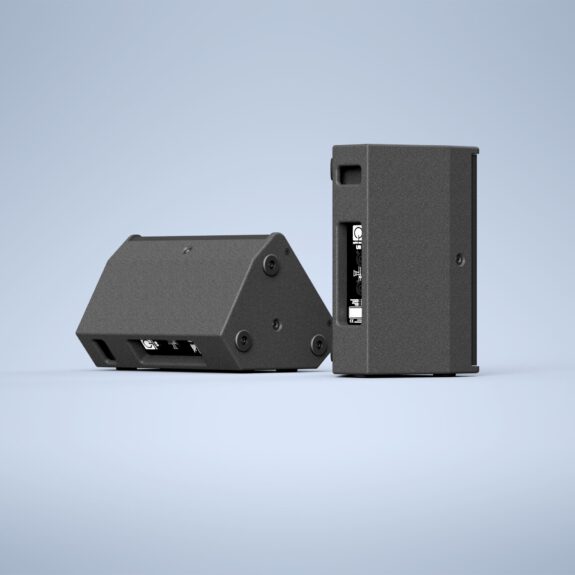

 The U8 works also very fine a discrete floor monitor.


Application area

Small Full-Range Loudspeaker
Small FOH Top
Mini Stage Monitor
Personal Monitor
Under Balcony Fill

Live Theatre
Live Music
Mechanical Music
Speech


Specifications
U8
8"ND/1"ND universal full range loudspeaker
passive
250W
500W
8 Ohms
95 dB 1W/1m
121 dB 1m
126 dB 1m
58Hz -19 kHz
90°x50° hxv
9 kg
260 x 395 x 240 mm

Advised electronics

P4 processor
A1 amplifier
A23 amplifier
A41 amplifier
A42 amplifier


Downloads

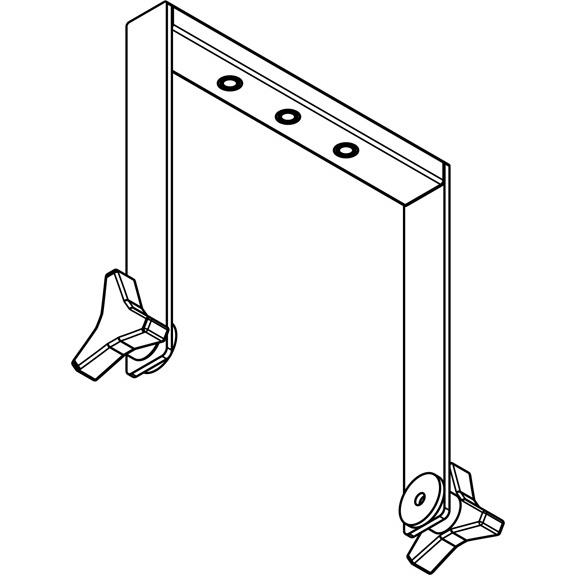

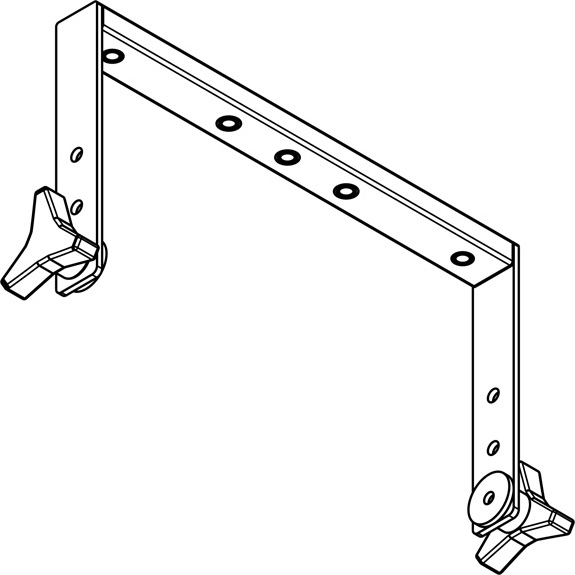

Rigging
