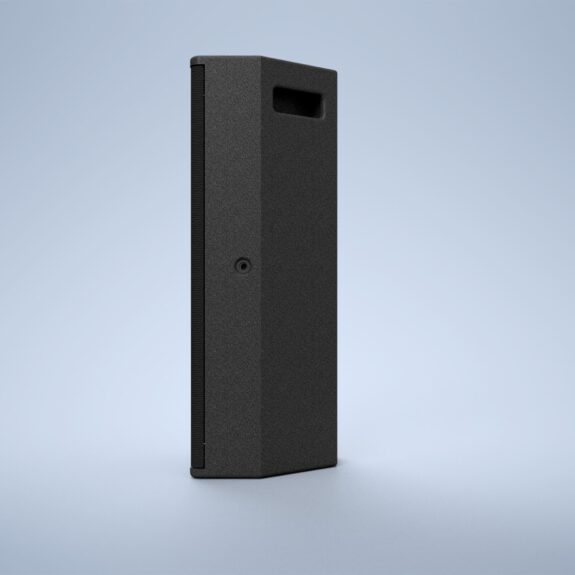

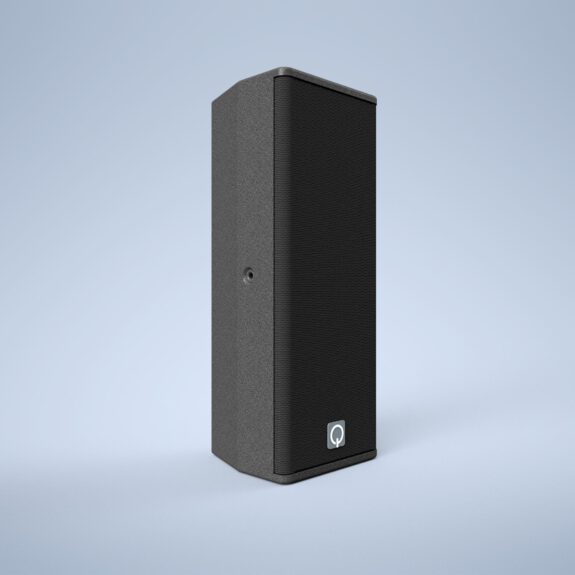

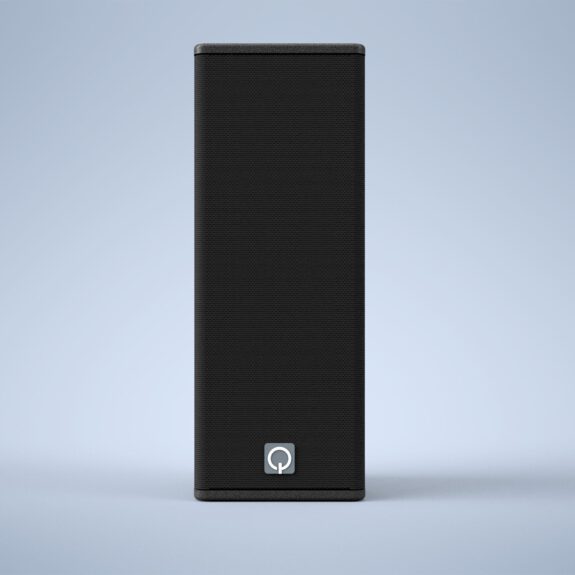

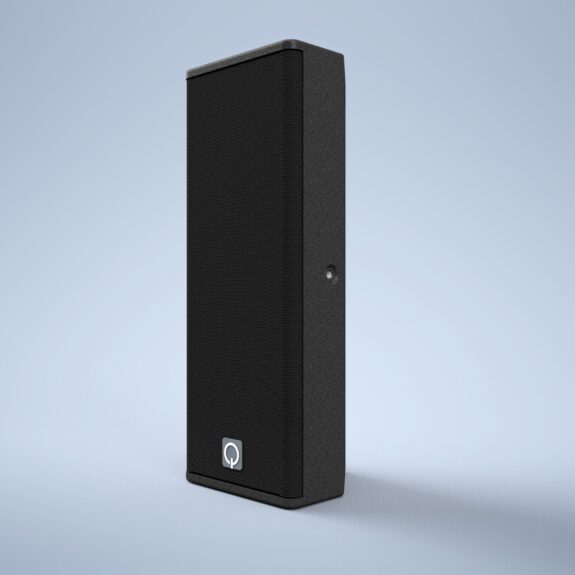

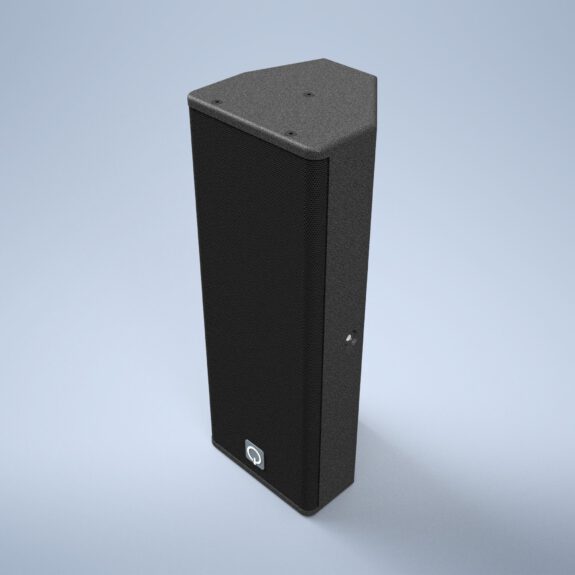

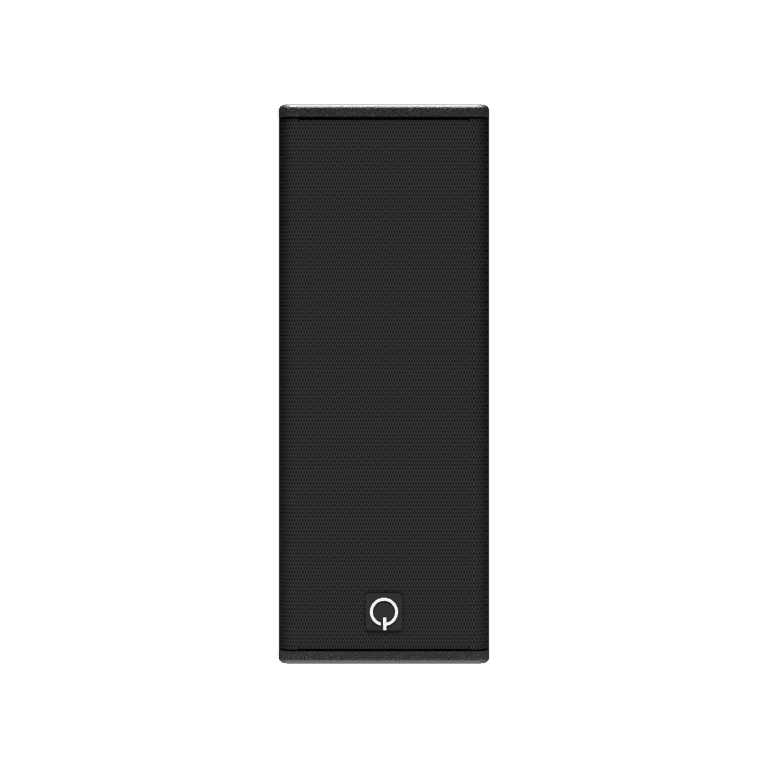

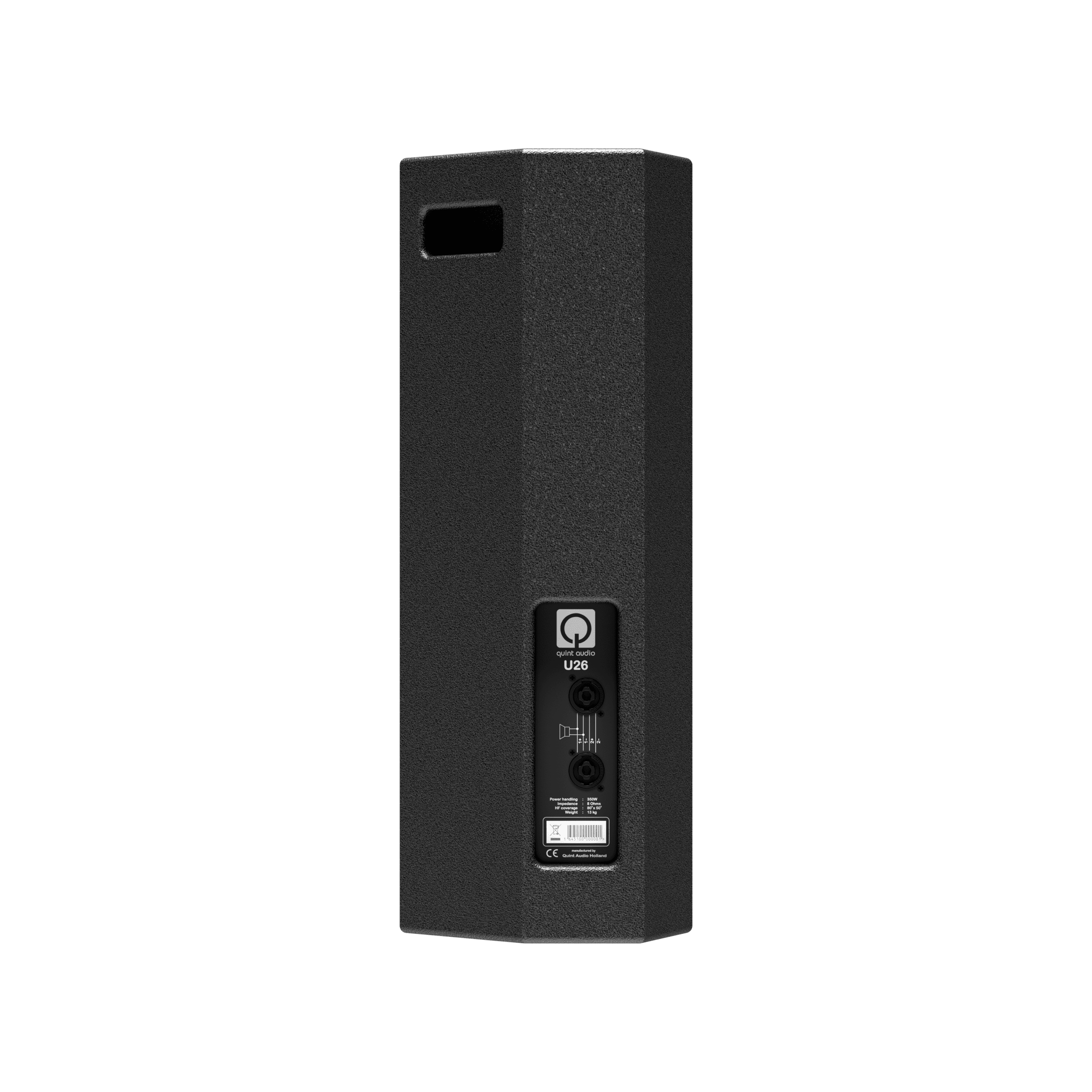

U26

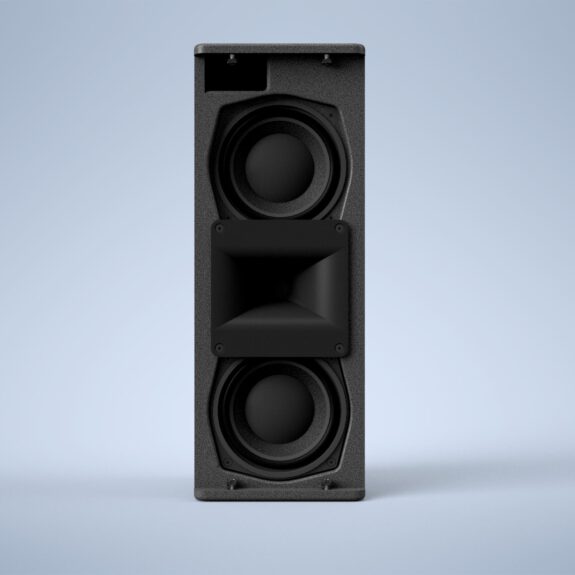

The Quint Audio U26 is a 2×6.5″/1″ front loaded 2-way passively filtered full-range speaker system for universal use

Specifications
Specifications
Description

Due to its universal design, its modest appearance and well defined output, the Quint Audio U26 covers a wide range of electro-acoustic applications with an emphasis on speech reinforcement in acoustically demanding environments.

The very neutral sounding U26 has an optimal coupling between its loudspeakers, creating a very well-controlled vertical and horizontal dispersion and an outstanding projection. In combination with a subwoofer, the U26 even becomes a powerful small PA-system.

These features make the U26 is particularly suitable for speech and music in the audiovisual field and auditoria. Possible applications include use as FOH and fill in smaller live theaters, clubs and combo’s, as well as under balcony fill and low-overlook high-intelligibility floor monitor.


Application area

Small Full-Range Loudspeaker
Small FOH Top

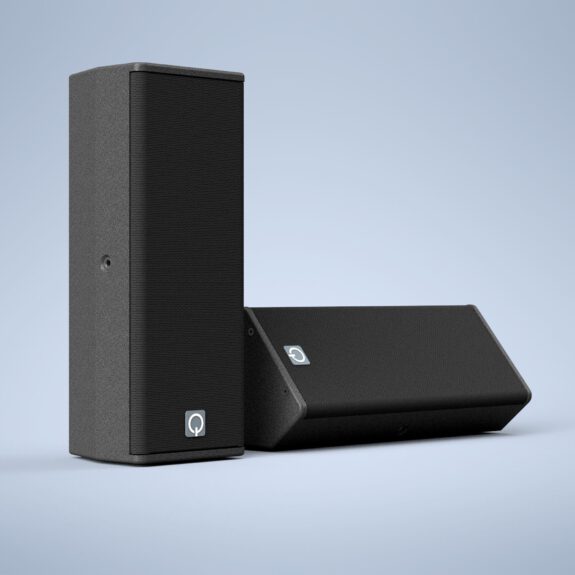

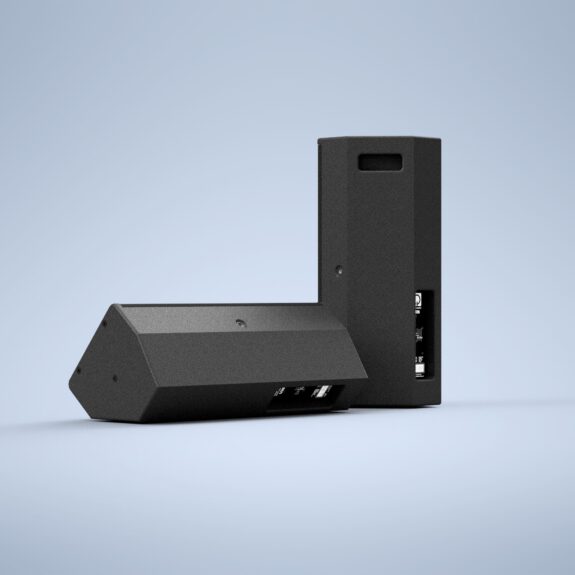

Low Overlook Stage Monitor
Under Balcony Fill

Live Theatre
Live Music
Mechanical Music
Speech
Vocals


Specifications
U26
2x6,5"/1" twinaxial loudspeaker
passive
350W
700W
8 Ohms
95 dB 1W/1m
123 dB 1m
129 dB 1m
82Hz -19 kHz
90°x40° hxv
13 kg
200 x 530 x 190 mm

Advised electronics

P4 processor
A1 amplifier
A23 amplifier
A41 amplifier
A42 amplifier


Downloads

Rigging

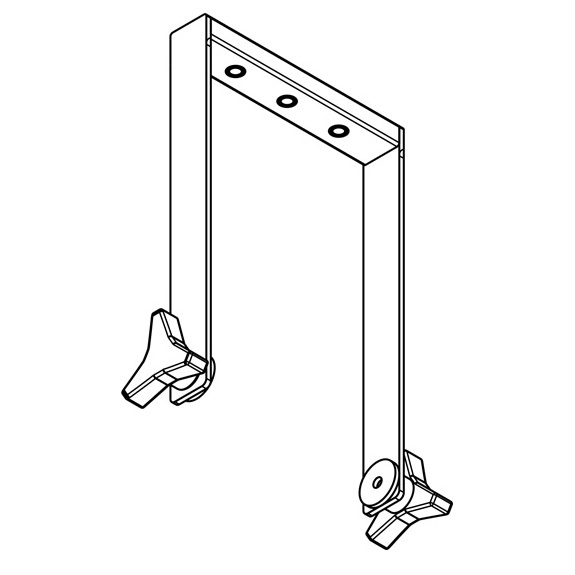

  • U26V

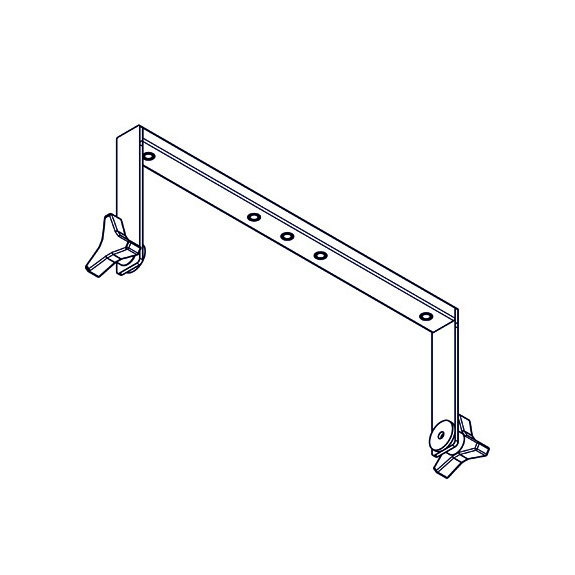

  • U26H
