L-low

2×15”ND arrayable bass

Specifications
Specifications
Description

The Quint Audio L-low is a 2×15”ND arrayable bass designed to be used in combination with the L10 top and L-sub subwoofer. It can be used in both flown and stacked setups.

The L-low design provides high efficiency low production associated with a powerful and punchful bass. Its is therefore ideal to team up with the L-sub. Together they add up nicely to reproduce the entire bass spectrum in a very powerful yet musical way.

The L-low is not only deployable together with other L-series loudspeakers but also with other Quint Audio tops in typical PA-applications such as live theater, live music and reinforcement of mechanical music, like dance, where often a strong forward punch is highly desirable.

The L-low features a built-in rigging system with tool free connection to other L-series loudspeakers and L-series accessories. The L-low is also equipped with M20 stand flanges on both the top as the side of the cabinet on which smaller loudspeaker or a single L10 can be mounted.

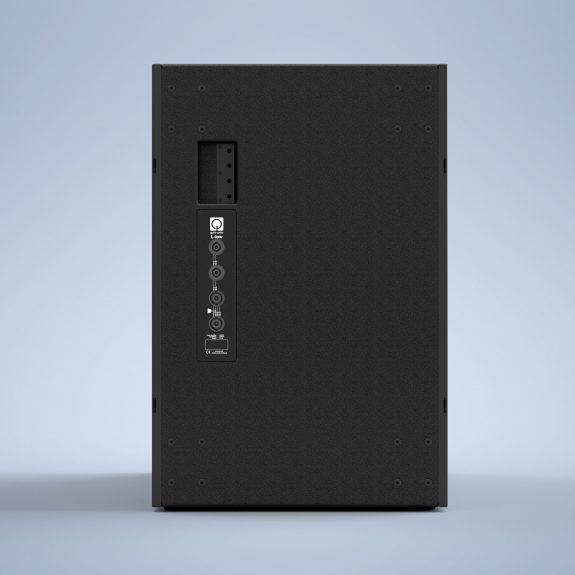

On the back of the L-low an extensive Speakon connection board is capable of receiving both NL8 and NL4 connectors. Two parallel NL8’s are split into two NL4’s. This makes any useful connection and/or split possible within the cabinet itself without the complexity of external wiring and splitting facilities.


Application area

Scalable FOH Low - PA Low
Live & Mechanical Music


Specifications
L-low
2x15" arrayable system
none
2400W AES
4800W
4 Ohms
104dB 1W 1m
137dB 1m
143dB 1m
50 -300 Hz
omni
61 kg
580 x 870 x 680 mm

Advised electronics

Downloads

Rigging
