L-sub

1×21”ND arrayable sub

Specifications
Specifications
Description

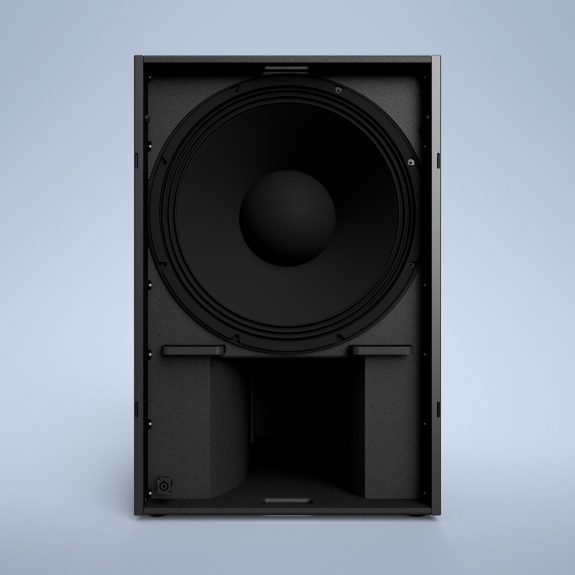

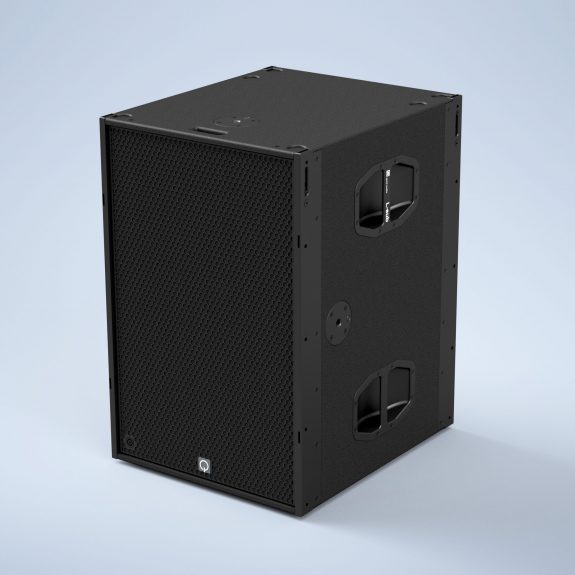

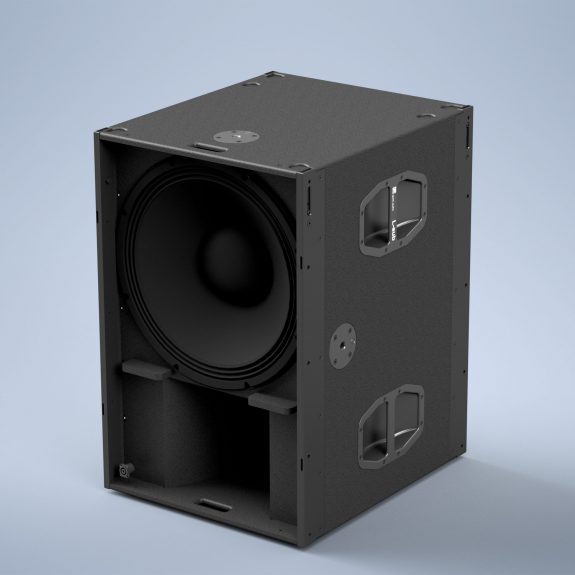

The Quint Audio L-sub is a 1×21”ND arrayable/stackable subwoofer designed to be used in combination with the L10 top and L-low bass. It can be used both flown and stacked.

The L-sub design provides high efficiency sub audio reproduction associated with a musical, deep and powerful bass foundation which makes the Quint Audio L-sub not only deployable together with other L-series loudspeakers but also with other Quint Audio tops in typical PA-applications such as live theater, live music and mechanical music.

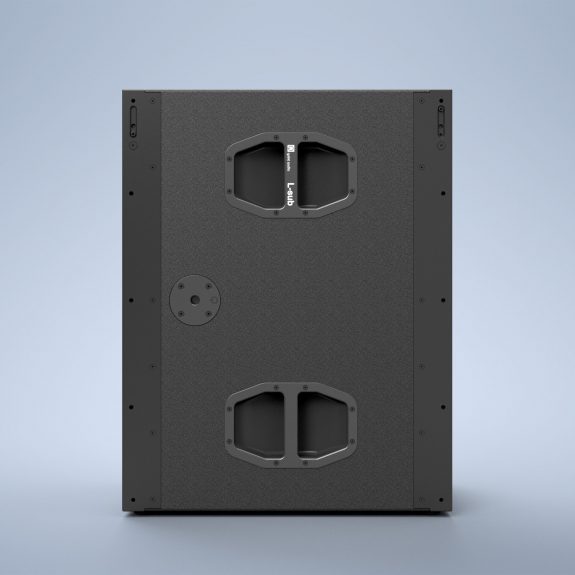

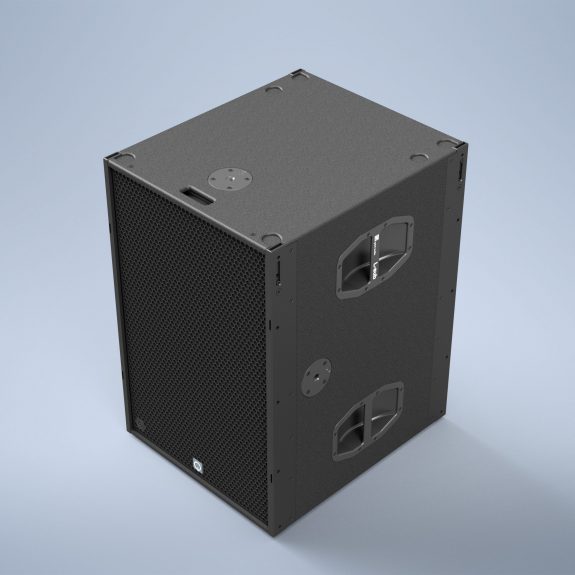

The L-sub features a built-in rigging system with tool free connection to other L-series loudspeakers and L-series accessories. The L-sub is also equipped with regular M20 stand flanges on both the top as the side of the cabinet on which a smaller loudspeaker or a single L10 can be mounted.

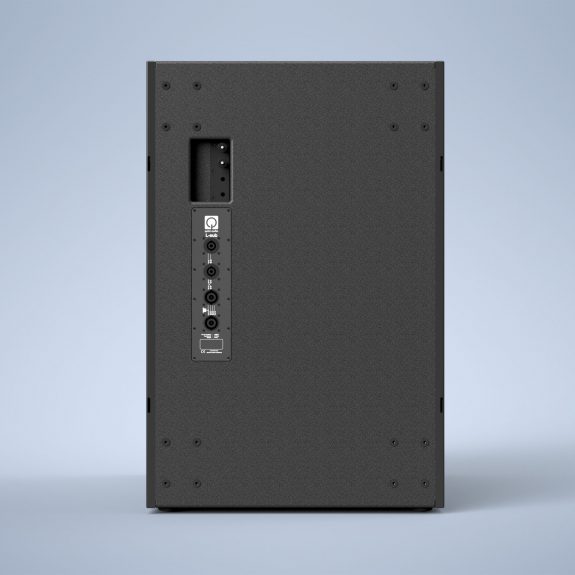

On the back of the L-sub an extensive Speakon connection board is capable of receiving both NL8 and NL4 connectors. Two parallel NL8’s are split into two NL4’s. This makes any useful connection and/or split possible within the cabinet itself without the complexity of external wiring and splitting facilities.

The L-low features a built-in rigging system with tool free connection to other L-series loudspeakers and L-series accessories. The L-low is also equipped with M20 stand flanges on both the top as the side of the cabinet on which smaller loudspeaker or a single L10 can be mounted.

On the back of the L-low an extensive Speakon connection board is capable of receiving both NL8 and NL4 connectors. Two parallel NL8’s are split into two NL4’s. This makes any useful connection and/or split possible within the cabinet itself without the complexity of external wiring and splitting facilities.


Application area

Scalable FOH Low - PA Sub
Live & Mechanical Music


Specifications
L-sub
1x21”ND arrayable bass
none
1800W AES
3600W
8Ohms
97dB 1W 1m
130dB 1m
136dB 1m
30 - 300 Hz
omni
54kg
580 x 870 x 680 mm

Advised electronics

P1 or P2 processor
A1 or A2 Amplifier
