L16

2×8″/1×4”/1×2.5” arrayable system

Specifications
Specifications
Description

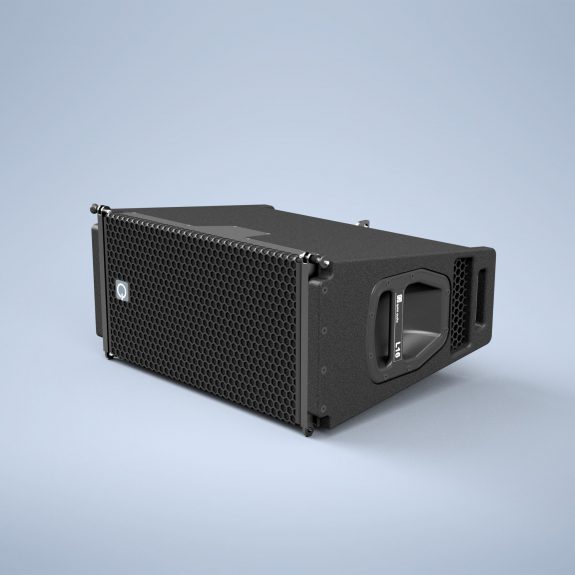

The Quint Audio L16 is a high performance top loudspeaker designed for scalable vertical array setups in small and mid field PA applications. It is specially designed to work in cooperation with flown or stacked subwoofers as an ultra compact high performance package.

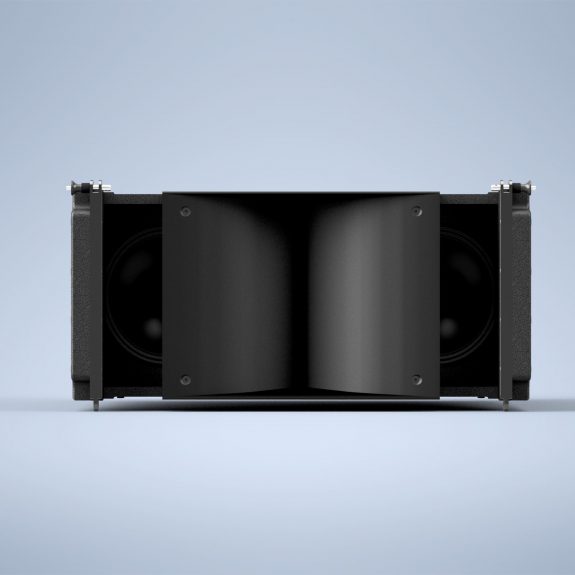

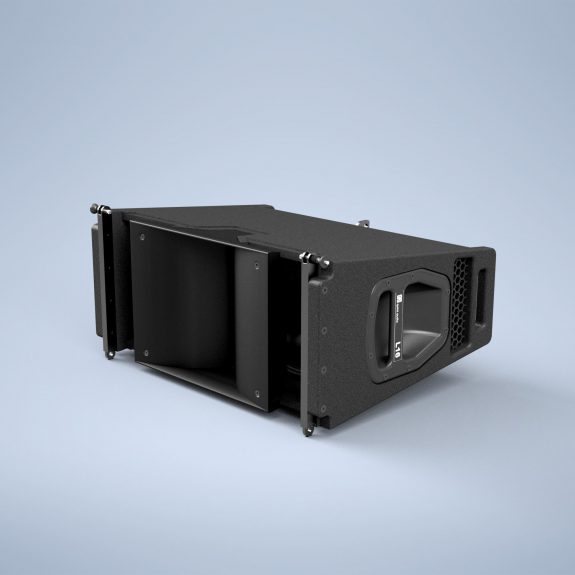

Similar to the L20, the L16 is equiped with a powerful large format coax driver mounted on a horn/waveguide combination that guarantees a constant directivity of 110 degrees linear in a frequency range that runs from 500Hz to over 16000Hz. The mid-low end is provided by two powerful 8″ woofers.

By its ultra compact and smart design, the L16 is user friendly in handling and rigging and very forgiving in setting up.


Application area

mid-field scalable array
FOH top
fill

live music
mechanical music
vocals
speech


Specifications
L16
2x8"/1x4”/1x2.5” arrayable system
bi-amplified + mid-high passive
110W HF/1000W LF
220W HF/2000W LF
5 Ohms
98dB LF/108dB HF 1Wm
131 dB 1m
137 dB 1m
89-20000 Hz
110°x12° hxv
26 kgs
580 x 265 x 450 mm

Advised electronics

P4 processor
A1 amplifier
A23 amplifier
A41 amplifier
A42 amplifier


Downloads

Rigging
  • L10-C1

    L10-L16 cradle / stacking frame

  • L10-C2

    rigging subframe L10-C1 & L20-C1

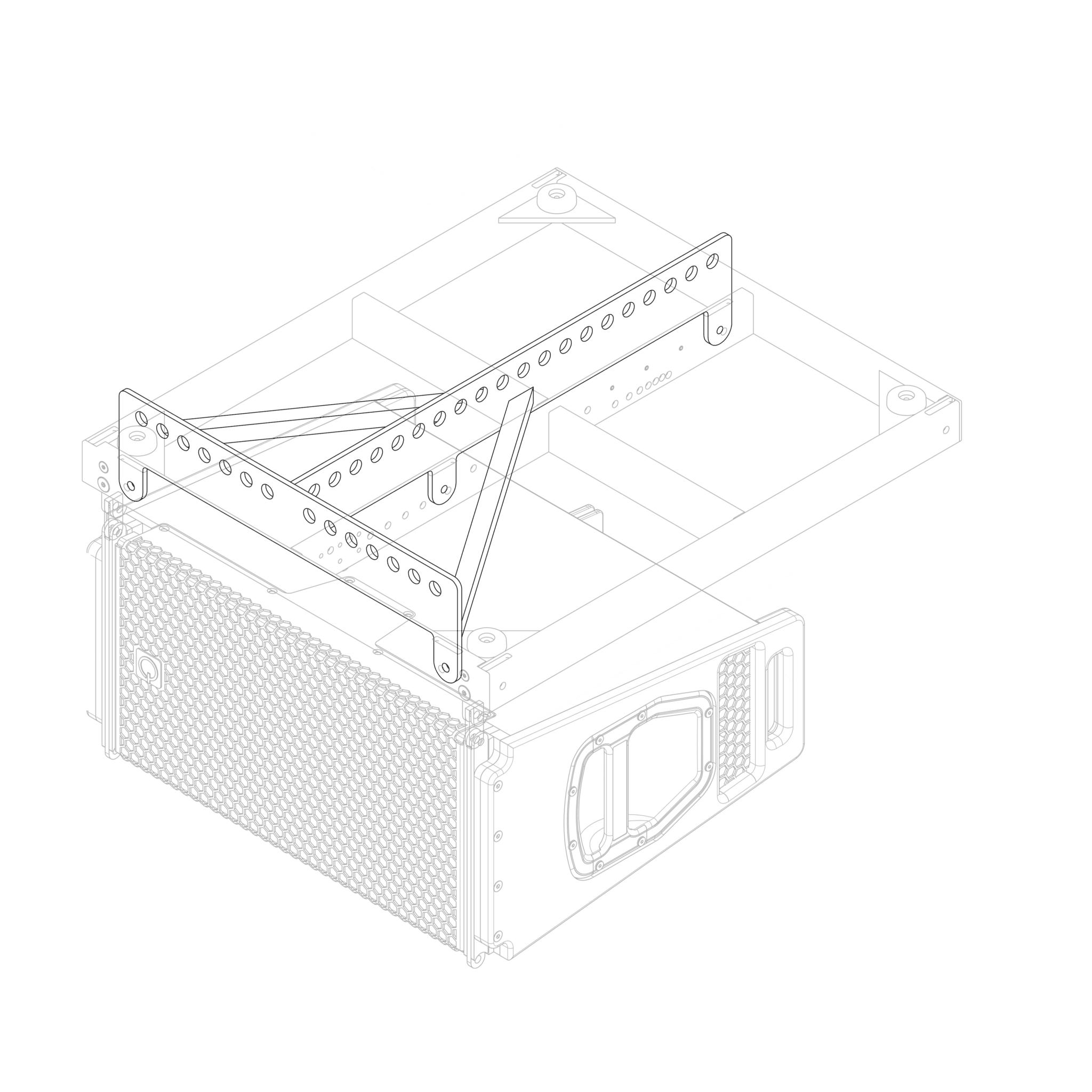

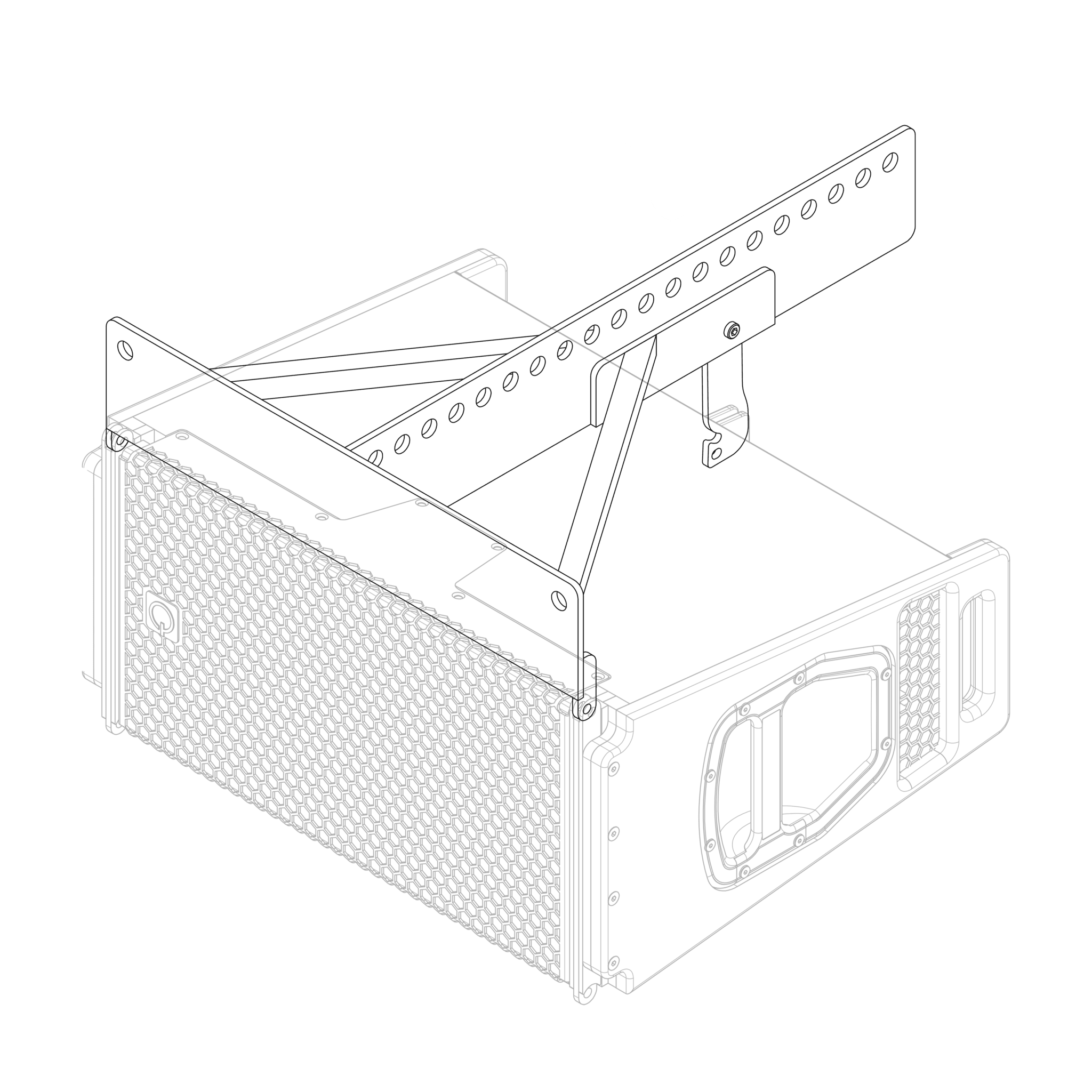

  • L10-C3

    basic flying frame L10/L16

  • L-pin

    L-series flying pin (one size fits all)

  • L10-E1

    C1 cradle / L-sub-low-bass cabinet interlink

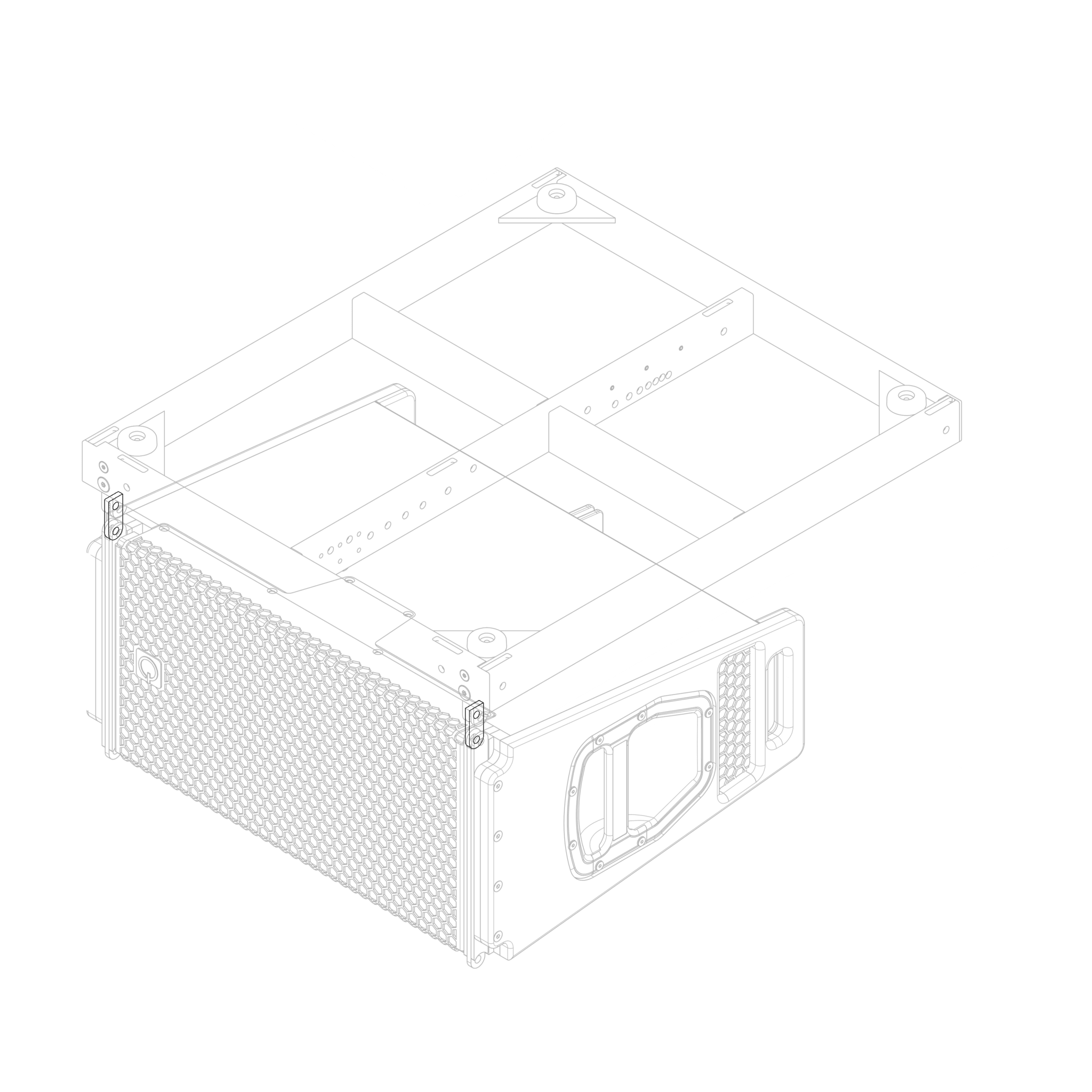

  • L10-E3

    C1 cradle / L10-L16-L20 top cabinet interlink
