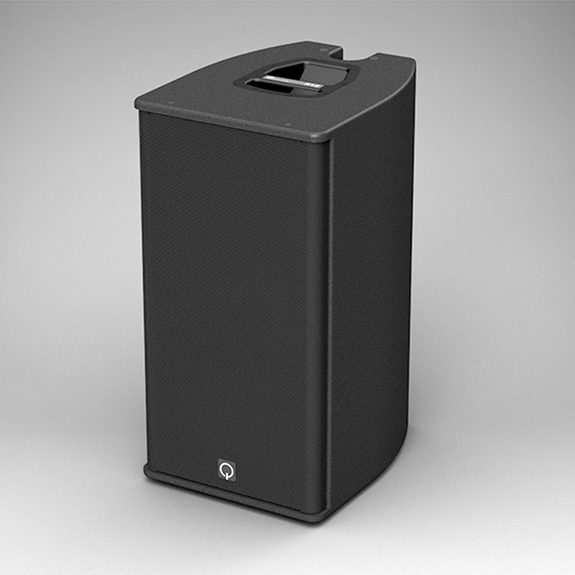

R12 mk1
12" ND / 5" ND AMT bi-amped self-powered reference system
01 / 04
124 dB
SPL
35 Hz – 20 kHz
Max frequency range
80° × 40°
Coverage
FIR/IIR
Filter
35 kg
Weight
First-generation reference loudspeaker.
Equipped with several in-house patented technologies, the first-generation R12 was among the most faithful, natural-sounding loudspeakers in the industry. It thrived on jazz, speech and vocals in live theatres, opera houses and TV studios, and served equally well as a studio monitor or reference loudspeaker.
Uncompromising Quint Audio-designed transducers, DSP hardware and software work with the built-in high-end amplifiers and power supply. The combination of minimum-phase and complementary filtering with the physical design gives the R12 linearity in dynamics, dispersion, frequency and phase.
Specifications
Specifications.
Archived specifications from the original datasheet.
Overview
| Type | Full-range top |
| Components | 12" ND + 5" ND AMT |
| Application | Theatre & Reference |
| Series | R-series |
Acoustic output
| SPL | 124 dB 1m |
| Frequency range | 35 Hz – 20 kHz |
| Coverage | 80° × 40° h×v |
Electrical
| Amplification | Self-powered, bi-amped |
| Filter | Digital complementary FIR/IIR |
Physical
| Weight | 35 kg |
| Dimensions (w×h×d) | 360 × 690 × 450 mm |
Lifecycle
| Status | Out of production |
| Replaced by | R12 |
