01 / 01
2×1000 W
Output power
8 Ohm
Load
Class-D
Topology
PFC
Power supply
DSP slot
Processing
Class-D power with processing on board.

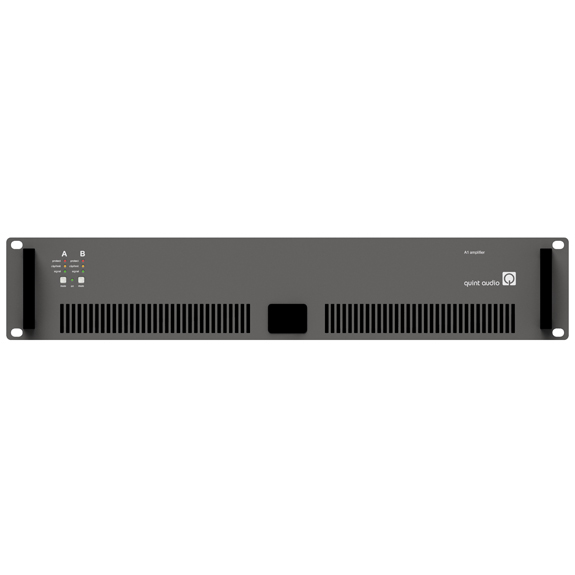

The A1 is a 2-channel Class-D amplifier for Quint Audio loudspeaker systems, delivering 2×1000 W into 8 Ohm from two independent universal mains regulated power supplies with PFC.
A DSP slot accepts an optional processing module loaded with Quint Audio factory presets, turning the A1 into a self-contained installation amplifier. The front panel provides indicators for power, signal present, clip/limit and protect, with a mute button per channel.
Specifications
Specifications.
Archived specifications from the original datasheet.
Overview
| Type | Amplifier |
| Power / IO | 2×1000 W @ 8 Ohm |
| Application | Installation |
| Series | A-series |
Amplifier
| Channels | 2 |
| Output power | 2×1000 W @ 8 Ohm |
| Topology | Class-D |
| Power supply | 2× universal mains regulated, with PFC |
| Standby consumption | < 0.5 W (ErP 1275/2008) |
| Processing | Slot for optional DSP module with factory presets |
| Front panel | On · signal · clip/limit · protect, mute per channel |
Lifecycle
| Status | Out of production |
