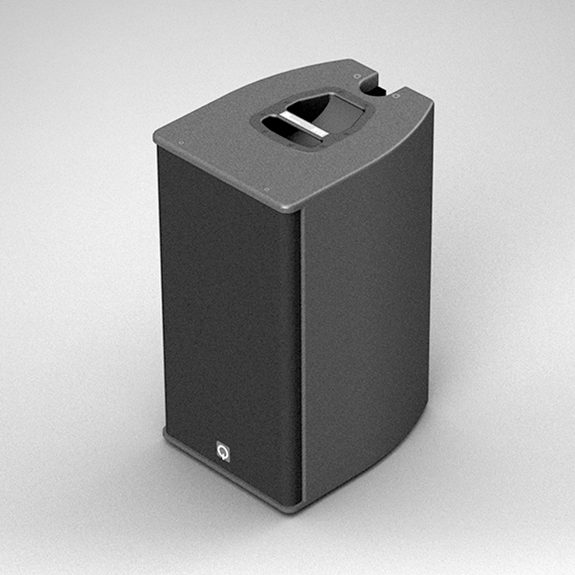

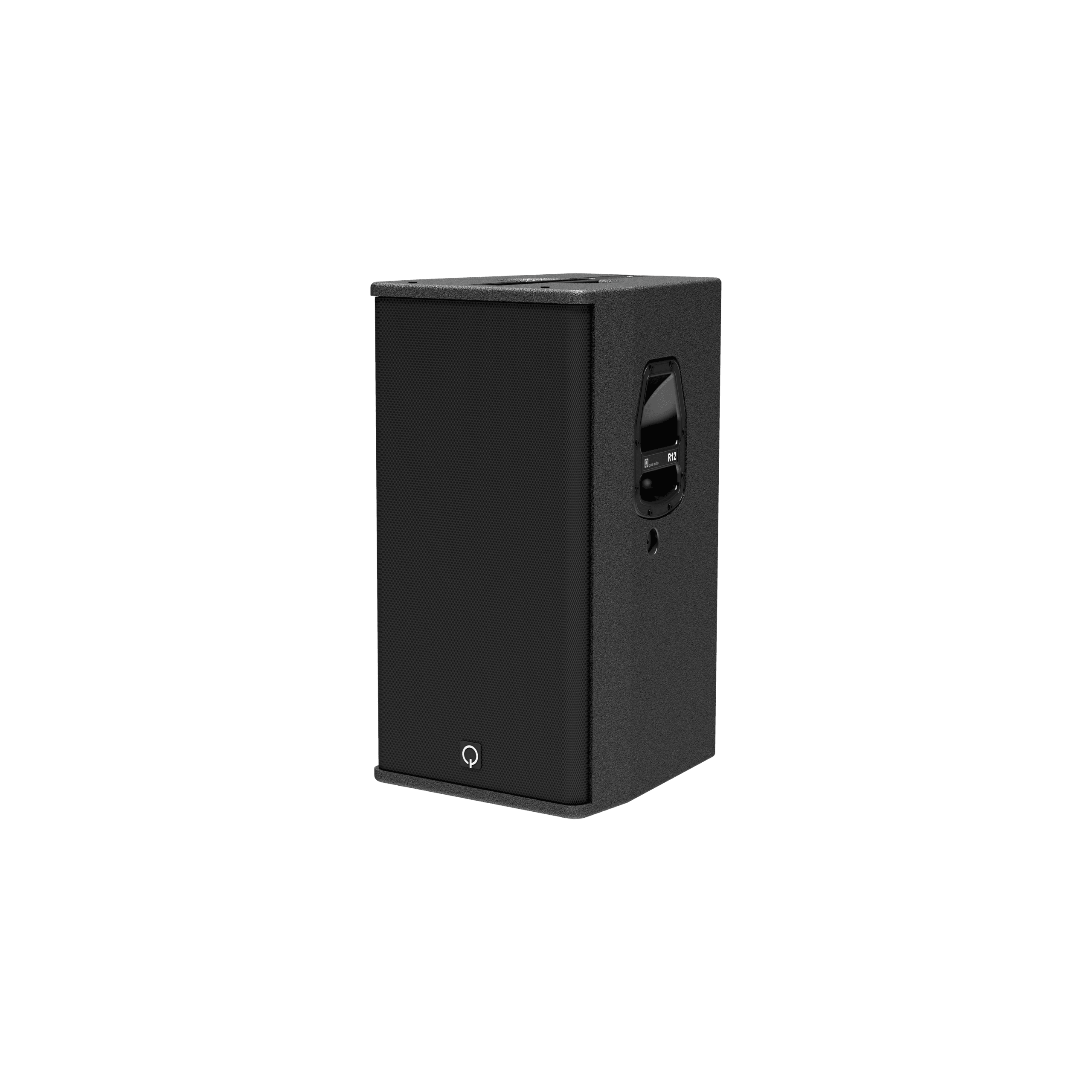

State-of-the-art full range point source top.

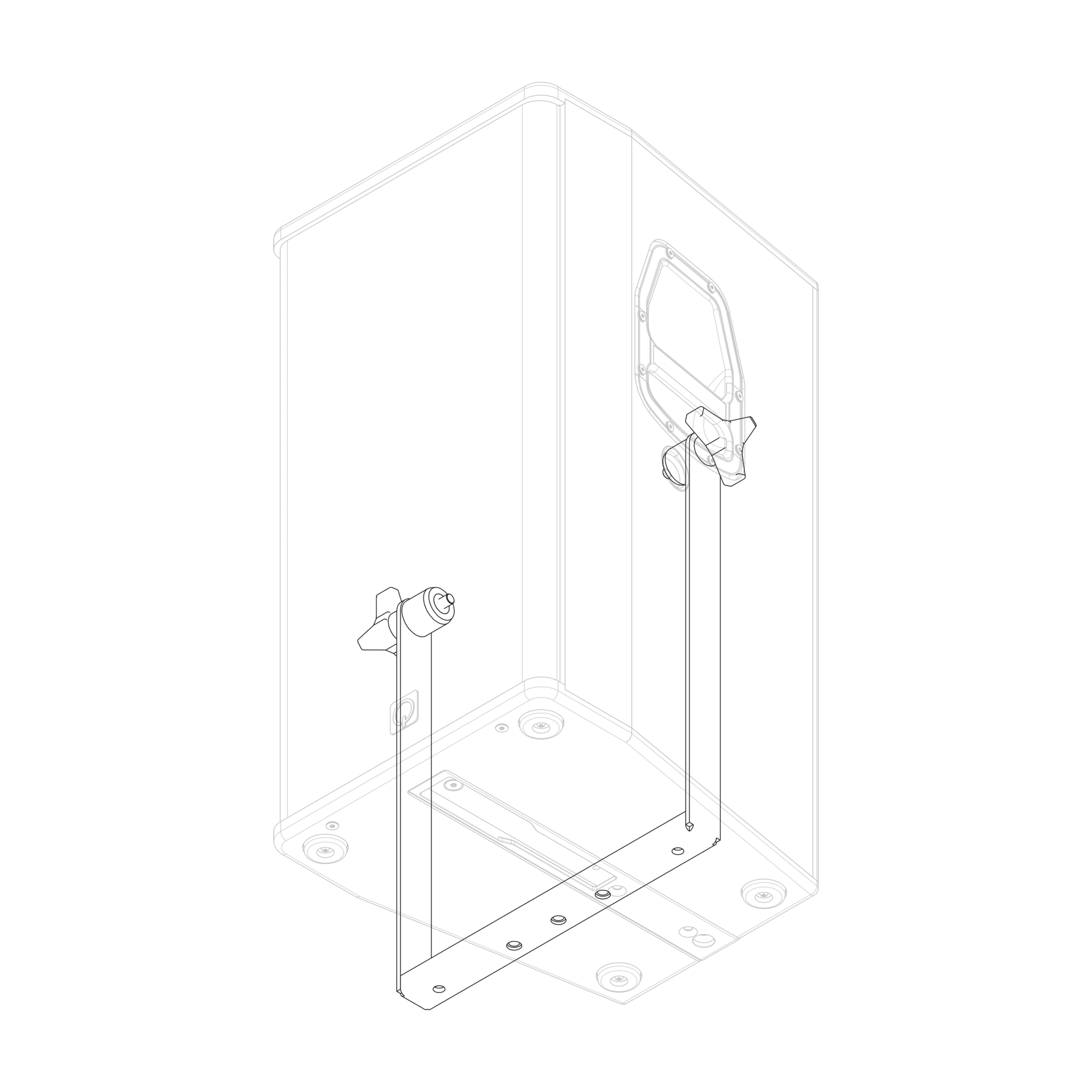

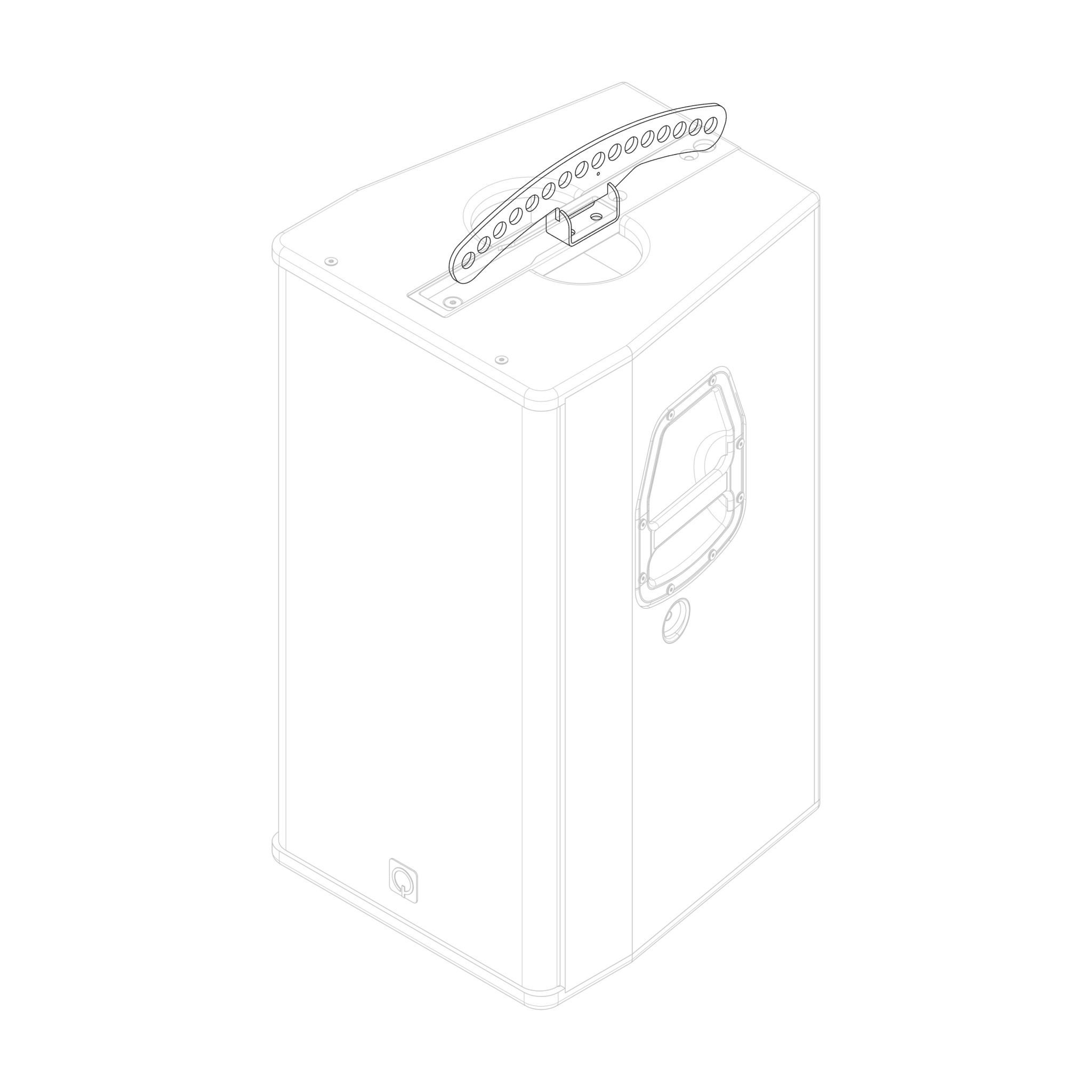

12" bass reflex design combined with 5" air motion transformer. Maintained low frequency performance at full power. Quint Audio Quick Lock system on top and bottom. Tool free mountable U-bracket.

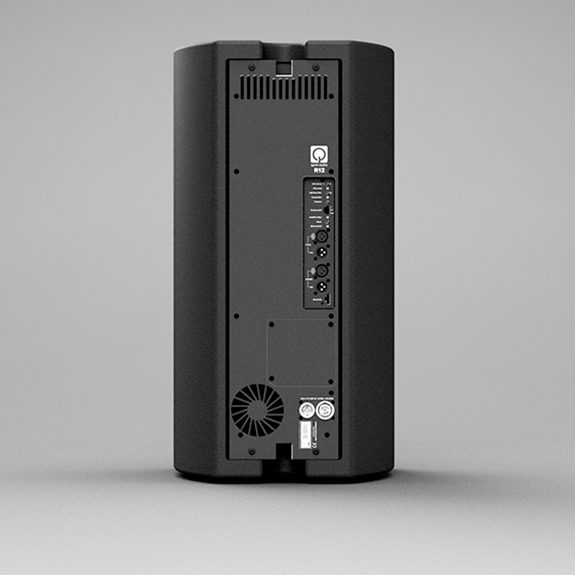

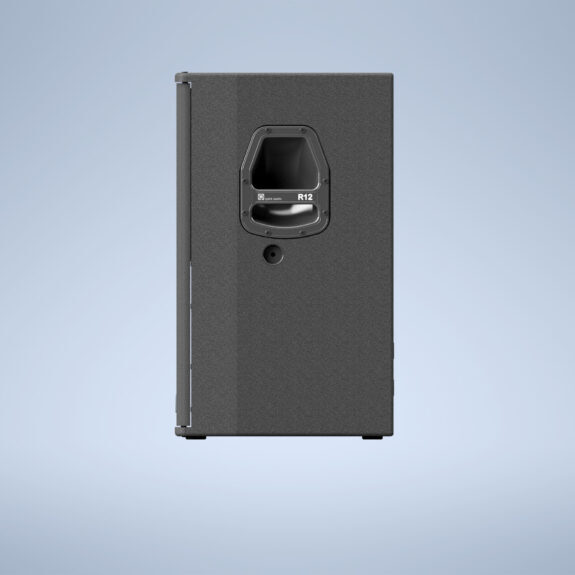

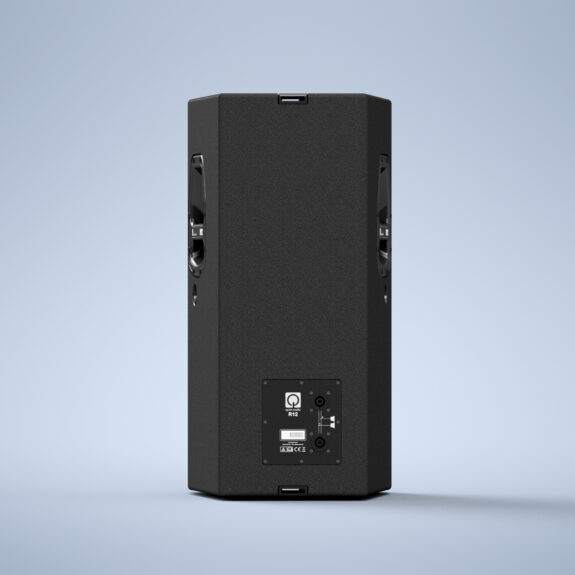

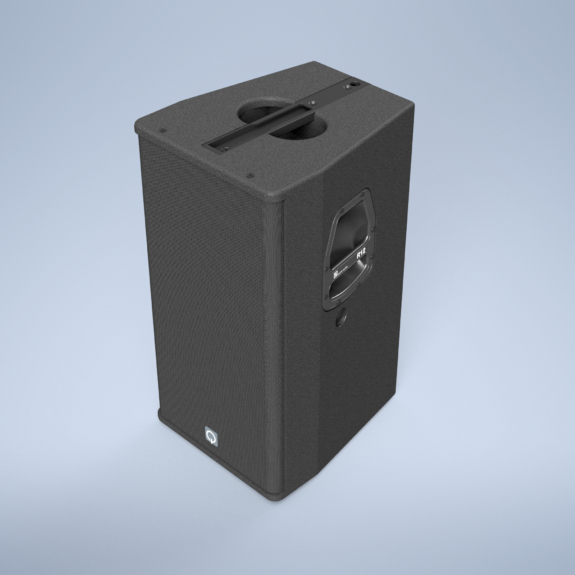

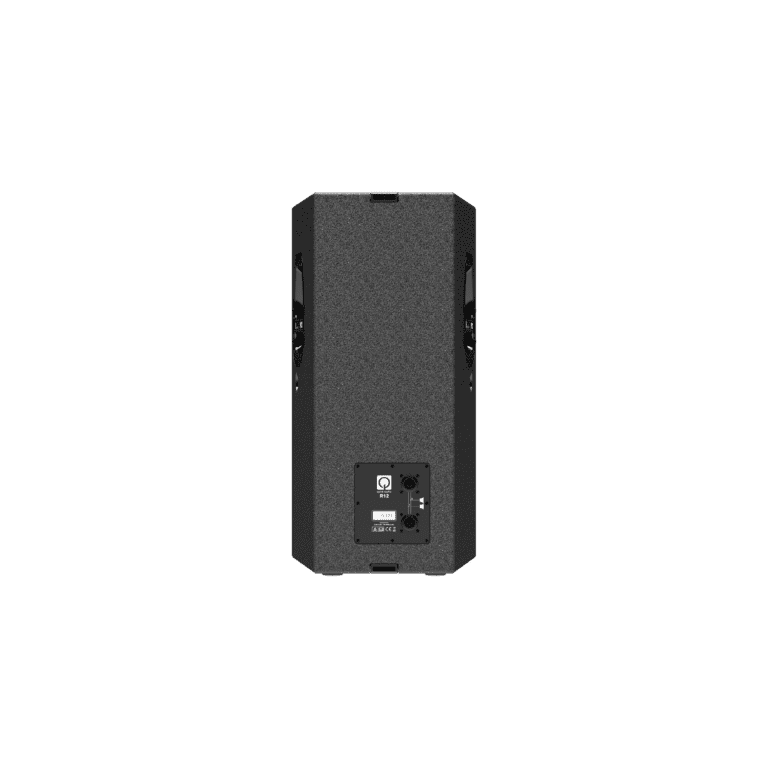

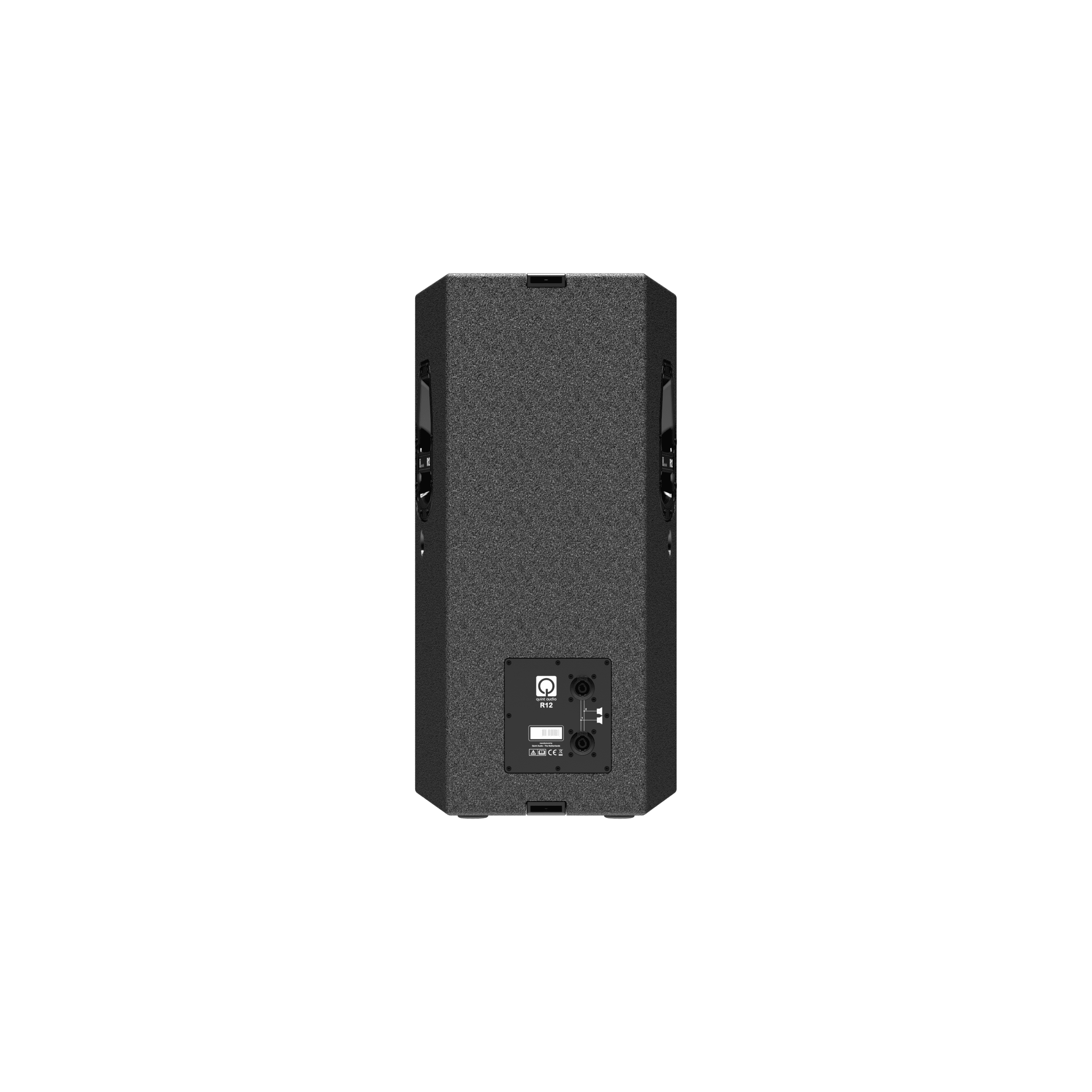

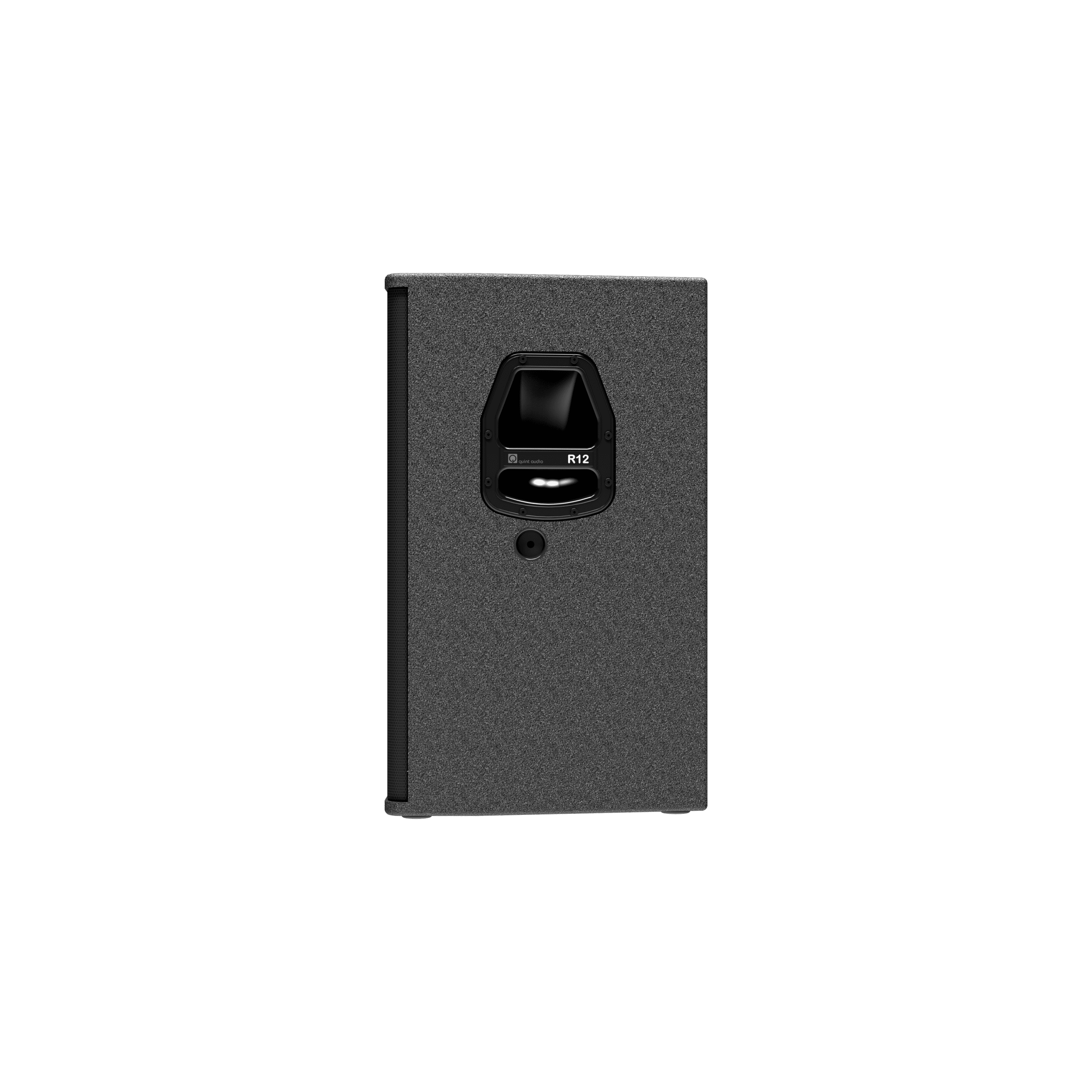

2x NLT4 on the rear. 3x ergonomic handles, 1x on the left, 1x on the right, 1x on the top. Rubber feet for stability on the bottom.

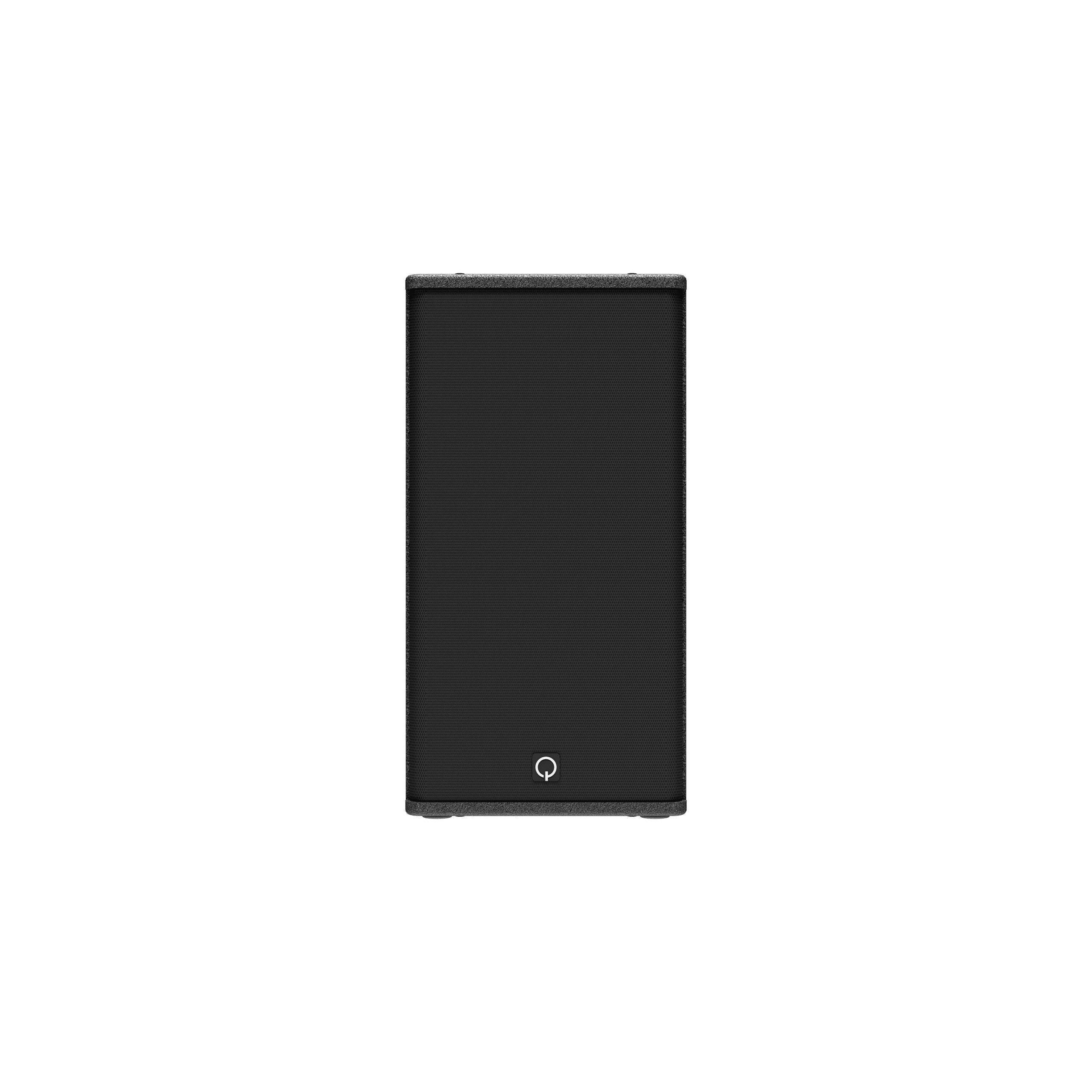

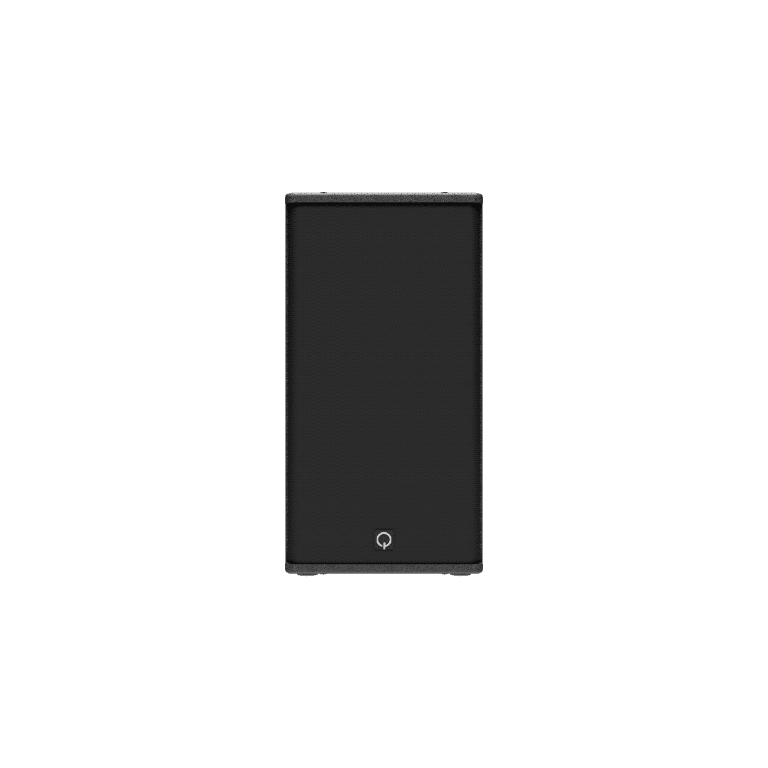

Construction — Birch plywood enclosure · Durable hybrid coating, resistant to wear, impact, and weathering · Klotz internal wiring · Neutrik speakON® connectors · Powder coated steel grille with acoustically transparent fabric on the front.
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers. All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match. Factory system presets available.
Specifications.
Measurements conform to AES75, carried out with P9 processor and A42 amplifier. Values are scaled to 1 m free field.
Overview
| Type | Full-range top |
| Components | 12"/5" |
| Application | Reference |
| Series | R-series |
Acoustic output
| Peak SPL* / freq. range (-6dB) | 131.5dB / 34Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 114.5dB / 34Hz-20kHz |
| Dispersion (HxV) | 80° x 40° |
Connectivity
| Connections | 2x 4-pole speakON |
| Impedance | 8 Ohm |
| Filter | 2-channel DSP control |
Physical
| Size (WxHxD) | 360 x 695 x 415mm |
| Weight | 26kg |
Drive it with Quint electronics.

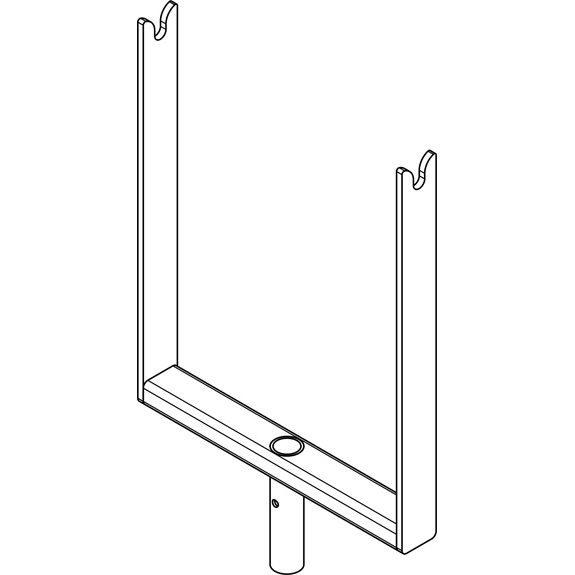

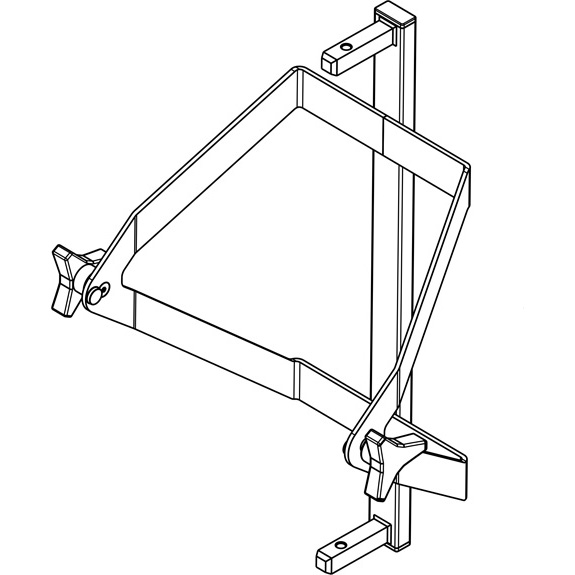

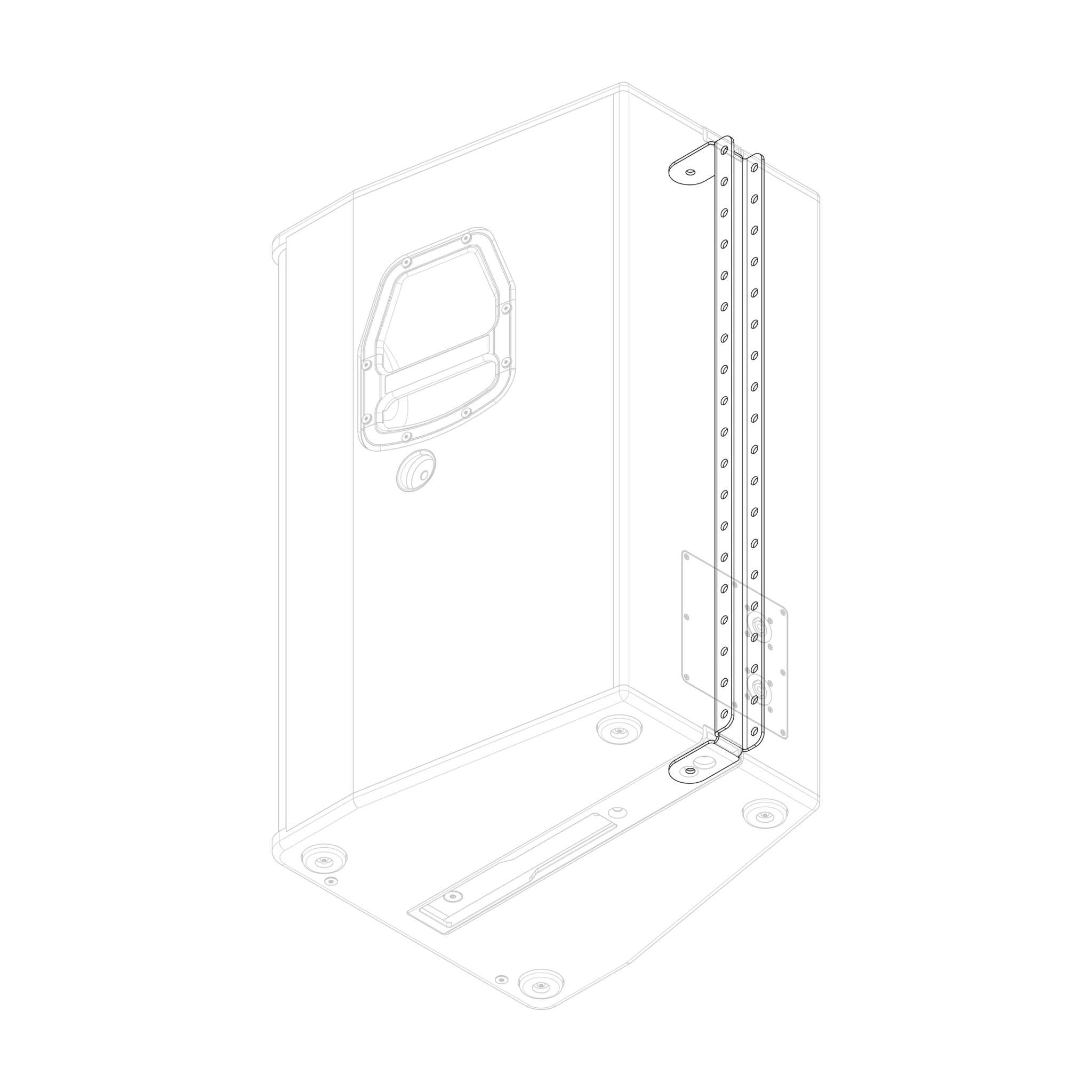

Rigging & accessories.
