T6

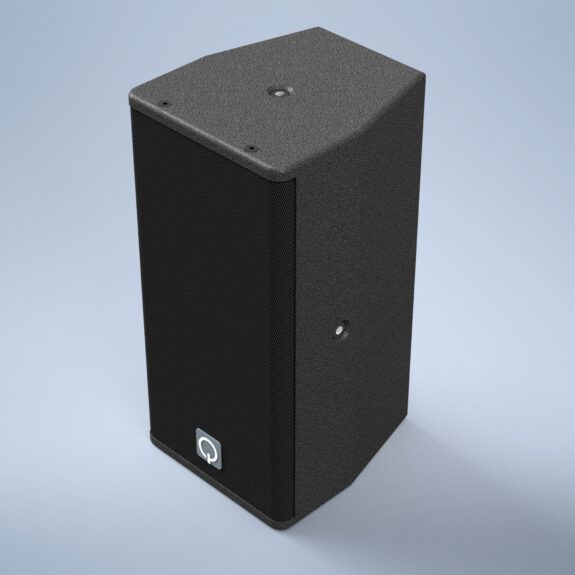

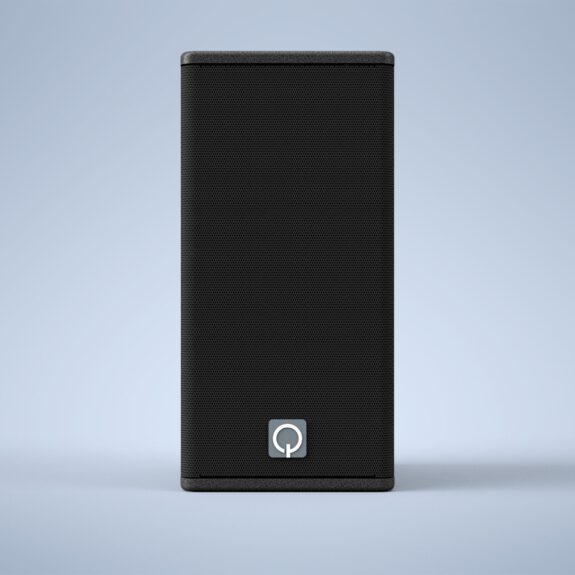

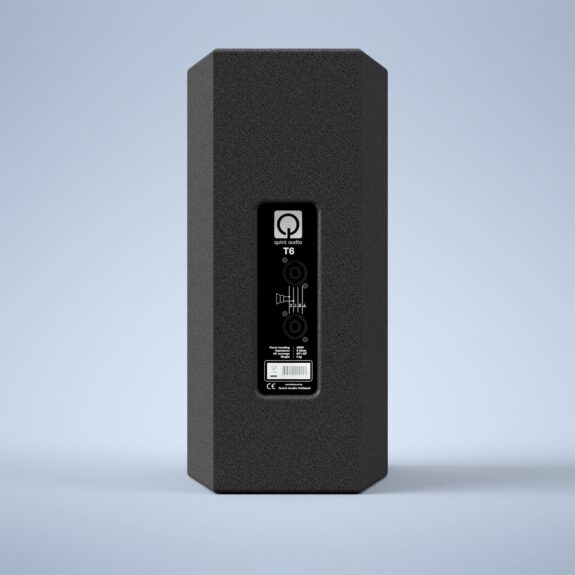

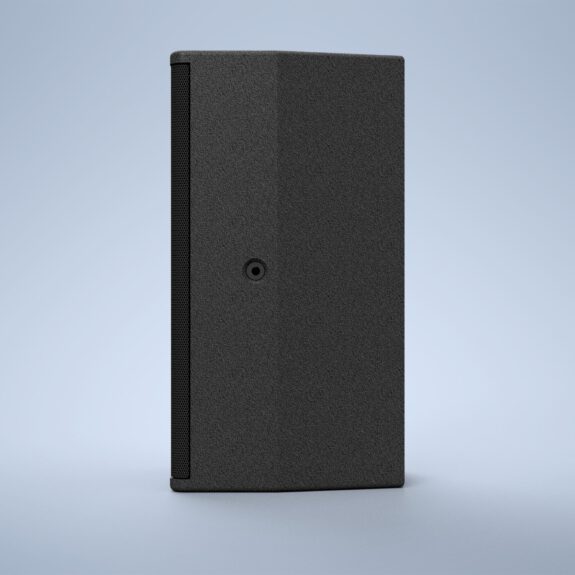

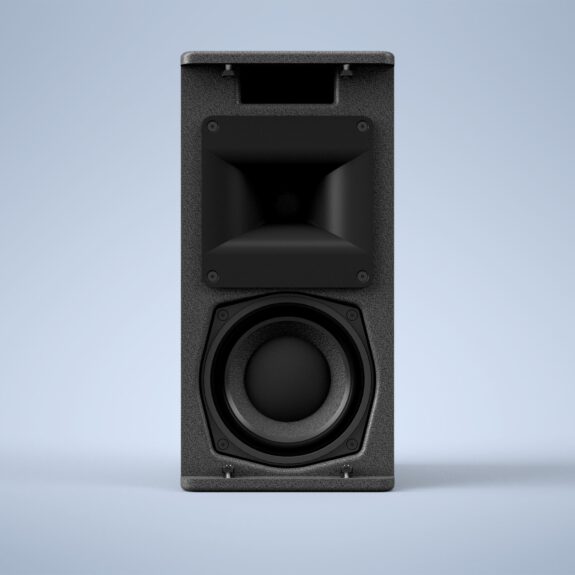

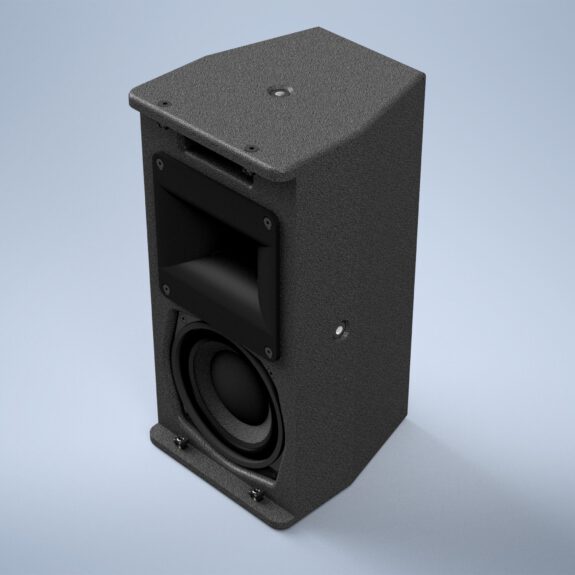

The Quint Audio T6 is a 1×6.5″/1″ front loaded 2-way passively filtered full-range speaker system for demanding installation purposes and use in the audio-visual field

Specifications
Specifications
Description

Due to its modest appearance and its fine full-range properties, the Quint Audio T6 covers a wide range of electro-acoustic applications with an emphasis on audio visual reinforcement and music reproduction.

Both the vertical and horizontal dispersion of the T6 are very well-controlled and it has an outstanding projection. In combination with a subwoofer, the T6 even becomes a powerful small PA-system.

Those features make the H6 is particularly suitable for speech and music in audiovisual environments and fixed installations. Applications also include use as FOH and fill (stage-lip/under-balcony) in live-theaters and clubs as well as quality monitor in the musical field.


Application area

Small FOH Top
Full Range PA speaker
Fixed Installation speaker

Live Theatre
Live Music
Mechanical Music
Speech
Vocals


Specifications
T6
1x6,5"/1" full range loudspeaker
passive
200W AES
400W
8 Ohms
92 dB 1W/1m
118 dB 1m
126 dB 1m
60Hz - 19 kHz
90°x50° hxv
10 kg
200 x 410 x 190 mm

Advised electronics

P1 & P2 processor
A1 & A2 amplifier
open platform


Downloads

Rigging

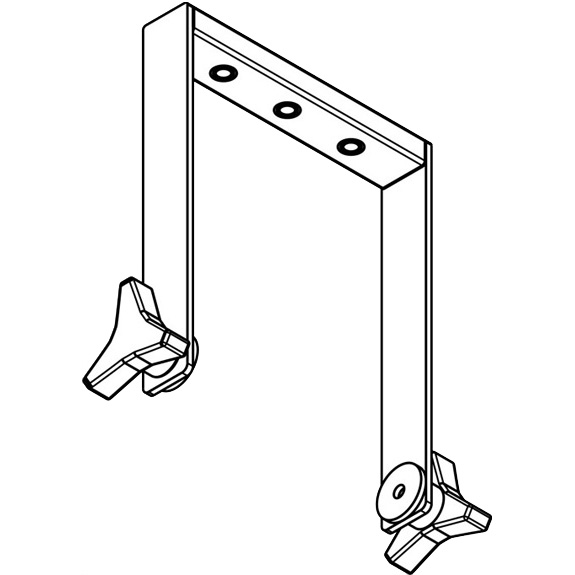

  • T6V

    T6 bracket upright mounting

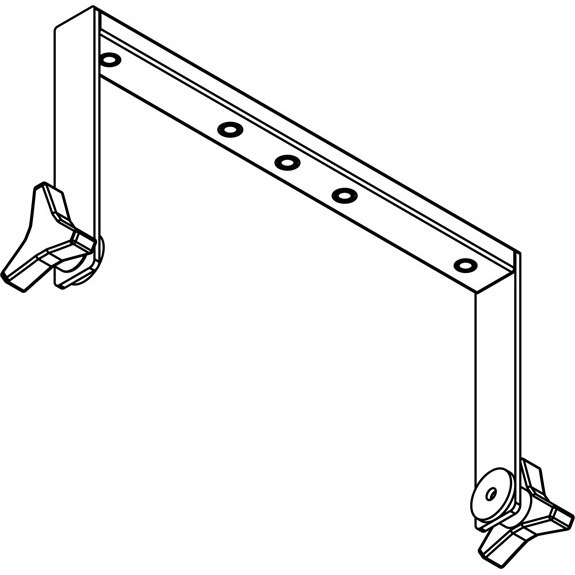

  • T6H

    T6 bracket flat mounting

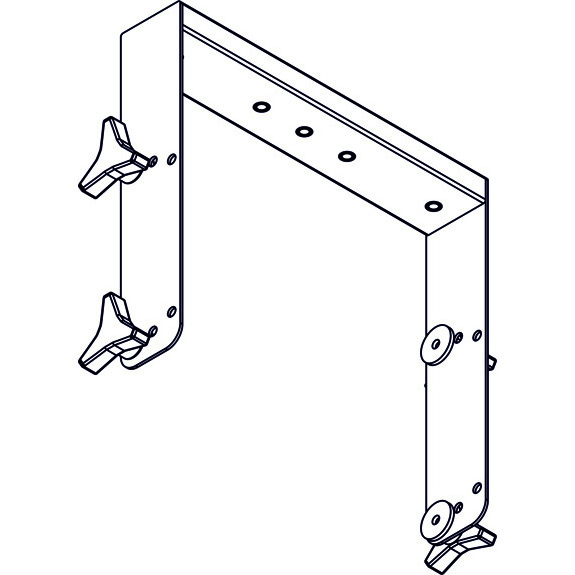

  • T6H21

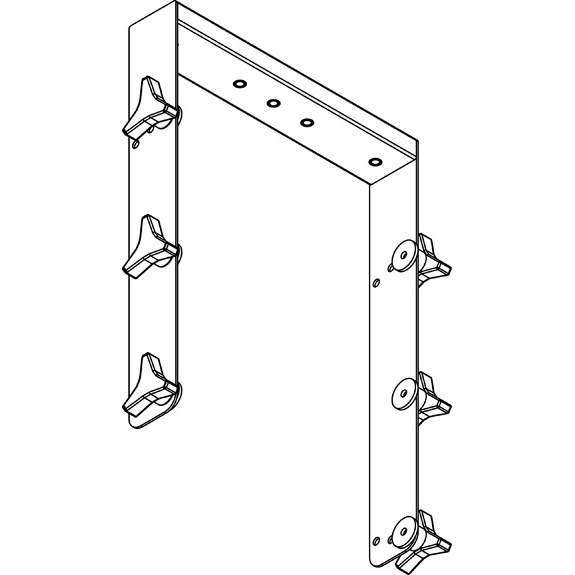

  • T6H31
