V36
2×18″/2×15″/4×8″/2×4″/2×2.5″
High performance active directivity control full range line array module for touring
Specifications
Description

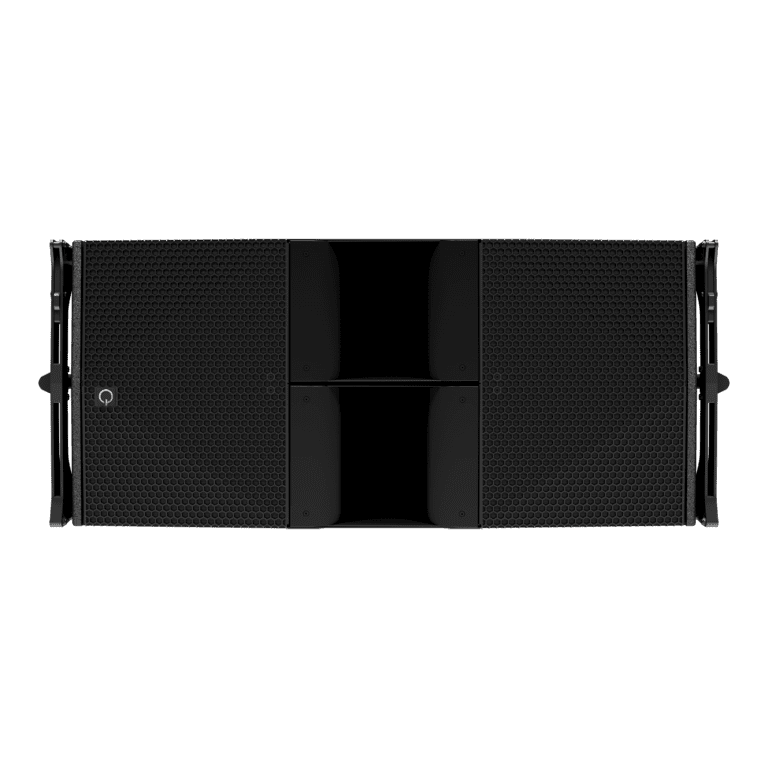

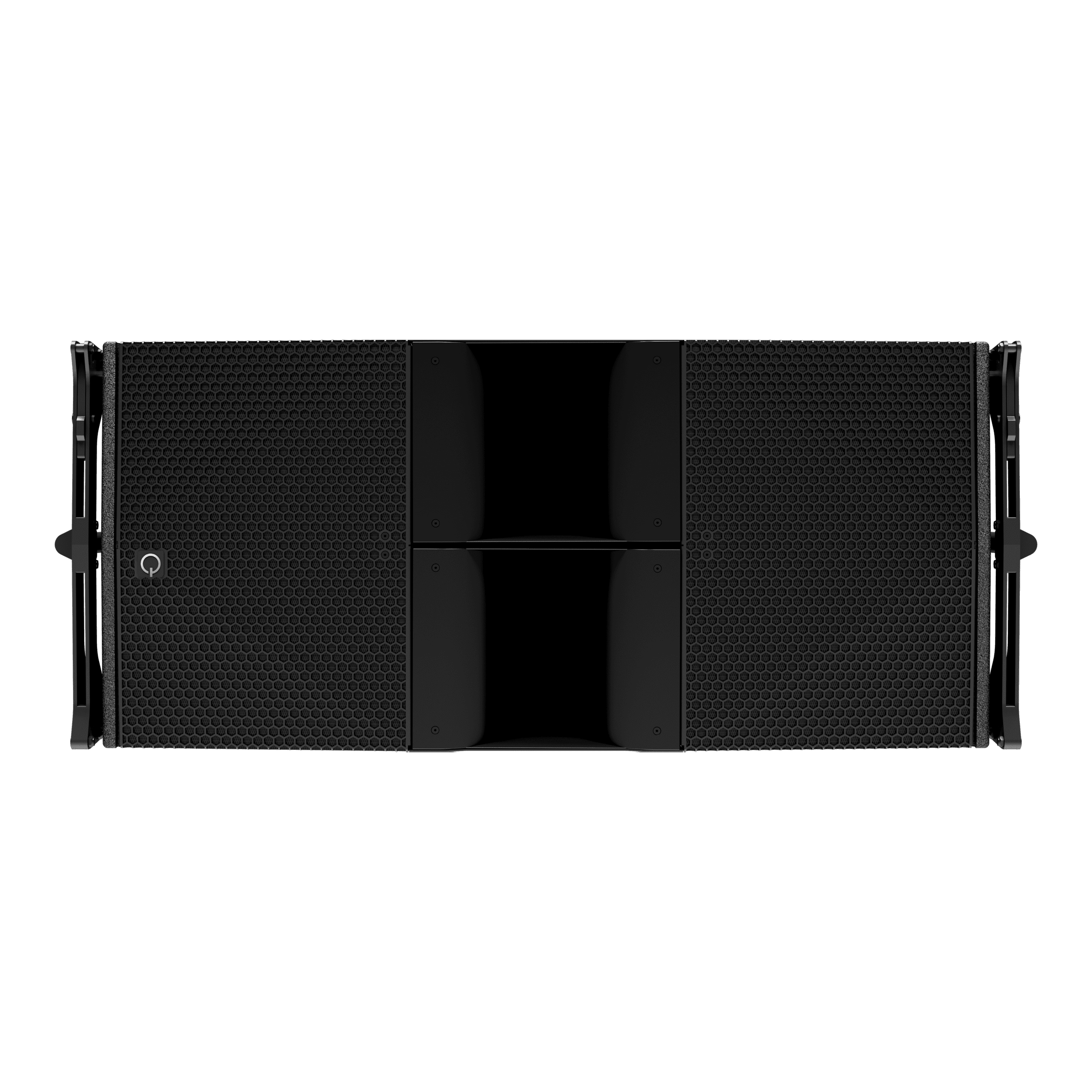

- 2x 18″/2x 15″ bass reflex 4x 8″ closed box design combined with 2x 4″/2.5″ coaxial compression driver
- Symmetrical design
- Maintained low frequency performance at full power
- full range constant directivity
- noise suppression outside the sound field

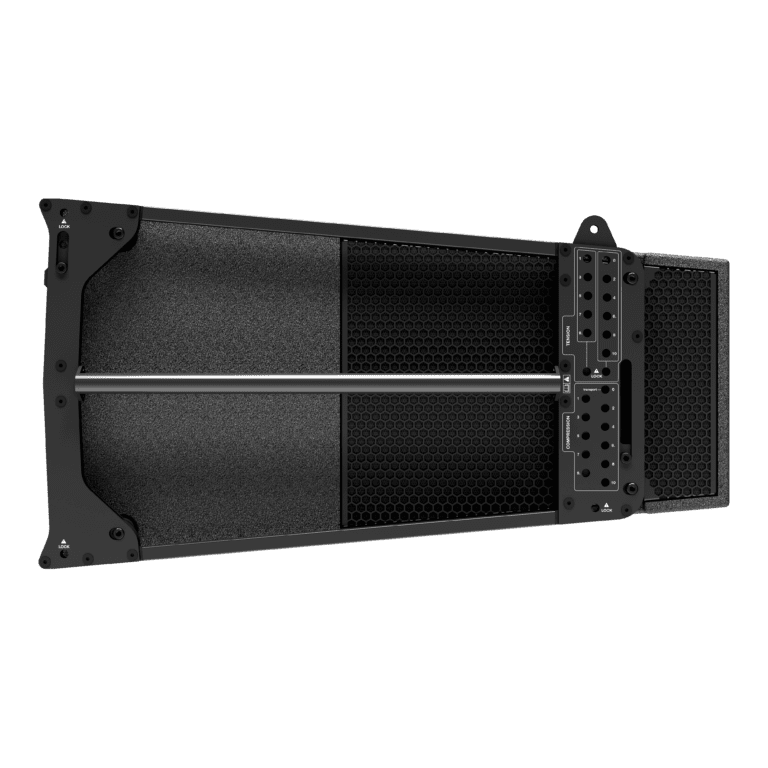

- rigging system for use with downfill L-series modules

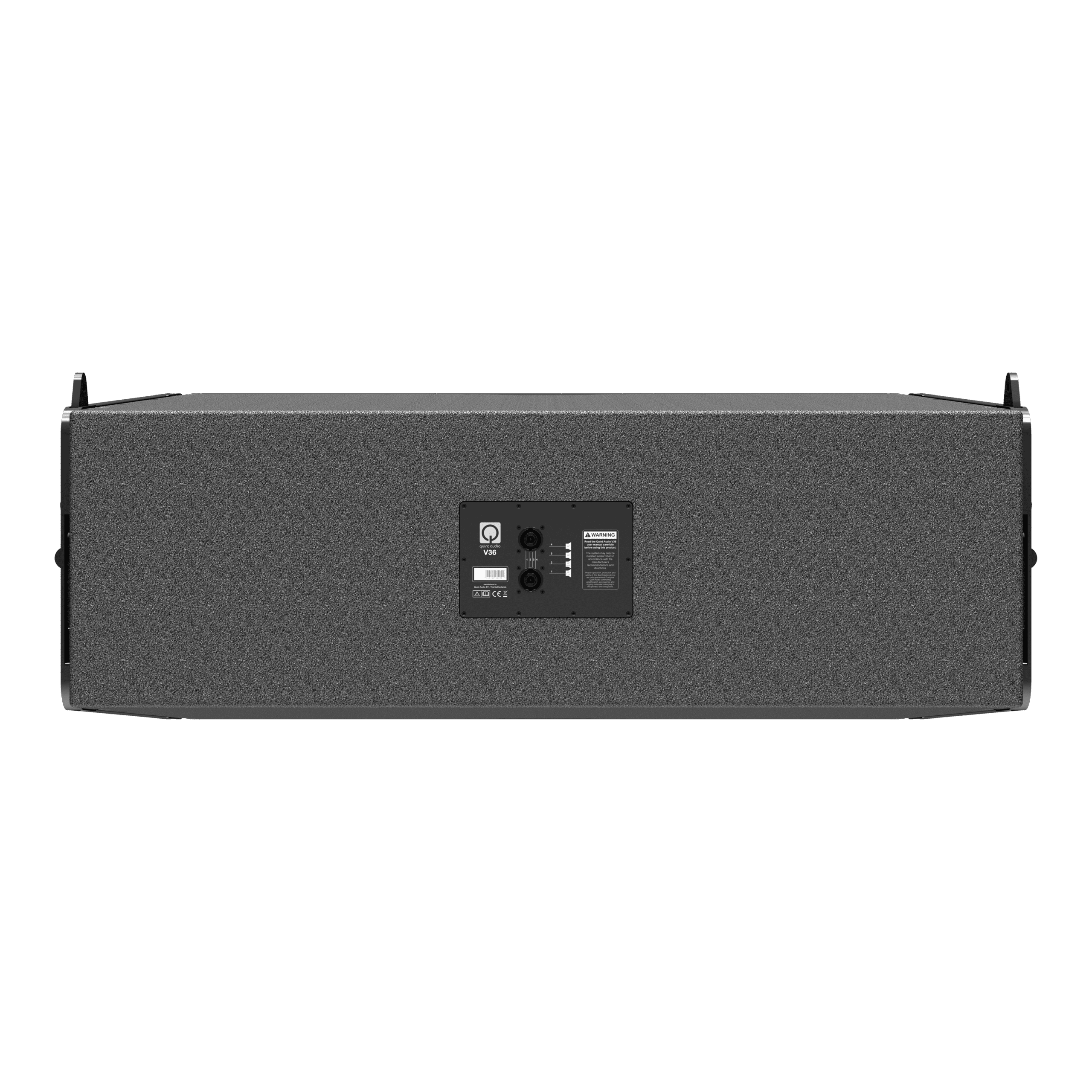

- 2x NLT4 2x NL8 on the rear
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
Application area
- Full range line source
- Cardioid systems
- supercardioid systems
- Active directivity control
- voice
- speech
- mechanical music
- live music
- FOH PA systems
Specifications
| Model | V36 |
| Filter | 4-channel DSP control |
| Loudspeaker components | 2x18"/2x15"/4x8"/2x4"/2x2.5" |
| Impedance | 4 Ohm |
| Peak SPL* / freq. range (-6dB) | 148dB / 33Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 130dB / 33Hz-20kHz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | 80° x 10° |
| Connections | 2x 8 pole speakON |
| Weight | 167kg |
| Size (WxHxD) | 1320 x 540 x 1045mm |
| *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field. |
