Specifications
Description

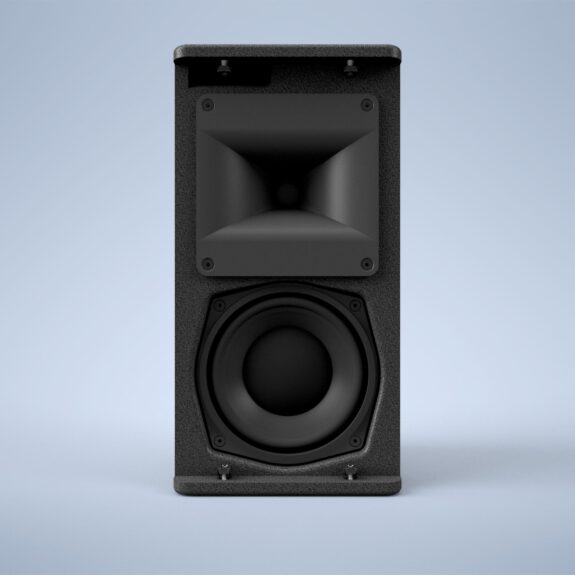

- 6.5″ bass reflex design combined with 1.7″ compression driver
- Extended low frequency response at reduced power

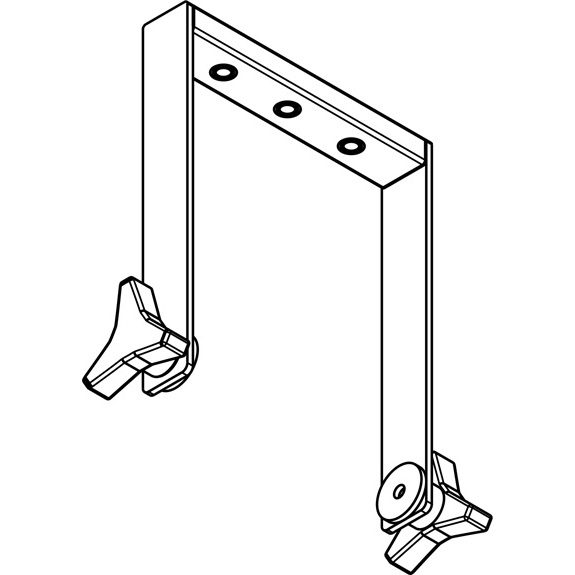

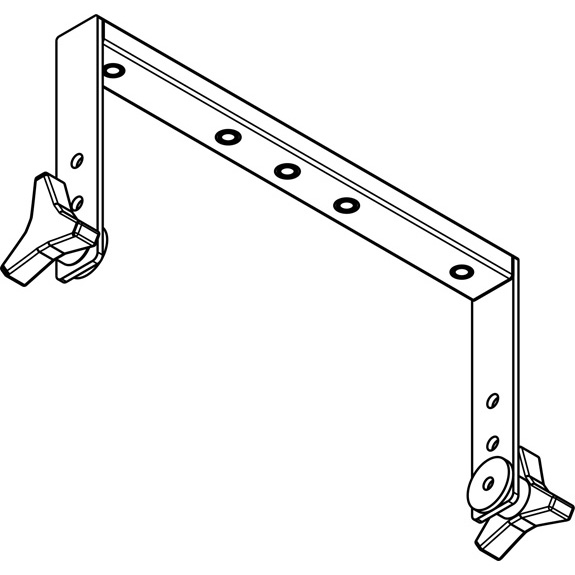

- Tool free mountable U-bracket
- Mounting points for fixed installation

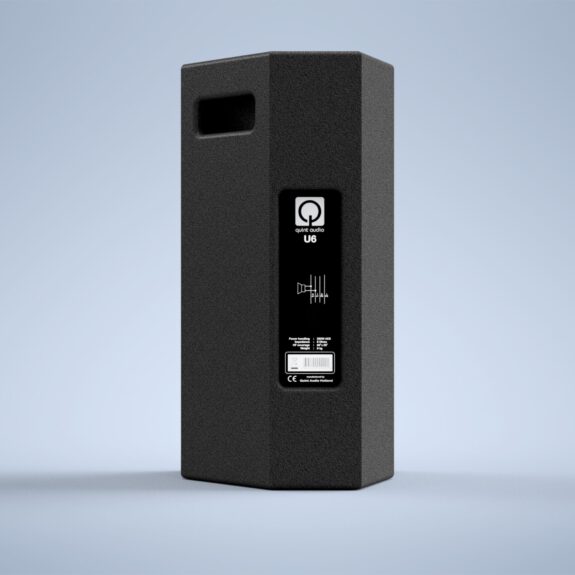

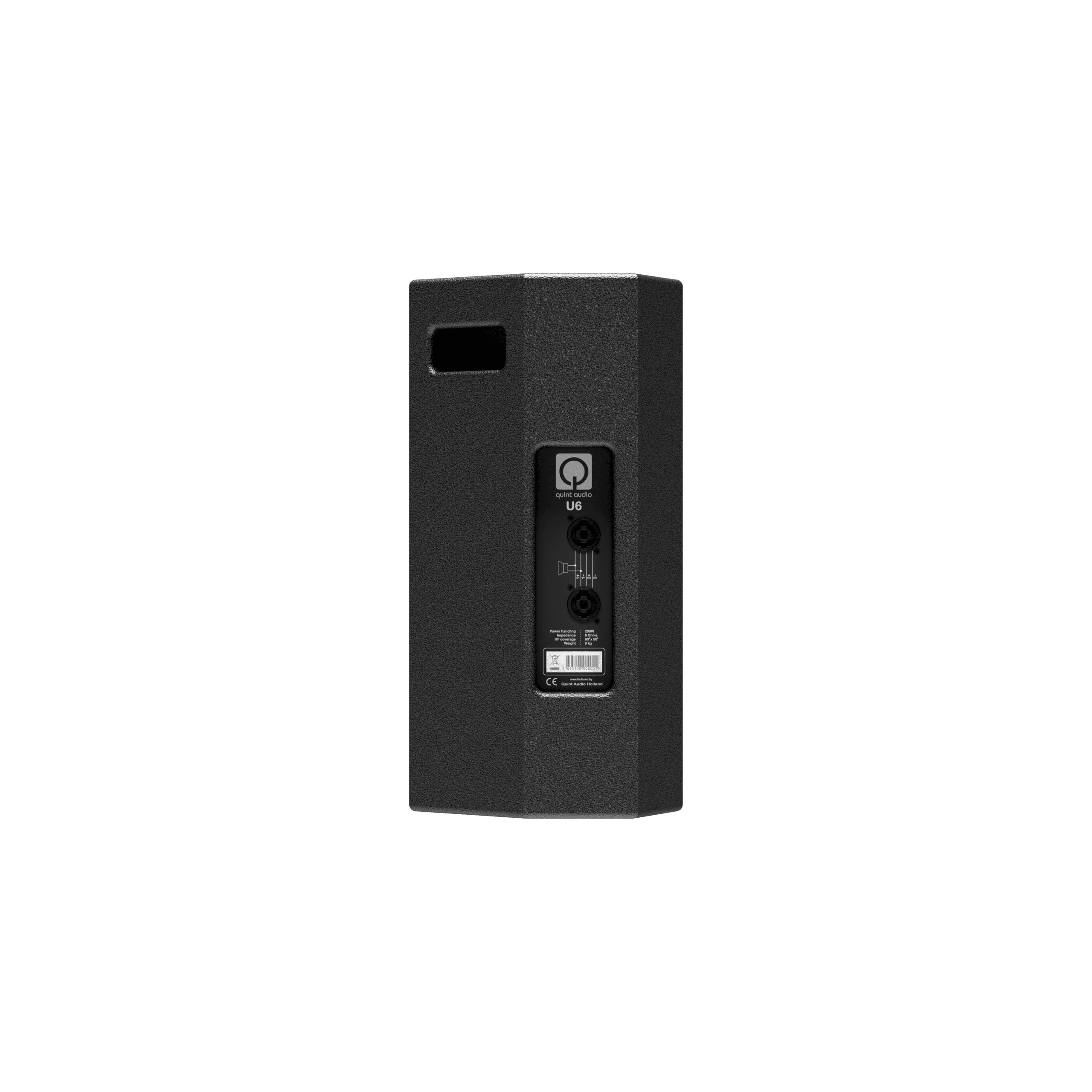

- 2x NL4 on the rear
- M10 Thread for pole adapter

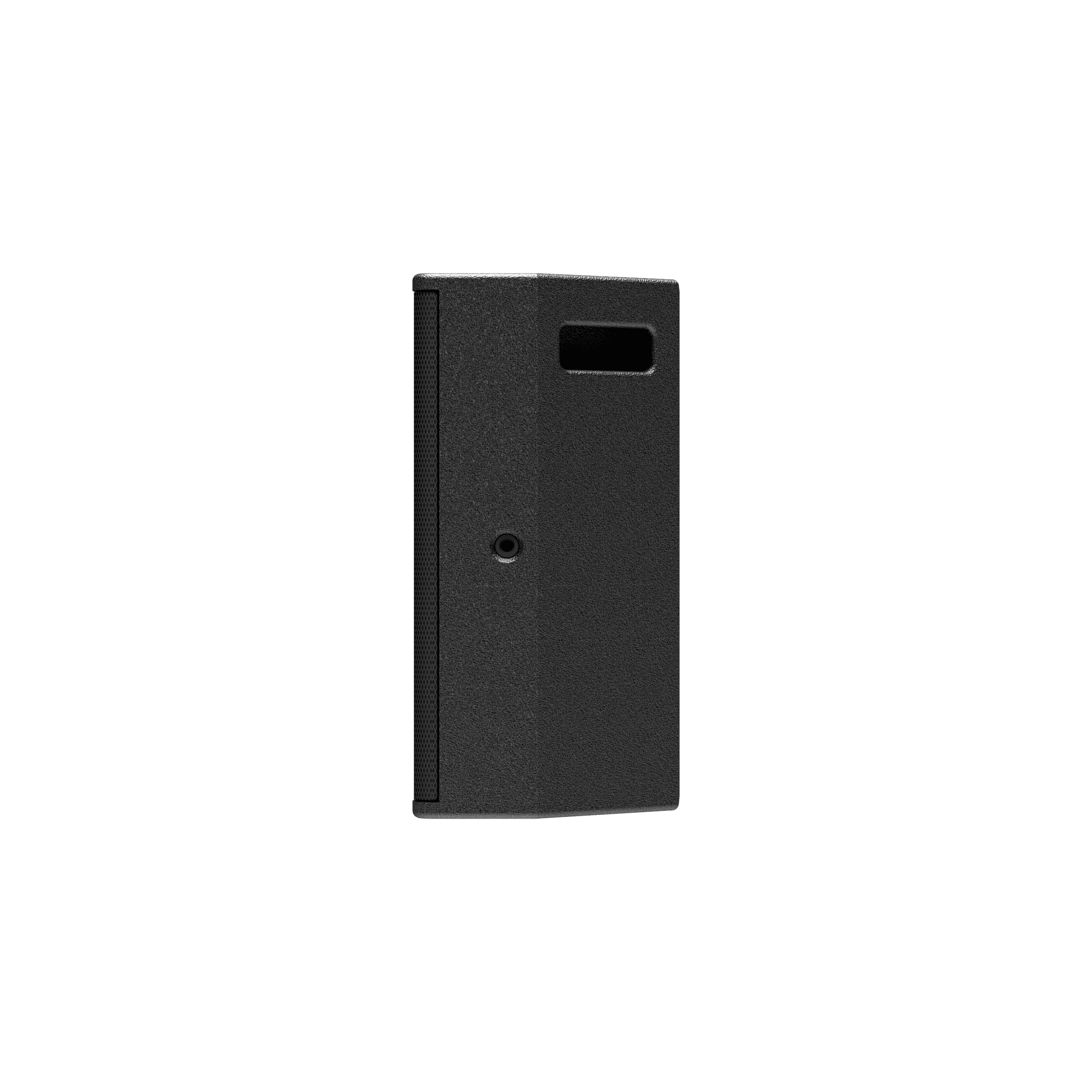

- M10 Thread on bottom, M10 thread on top, M10 threads on left and right
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
Application area
- short to medium throw applications
- high power top
- Top loudspeaker in combination with a subwoofer
- PA
- infill
- live music
- mechanical music
- vocals
- speech
Specifications
| Model | U6 |
| Filter | 1-channel DSP control |
| Loudspeaker components | 6.5"/1.7" |
| Impedance | 8 Ohm |
| Peak SPL* / freq. range (-6dB) | 121.5dB / 100Hz-19kHz |
| Max SPL* / freq. range (-6dB) | 109dB / 100Hz-19kHz |
| Max SPL -10dB / freq. range (-6dB) | 99dB / 60Hz-19kHz |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | 90° x 50° |
| Connections | 2x 4 pole speakON |
| Weight | 9kg |
| Size (WxHxD) | 200 x 390 x 190mm |
| *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field. |
