Specifications
Description

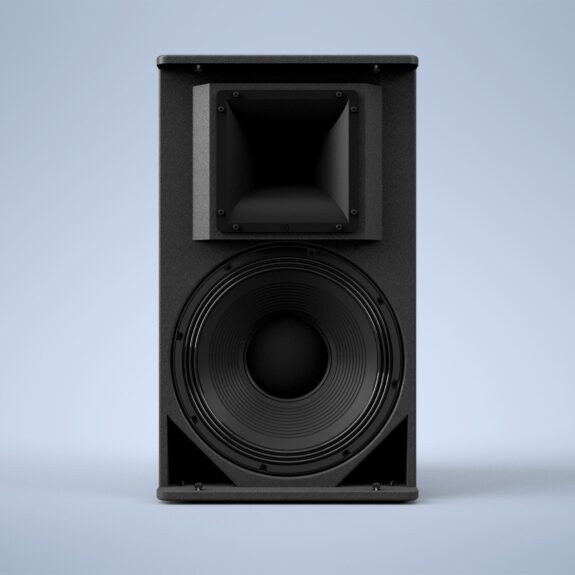

- 15″ bass reflex design combined with 2.5″ compression driver
- Maintained low frequency performance at full power

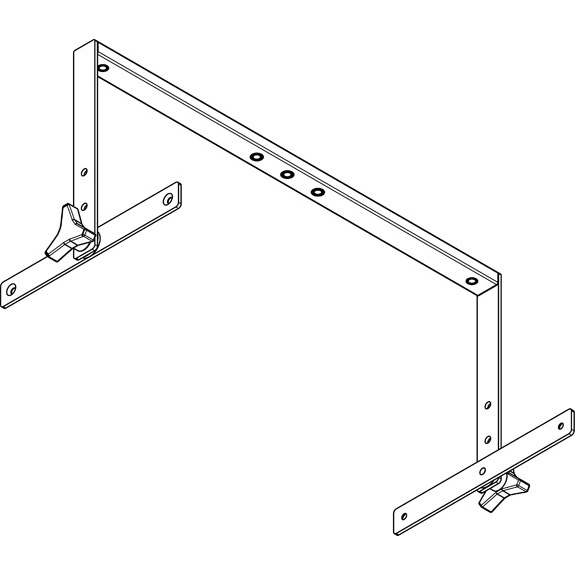

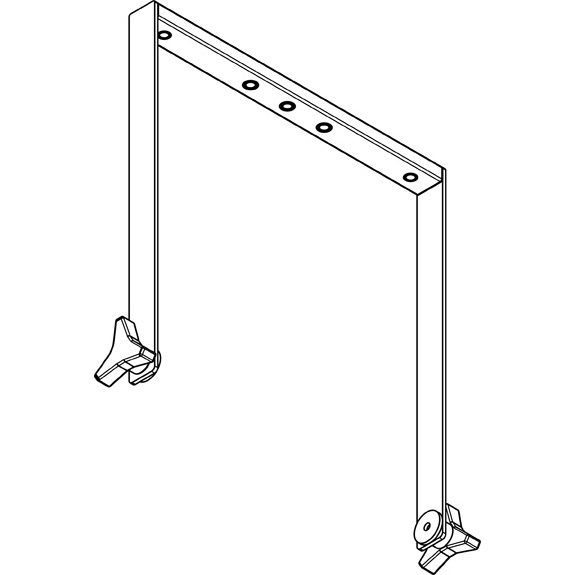

- Tool free mountable U-bracket

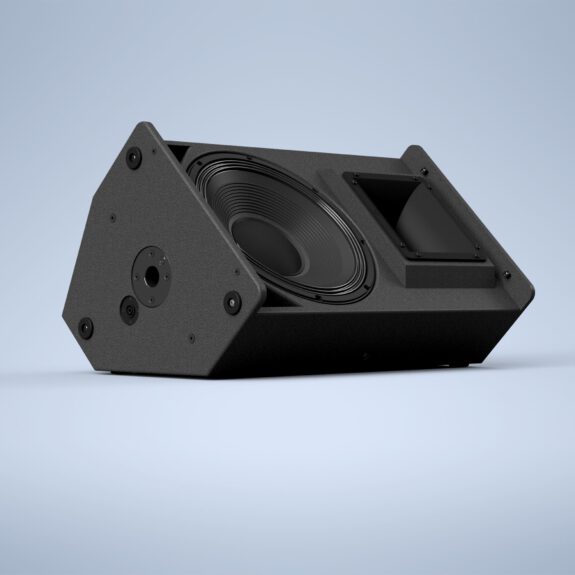

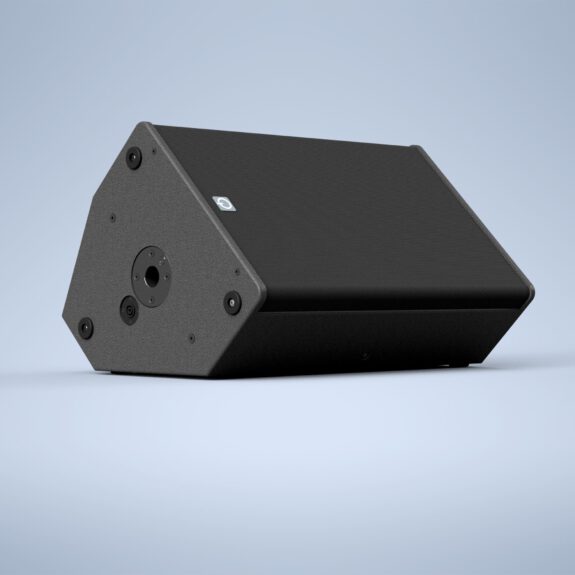

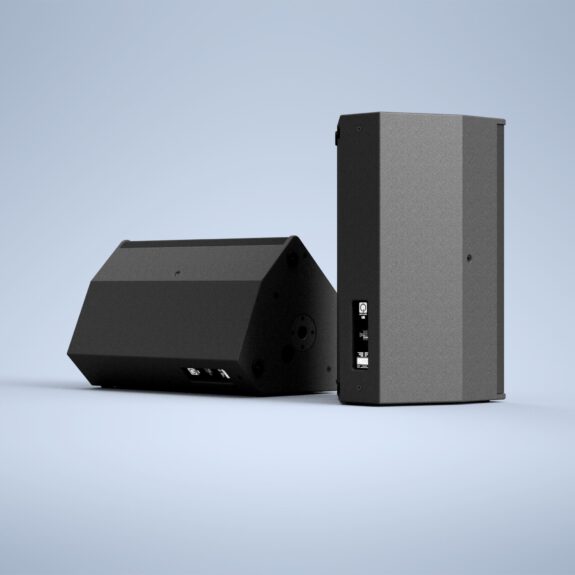

- Monitor angles 45 degrees and 70 degrees
- Mounting points for fixed installation

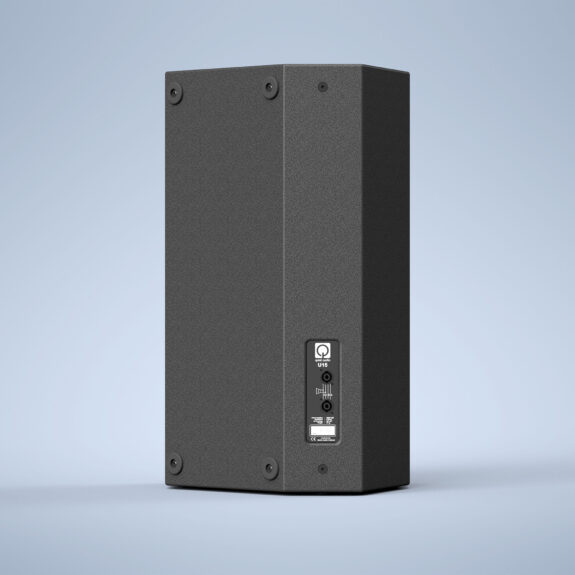

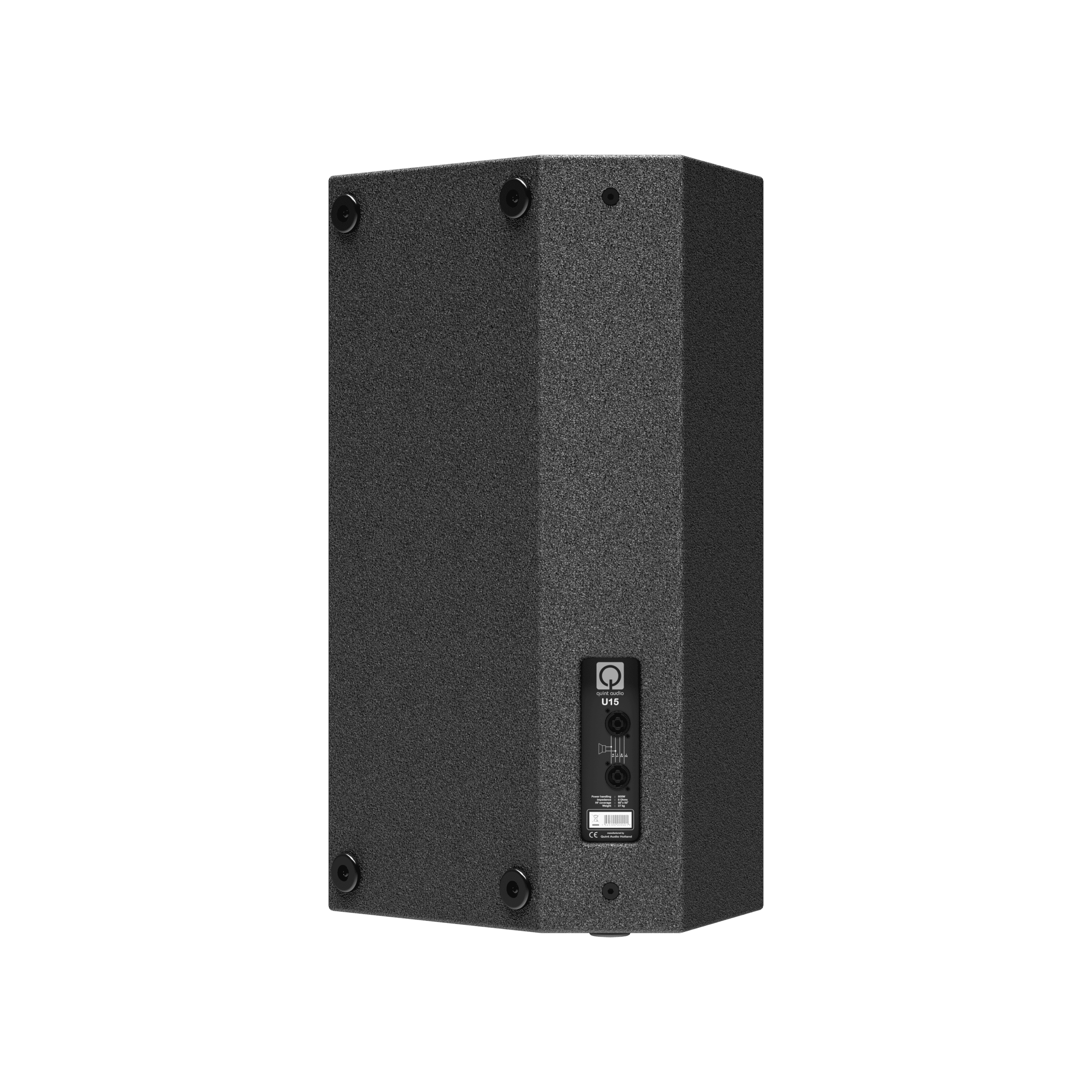

- 2x NL4 on the rear, 1x NL4 on the bottom
- 35mm Pole mount on bottom
- 1x ergonomic handles, 1x on the top

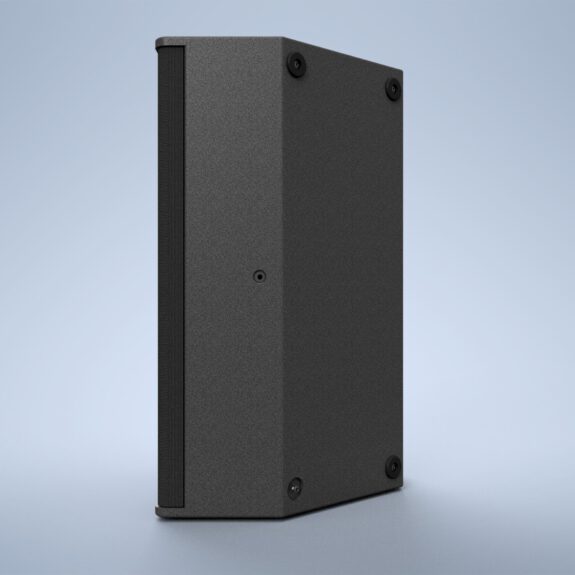

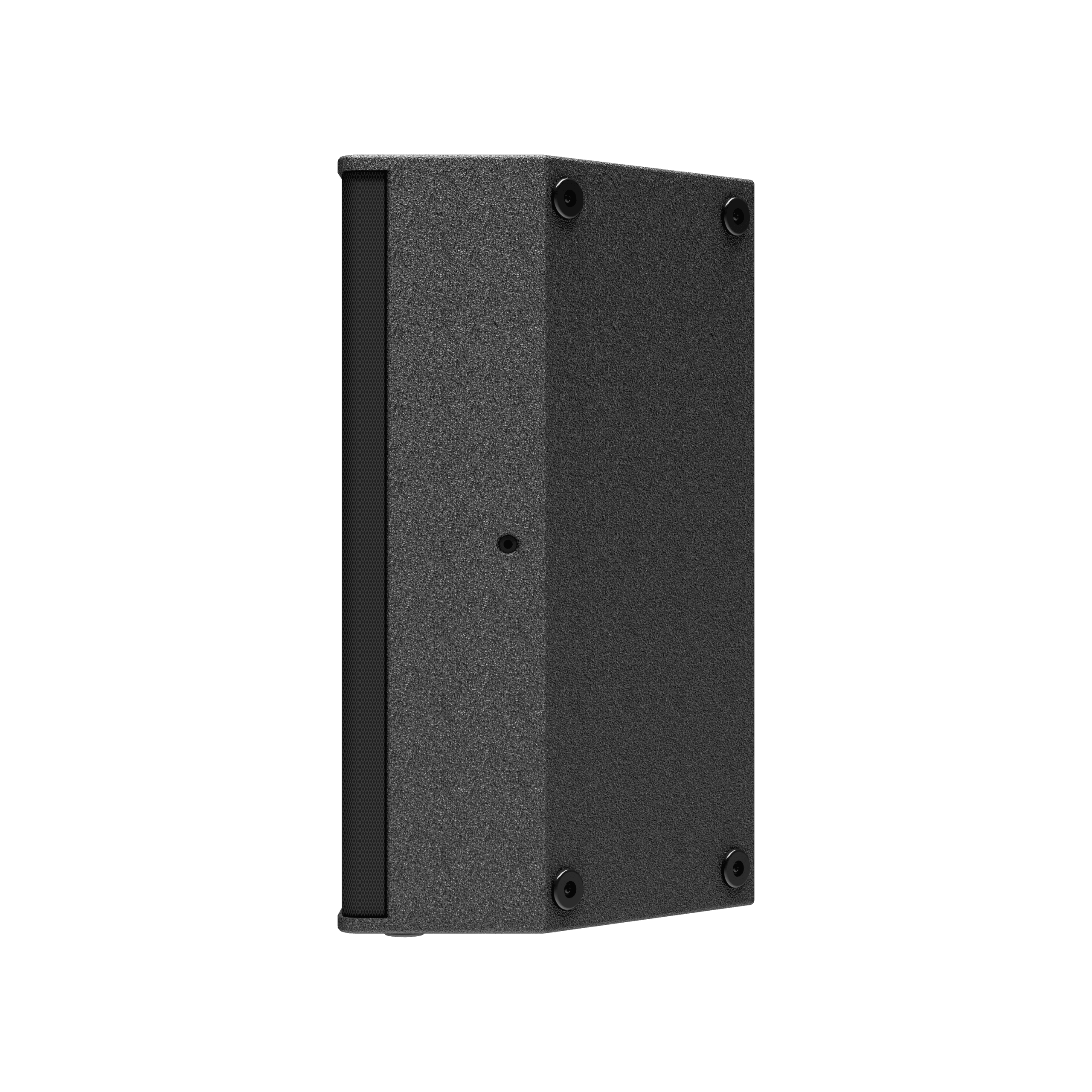

- M10 threads on left and right
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
Application area
- short to medium throw applications
- high power top
- Top loudspeaker in combination with a subwoofer
- PA
- infill
- live music
- mechanical music
- vocals
- speech
Specifications
| Model | U15 |
| Filter | 1-channel DSP control |
| Loudspeaker components | 12"/2.5" |
| Impedance | 8 Ohm |
| Peak SPL* / freq. range (-6dB) | 137dB / 41Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 120dB / 41Hz-20kHz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | 60° x 50° |
| Connections | 3x 4 pole speakON |
| Weight | 23kg |
| Size (WxHxD) | 435 x 740 x 410mm |
| *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field. |
