Specifications
Description
- 12″ bass reflex design combined with 5″ air motion transformer and custom lens
- Maintained low frequency performance at full power
- Quint Audio Quick Lock system on top and bottom
- Tool free mountable U-bracket

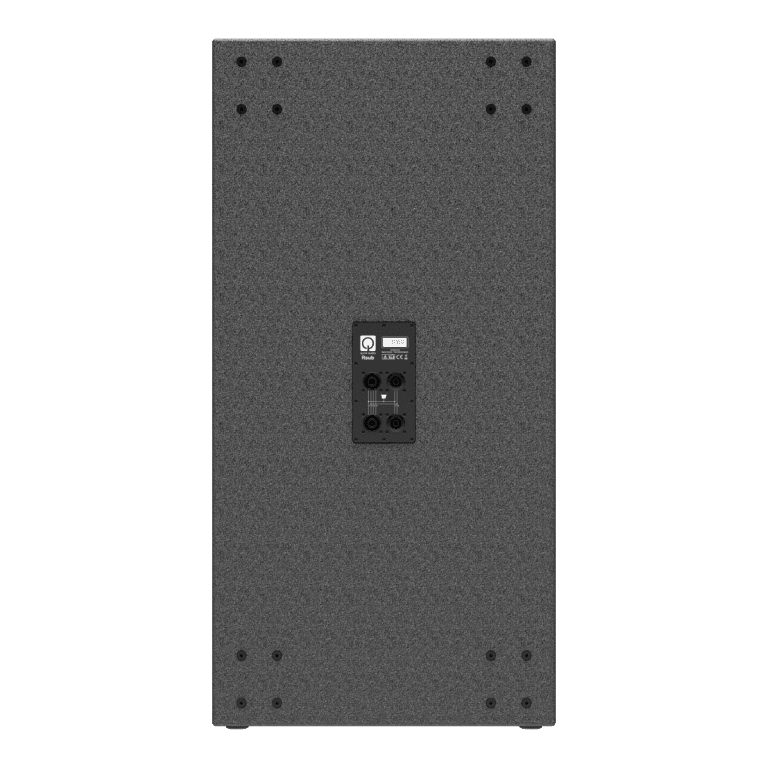

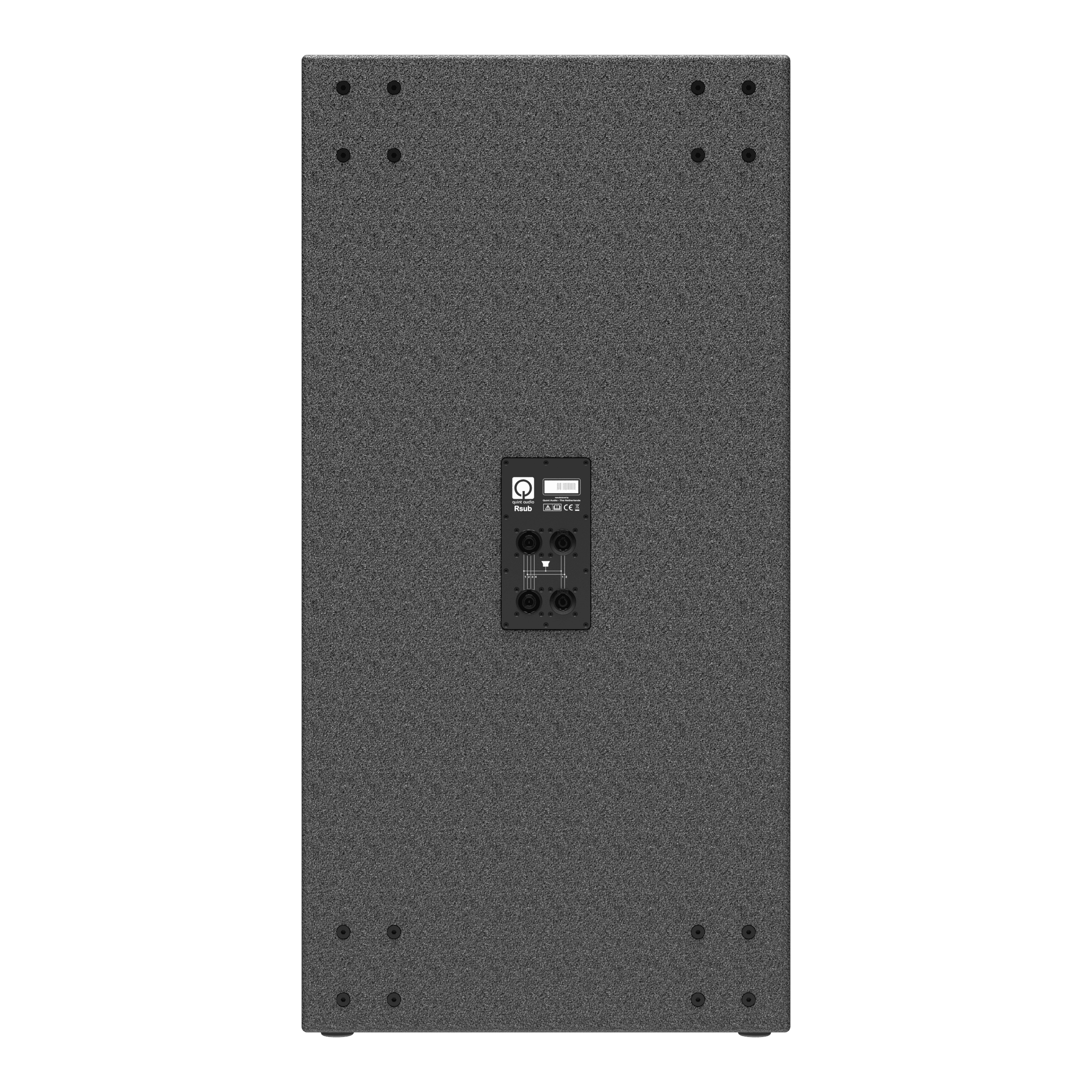

- 2x NLT4 on the rear
- 3x ergonomic handles, 1x on the left, 1x on the right, 1x on the top
- Rubber feet for stability on the bottom
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
- Measurements are conform to AES75 and carried out with P9 processor and A4 amplifier. Values are scaled to 1m free field.
Application area
- Reference set
- Subwoofer for medium to large systems
- High end installations
- Theaters
- Live music
- Mechanical music
- Studio monitoring
- Ground stacked subwoofer system
- Horizontal subwoofer array
Specifications

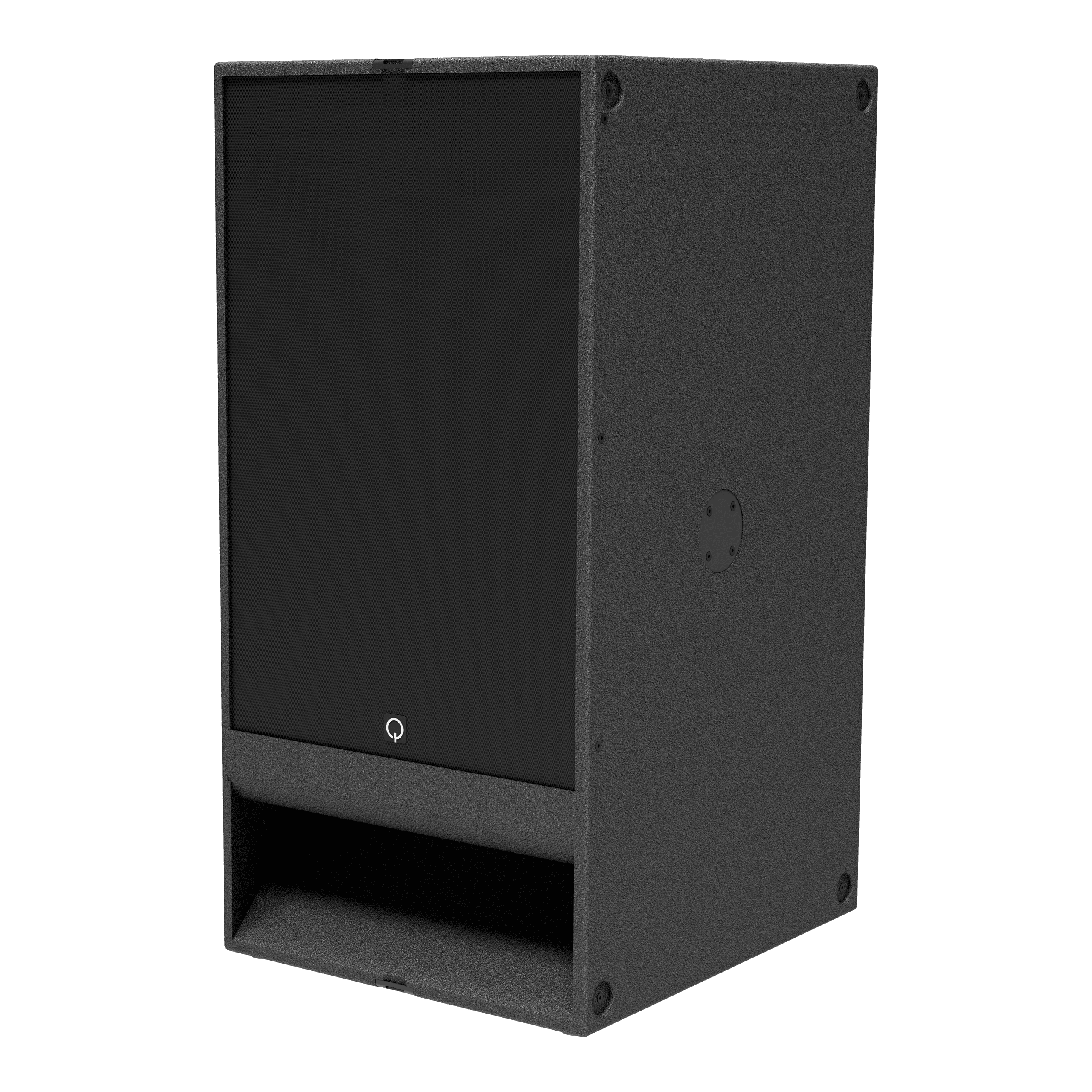

| Model | Rsub |
| Filter | 1-channel DSP control |
| Loudspeaker components | 21" |
| Impedance | 4 Ohm |
| Peak SPL* / freq. range (-6dB) | 136dB / 19Hz-100Hz |
| Max SPL* / freq. range (-6dB) | 125.5dB / 19Hz-100Hz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | Omni |
| Connections | 2x 8 pole speakON 2x 4 pole speakON |
| Weight | 89kg |
| Size (WxHxD) | 580 x 1165 x 680mm |
Advised electronics
Downloads
Rigging
-

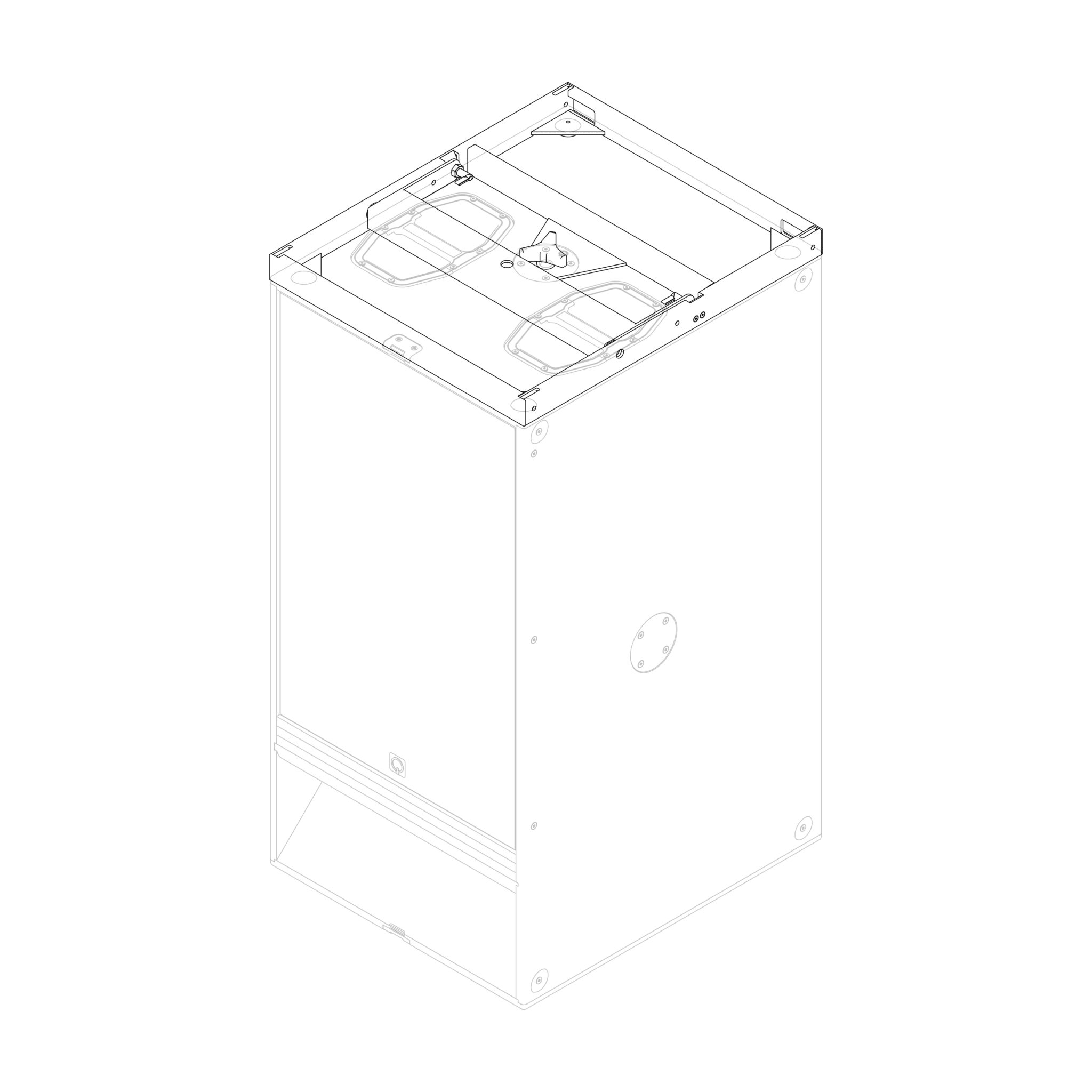

Lsub-C1Stack frame for speaker stand
-

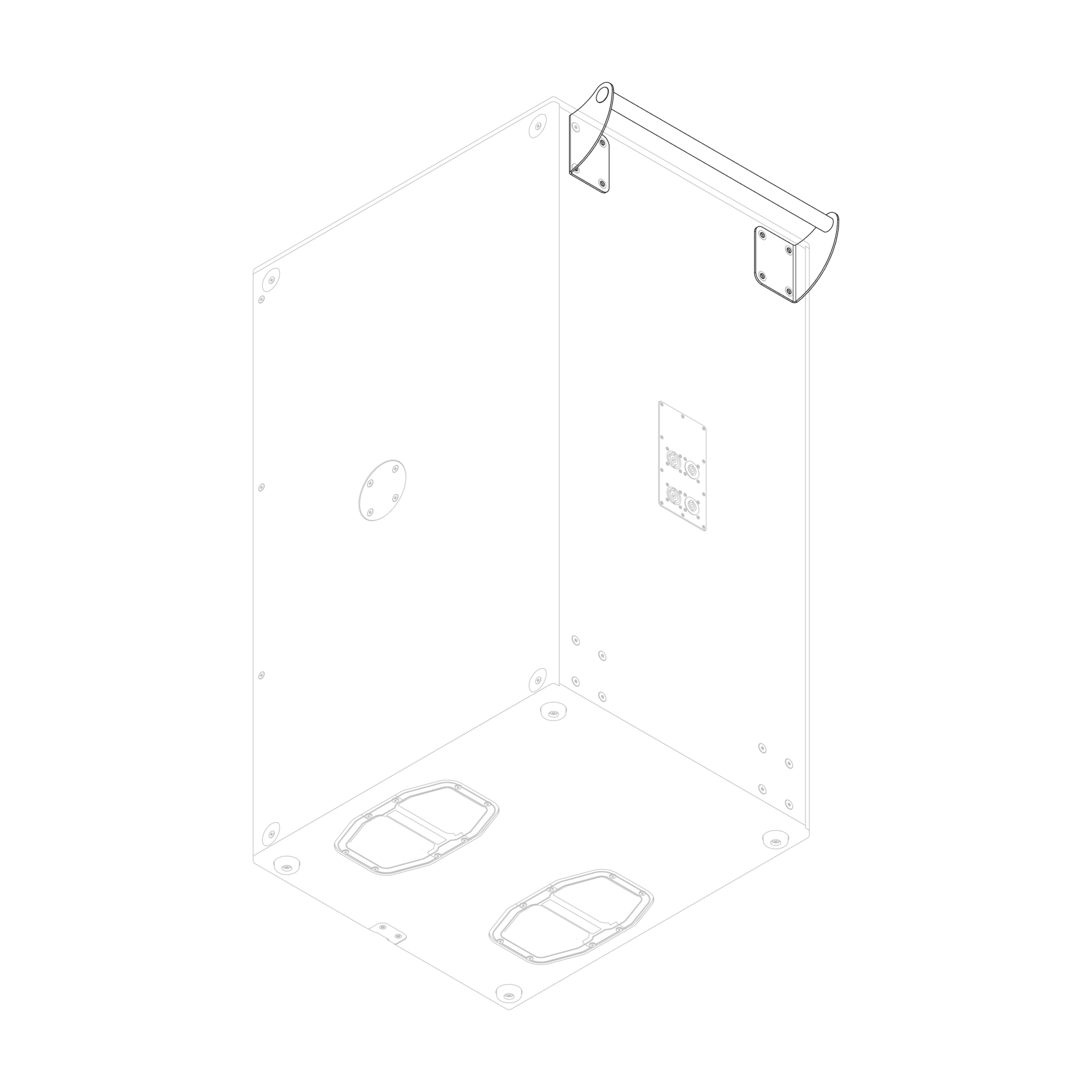

Rsub-G1Handle for easy transportation
-
Rsub-K1Hardcover
