Specifications
Description

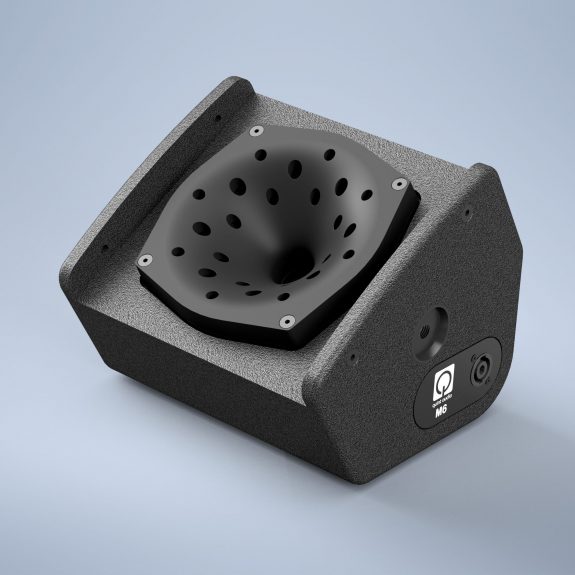

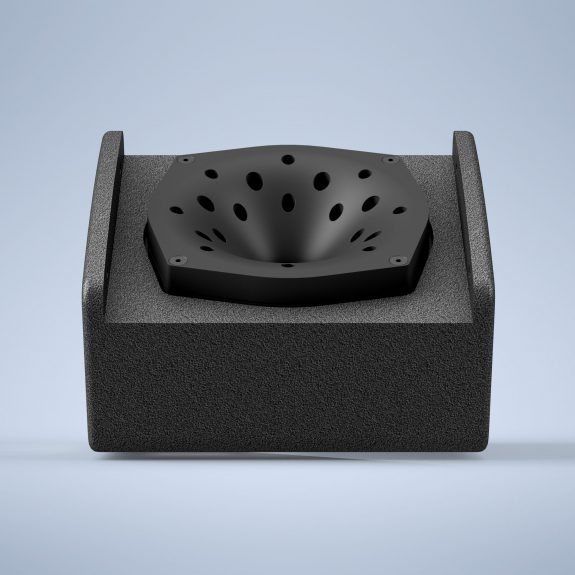

- 6.5″ closed box design combined with 1.7″ compression driver
- Coaxial design
- Extended low frequency response at reduced power
- Monitor angle(s) 30 degrees and 60 degrees

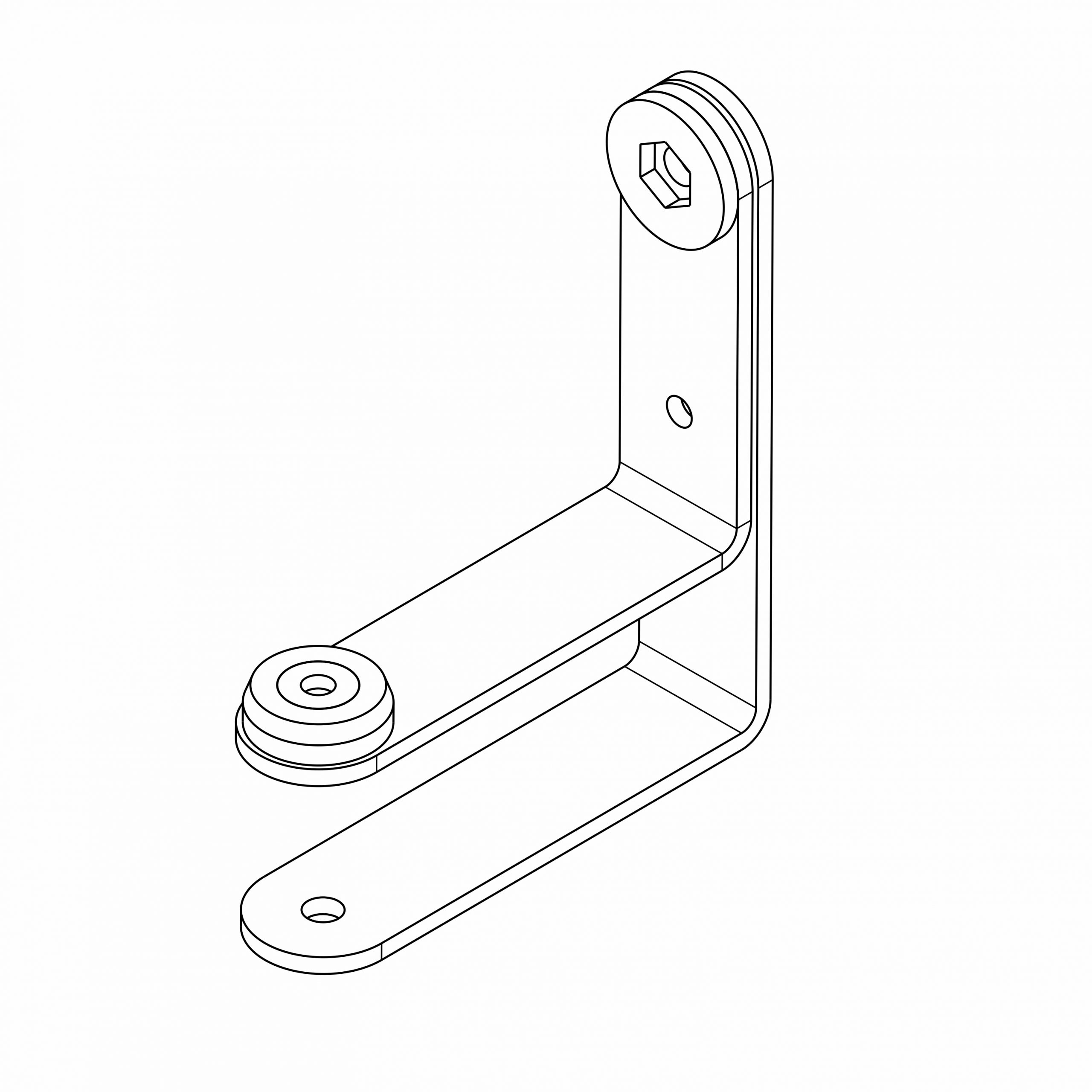

- Tool free mountable L-bracket

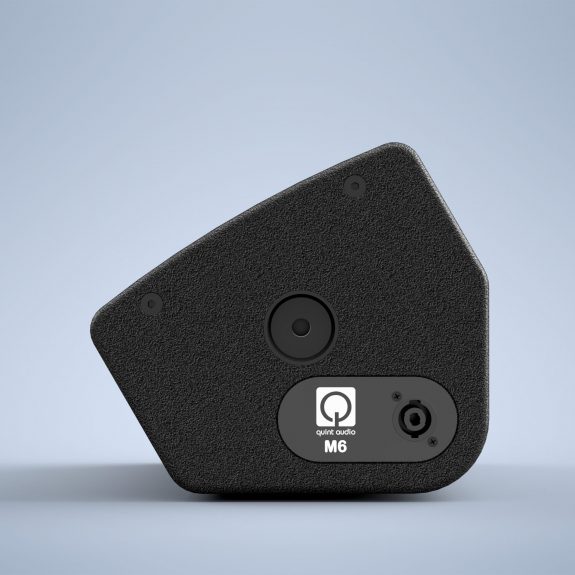

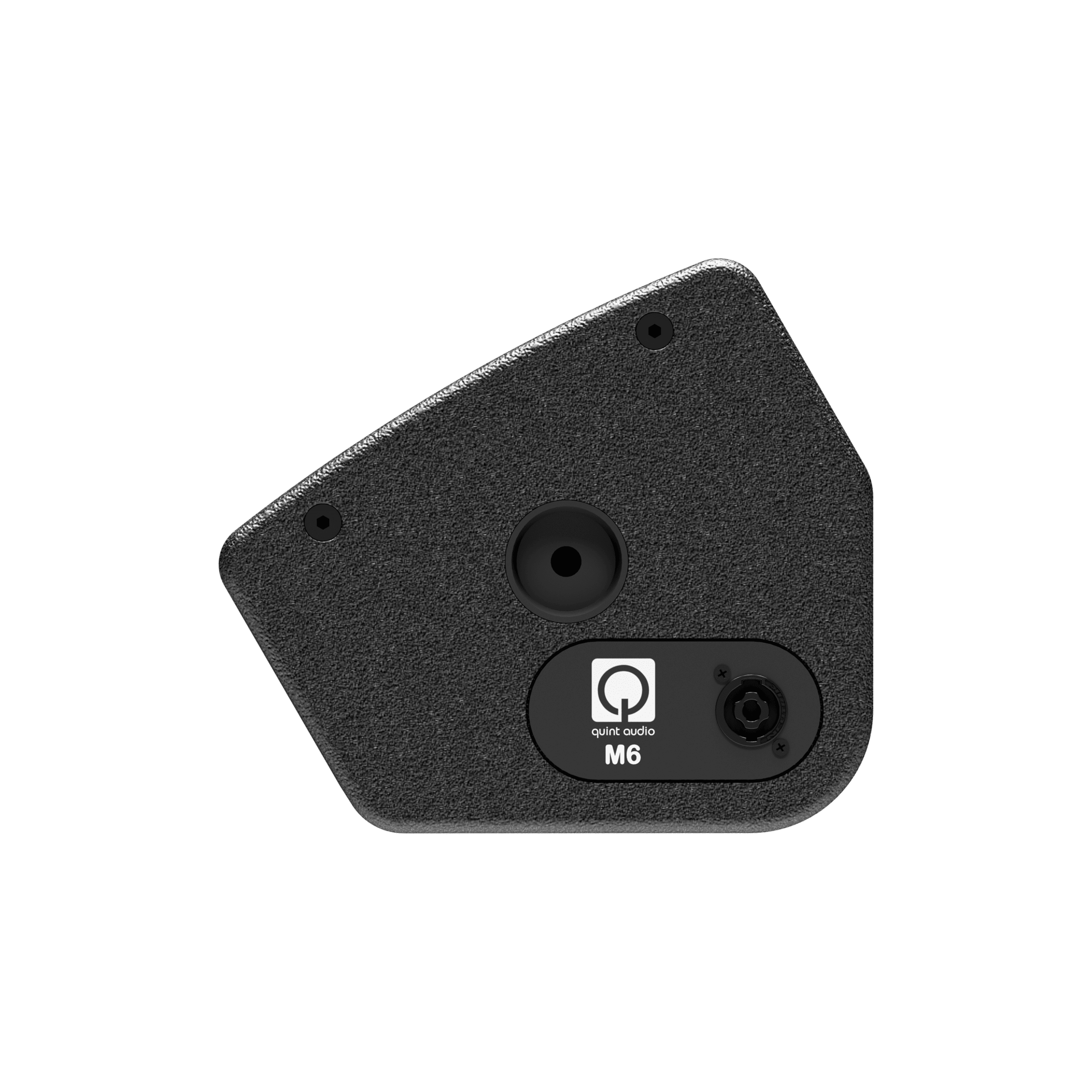

- 2x NL4 on the left, 1x NL4 on the right

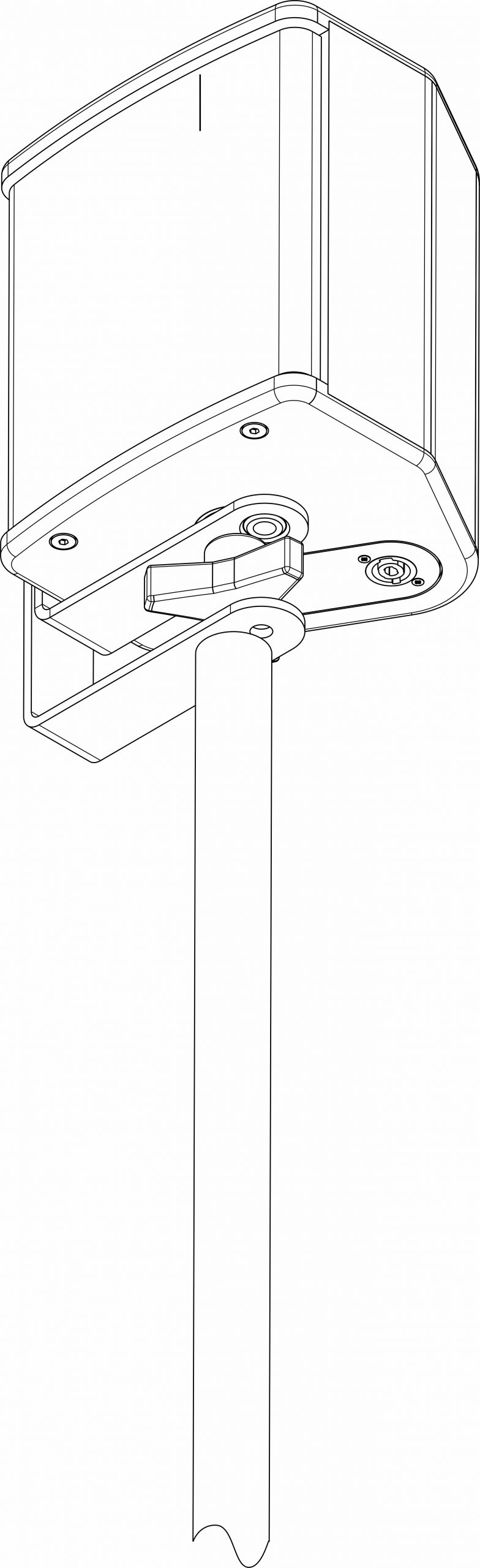

- M10 thread on bottom
- 1x ergonomic handle, 1x on the rear
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
- Measurements are conform to AES75 and carried out with P9 processor and A4 amplifier. Values are scaled to 1m free field.
Application area
- Live monitoring
- Coaxial monitor
- FOH monitor
- fill
- live music
- mechanical music
- vocals
- speech
- Top loudspeaker in combination with a subwoofer
Specifications
| Model | M6 |
| Filter | 1-channel DSP control |
| Loudspeaker components | 6.5"/1.7" |
| Impedance | 16 Ohm |
| Peak SPL* / freq. range (-6dB) | 125dB / 120Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 106dB / 120Hz-20kHz |
| Max SPL -10dB / freq. range (-6dB) | 96dB / 70Hz-20kHz |
| Max SPL -20dB / freq. range (-6dB) | 86dB / 55Hz-20kHz |
| Dispersion (HxV) | 80° conical |
| Connections | 3x 4 pole speakON |
| Weight | 4.5kg |
| Size (WxHxD) | 225 x 190 x 215mm |
Advised electronics
Downloads
Rigging
-

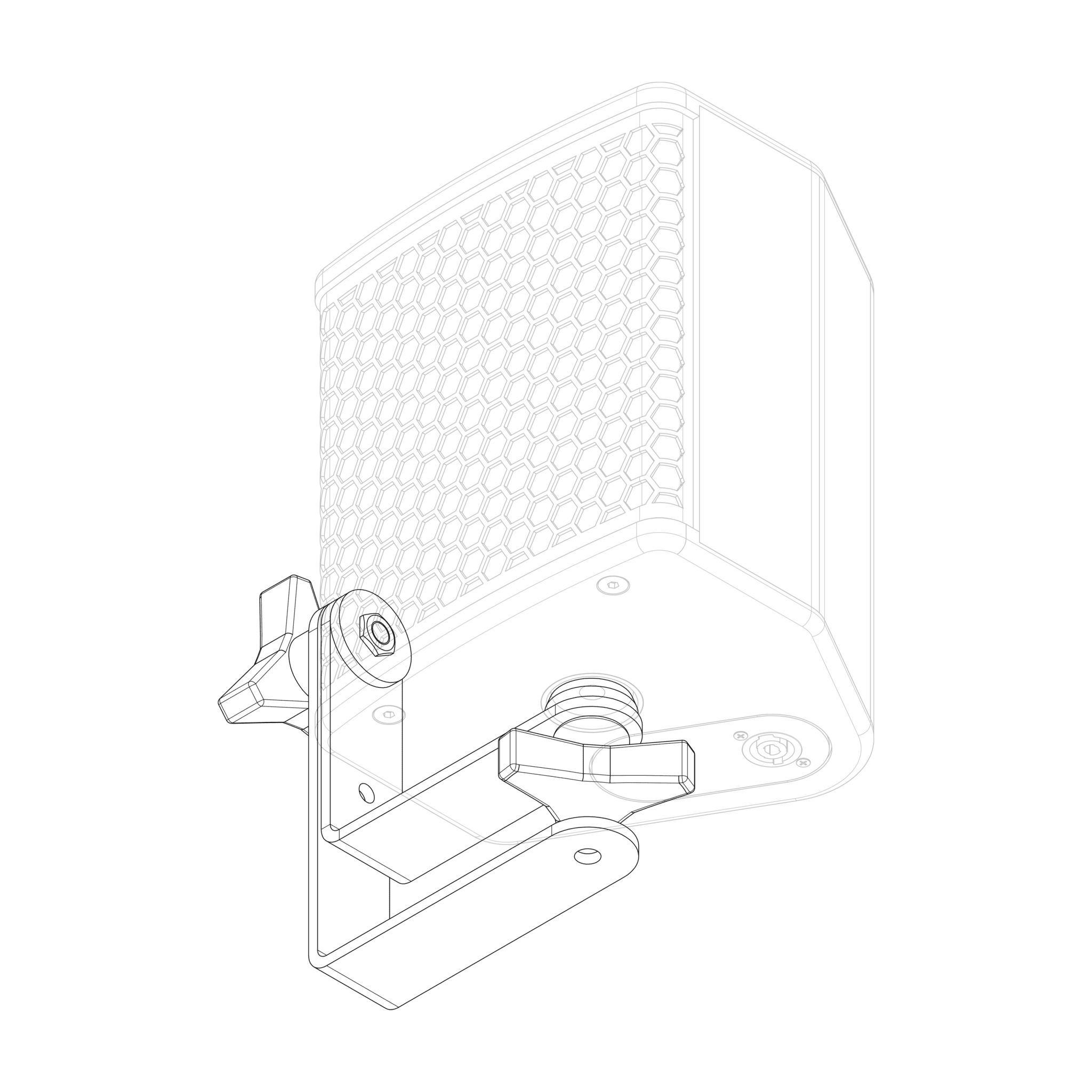

M6-HV12 axes rotatable bracket
