Specifications
Description
- 13.5″ bass reflex design combined with 3″ compression driver
- Coaxial design
- Maintained low frequency performance at full power
- Monitor angle(s) 30 degrees and 60 degrees
- Tool free mountable U-bracket

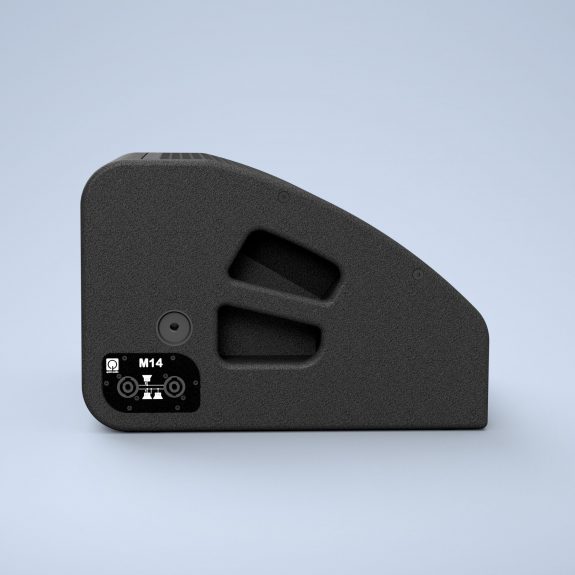

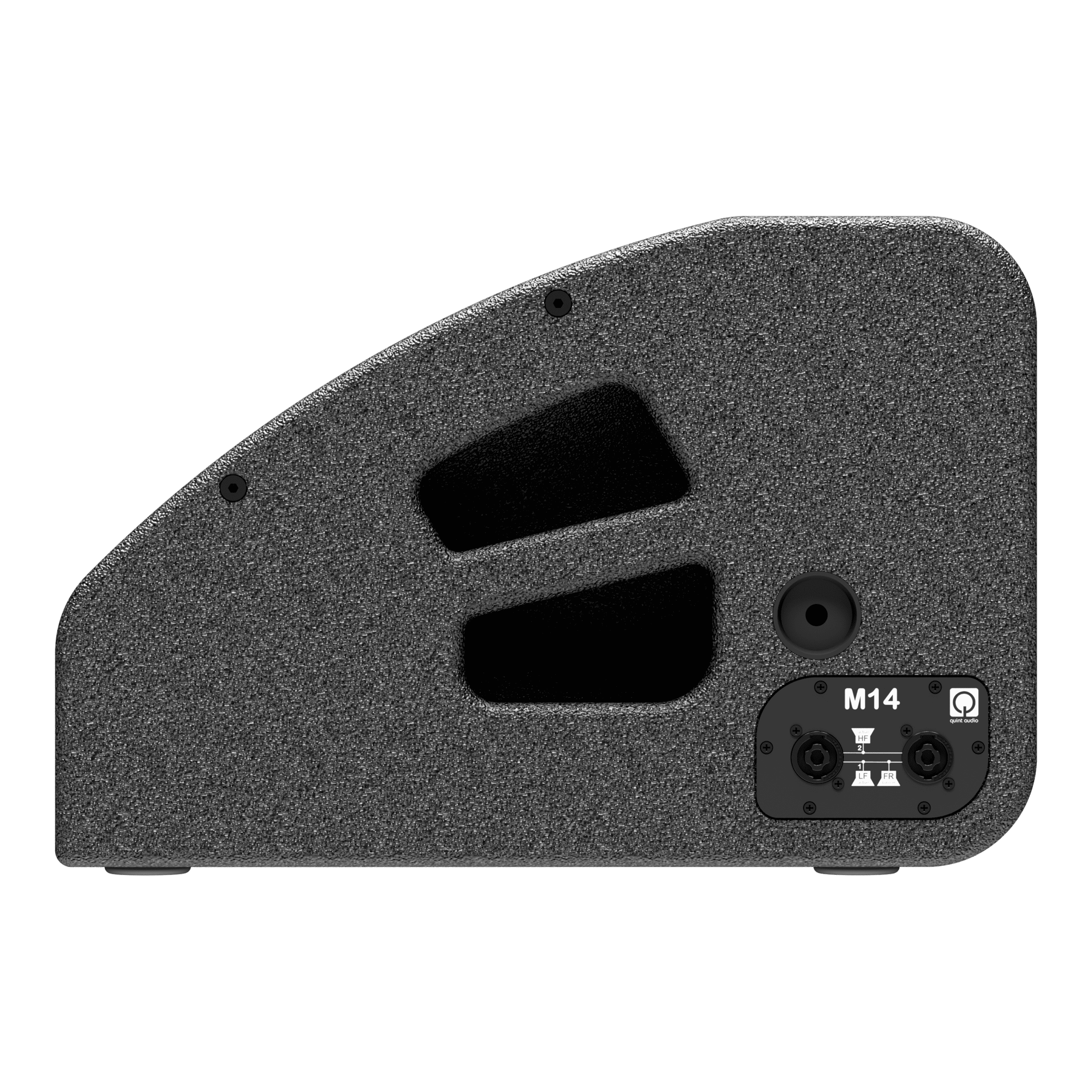

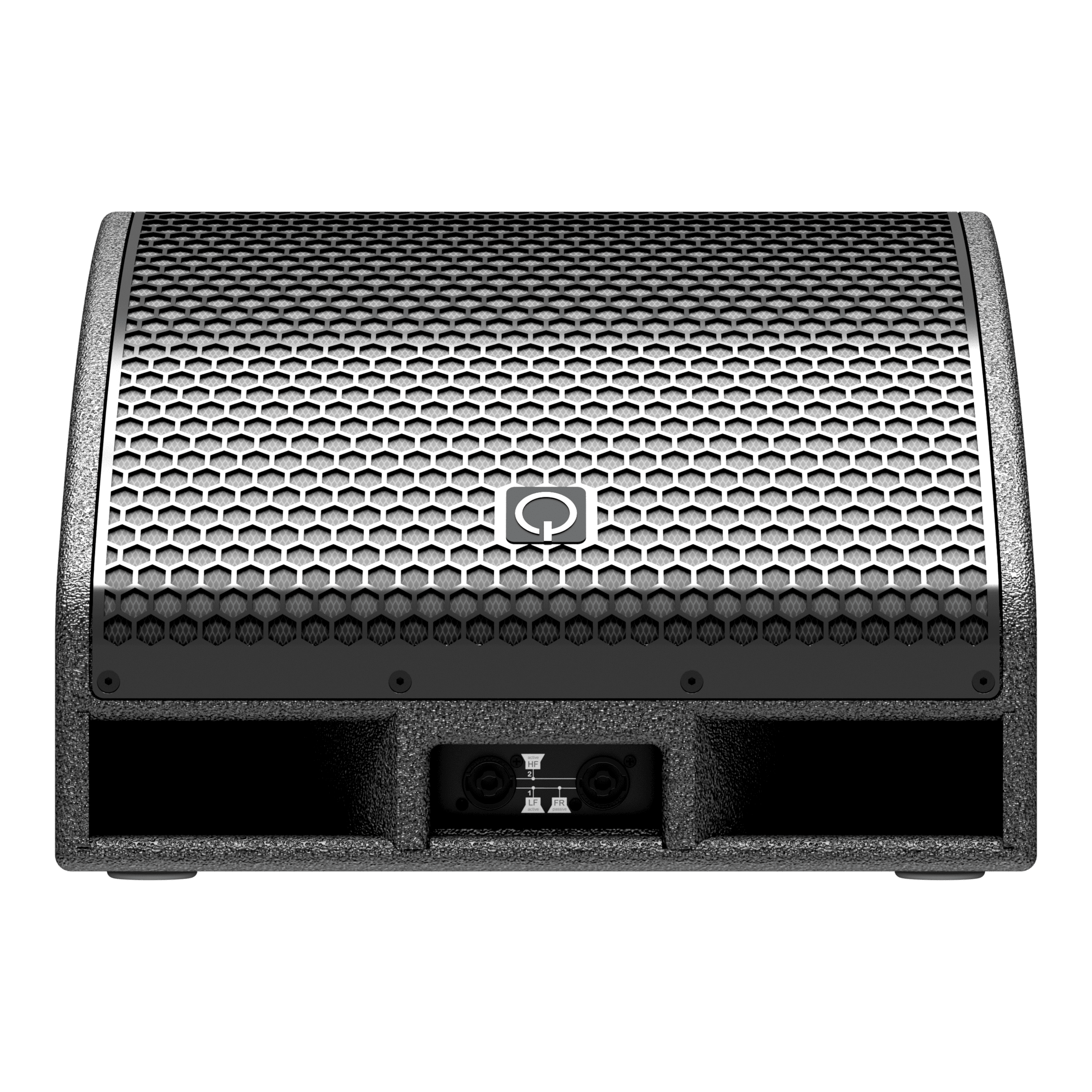

- 2x NL4 on the front, 2x NL4 on the left, 2x NL4 on the right
- 2x ergonomic handles, 1x on the left, 1x on the right
- Rubber feet for stability on the bottom
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
- Measurements are conform to AES75 and carried out with P9 processor and A4 amplifier. Values are scaled to 1m free field.
Application area
- Live monitoring
- FOH monitor
- fill
- live music
- mechanical music
- vocals
- speech
Specifications
| Model | M14 |
| Filter | 1/2-channel DSP control |
| Loudspeaker components | 13.5"/3" |
| Impedance | 8 Ohm |
| Peak SPL* / freq. range (-6dB) | 134dB / 59Hz-16kHz |
| Max SPL* / freq. range (-6dB) | 116dB / 59Hz-16kHz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | 80° conical |
| Connections | 6x 4 pole speakON |
| Weight | 16 kg |
| Size (WxHxD) | 425 x 300 x 445mm |
Advised electronics
Downloads

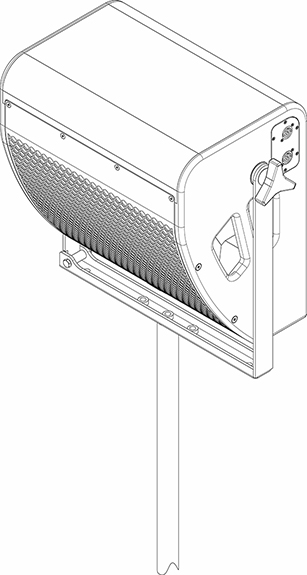

Rigging
-

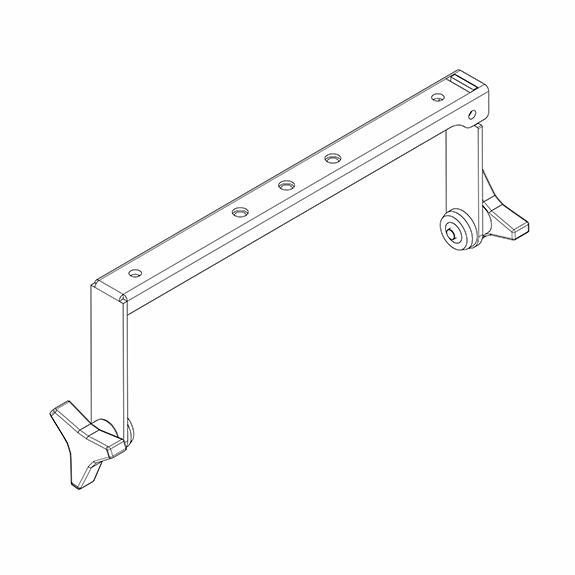

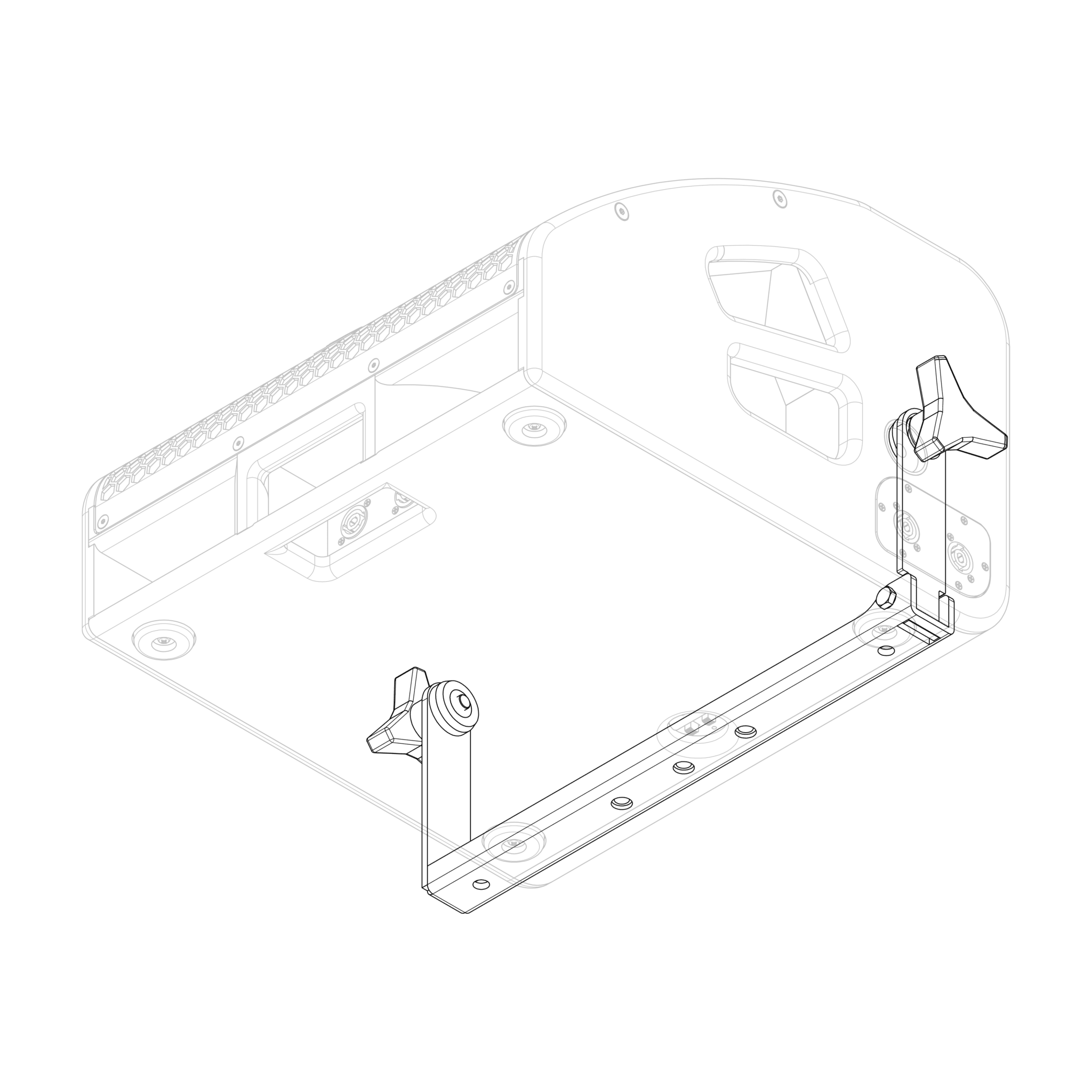

M14-H1Bracket short arm
-

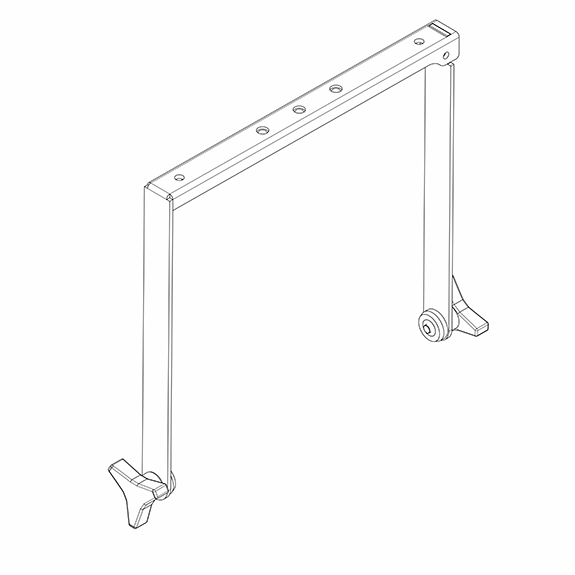

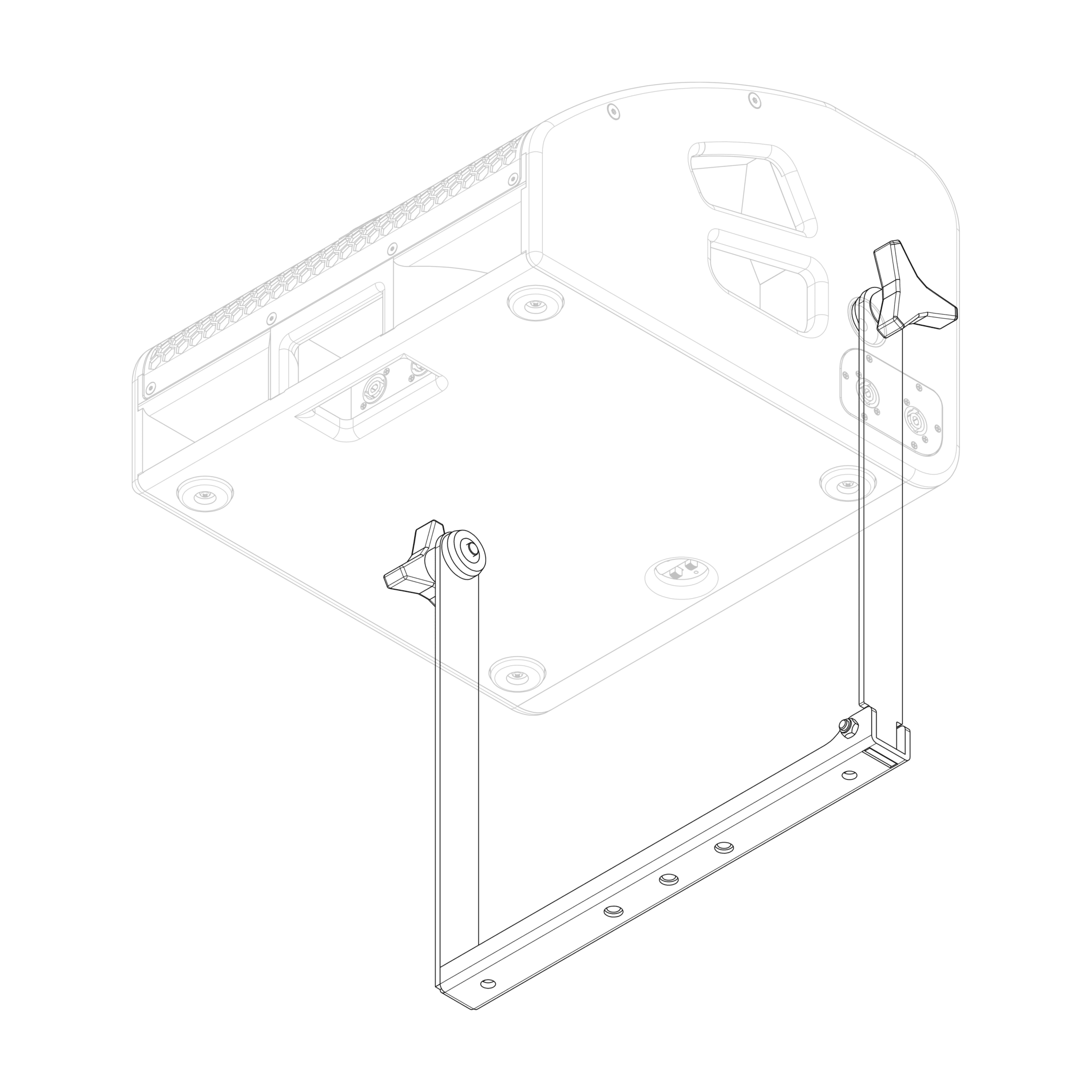

M14-H2Bracket long arm
