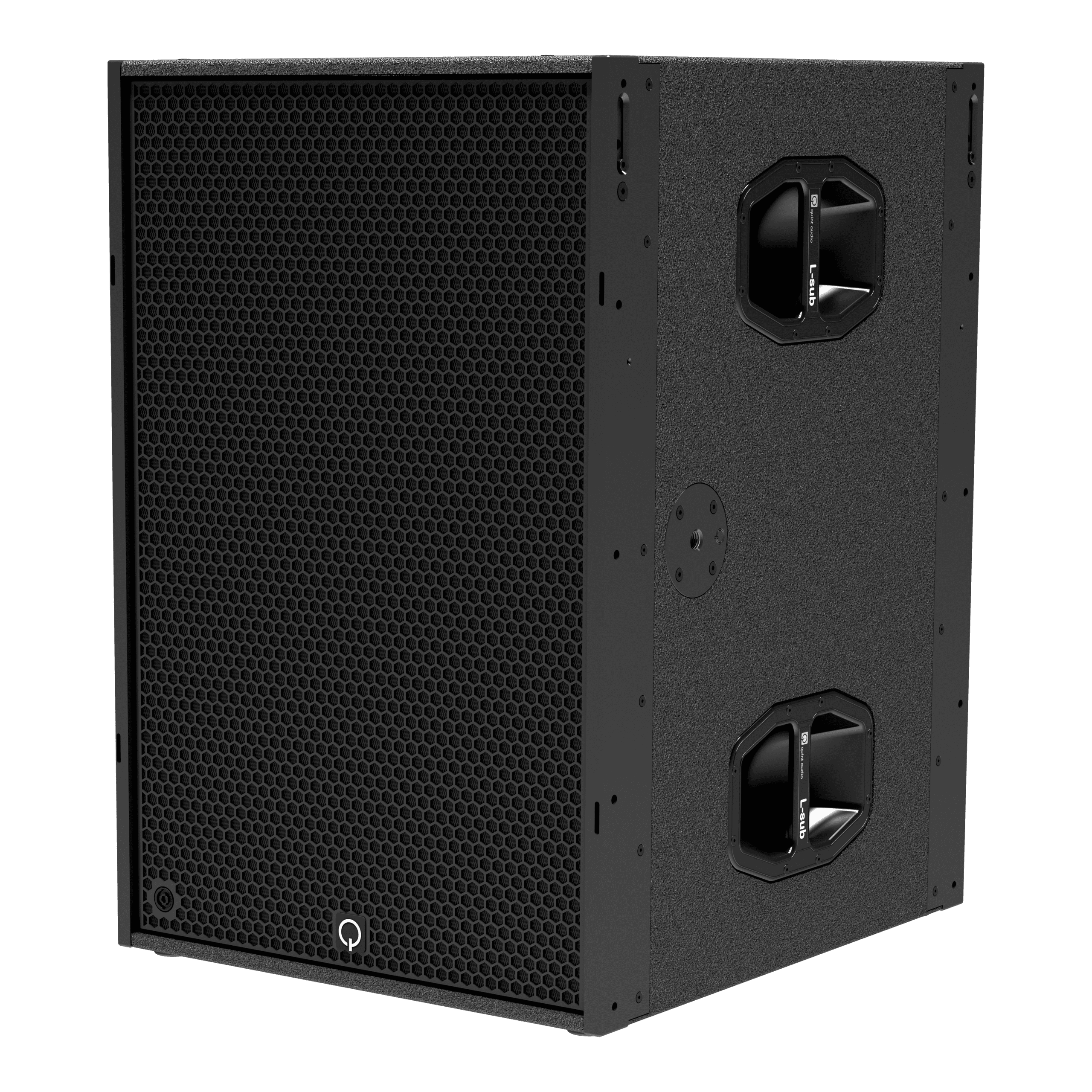

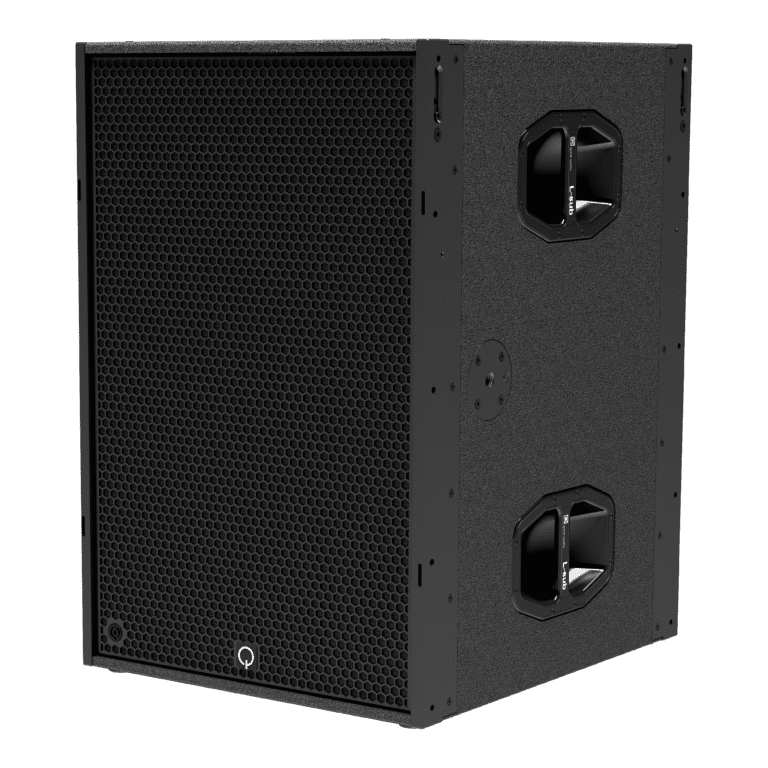

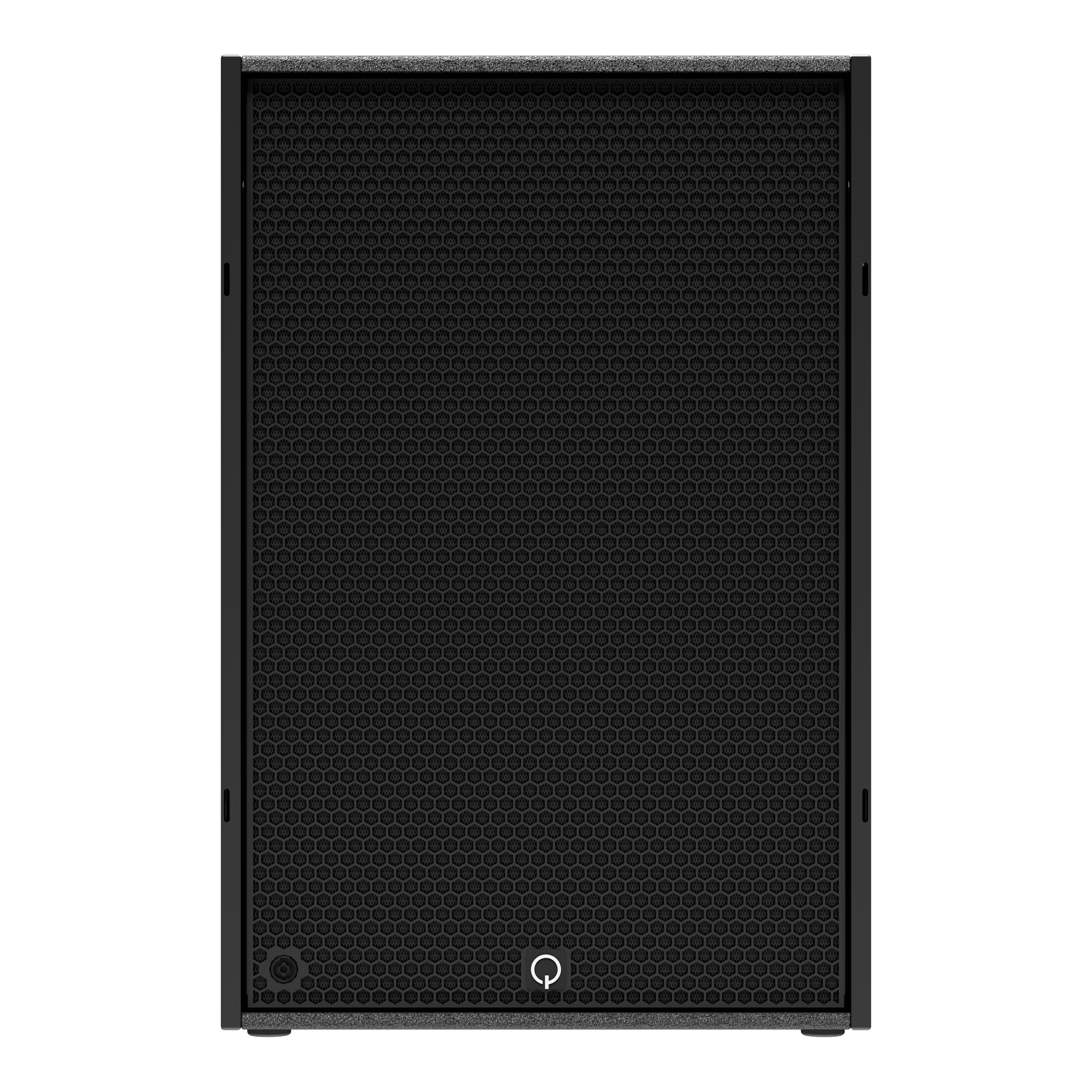

Lsub

Single 21″
infra sub for touring

21″ bass reflex design
Maintained low frequency performance at full power
Stackable in omni & cardioid setup

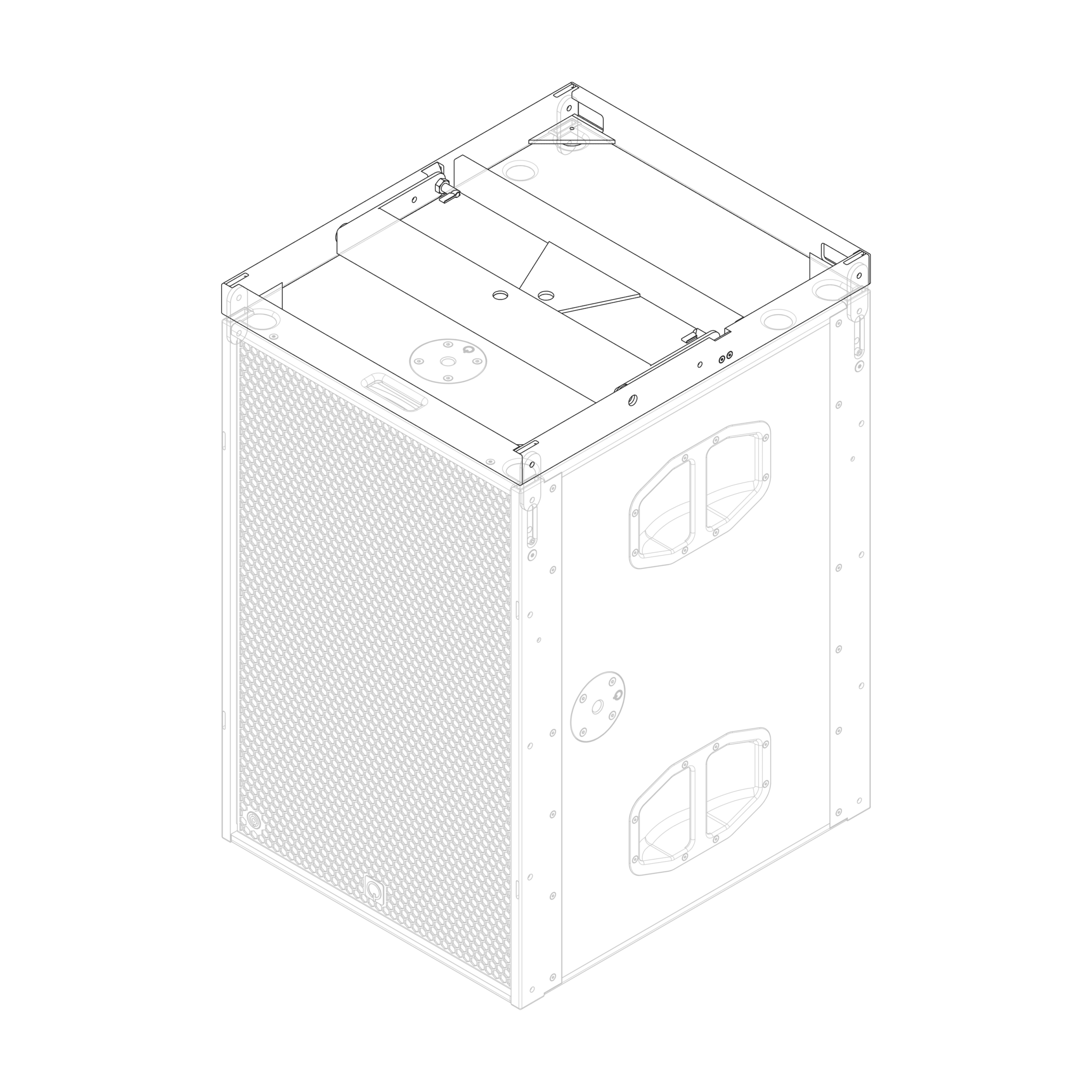

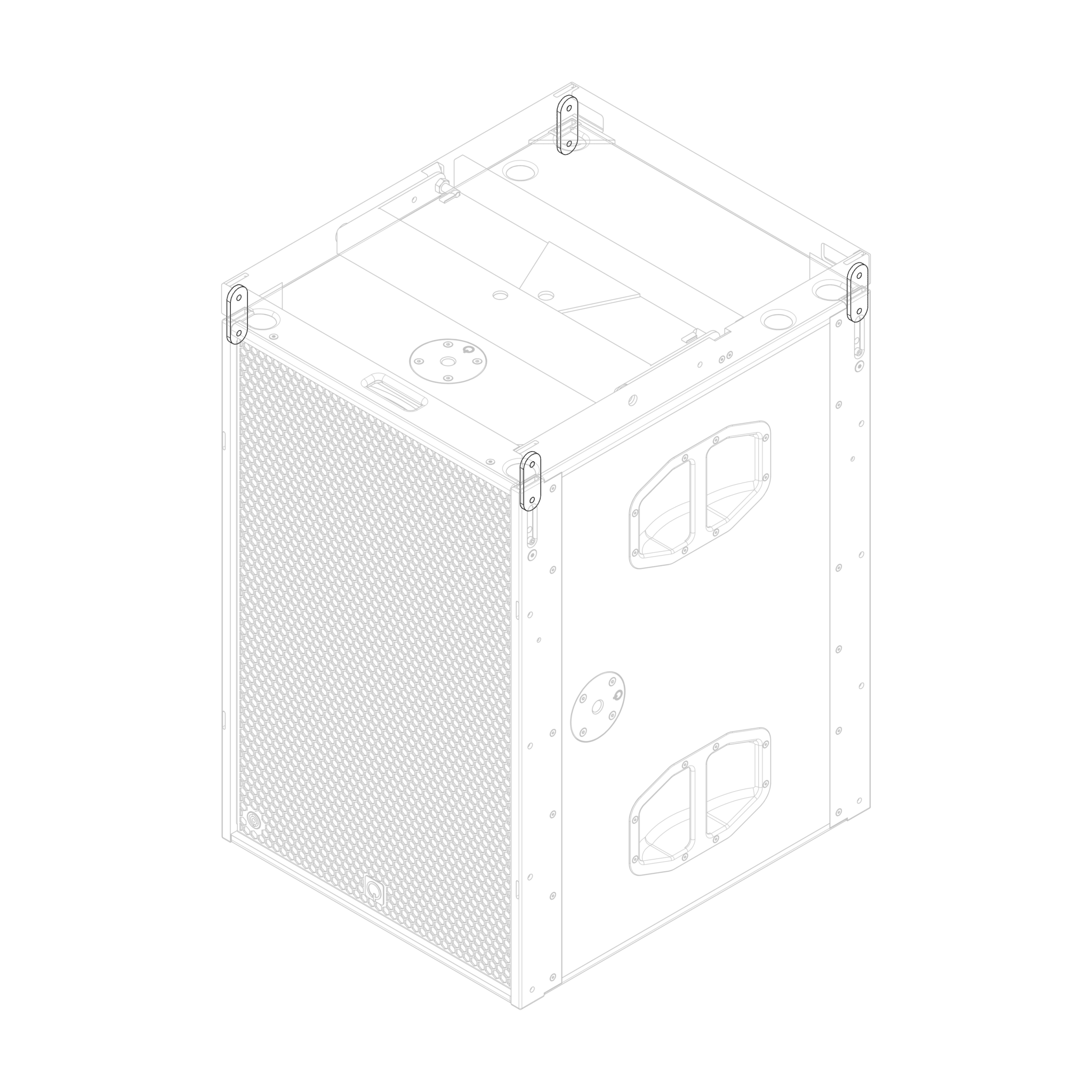

Integrated rigging system for use with L-series modules

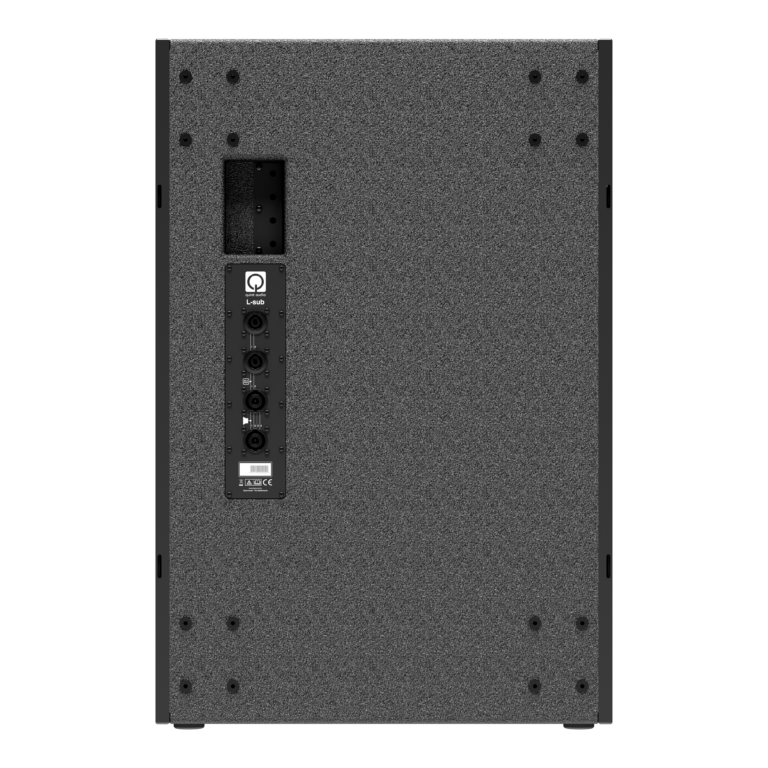

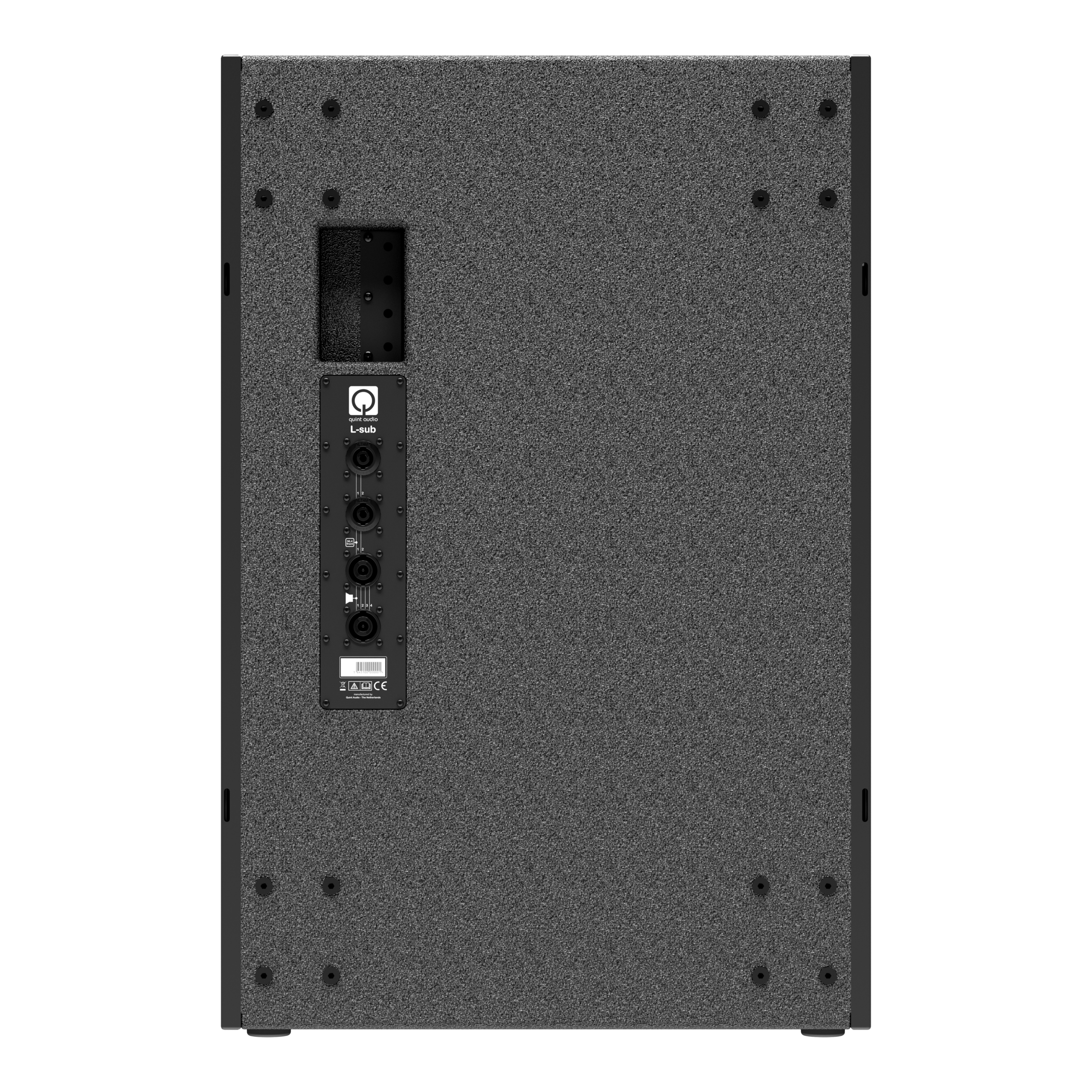

2x NLT4 2x NL8 on the rear, 1x NL4 on the front
M20 pole mount on top and side

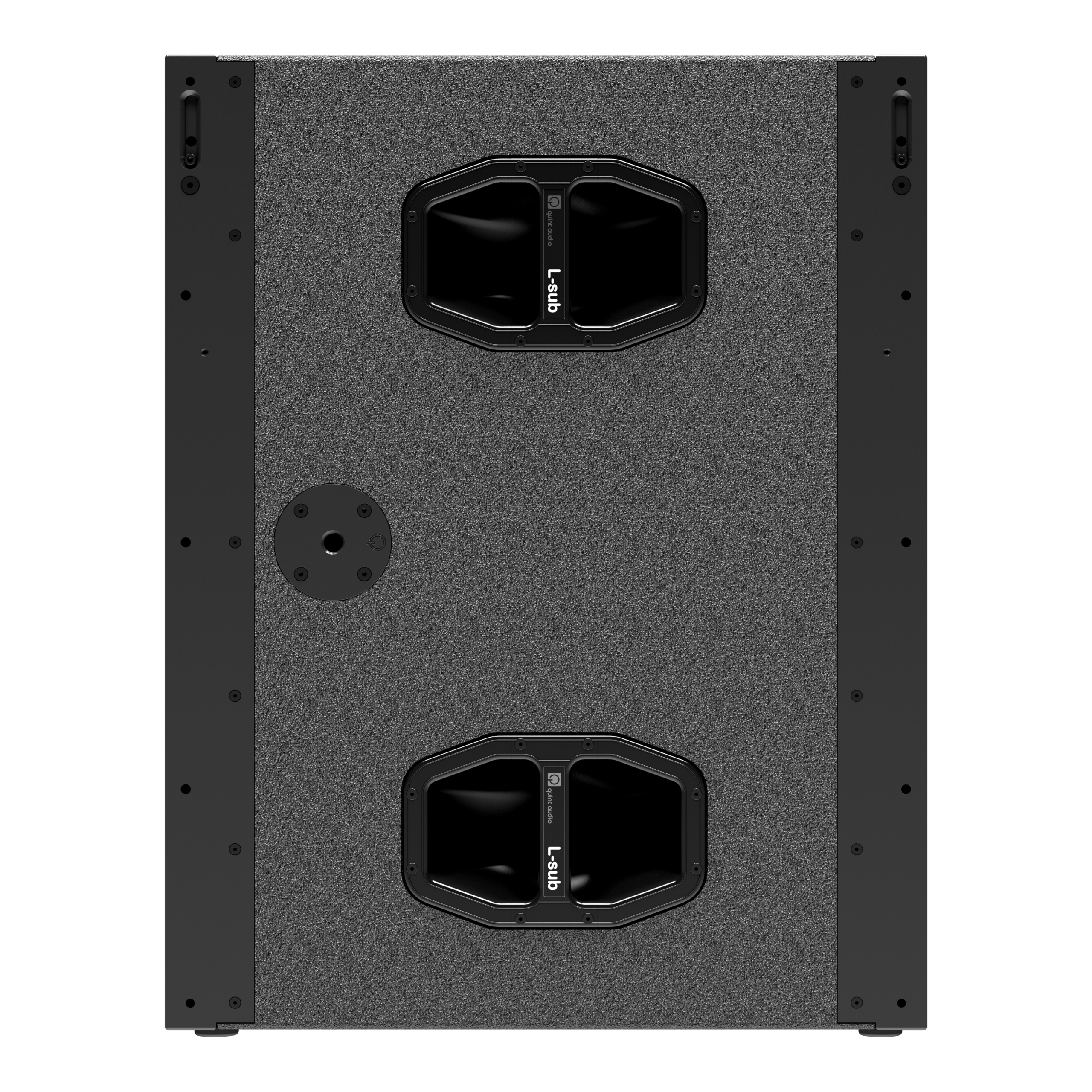

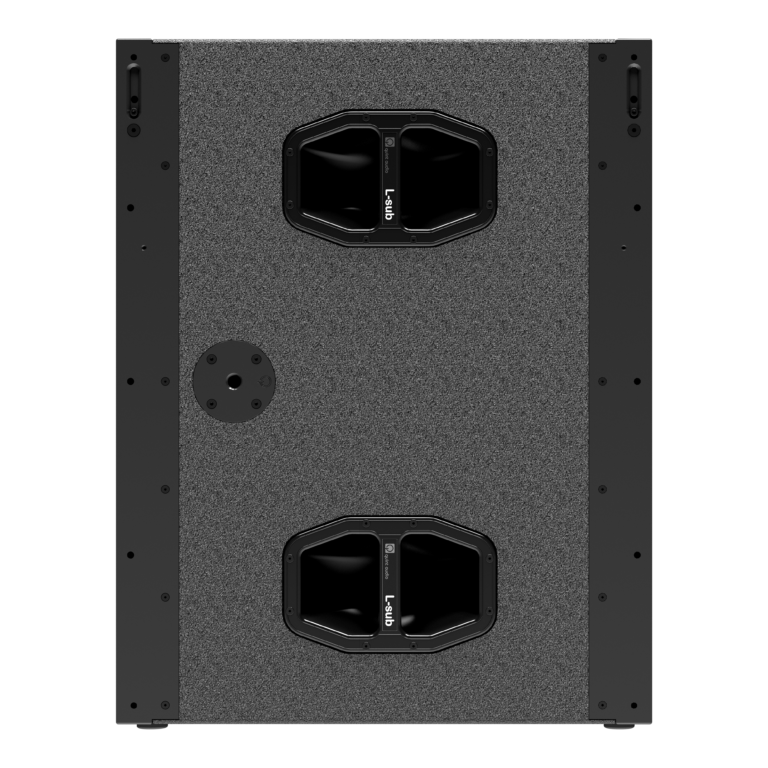

2x ergonomic handles, 2x on the left, 2x on the right
Rubber feet for stability on the bottom
Optional front lid

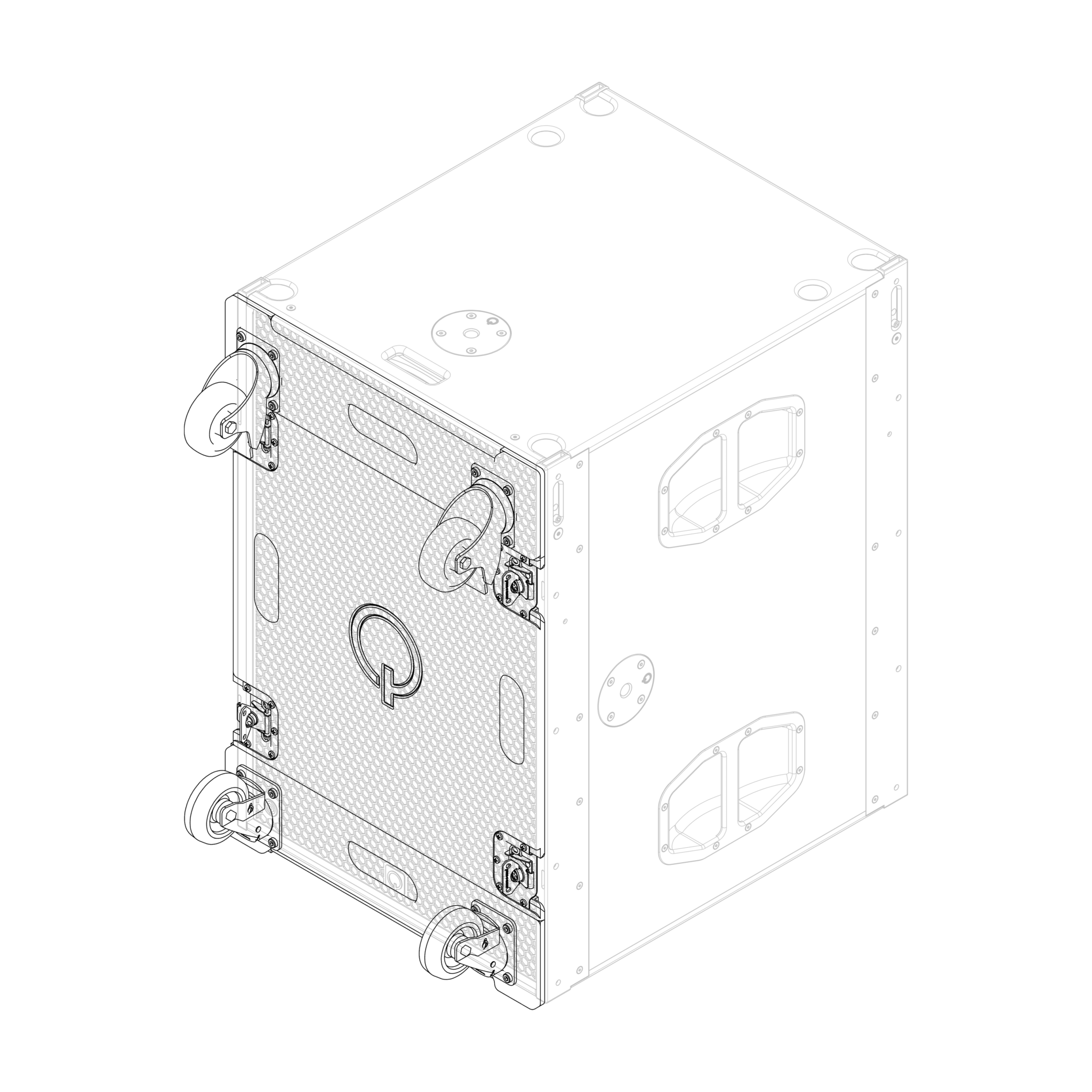

Transport wheels mountable on rear (and on optional front lid)
Truck size cabinet for efficient transportation
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
Factory system presets available

Model	Lsub
Filter	1-channel DSP control
Loudspeaker components	Single 21"
Impedance	4 Ohm
*Peak SPL / freq. range (-6dB)**	136dB / 27Hz-100Hz
*Max SPL / freq. range (-6dB)**	126dB / 27Hz-100Hz
Max SPL -10dB / freq. range (-6dB)	N/A
Max SPL -20dB / freq. range (-6dB)	N/A
Dispersion (HxV)	Omni
Connections	2x 8 pole speakON 3x 4 pole speakON
Weight	62kg
Size (WxHxD)	580 x 875 x 680mm
	*Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m half-space.
