Specifications
Description
- 2x 18″ bass reflex design
- Maintained low frequency performance at full power
- Stackable in omni & cardioid setup
- Integrated rigging system for use with L-series modules

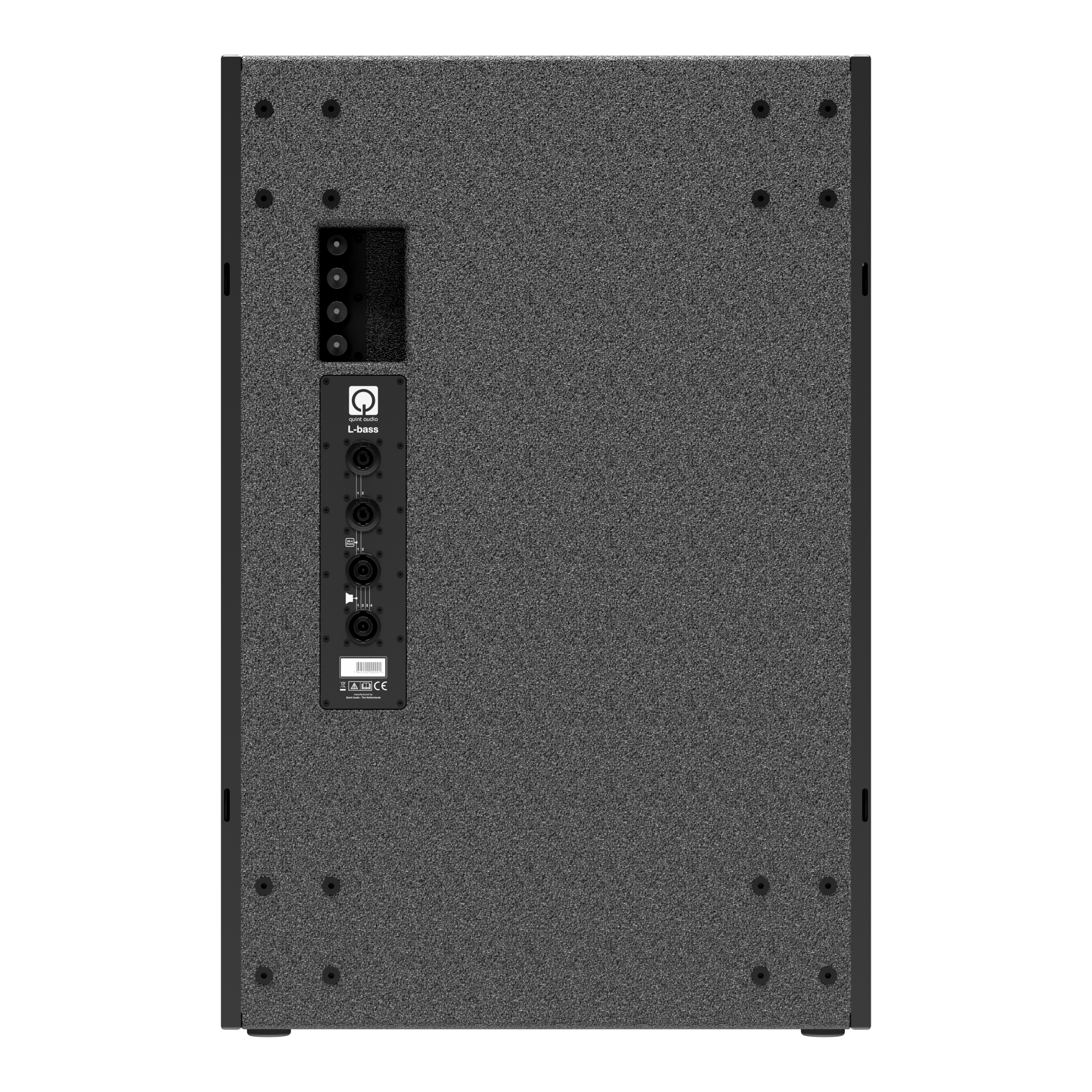

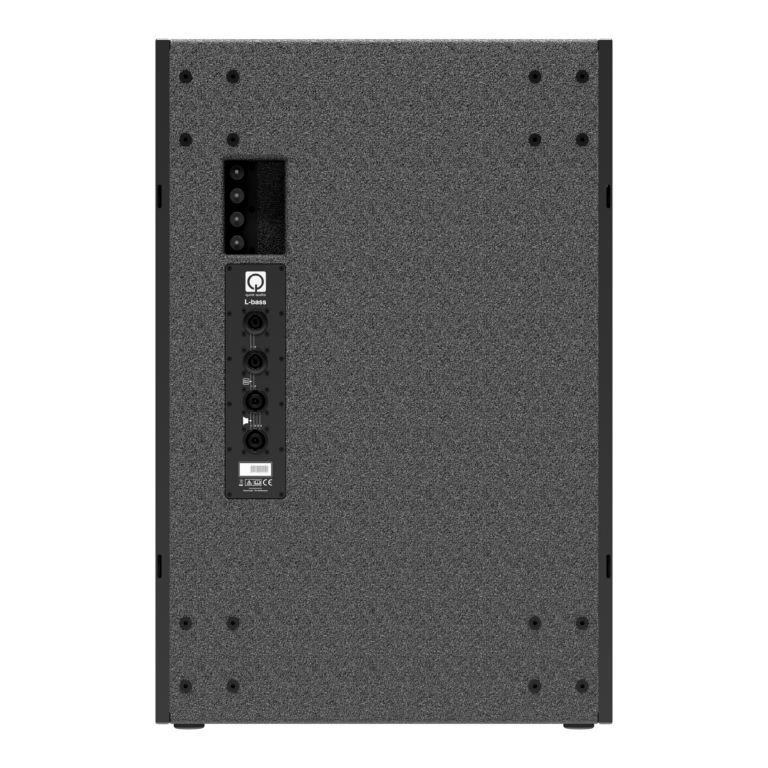

- 2x NLT4 2x NL8 on the rear, 1x NL4 on the front
- M20 pole mount on top and side

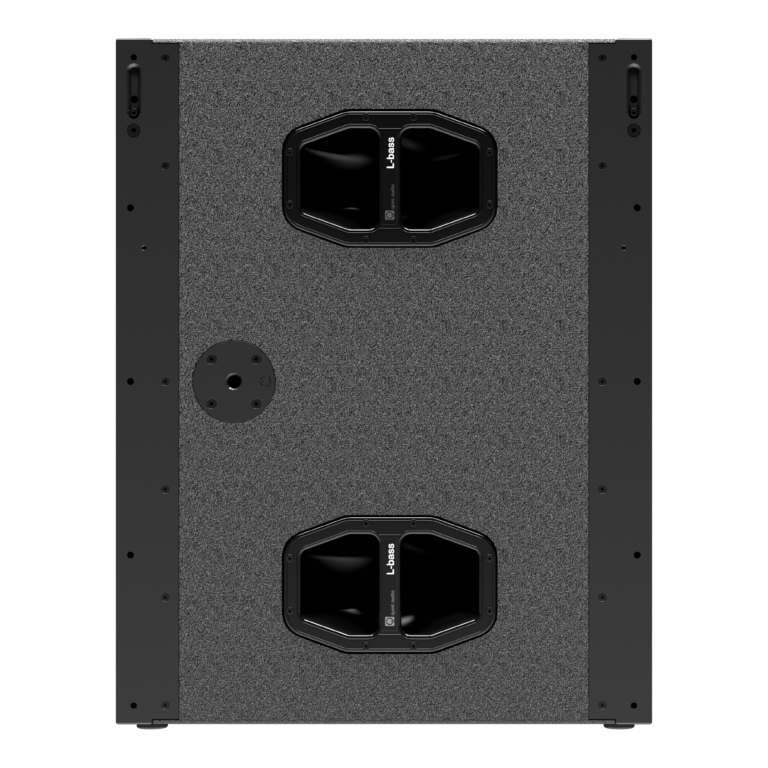

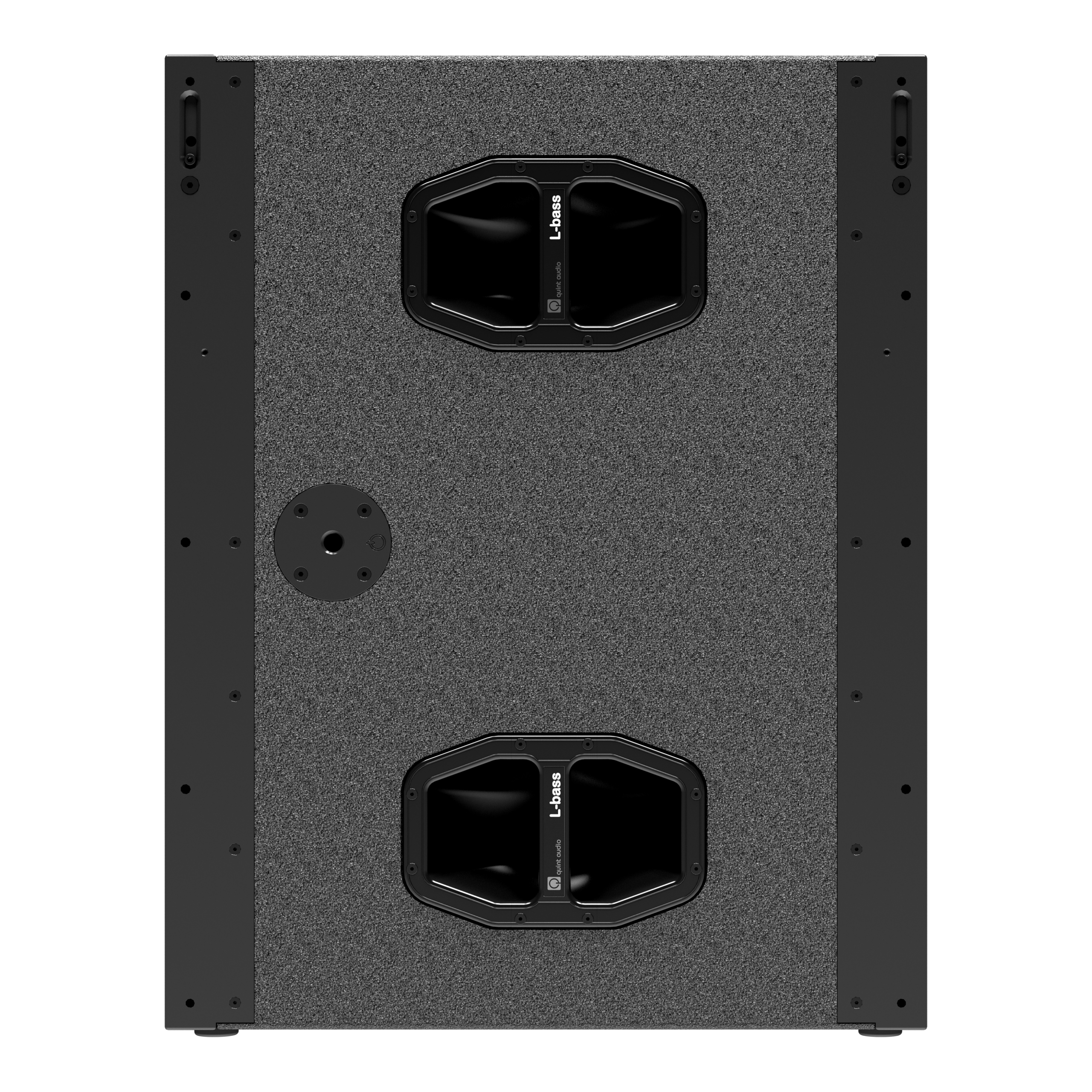

- 2x ergonomic handles, 2x on the left, 2x on the right
- Rubber feet for stability on the bottom
- Optional front lid
- Transport wheels mountable on rear (and on optional front lid)
- Truck size cabinet for efficient transportation
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
- Measurements are conform to AES75 and carried out with P9 processor and A4 amplifier. Values are scaled to 1m free field.
Application area
- Subwoofer for medium to large systems
- Cardiod setup
- Ground stacked subwoofer system
- Ground stacked & flown subwoofer system
Specifications
| Model | Lbass |
| Filter | 1-channel DSP control |
| Loudspeaker components | Dual 18" |
| Impedance | 4 Ohm |
| Peak SPL* / freq. range (-6dB) | 143.5dB / 31Hz-100Hz |
| Max SPL* / freq. range (-6dB) | 131.5dB / 31Hz-100Hz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | Omni |
| Connections | 2x 8 pole speakON 3x 4 pole speakON |
| Weight | 74kg |
| Size (WxHxD) | 580 x 875 x 680mm |
Advised electronics
Downloads
Rigging
-
Lsub-C1
Stack frame for speaker stand
-
Lsub-E1
Bass cabinet interlink
-
Lsub-K1Hardcover with wheels
