C4

4″/1″

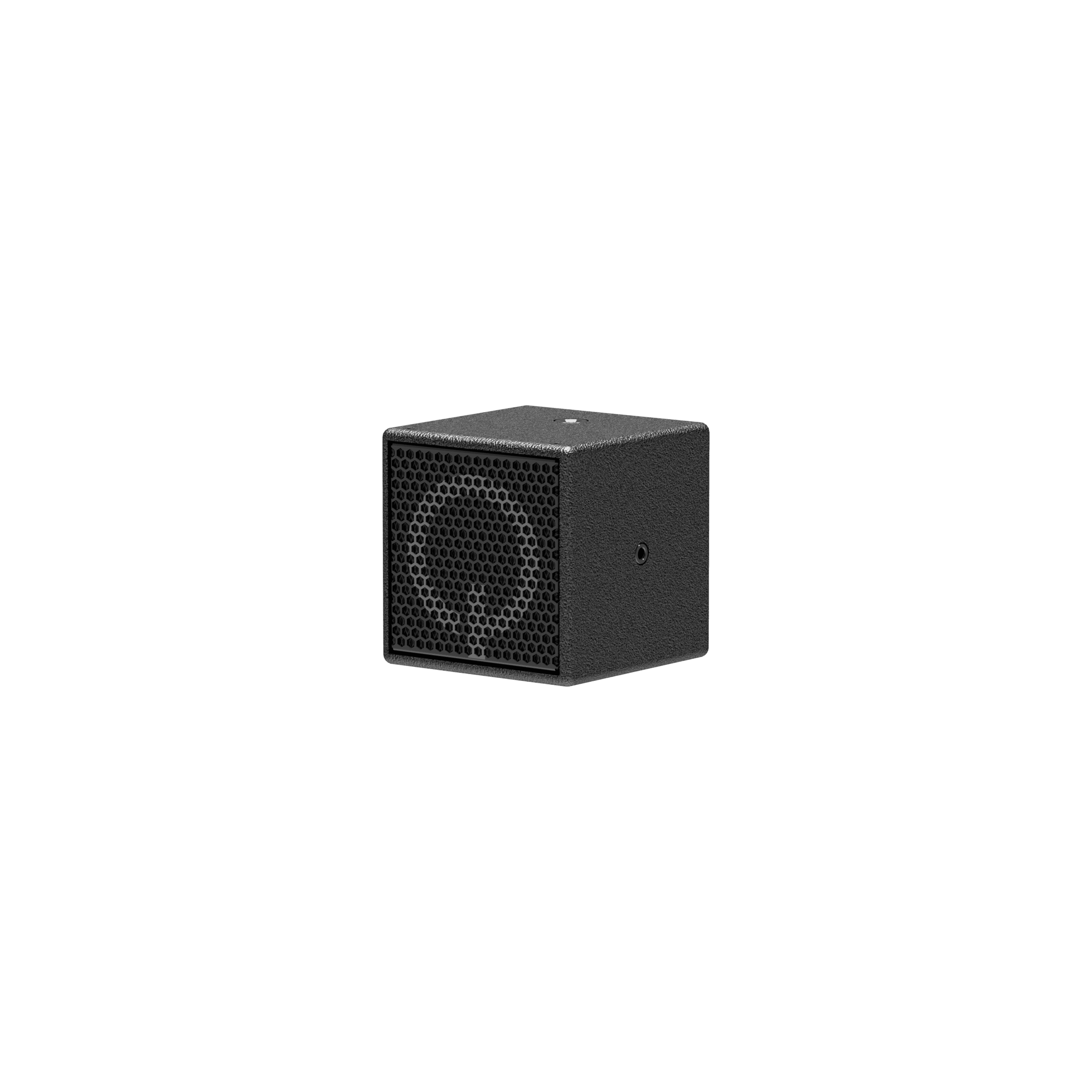

Compact point source for installation

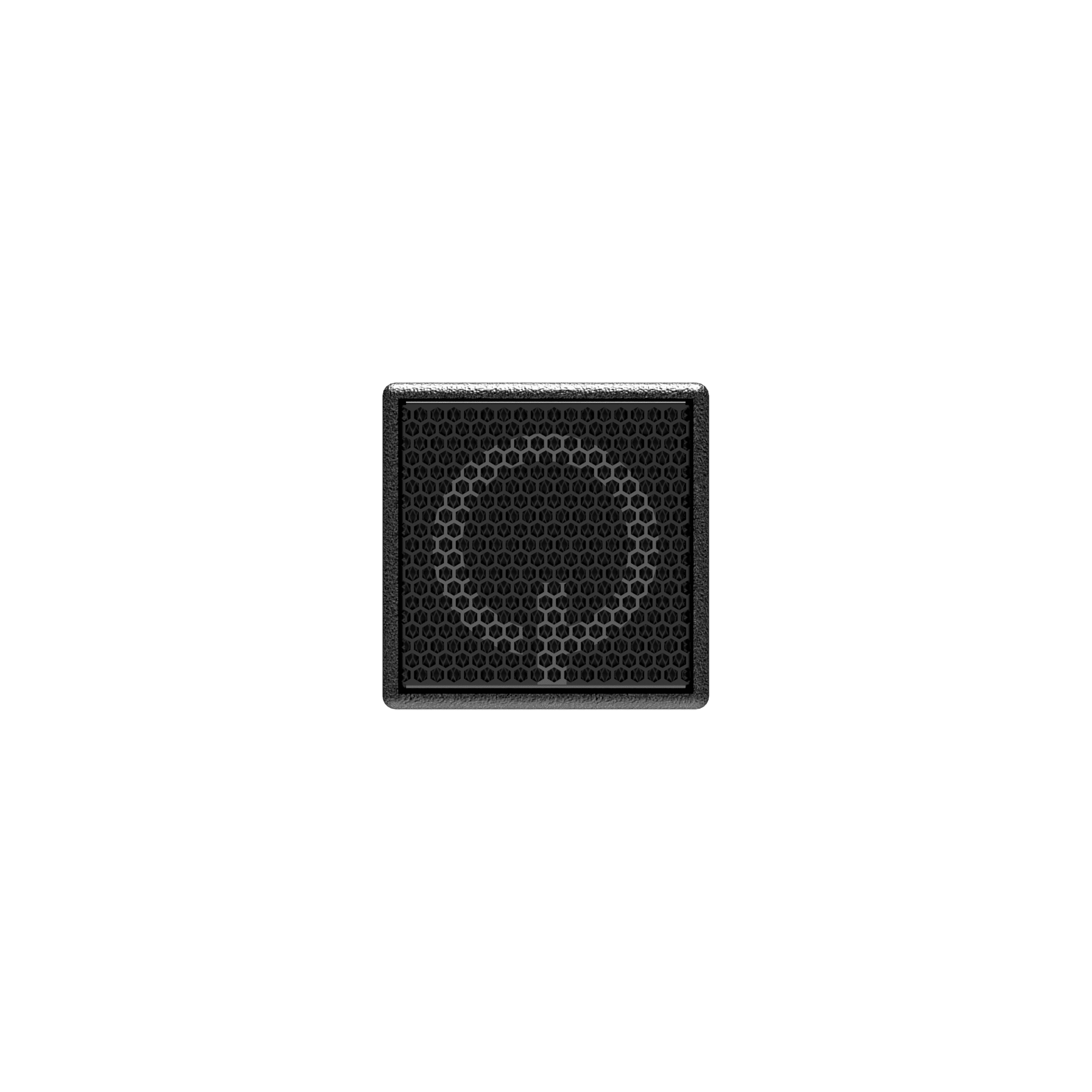

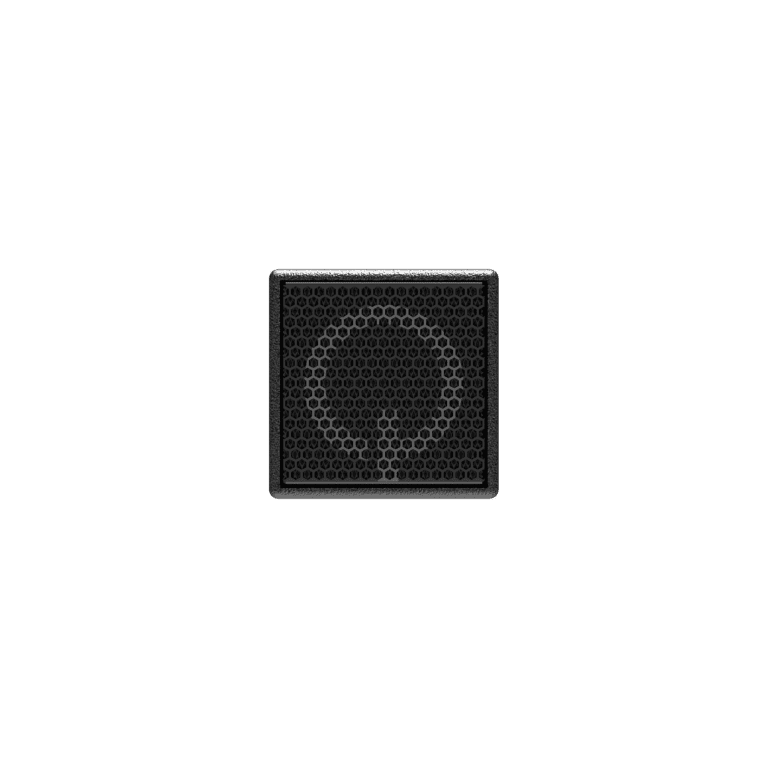

4″ closed box design combined with 1″ dome tweeter
Coaxial design
Extended low frequency response at reduced power

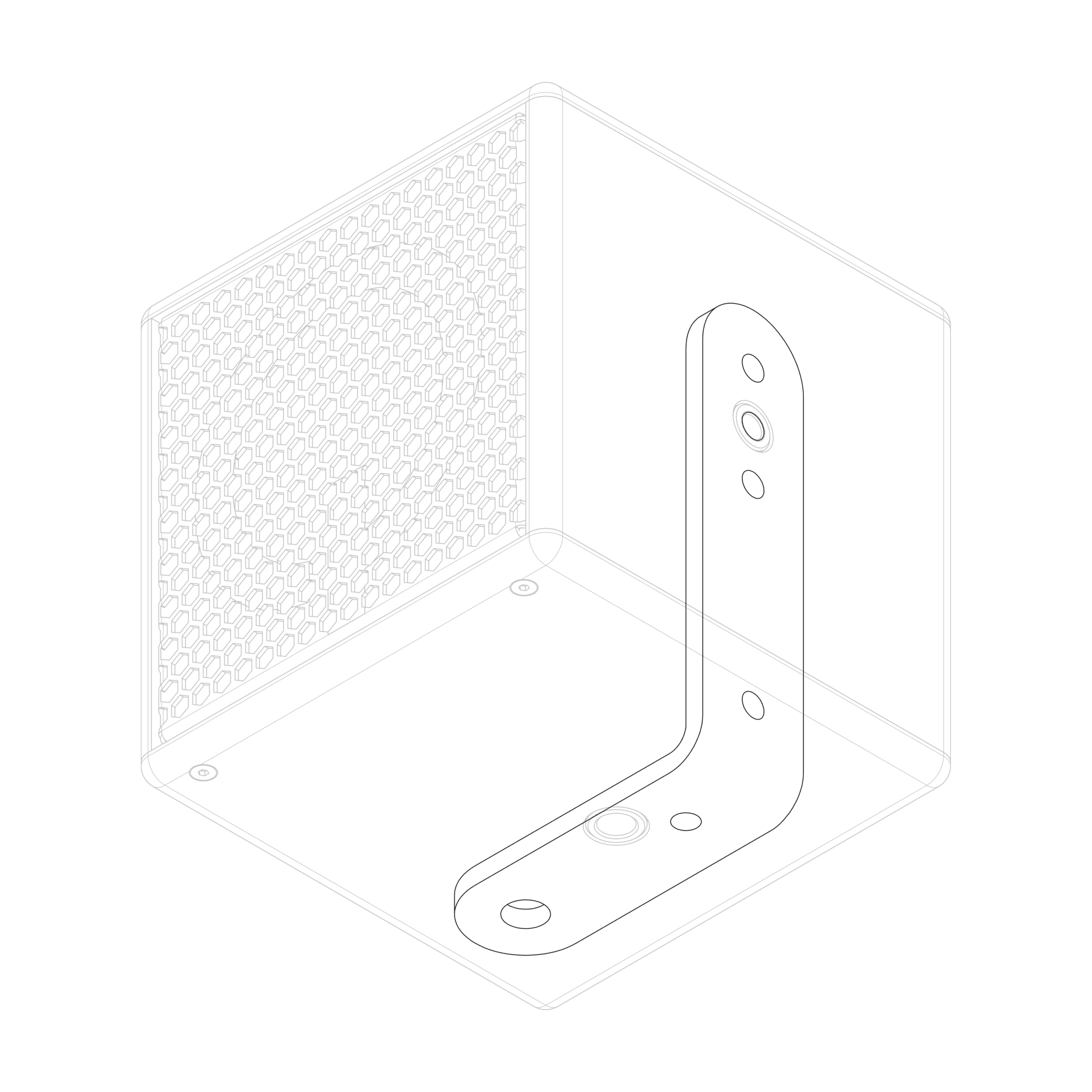

Tool free mountable L-bracket
Mounting points for fixed installation
2x NL4 on the rear

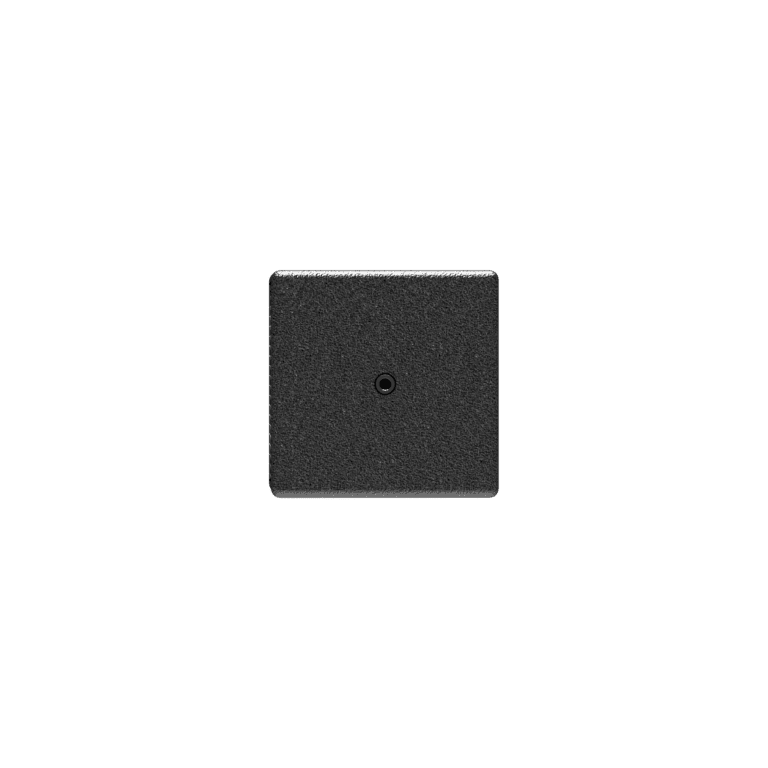

3/8″ thread on bottom, M10 thread on top, M6 threads on left and right
All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
Factory system presets available

Model	C4
Filter	1-channel DSP control
Loudspeaker components	4"/1"
Impedance	8 Ohm
*Peak SPL / freq. range (-6dB)**	113dB / 140Hz-20kHz
*Max SPL / freq. range (-6dB)**	95.5dB / 140Hz-20kHz
Max SPL -10dB / freq. range (-6dB)	85.5dB / 140Hz-20kHz
Max SPL -20dB / freq. range (-6dB)	75.5dB / 55Hz-20kHz
Dispersion (HxV)	100° conical
Connections	2x 4 pole speakON
Weight	2kg
Size (WxHxD)	125 x 125 x 125mm
	*Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field.
