C30
4×15″/4″/2.5″
Active noise cancelling high performance point source for installation
Specifications
Description
- 4x 15″ bass reflex design combined with 4″/2.5″ coaxial compression driver
- Symmetrical design
- Maintained low frequency performance at full power
- noise suppression outside the sound field
- Mounting points for fixed installation

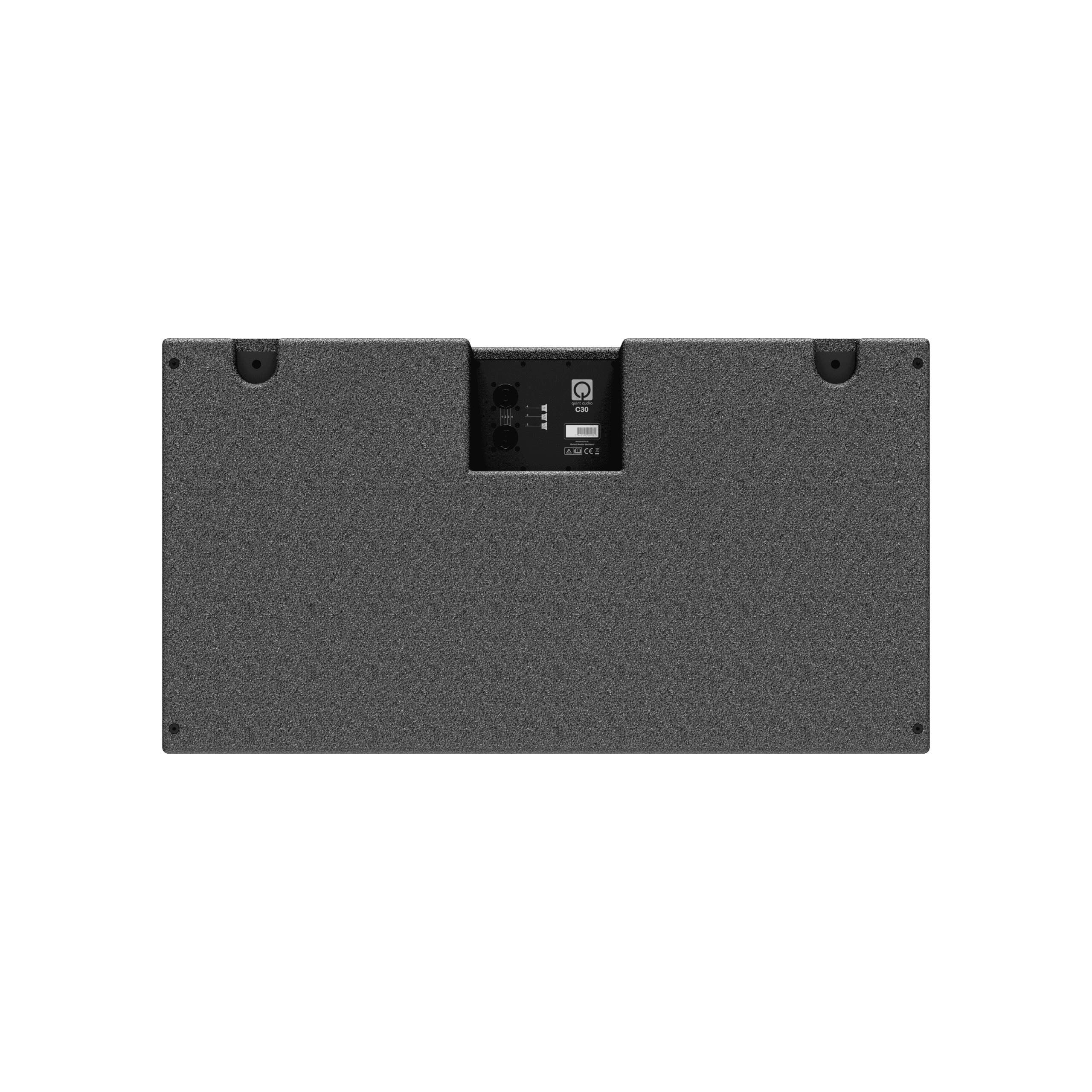

- 2x NLT4 on the rear
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
Application area
- Stand alone full range loudspeaker
- medium to long throw applications
- PA
- monitoring
- live music
- mechanical music
- vocals
- speech
Specifications
| Model | C30 |
| Filter | 3-channel DSP control |
| Loudspeaker components | 4x15"/4"/2.5" |
| Impedance | 4 Ohm |
| Peak SPL* / freq. range (-6dB) | 145dB / 43Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 130.5dB / 43Hz-20kHz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | 70° x 40° |
| Connections | 2x 8-pole speakON |
| Weight | 86kg |
| Size (WxHxD) | 900 x 490 x 830mm |
| *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field. |
