Specifications
Description
- 15″ bass reflex design combined with 4″/2.5″ coaxial compression driver
- Maintained low frequency performance at full power
- Mounting points for fixed installation

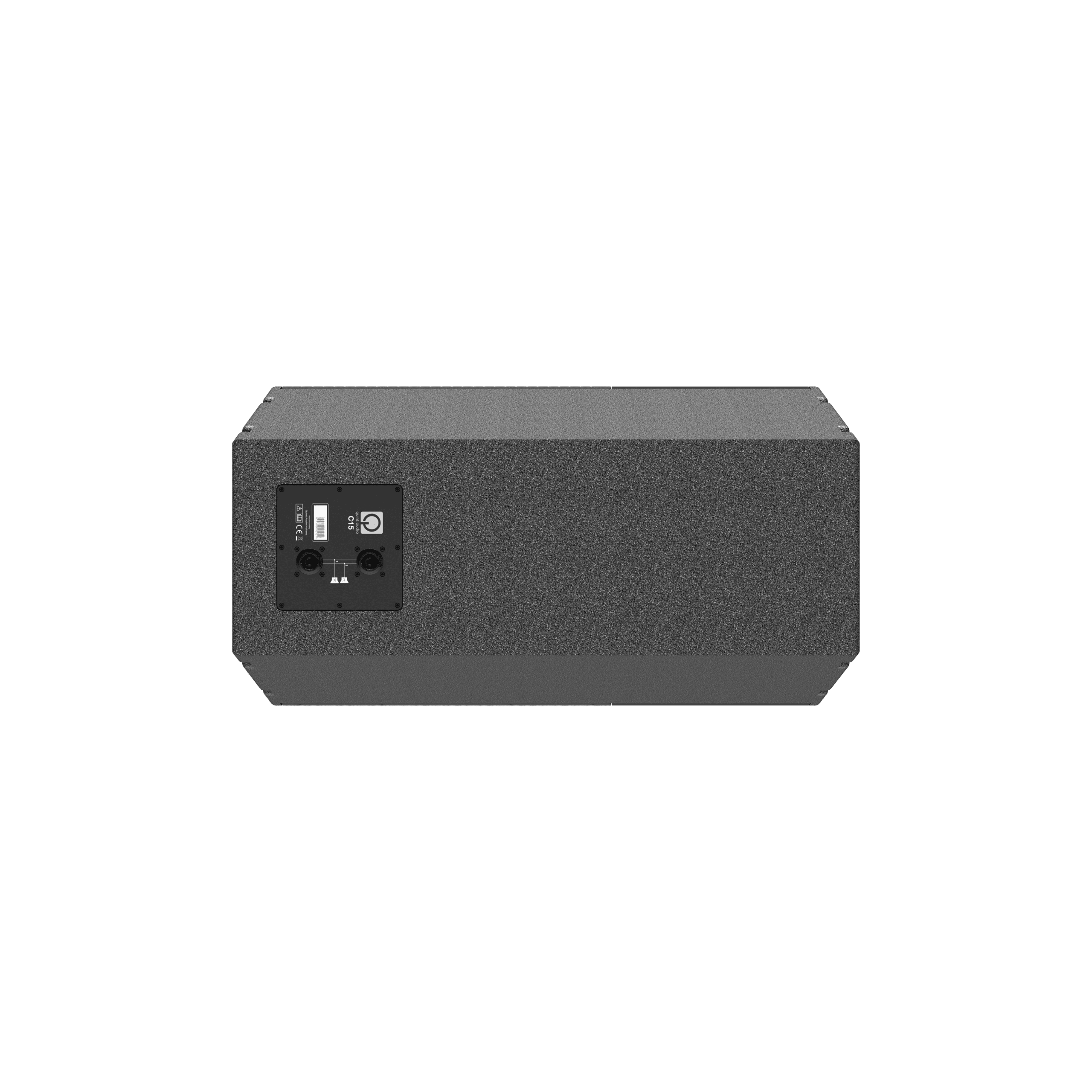

- 2x NLT4 on the rear
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
Application area
- Stand alone full range loudspeaker
- medium to long throw applications
- PA
- monitoring
- live music
- mechanical music
- vocals
- speech
Specifications
| Model | C15 |
| Filter | 2-channel DSP control |
| Loudspeaker components | 15"/4"/2.5" |
| Impedance | 8 Ohm |
| Peak SPL* / freq. range (-6dB) | 138dB / 33Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 120dB / 33Hz-20kHz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | 90° x 20° |
| Connections | 2x 4 pole speakON |
| Weight | 39kg |
| Size (WxHxD) | 730 x 425 x 515mm |
| *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field. |
Advised electronics
Downloads
Rigging
-
C15-C1Mohawk bracket
-

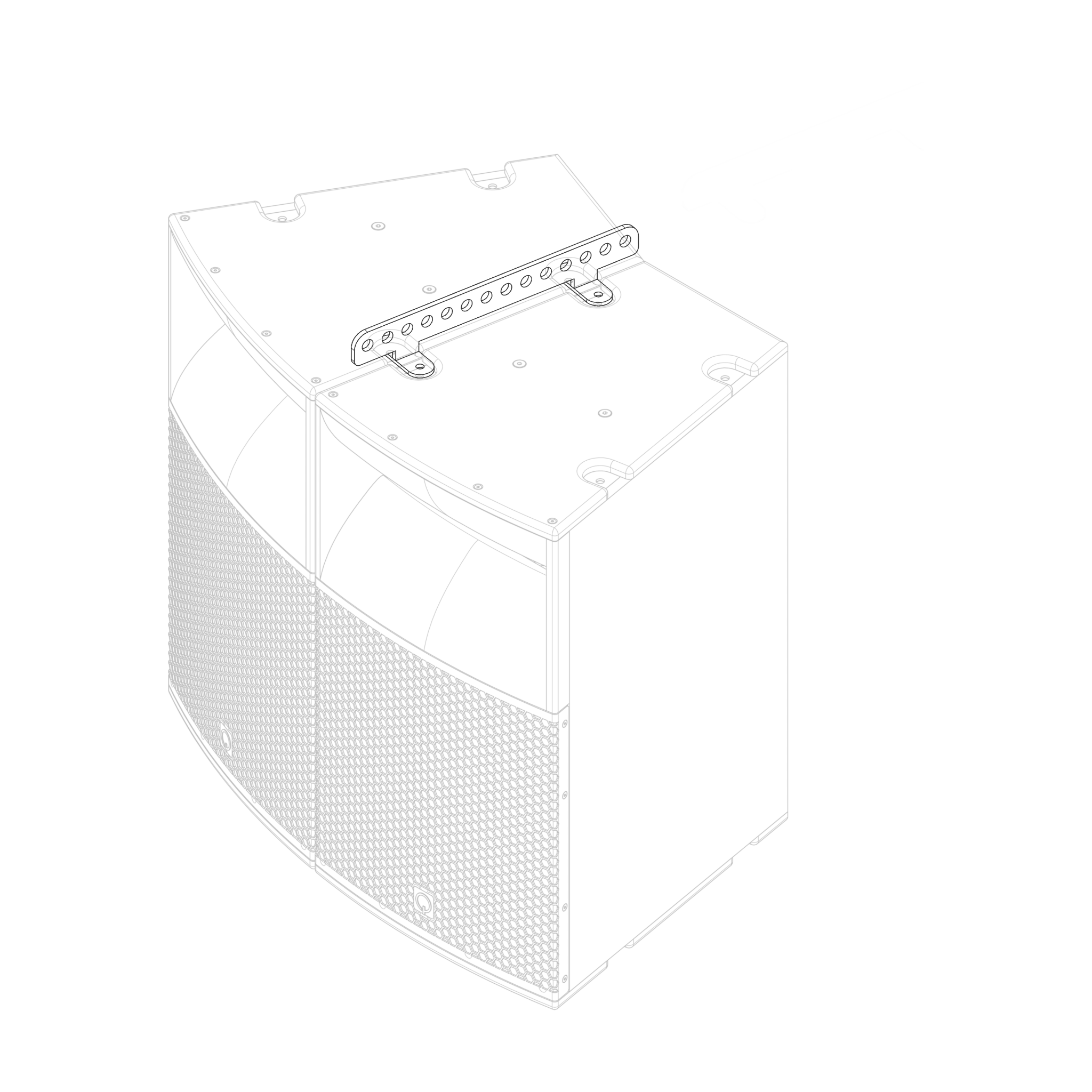

C15-C2Interconnecting mohawk bracket
-

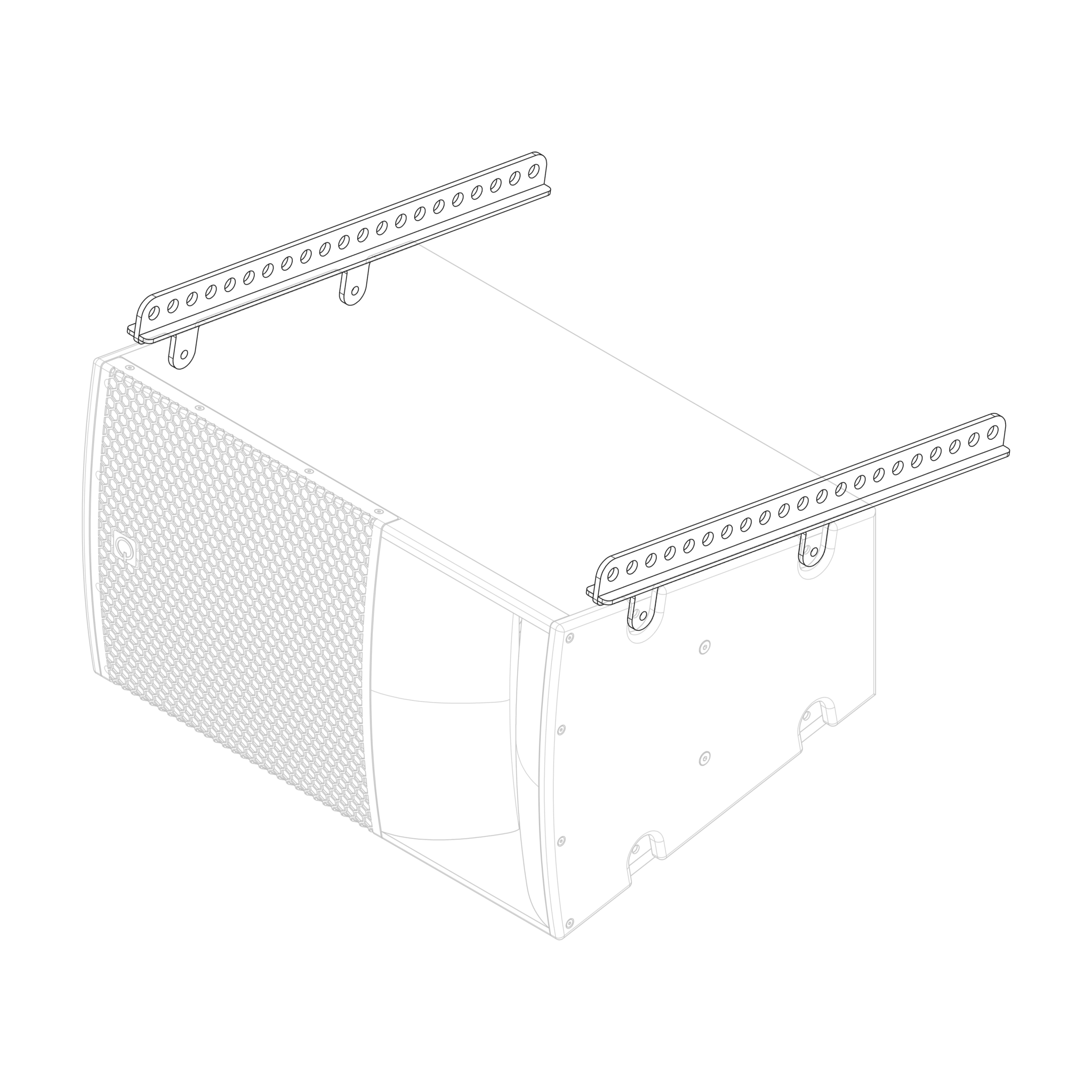

C15-C3Extended mohawk bracket
-

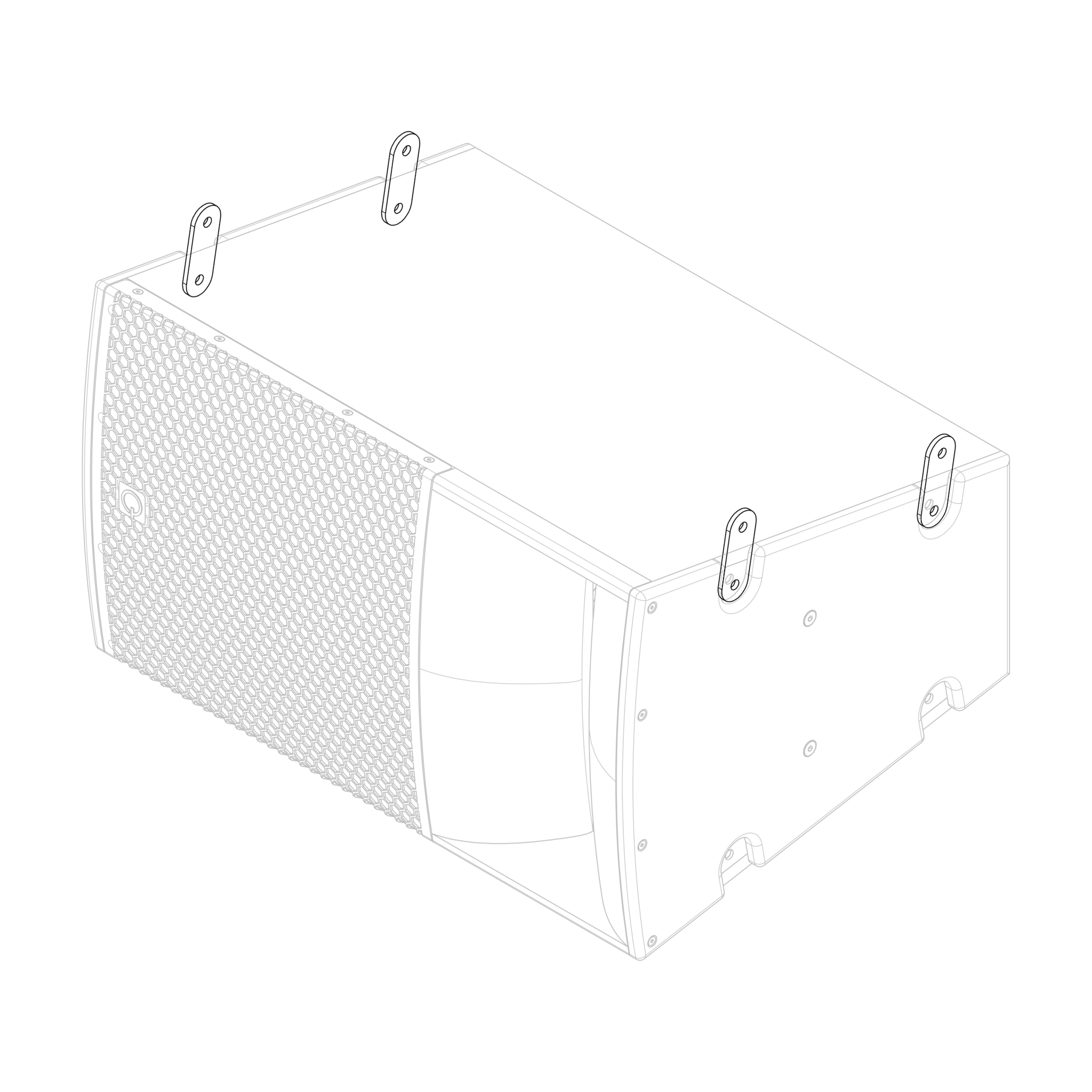

C15-E1Straight interconnecting part
-
C15-E2Hooked mounting part
-
C15-H1Horizontal mounting bracket
