Specifications
Description
- 15″ bass reflex design combined with 4″/2.5″ coaxial compression driver
- Maintained low frequency performance at full power
- Mounting points for fixed installation

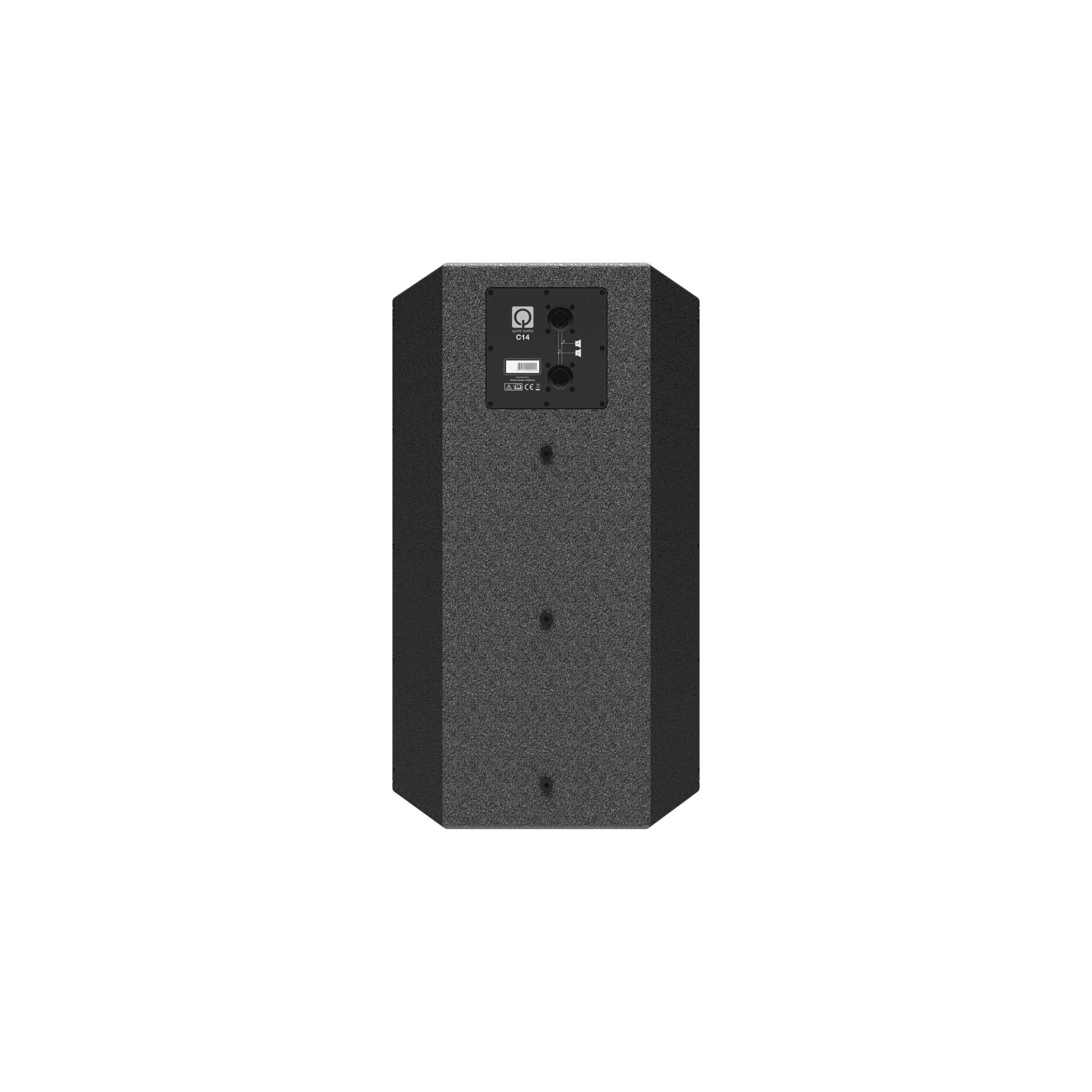

- 2x NLT4 on the rear
- M10 Thread for pole adapter
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
Application area
- Stand alone full range loudspeaker
- medium throw applications
- infill
- monitoring
- live music
- mechanical music
- vocals
- speech
Specifications
| Model | C14 |
| Filter | 2-channel DSP control |
| Loudspeaker components | 15"/4"/2.5" |
| Impedance | 8 Ohm |
| Peak SPL* / freq. range (-6dB) | 138dB / 33Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 120dB / 33Hz-20kHz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | 70° x 40° |
| Connections | 2x 4 pole speakON |
| Weight | 31kg |
| Size (WxHxD) | 425 x 685 x 515mm |
| *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field. |
Advised electronics
Downloads
Rigging
-

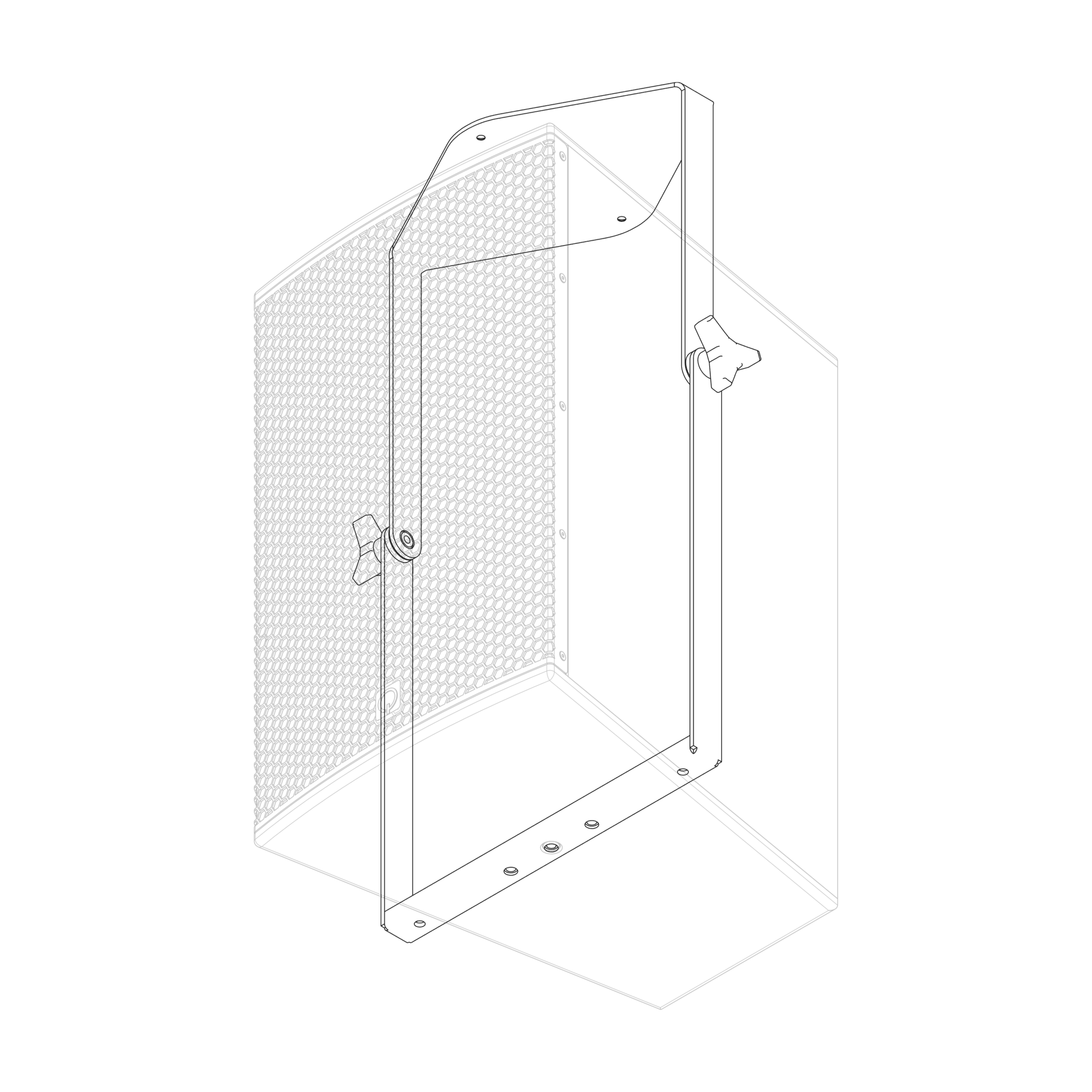

C14-V1Bracket for vertical mounting
-

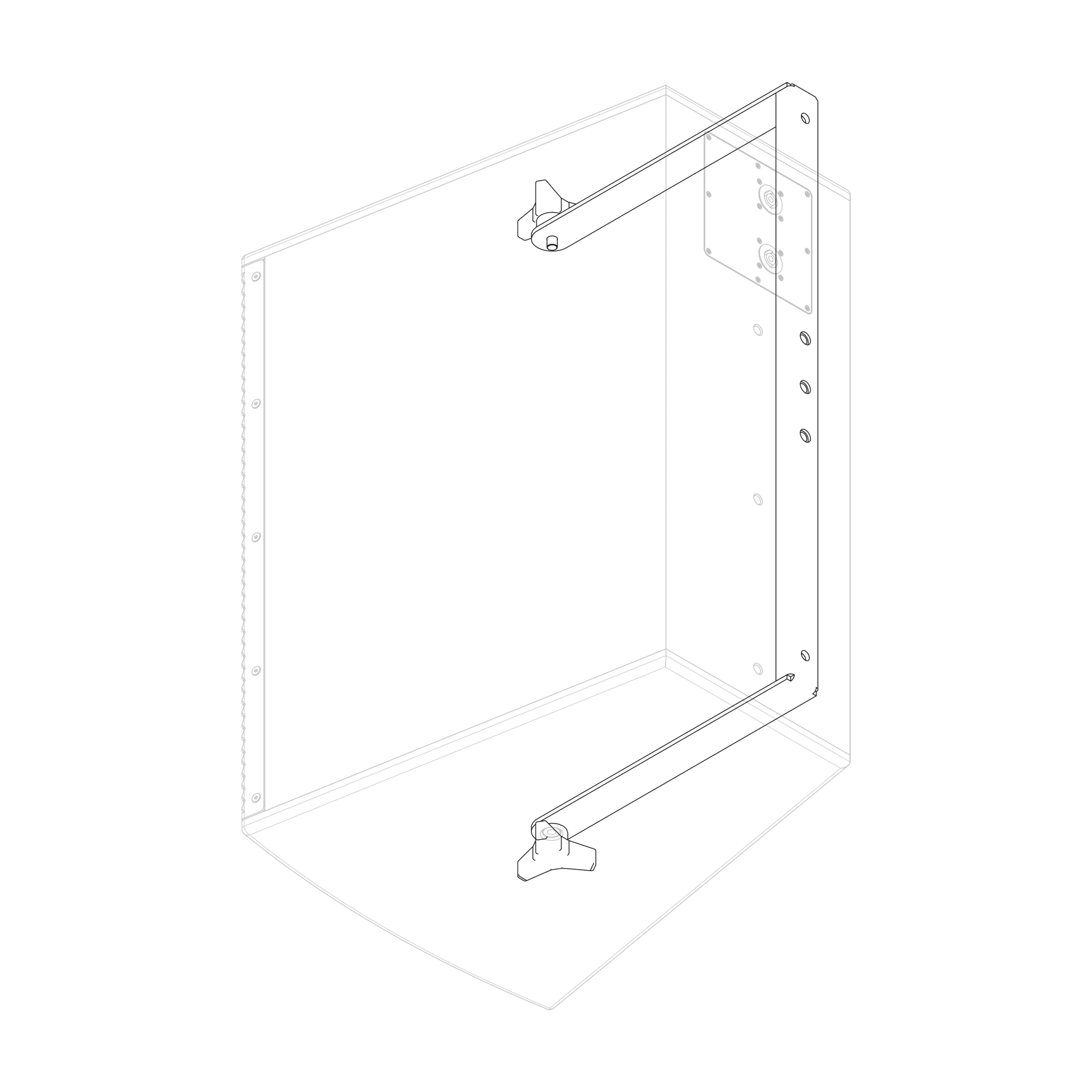

C14-H1Bracket for horizontal mounting
-
C14-B1Backbone for wall mounting
