Specifications
Description
- 18″ bass reflex design
- Maintained low frequency performance at full power
- Stackable in omni & cardioid setup
- Mounting points for fixed installation

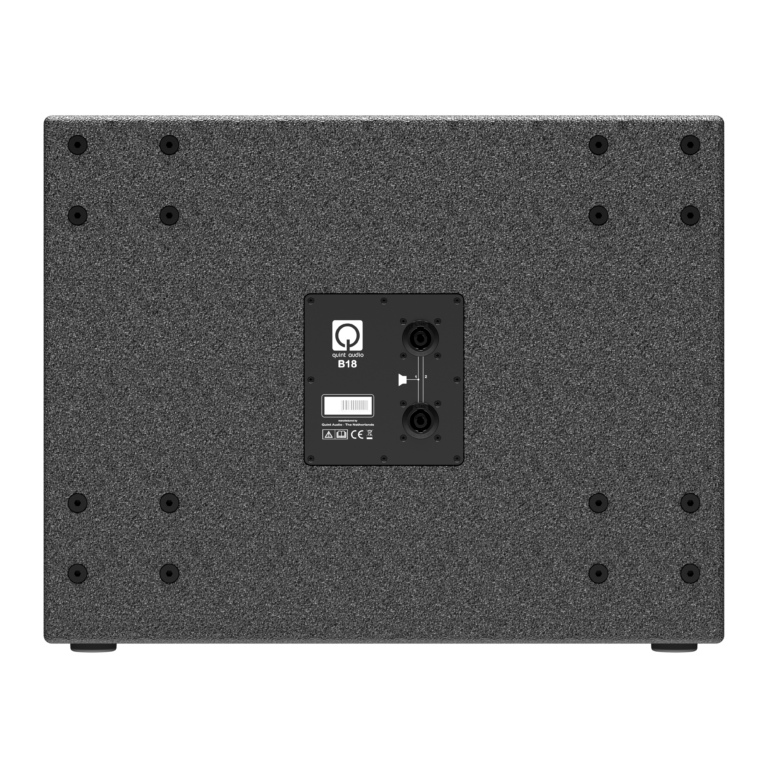

- 2x NLT4 on the rear, 1x NL4 on the front
- M20 pole mount on top
- 2x ergonomic handles, 1x on the left, 1x on the right
- Rubber feet for stability on the bottom
- Optional front lid
- Transport wheels mountable on rear and on optional front lid
- Truck size cabinet for efficient transportation
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
Application area
- Subwoofer for compact to big systems
- Cardiod setup
- Ground stacked subwoofer system
- Horizontal subwoofer array
Specifications
| Model | B18 |
| Filter | 1-channel DSP control |
| Loudspeaker components | 18" |
| Impedance | 8 Ohm |
| Peak SPL* / freq. range (-6dB) | 137.5dB / 31Hz-100Hz |
| Max SPL* / freq. range (-6dB) | 125.5dB / 31Hz-100Hz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | Omni |
| Connections | 3x 4 pole speakON |
| Weight | 39kg |
| Size (WxHxD) | 580 x 455 x 680mm |
| *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m half-space. |
