Specifications
Description
- 15″/12″ bass reflex design
- Maintained low frequency performance at full power
- noise suppression outside the sound field
- Stackable in omni & cardioid setup
- Mounting points for fixed installation

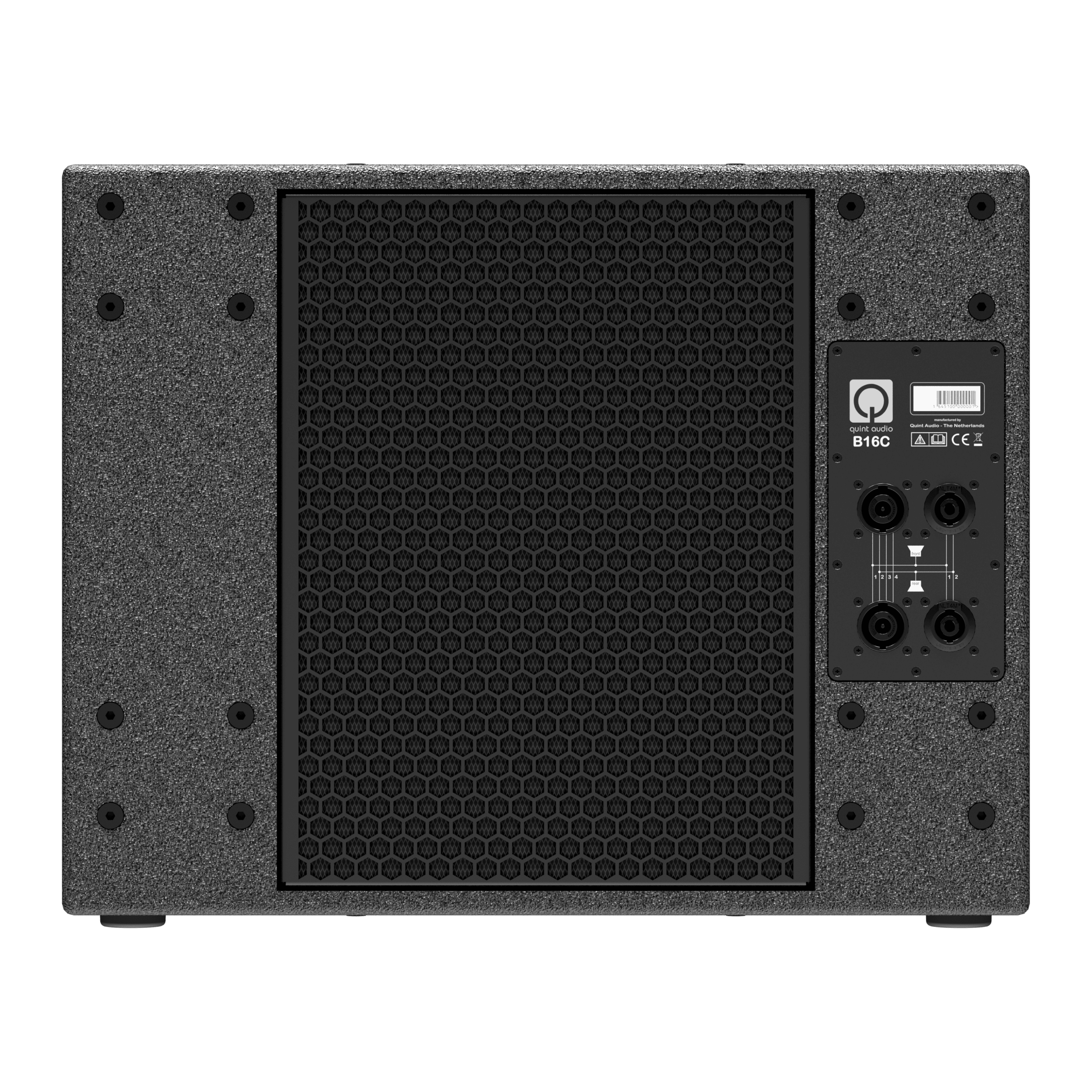

- 2x NLT4 2x NL8 on the rear
- M20 pole mount on top

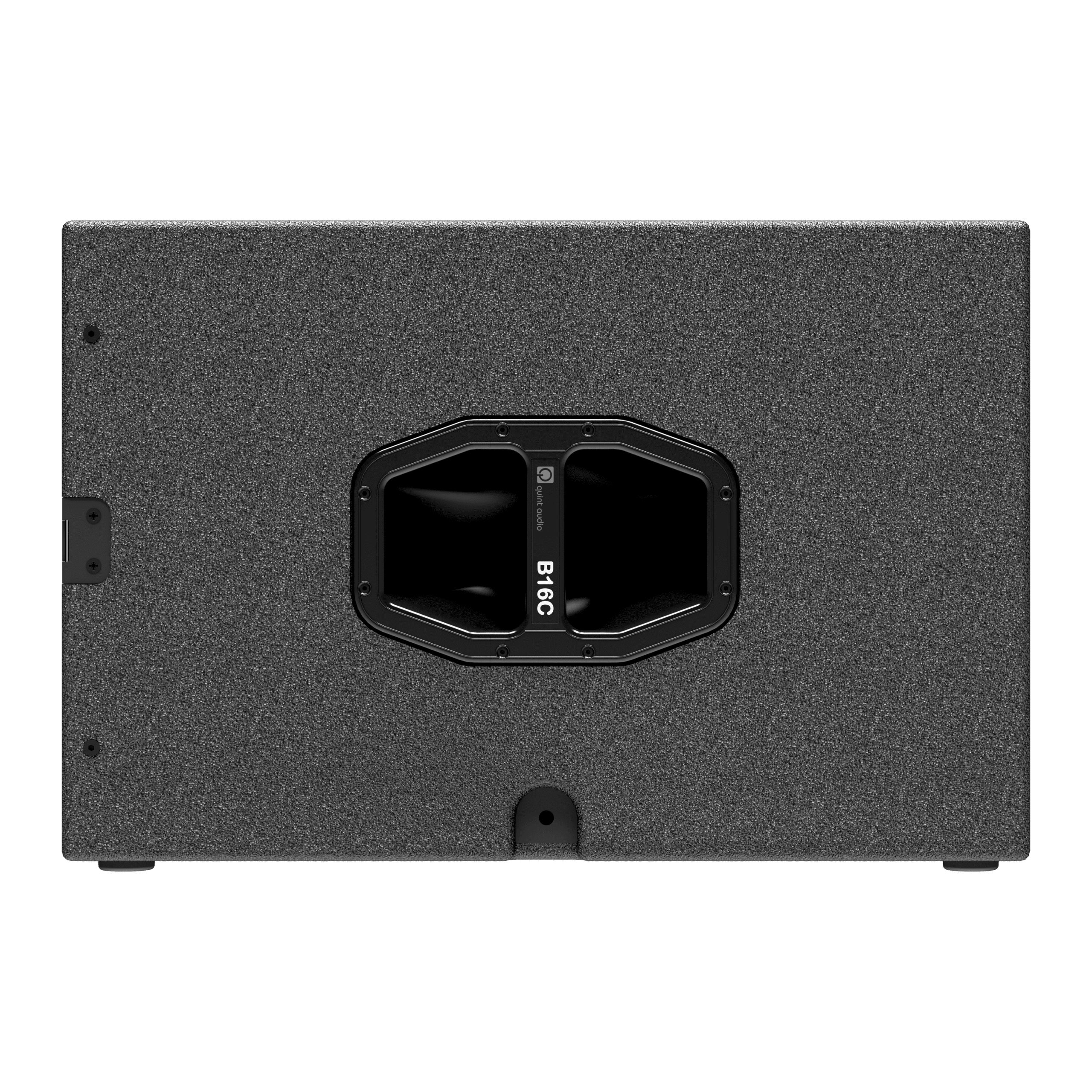

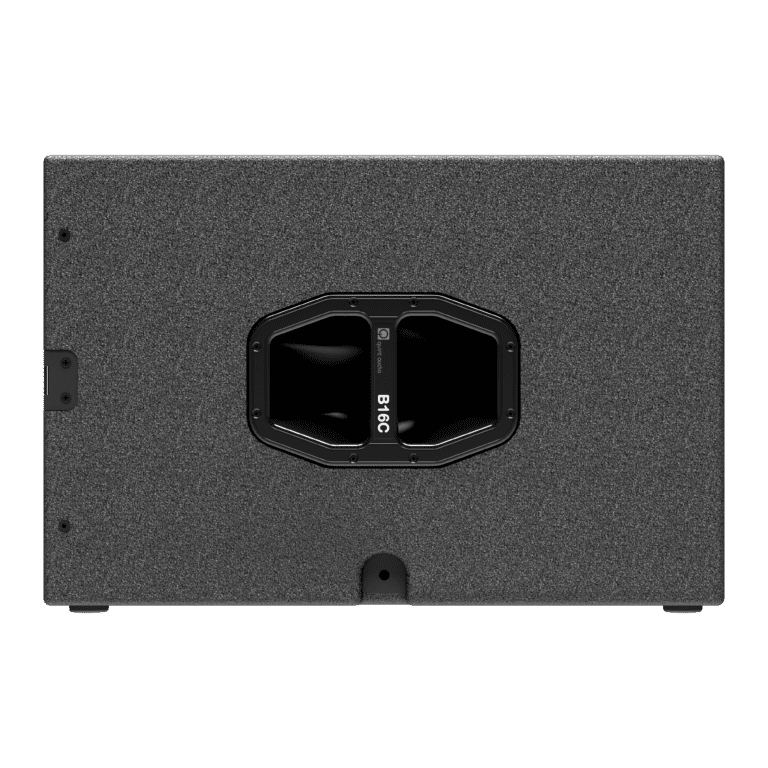

- 2x ergonomic handles, 1x on the left, 1x on the right
- Rubber feet for stability on the bottom
- Optional front lid
- Transport wheels mountable on rear and on optional front lid
- Truck size cabinet for efficient transportation
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
Application area
- Subwoofer for compact to big systems
- Cardiod applications
- Ground stacked subwoofer system
- subwoofer arrays
Specifications
| Model | B16 |
| Filter | 2-channel DSP control |
| Loudspeaker components | 15"/12" |
| Impedance | 4 Ohm |
| Peak SPL* / freq. range (-6dB) | 137dB / 33Hz-100Hz |
| Max SPL* / freq. range (-6dB) | 125dB / 33Hz-100Hz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | Omni |
| Connections | 2x 8 pole speakON 2x 4 pole speakON |
| Weight | 44kg |
| Size (WxHxD) | 580 x 455 x 680mm |
| *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m half-space. |
