Specifications
Description

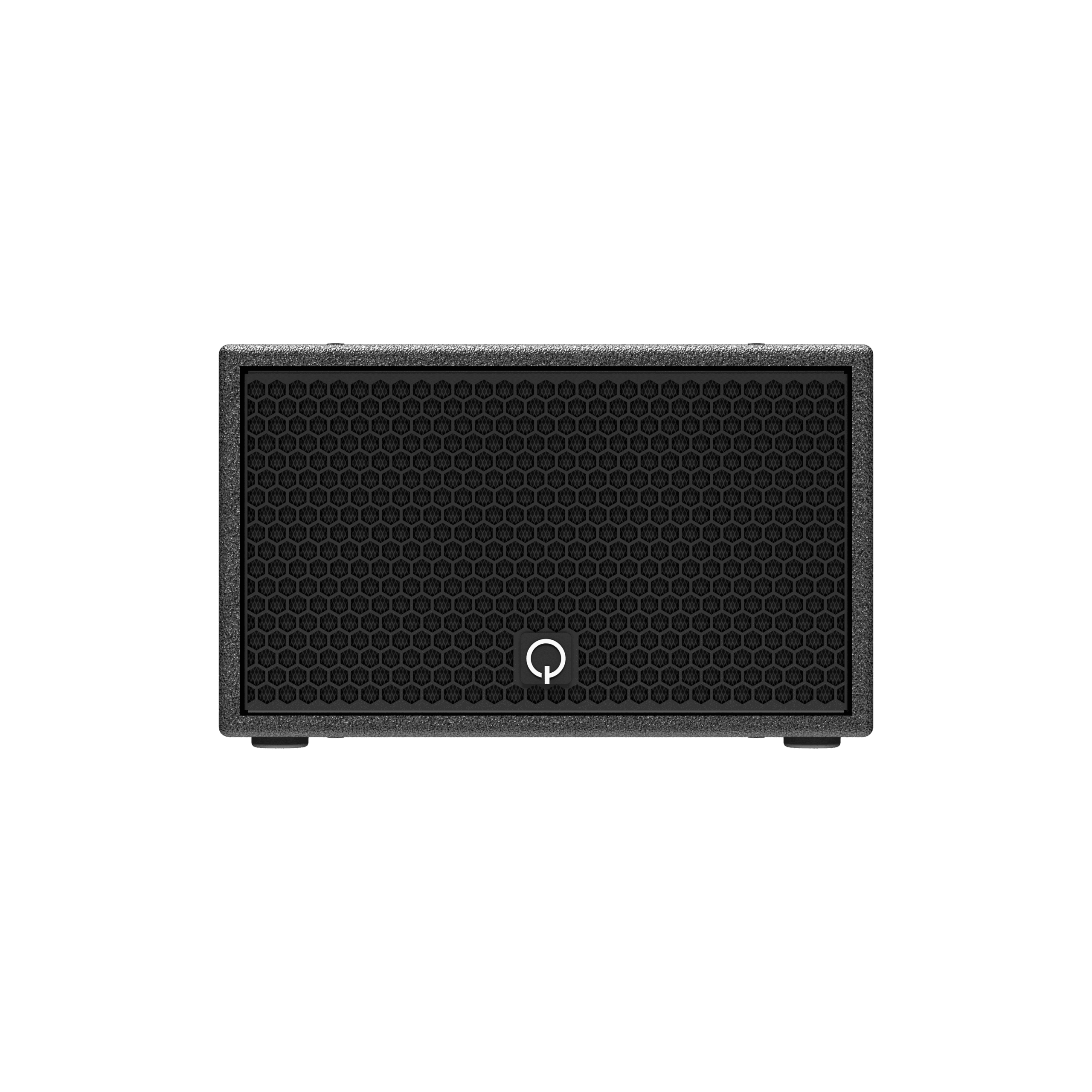

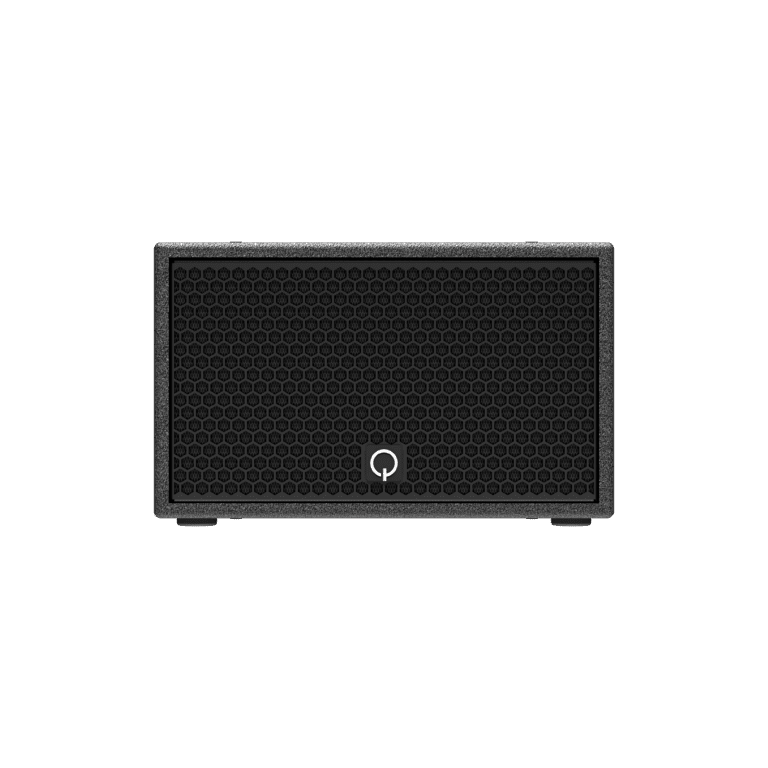

- 10″ bass reflex design
- Maintained low frequency performance at full power
- Stackable in omni & cardioid setup
- Mounting points for fixed installation

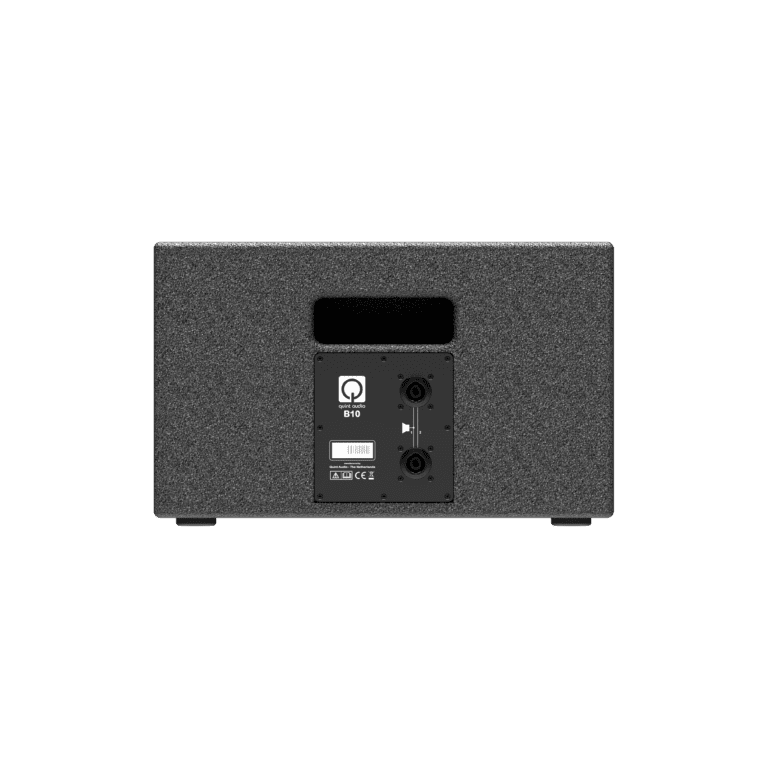

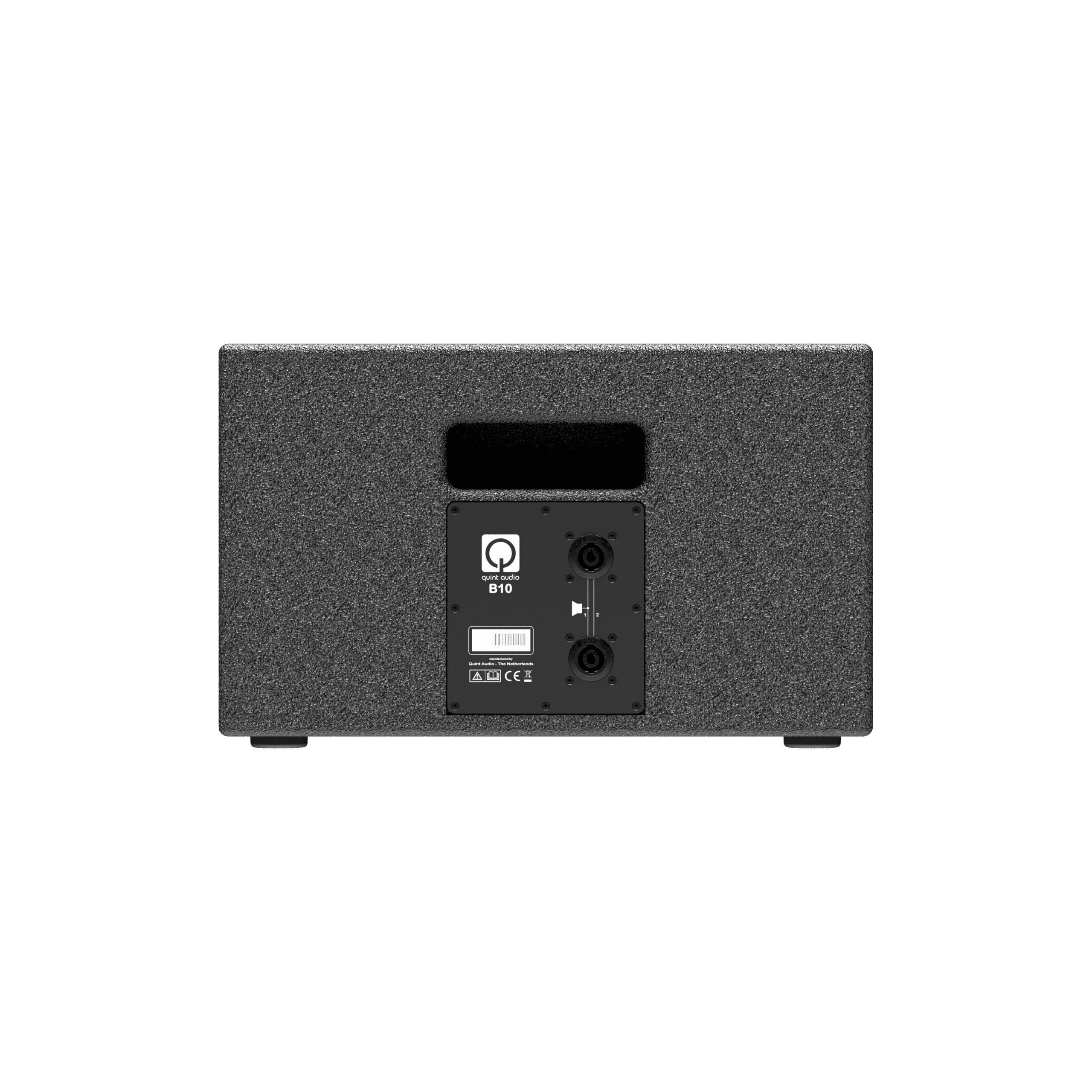

- 2x NLT4 on the rear

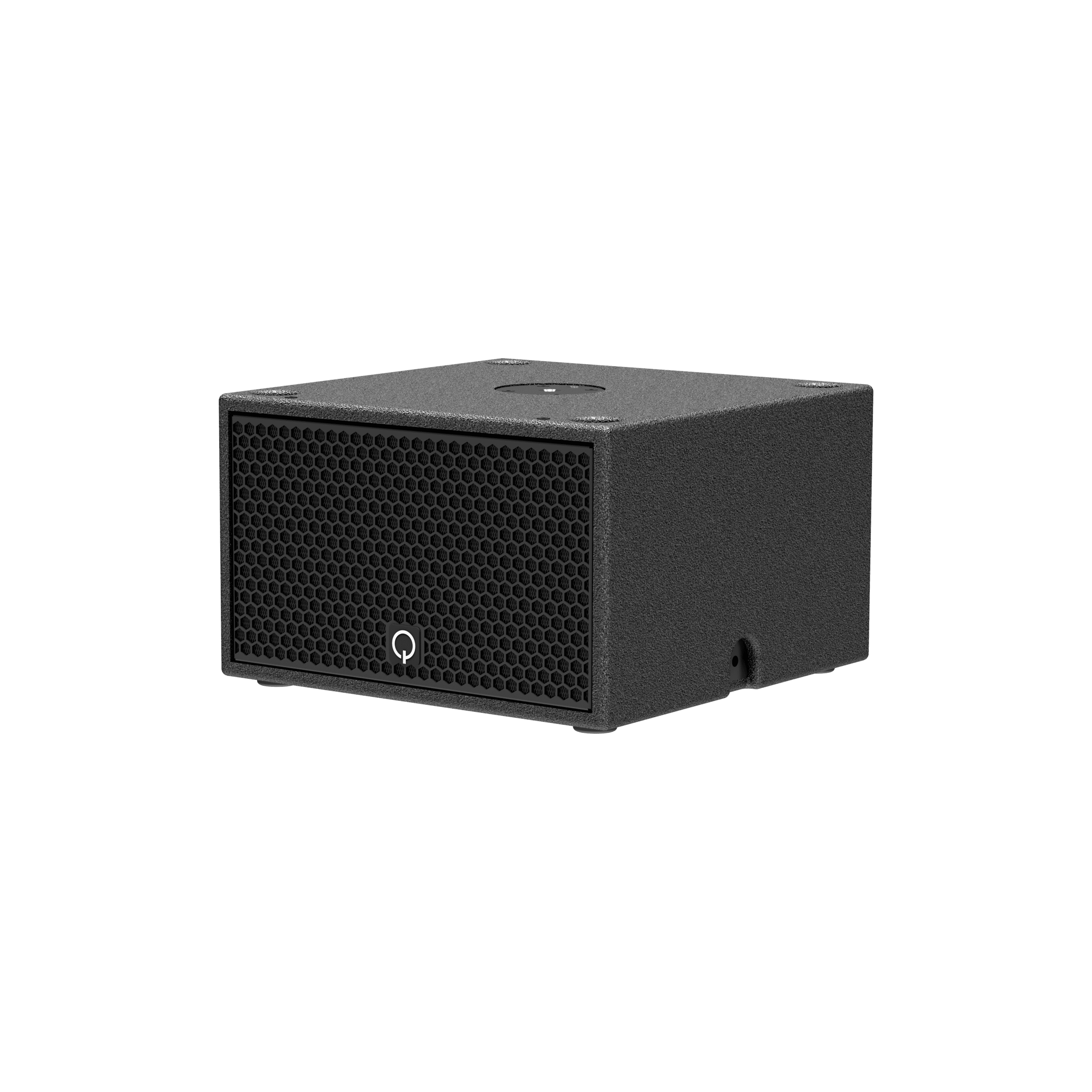

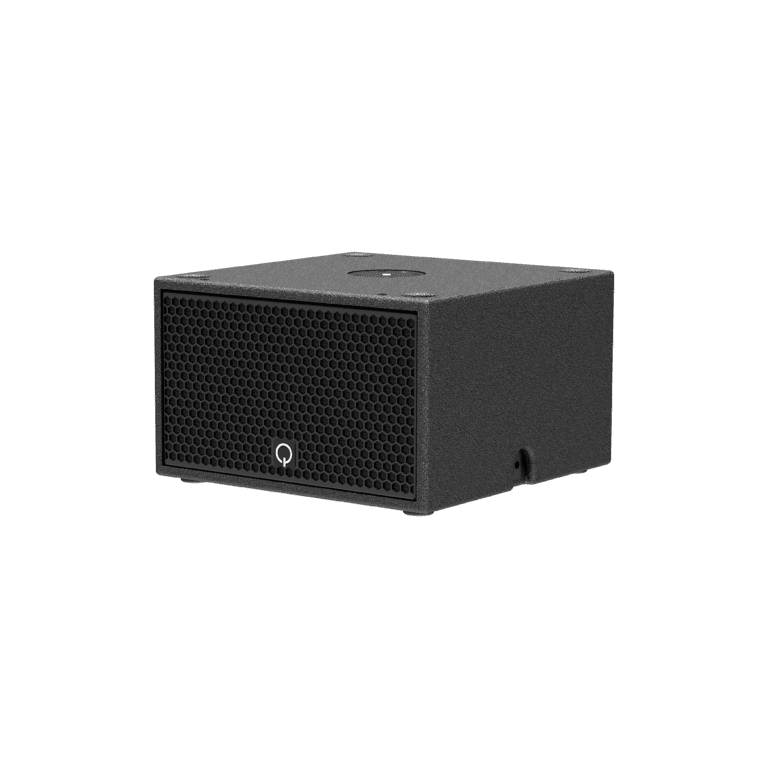

- M20 pole mount on top

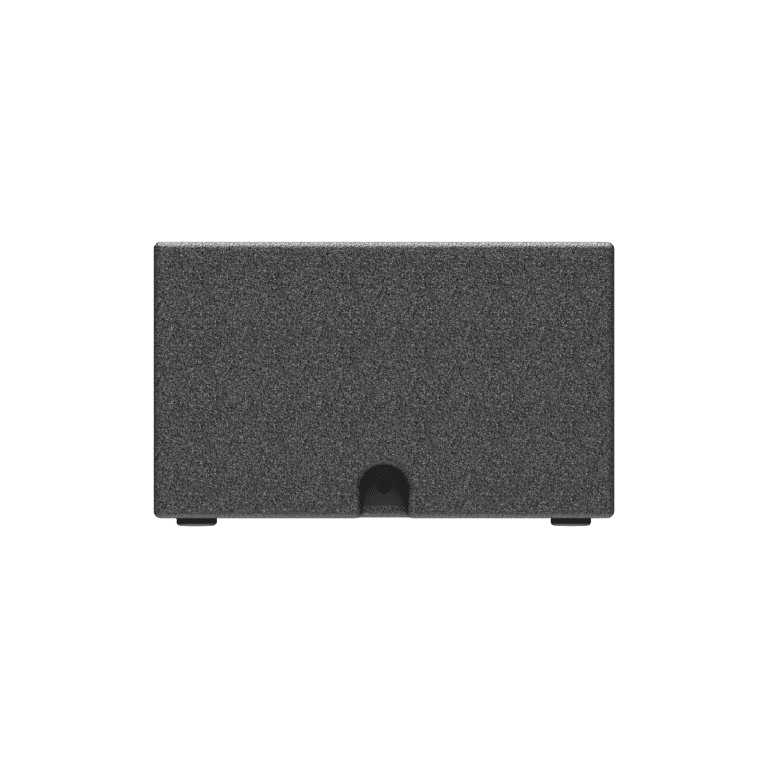

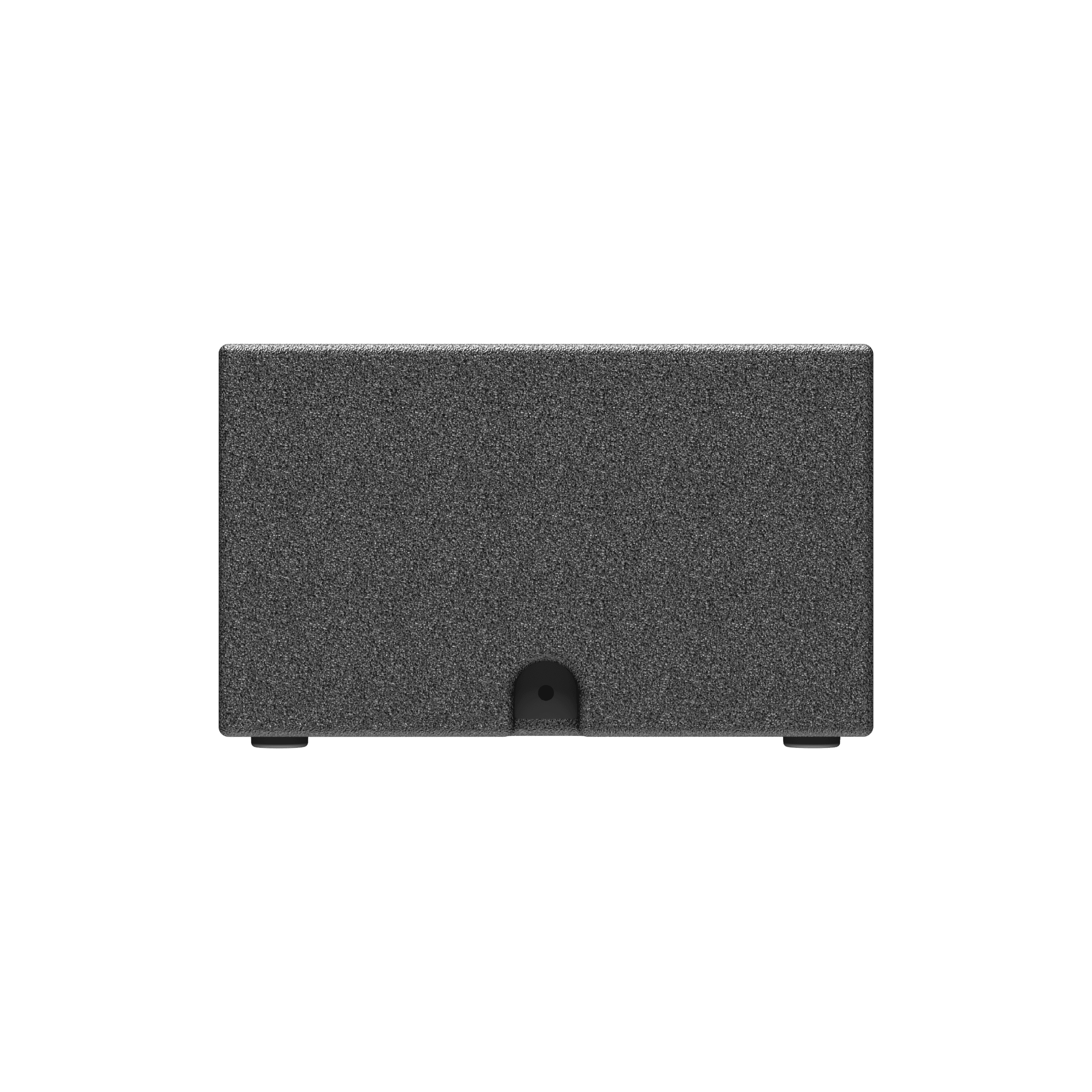

- 2x ergonomic handles, 1x on the left, 1x on the right
- Rubber feet for stability on the bottom
- Optional front lid
- Transport wheels mountable on rear and on optional front lid
- Truck size cabinet for efficient transportation
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
Application area
- Subwoofer for compact systems
- Cardiod setup
- Ground stacked subwoofer system
- subwoofer arrays
Specifications
| Model | B10 |
| Filter | 1-channel DSP control |
| Loudspeaker components | 10" |
| Impedance | 4 Ohm |
| Peak SPL* / freq. range (-6dB) | 122.5dB / 33Hz-100Hz |
| Max SPL* / freq. range (-6dB) | 111dB / 33Hz-100Hz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | Omni |
| Connections | 2x 4 pole speakON |
| Weight | 17kg |
| Size (WxHxD) | 450 x 275 x 450mm |
| *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m half-space. |
